Power Seat Systems Component Views

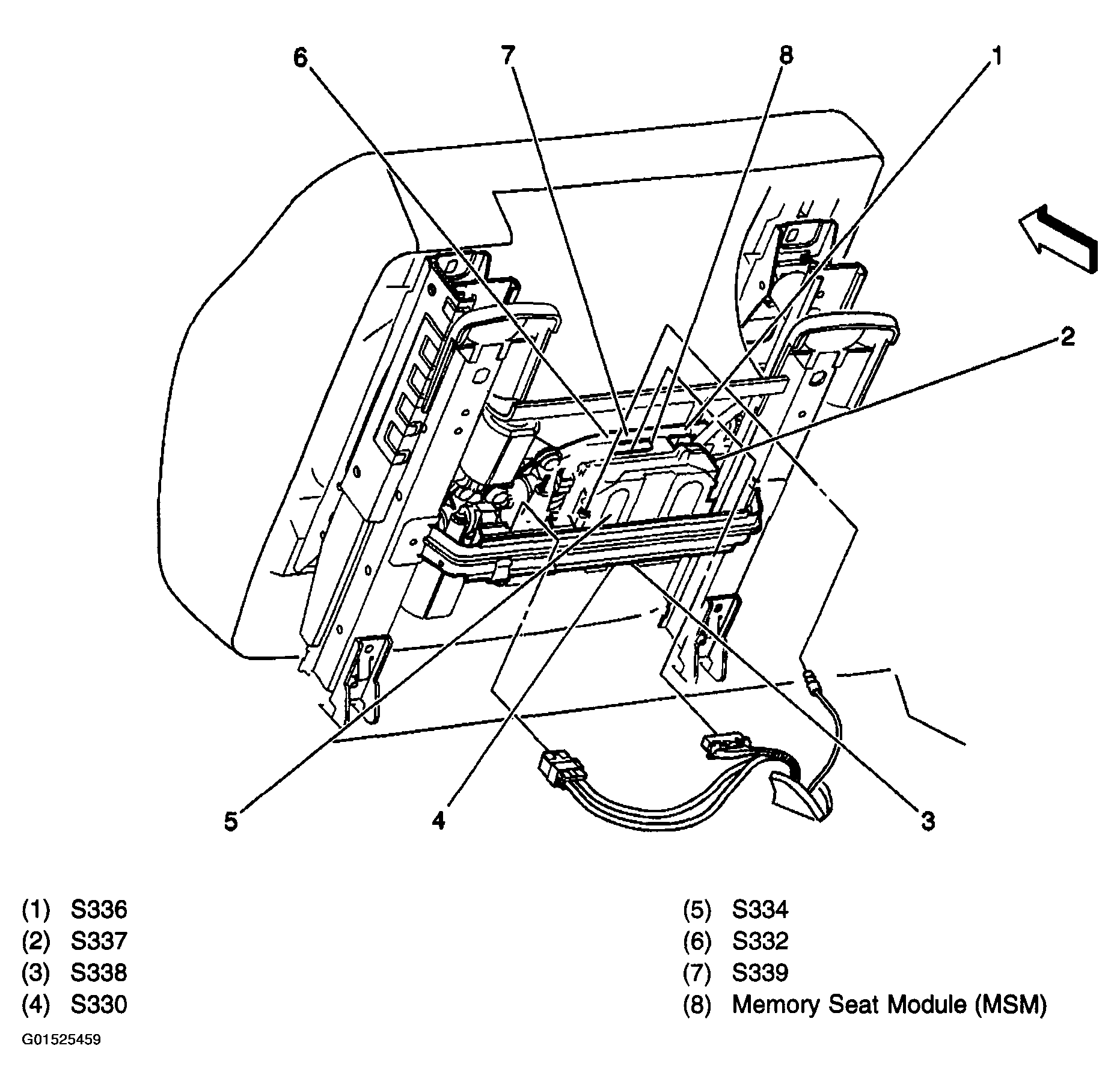

Fig 1: Passenger Compartment, Under Left Front Seat Component View

Courtesy of GENERAL MOTORS CORP.

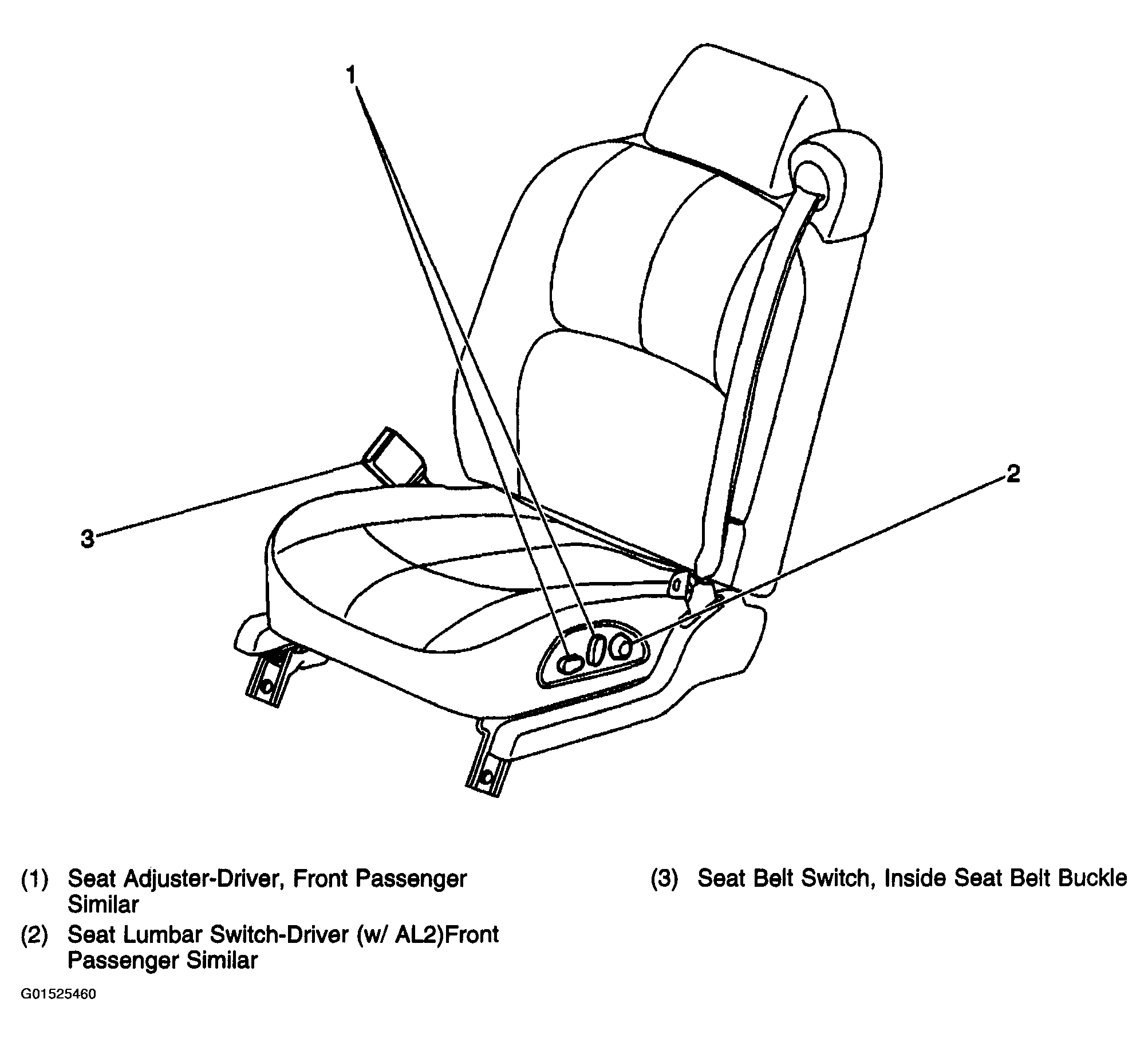

Fig 2: Driver Seat Switches Component View

Courtesy of GENERAL MOTORS CORP.

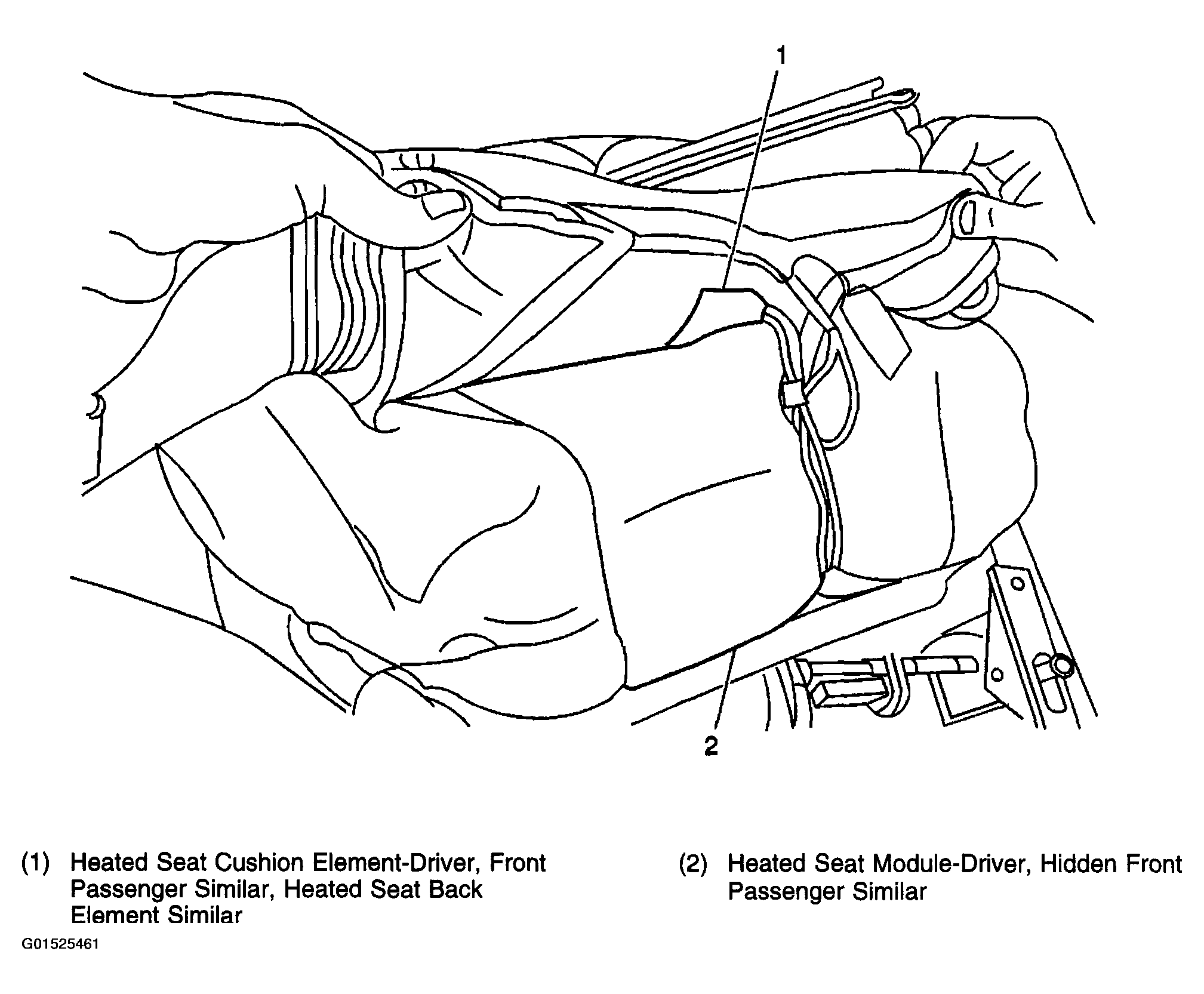

Fig 3: Driver Seat Component View

Courtesy of GENERAL MOTORS CORP.

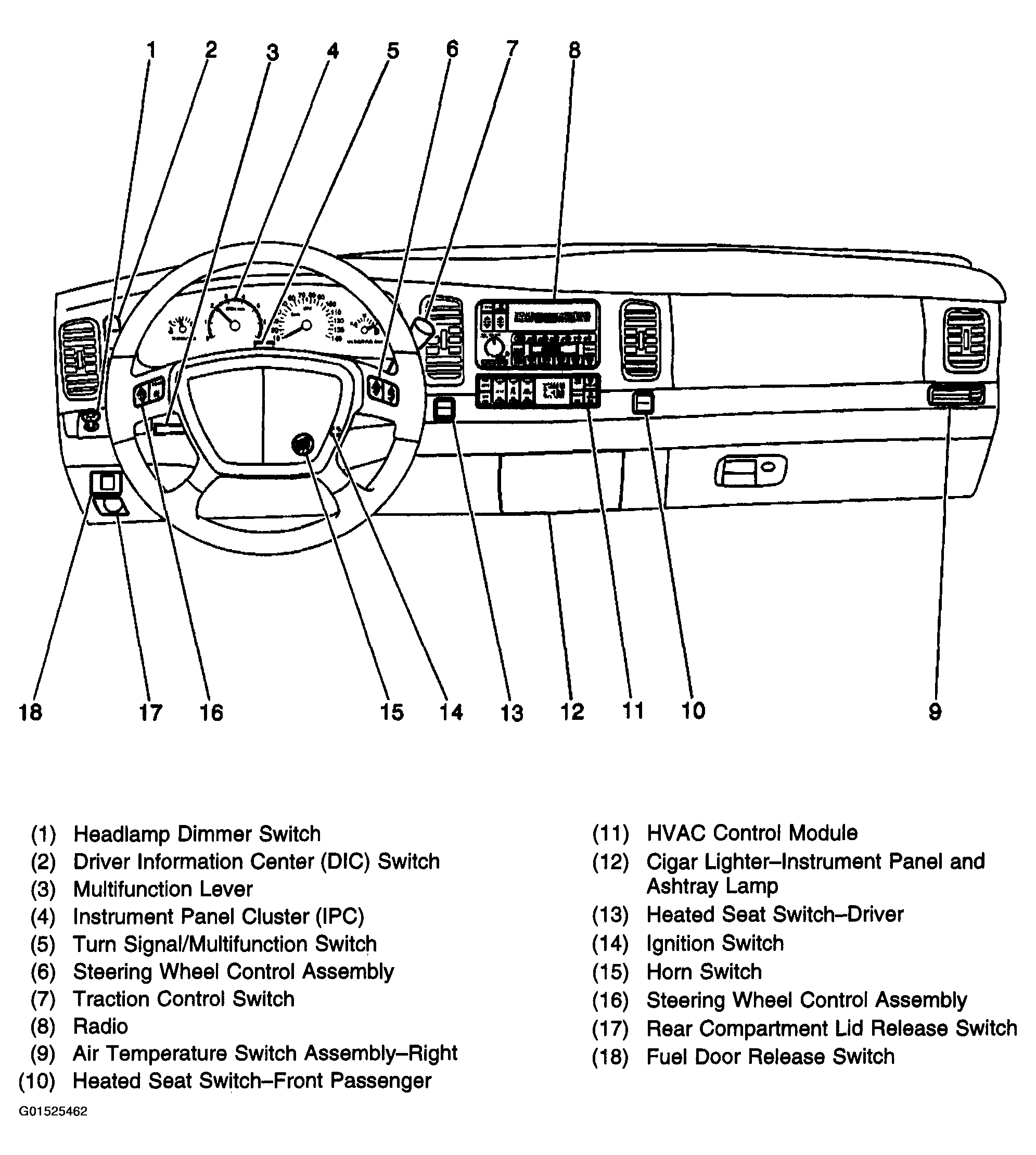

Fig 4: Passenger Compartment, Front Of IP Component View

Courtesy of GENERAL MOTORS CORP.

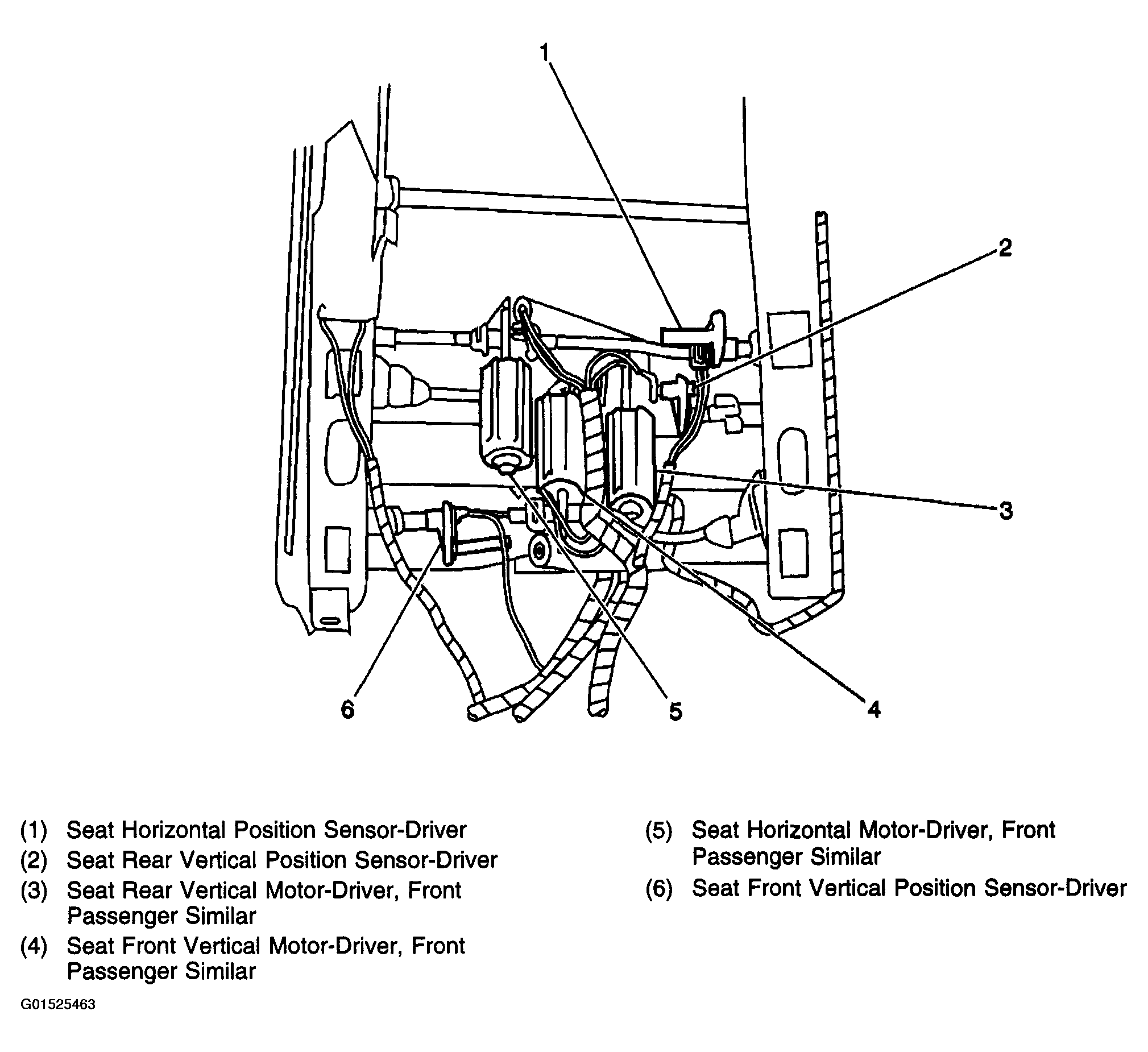

Fig 5: LH Front Seat Horizontal & Vertical Motors & Sensors Component View

Courtesy of GENERAL MOTORS CORP.

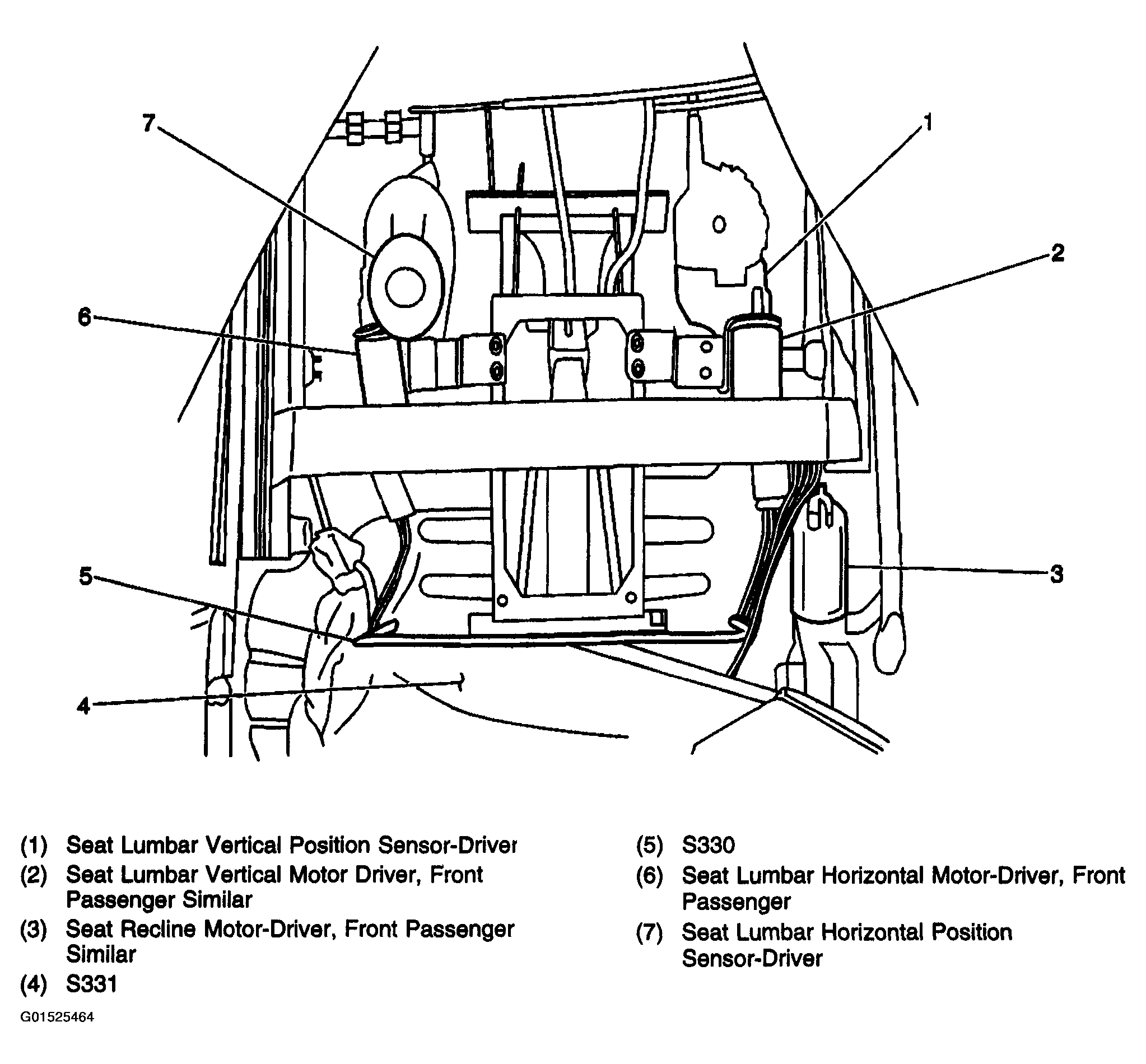

Fig 6: LH Front Seat Back Component View

Courtesy of GENERAL MOTORS CORP.

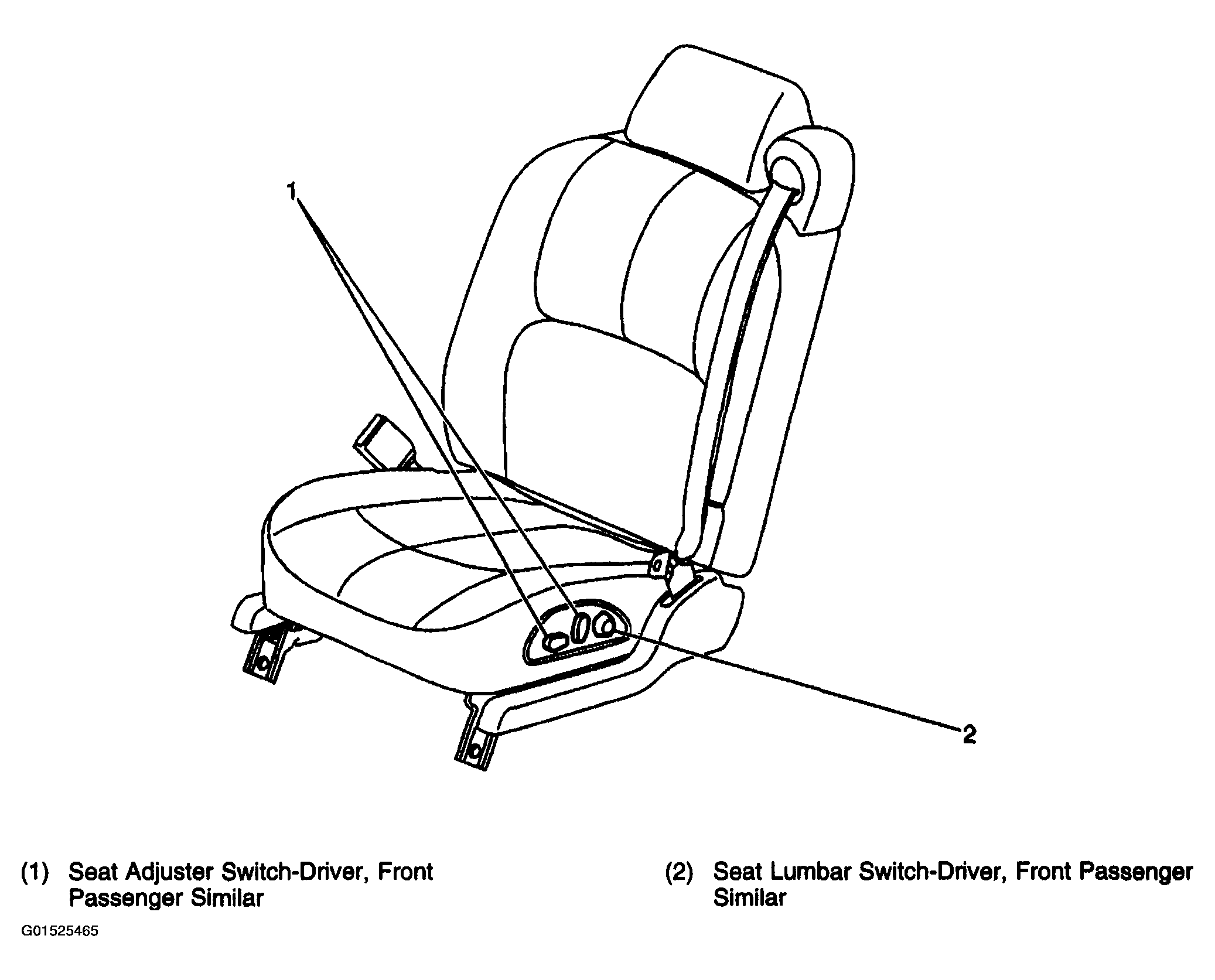

Fig 7: LH Lumbar & Seat Switch Component View

Courtesy of GENERAL MOTORS CORP.
