Installation Procedure

  1. Install the heated seat module (1) to the seat.

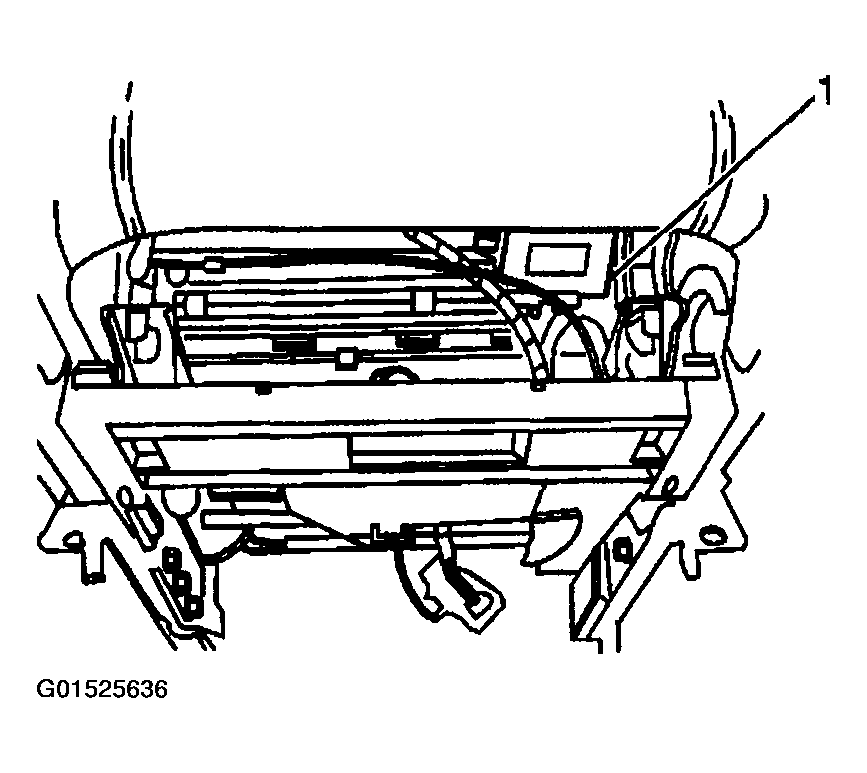

    Fig 1: Installing Heated Seat Module To Seat
    G01525636Courtesy of GENERAL MOTORS CORP.
  2. Install the fasteners.
  3. Connect the electrical connectors.
  4. Install the seat cushion cover. Refer to SEAT CUSHION REPLACEMENT - FRONT  .
  5. Install the memory seat module, if necessary. Refer to MEMORY SEAT CONTROL MODULE REPLACEMENT  .
