Removal Procedure

  1. Remove the memory seat module, if necessary. Refer to MEMORY SEAT CONTROL MODULE REPLACEMENT  .
  2. Remove the seat cushion cover. Refer to SEAT CUSHION REPLACEMENT - FRONT  .
  3. Disconnect the electrical connectors from the heated seat module (1).
  4. Remove the retainers fastening the heated seat module.
  5. Remove the heated seat module (1).

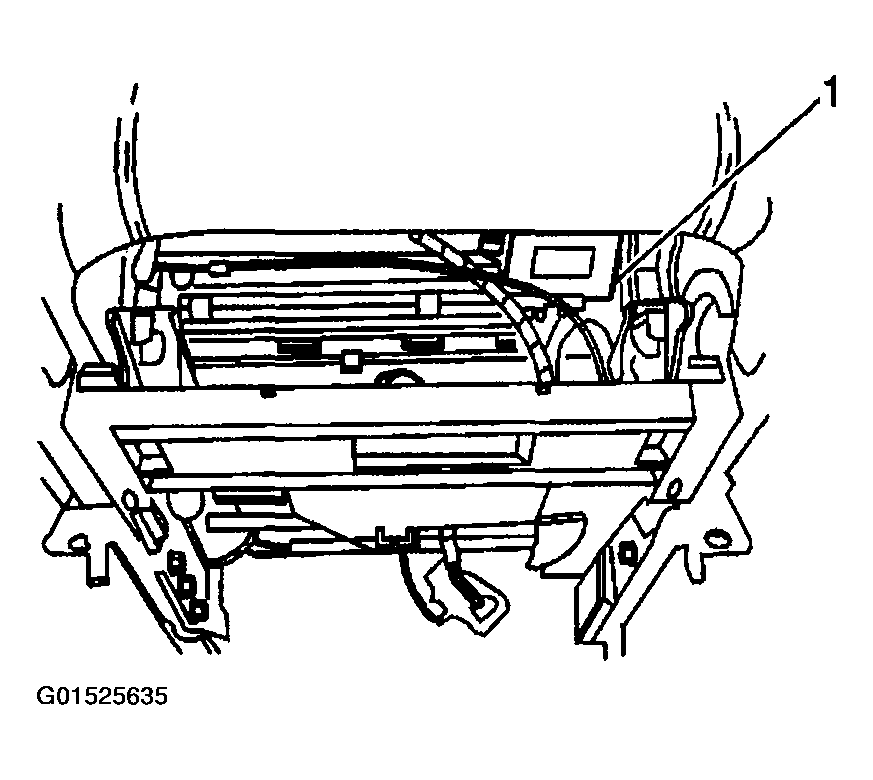

    Fig 1: Removing Heated Seat Module
    G01525635Courtesy of GENERAL MOTORS CORP.
