Power Door Systems Component Views

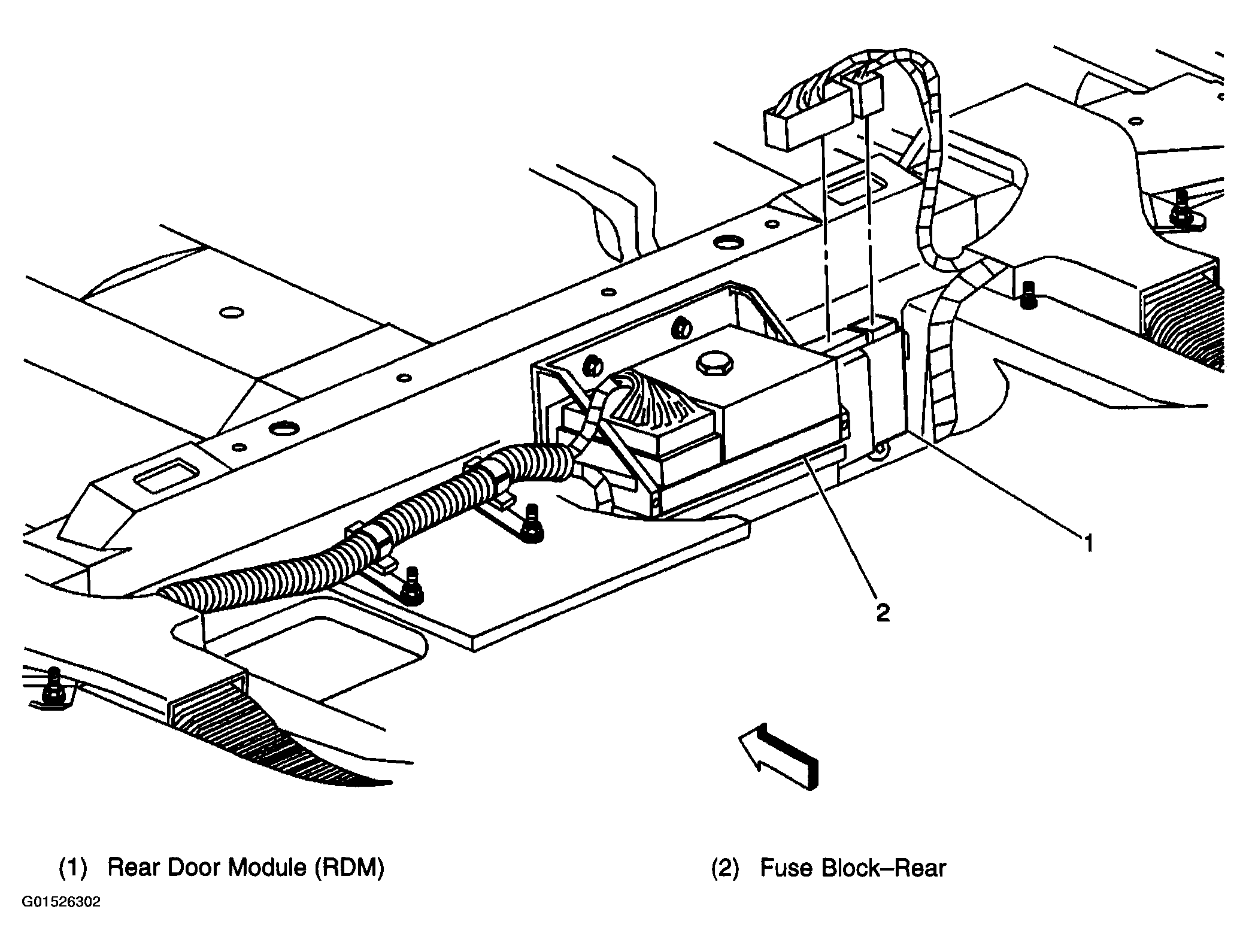

Fig 1: Under Rear Seat Component View

Courtesy of GENERAL MOTORS CORP.

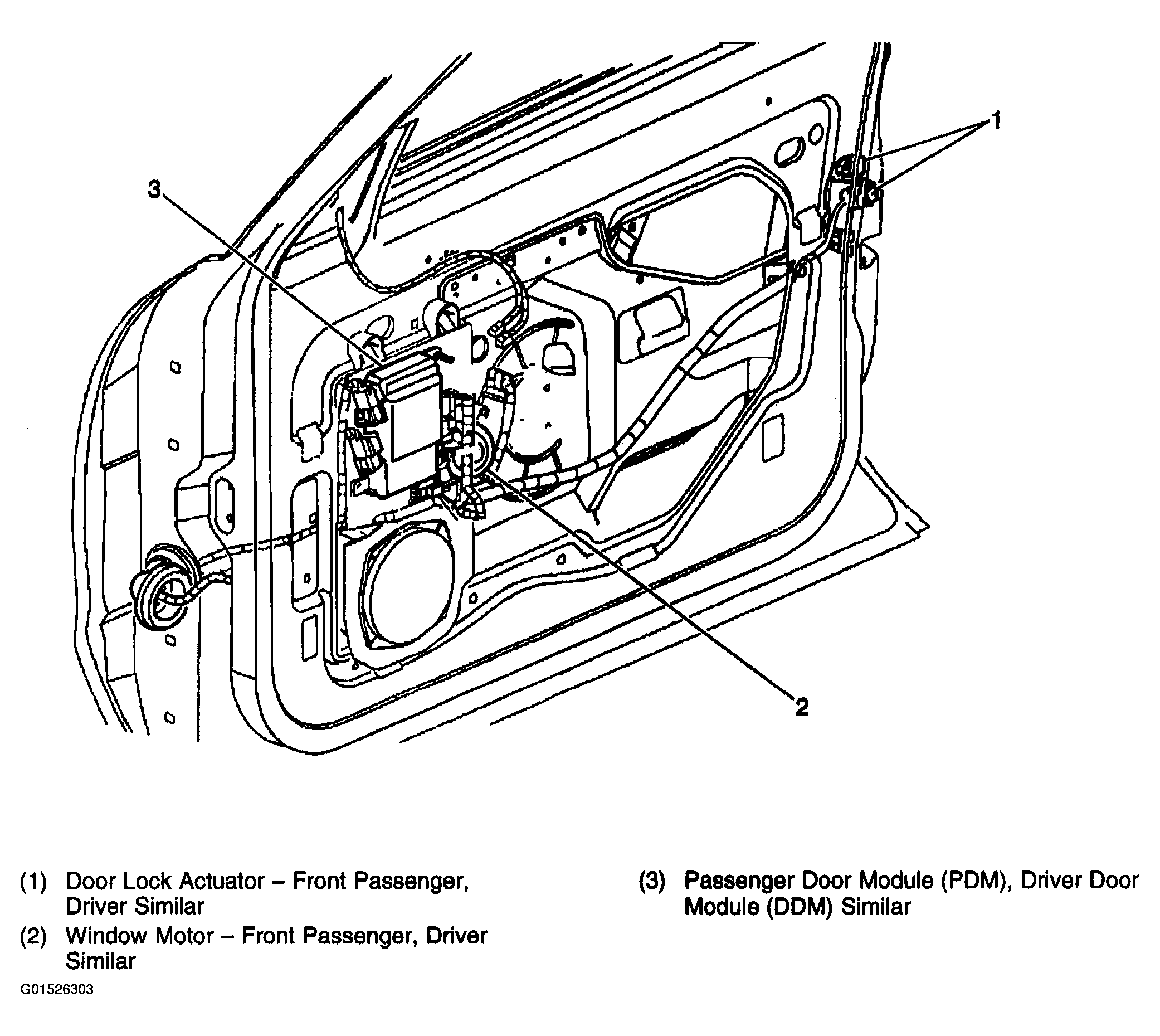

Fig 2: Behind Right Front Door Trim Component View

Courtesy of GENERAL MOTORS CORP.

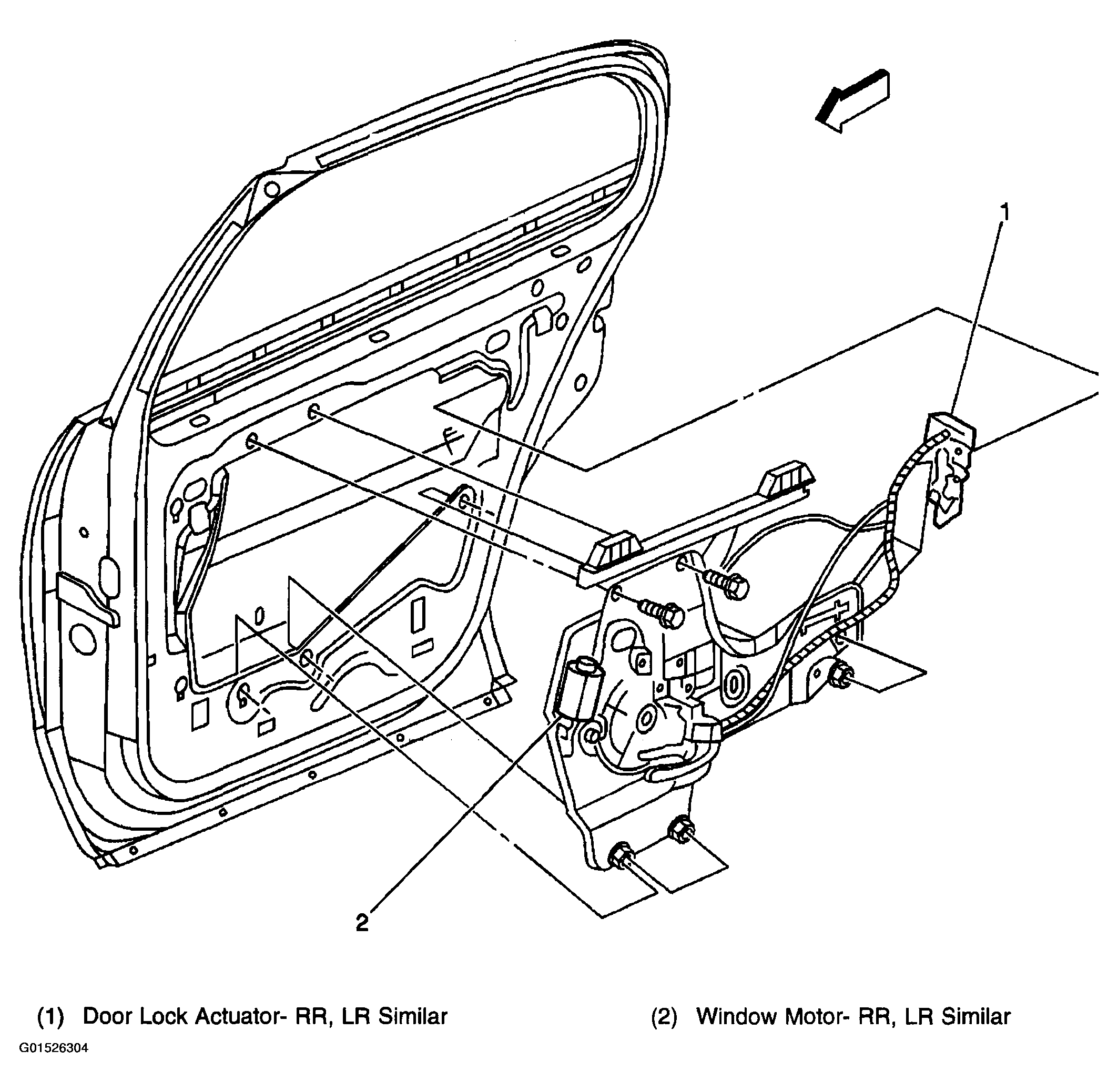

Fig 3: Right Rear Door Component View

Courtesy of GENERAL MOTORS CORP.

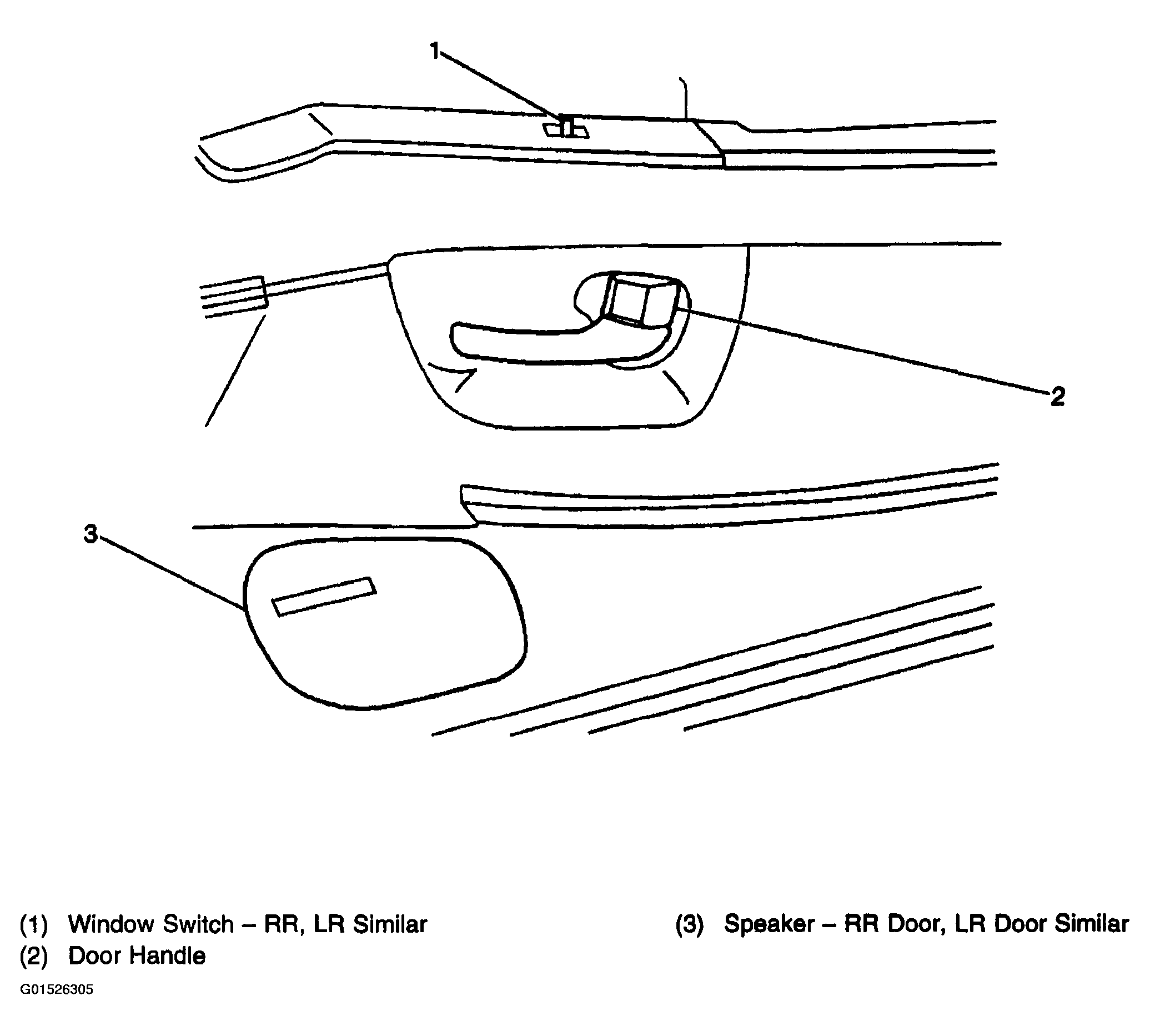

Fig 4: RR Door Component View

Courtesy of GENERAL MOTORS CORP.

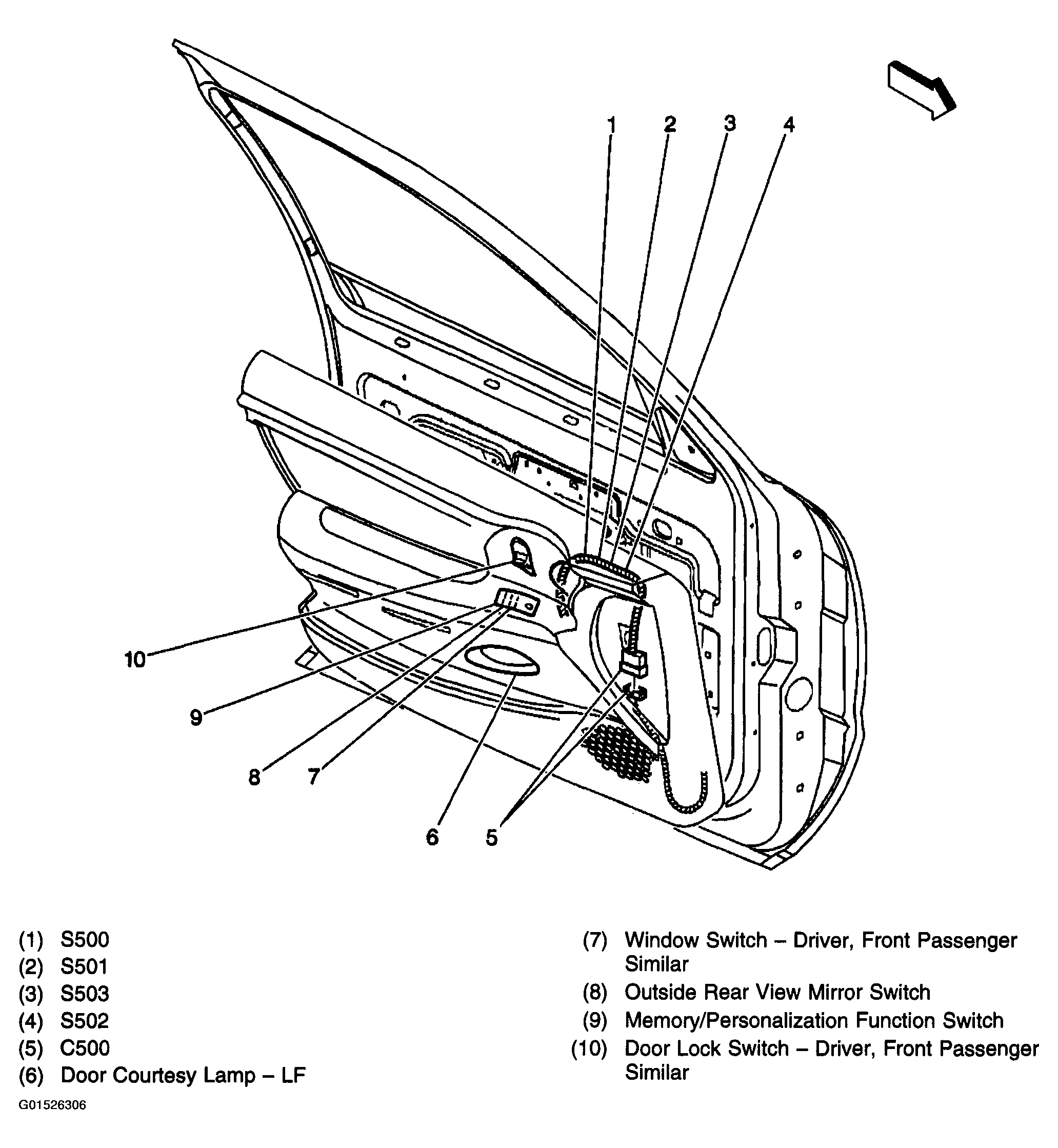

Fig 5: Left Front Door Component View

Courtesy of GENERAL MOTORS CORP.
