Power Door Systems Connector End Views

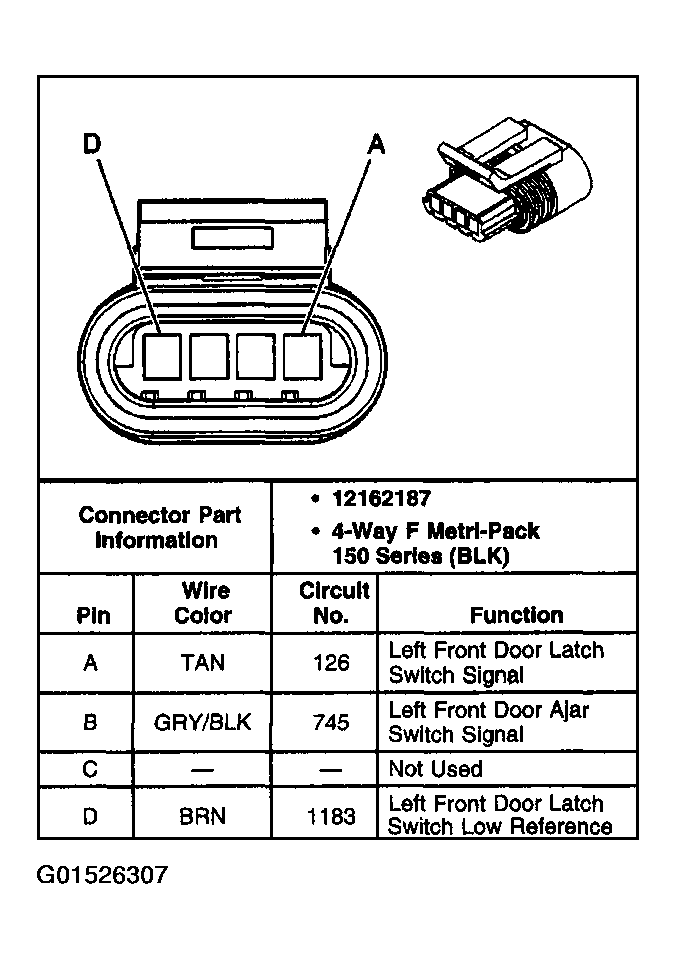

Fig 1: Door Lock Actuator (Driver C1) Connector End View
G01526307Courtesy of GENERAL MOTORS CORP.

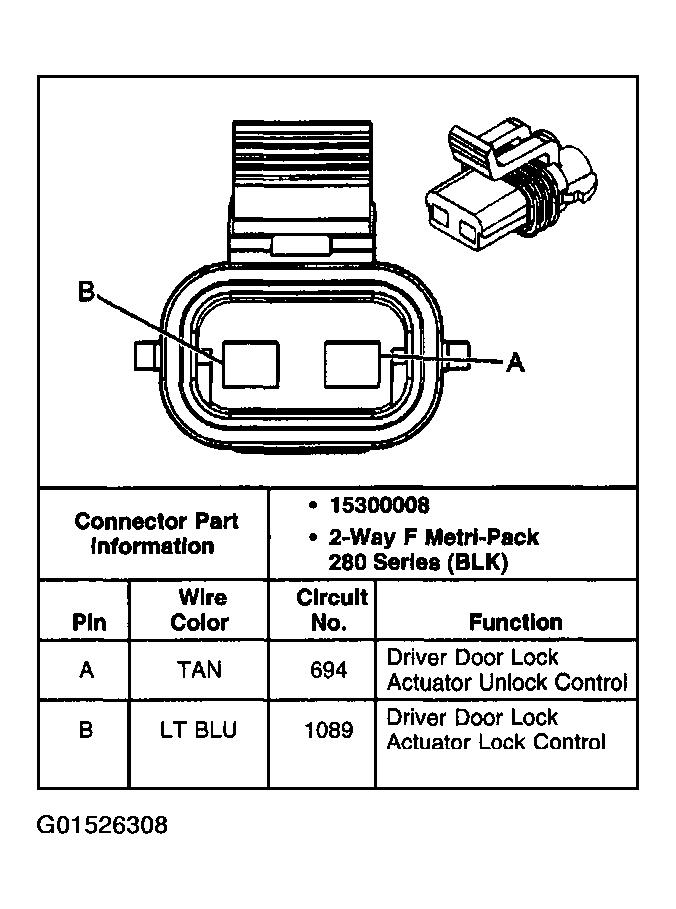

Fig 2: Door Lock Actuator (Driver C2) Connector End View
G01526308Courtesy of GENERAL MOTORS CORP.

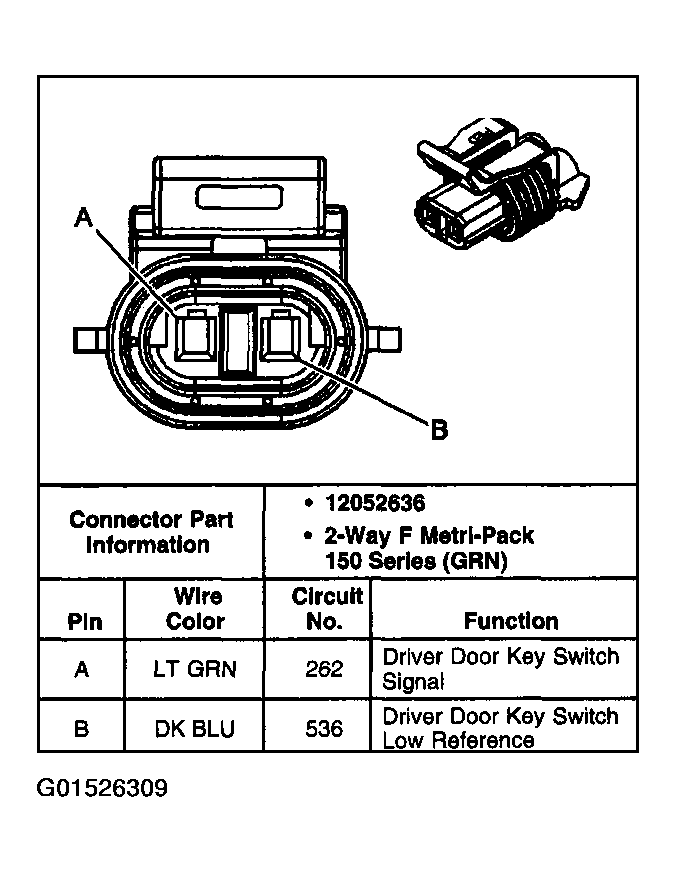

Fig 3: Door Lock Actuator (Driver C3) Connector End View
G01526309Courtesy of GENERAL MOTORS CORP.

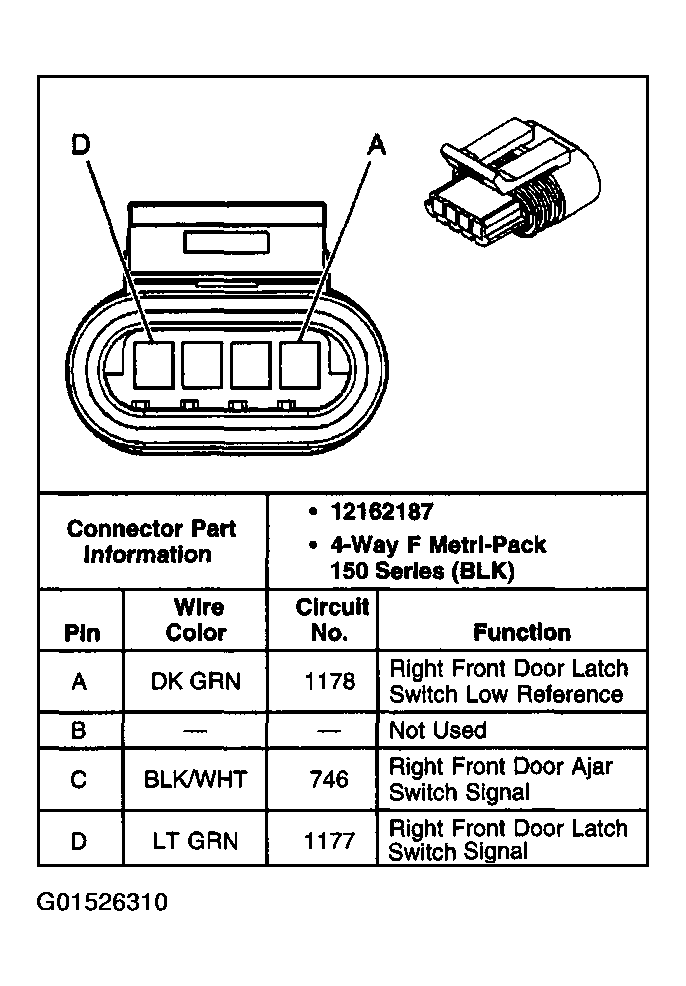

Fig 4: Door Lock Actuator (Front Passenger C1) Connector End View
G01526310Courtesy of GENERAL MOTORS CORP.

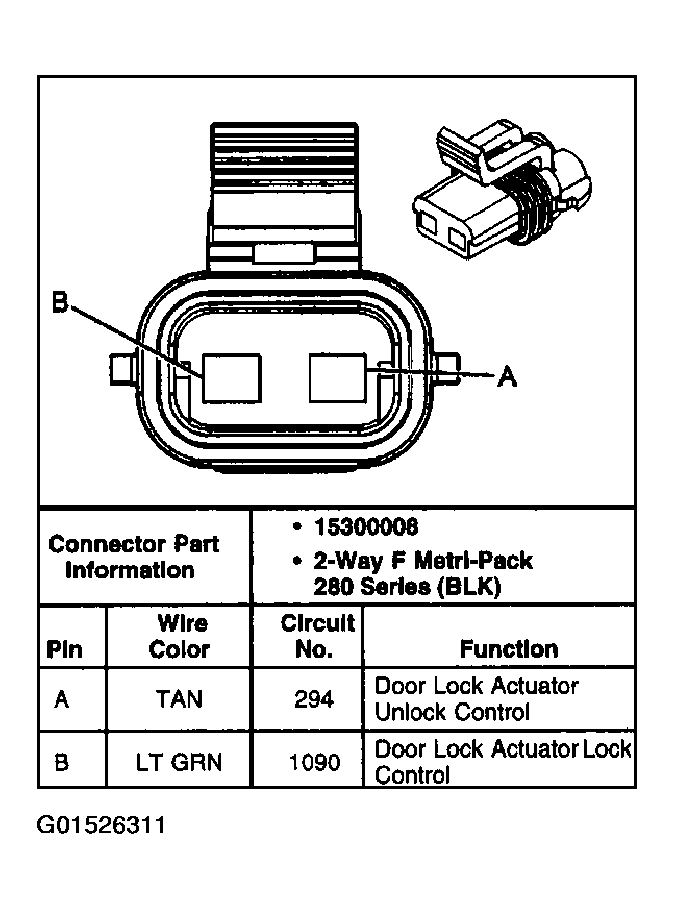

Fig 5: Door Lock Actuator (Front Passenger C2) Connector End View
G01526311Courtesy of GENERAL MOTORS CORP.

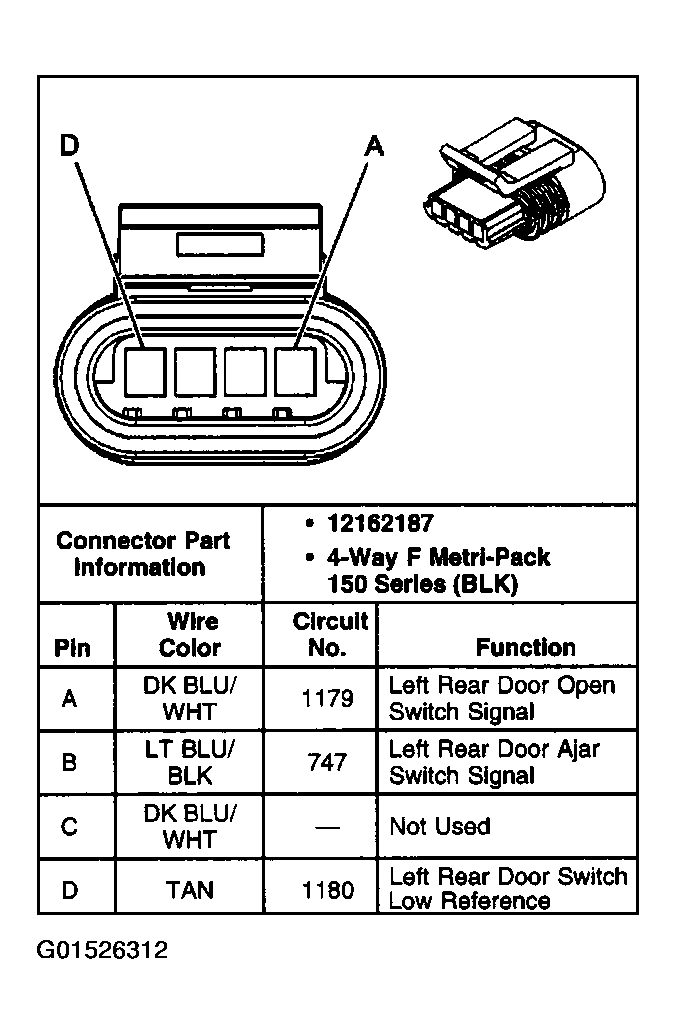

Fig 6: Door Lock Actuator (LR C1) Connector End View
G01526312Courtesy of GENERAL MOTORS CORP.

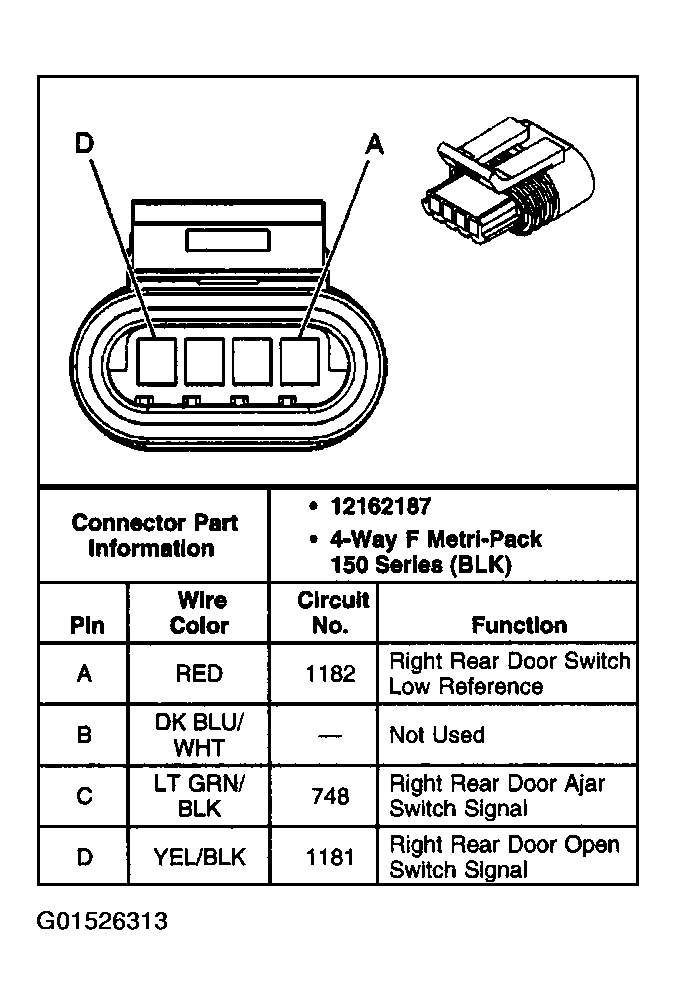

Fig 7: Door Lock Actuator (RR C1) Connector End View
G01526313Courtesy of GENERAL MOTORS CORP.

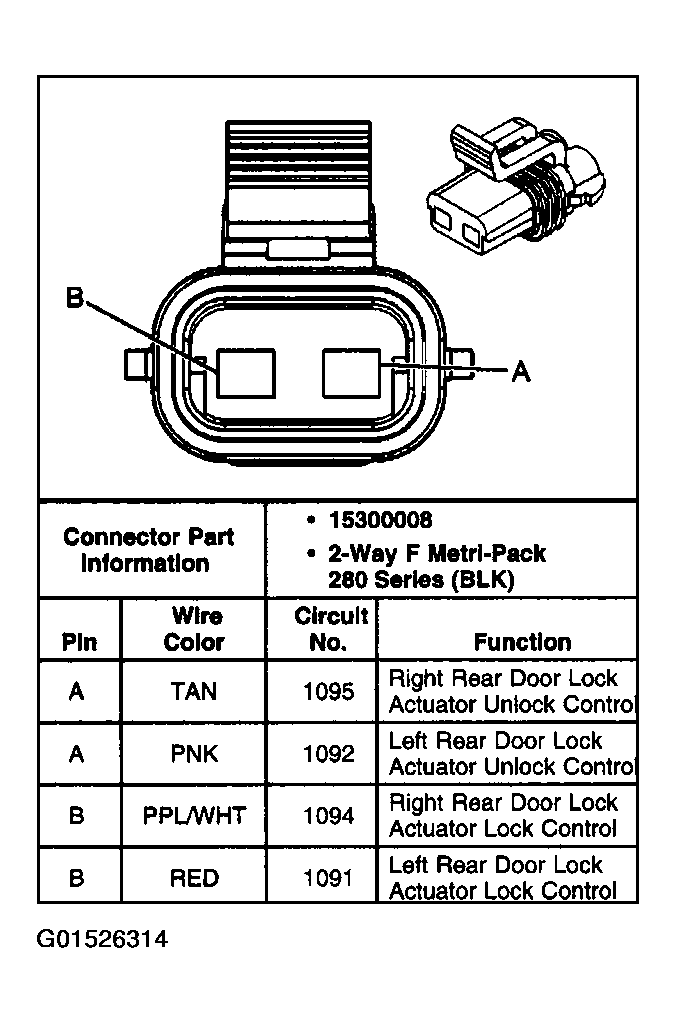

Fig 8: Door Lock Actuator (LR & RR - C2) Connector End View
G01526314Courtesy of GENERAL MOTORS CORP.

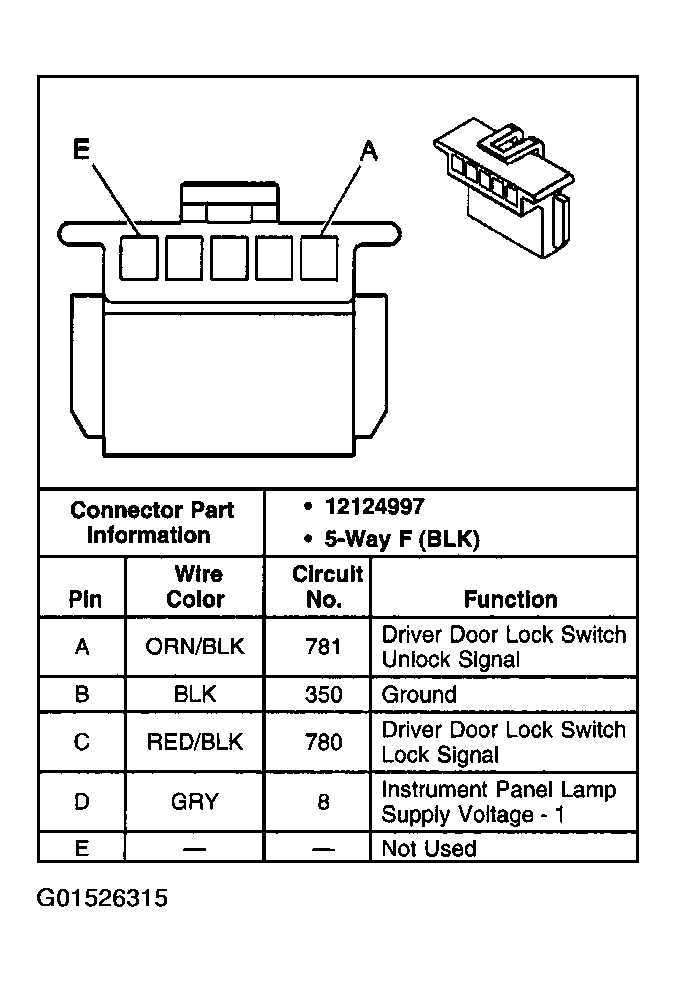

Fig 9: Door Lock Switch (Driver) Connector End View
G01526315Courtesy of GENERAL MOTORS CORP.

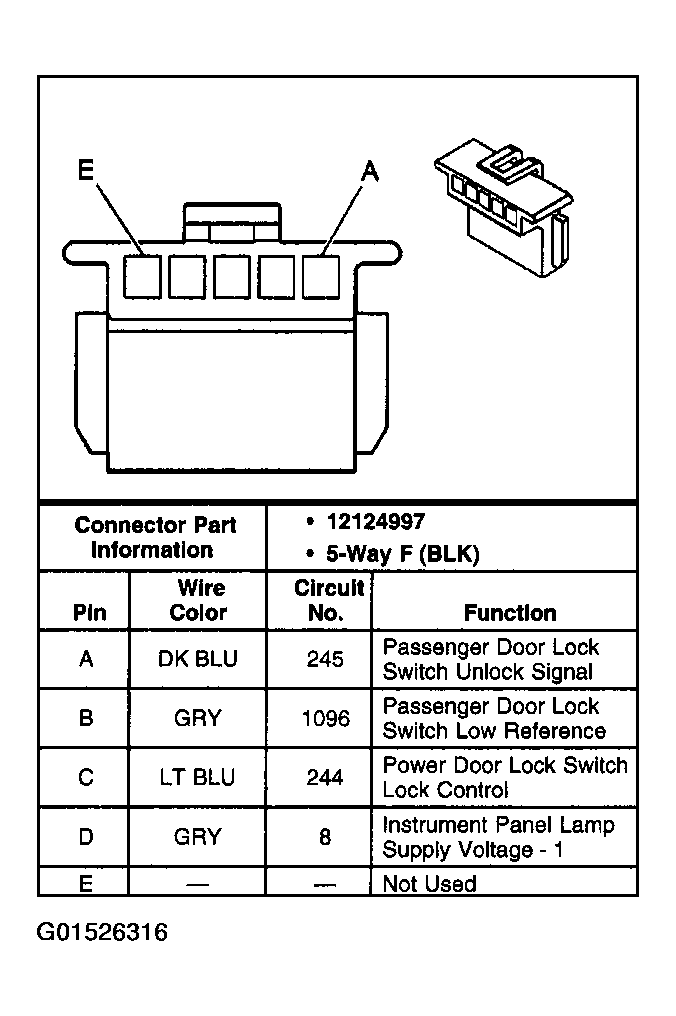

Fig 10: Door Lock Switch (Front Passenger) Connector End View
G01526316Courtesy of GENERAL MOTORS CORP.

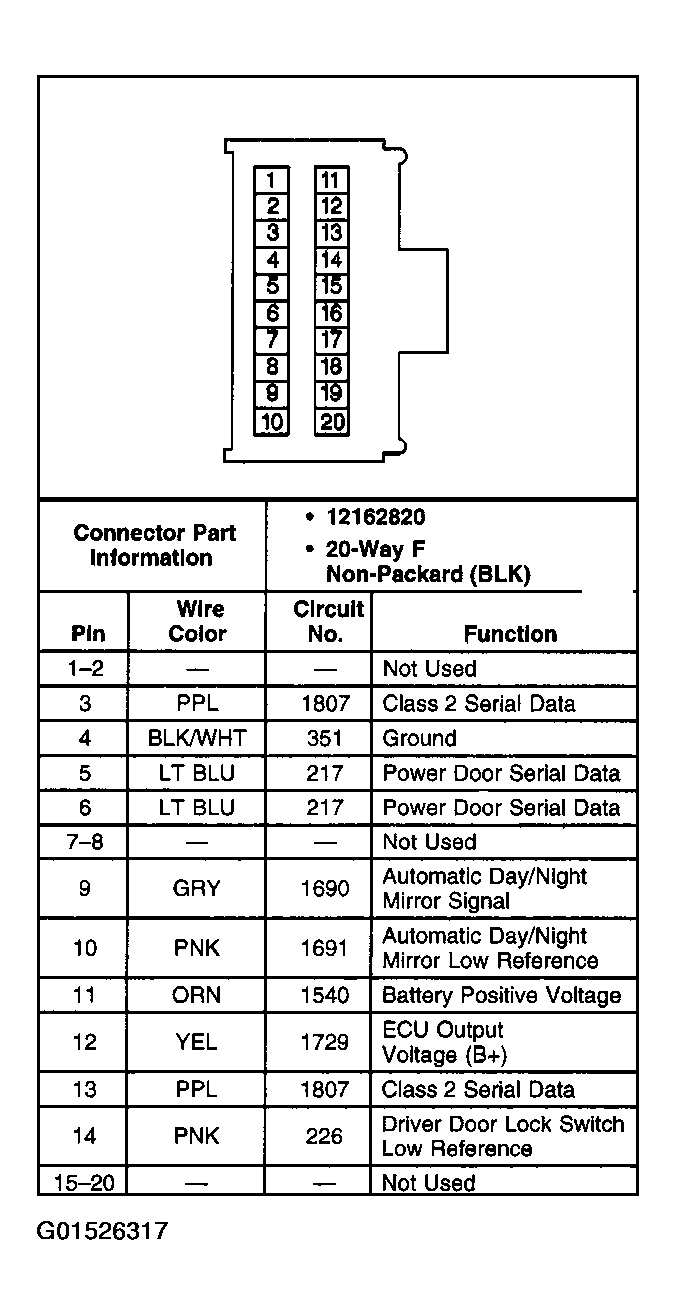

Fig 11: Driver Door Module (DDM) C1 Connector End View
G01526317Courtesy of GENERAL MOTORS CORP.

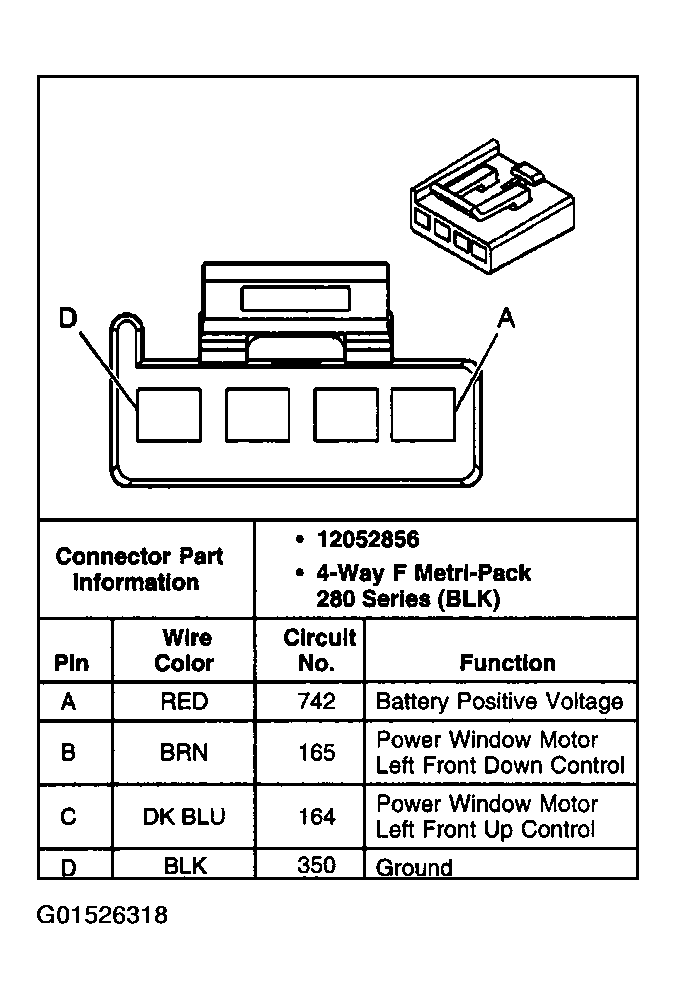

Fig 12: Driver Door Module (DDM) C2 Connector End View
G01526318Courtesy of GENERAL MOTORS CORP.

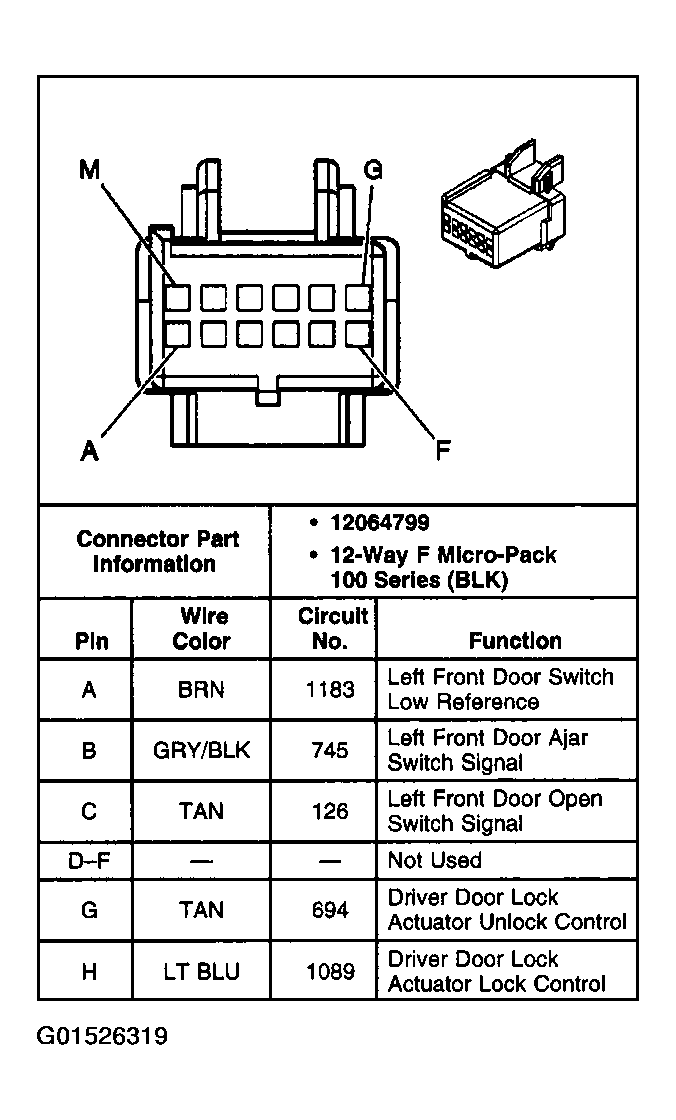

Fig 13: Driver Door Module C3 Connector End View (1 Of 2)
G01526319Courtesy of GENERAL MOTORS CORP.

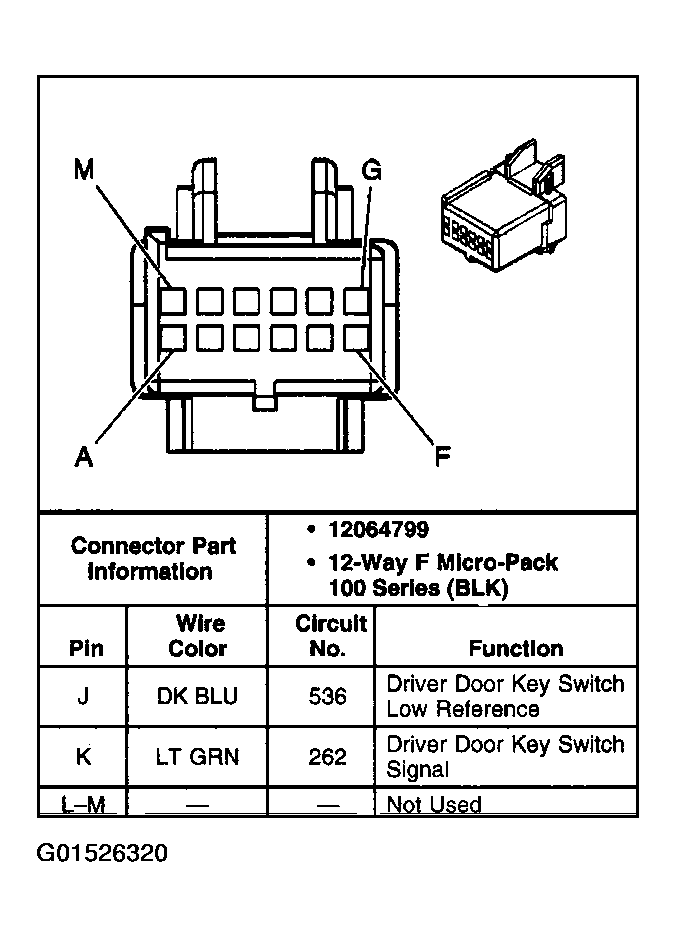

Fig 14: Driver Door Module C3 Connector End View (2 Of 2)
G01526320Courtesy of GENERAL MOTORS CORP.

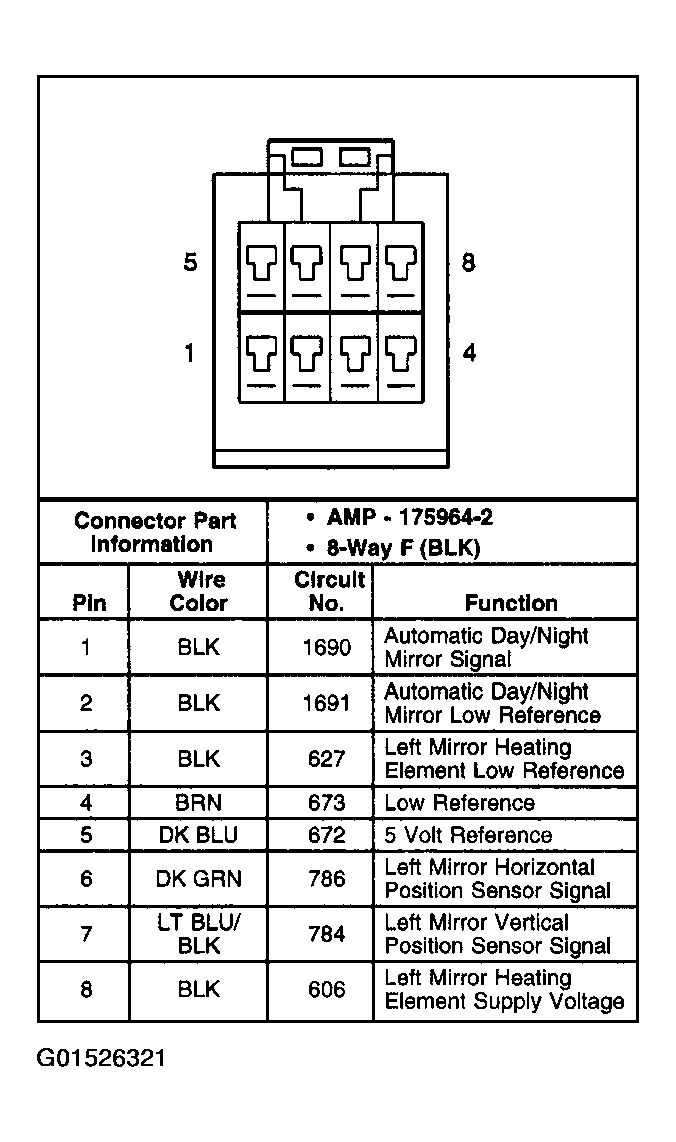

Fig 15: Driver Door Module (DDM) C4 Connector End View
G01526321Courtesy of GENERAL MOTORS CORP.

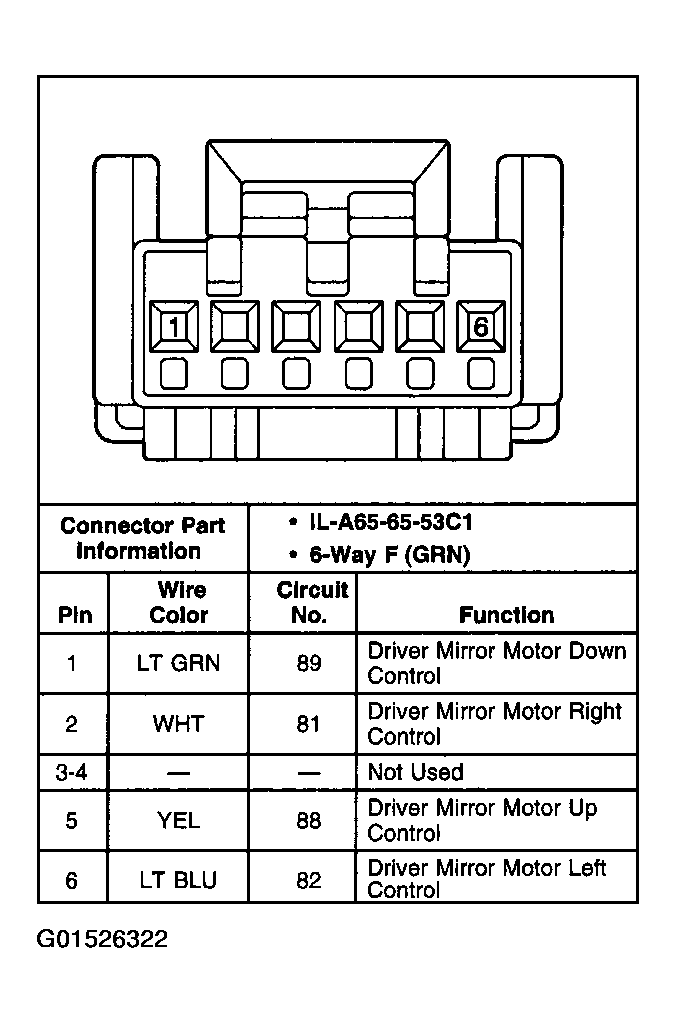

Fig 16: Driver Door Module (DDM) C5 Connector End View
G01526322Courtesy of GENERAL MOTORS CORP.

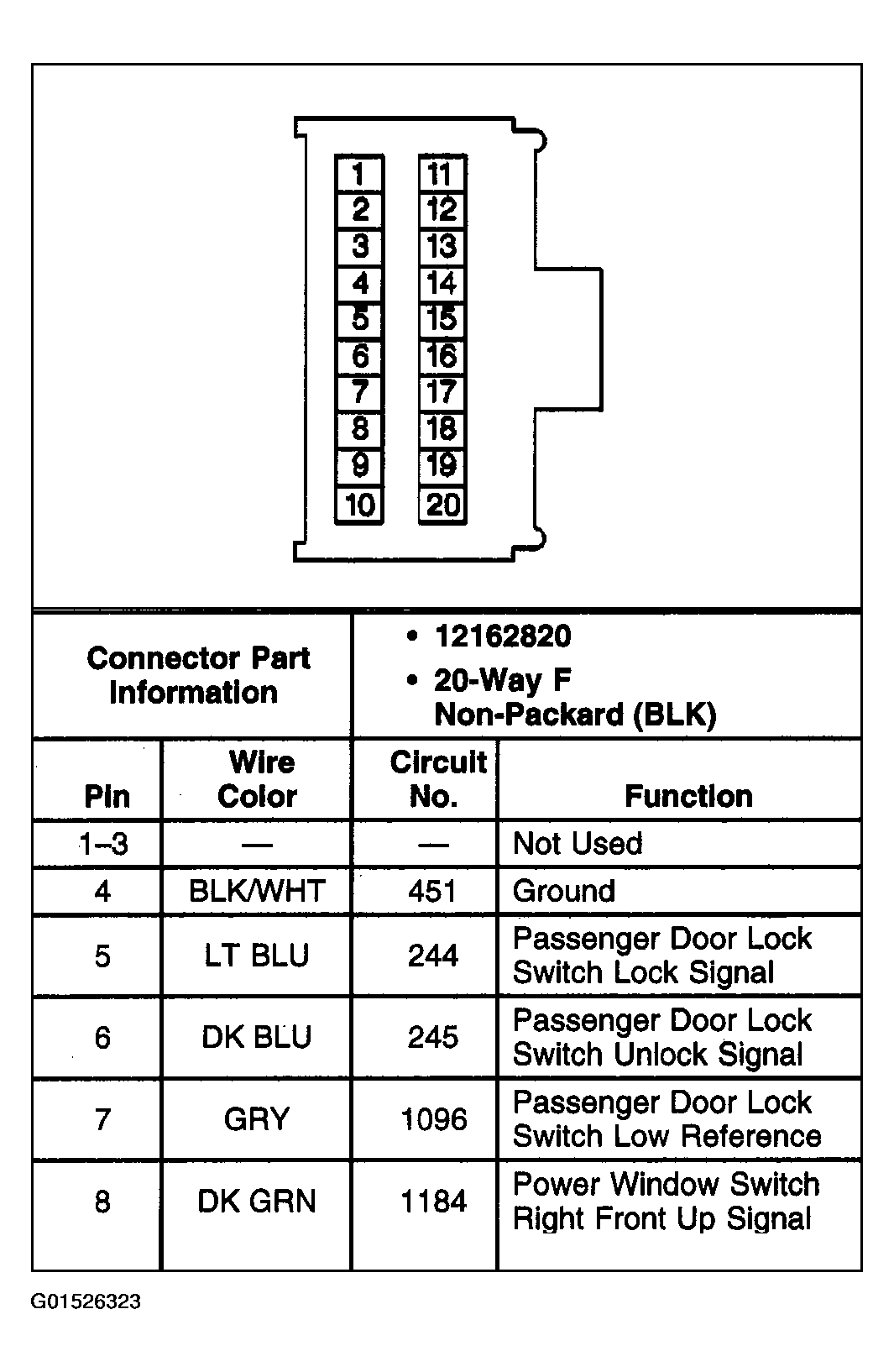

Fig 17: Passenger Door Module C1 Connector End View (1 Of 2)
G01526323Courtesy of GENERAL MOTORS CORP.

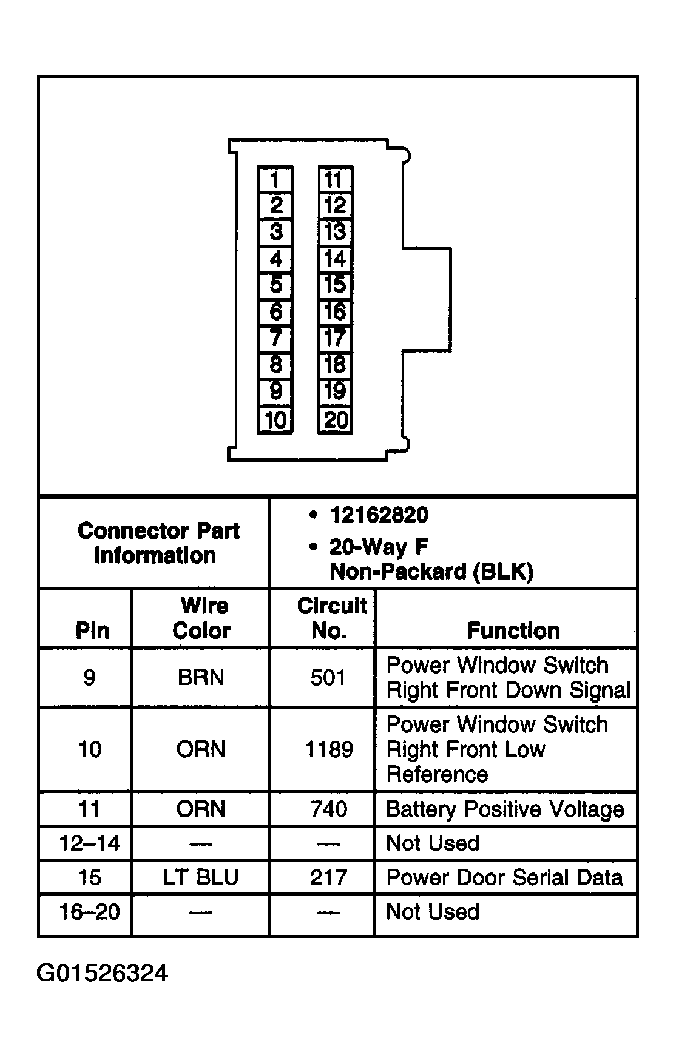

Fig 18: Passenger Door Module C1 Connector End View (2 Of 2)
G01526324Courtesy of GENERAL MOTORS CORP.

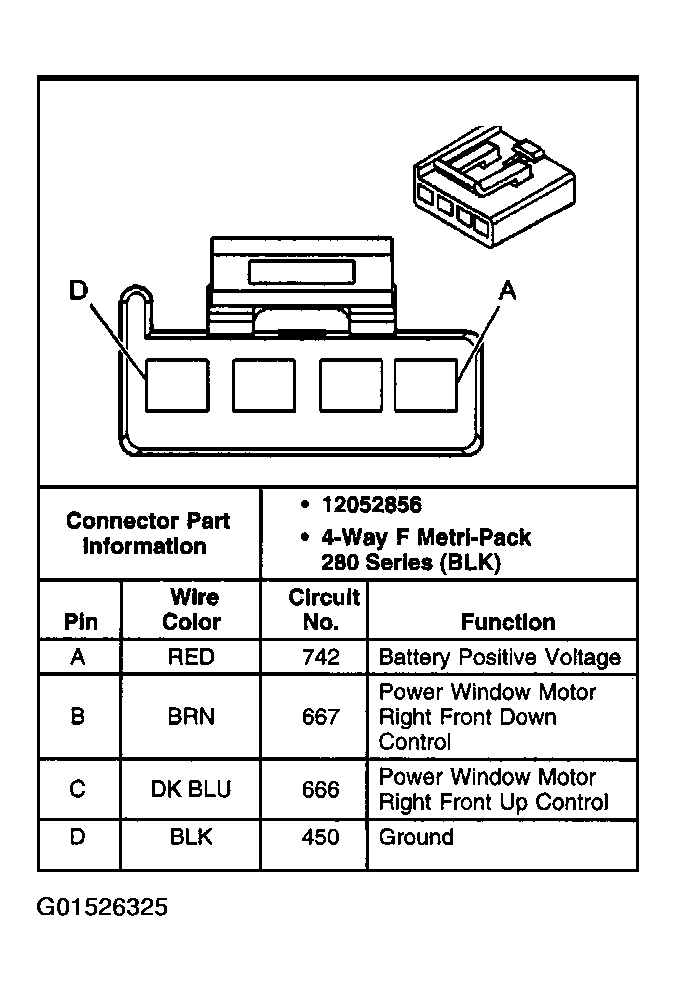

Fig 19: Passenger Door Module (PDM) C2 Connector End View
G01526325Courtesy of GENERAL MOTORS CORP.

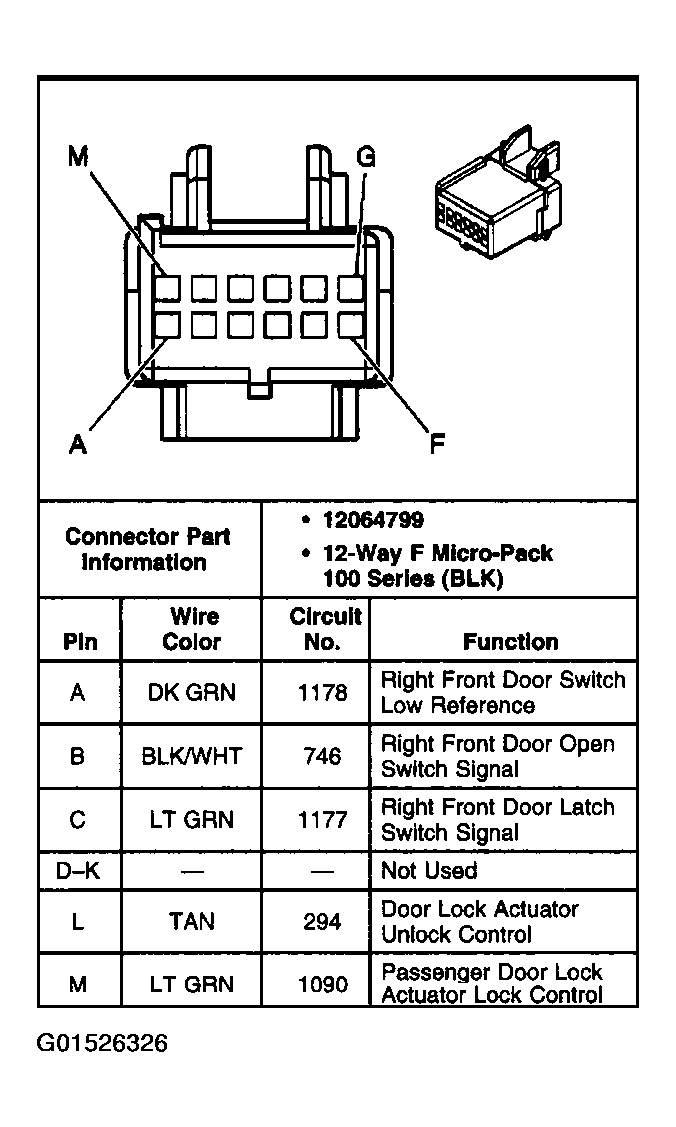

Fig 20: Passenger Door Module (PDM) C3 Connector End View
G01526326Courtesy of GENERAL MOTORS CORP.

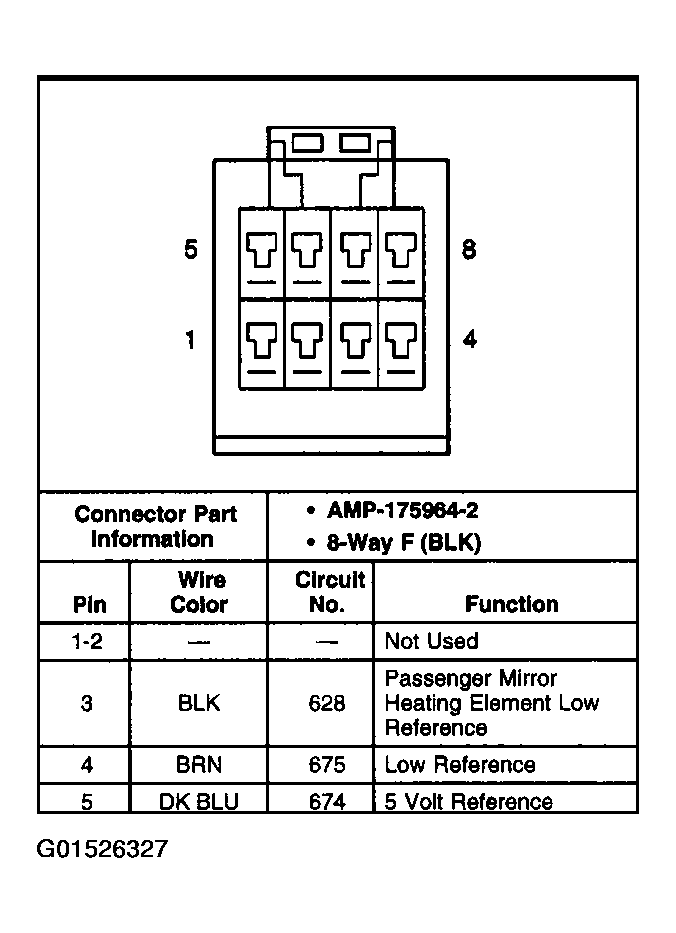

Fig 21: Passenger Door Module C4 Connector End View (1 Of 2)
G01526327Courtesy of GENERAL MOTORS CORP.

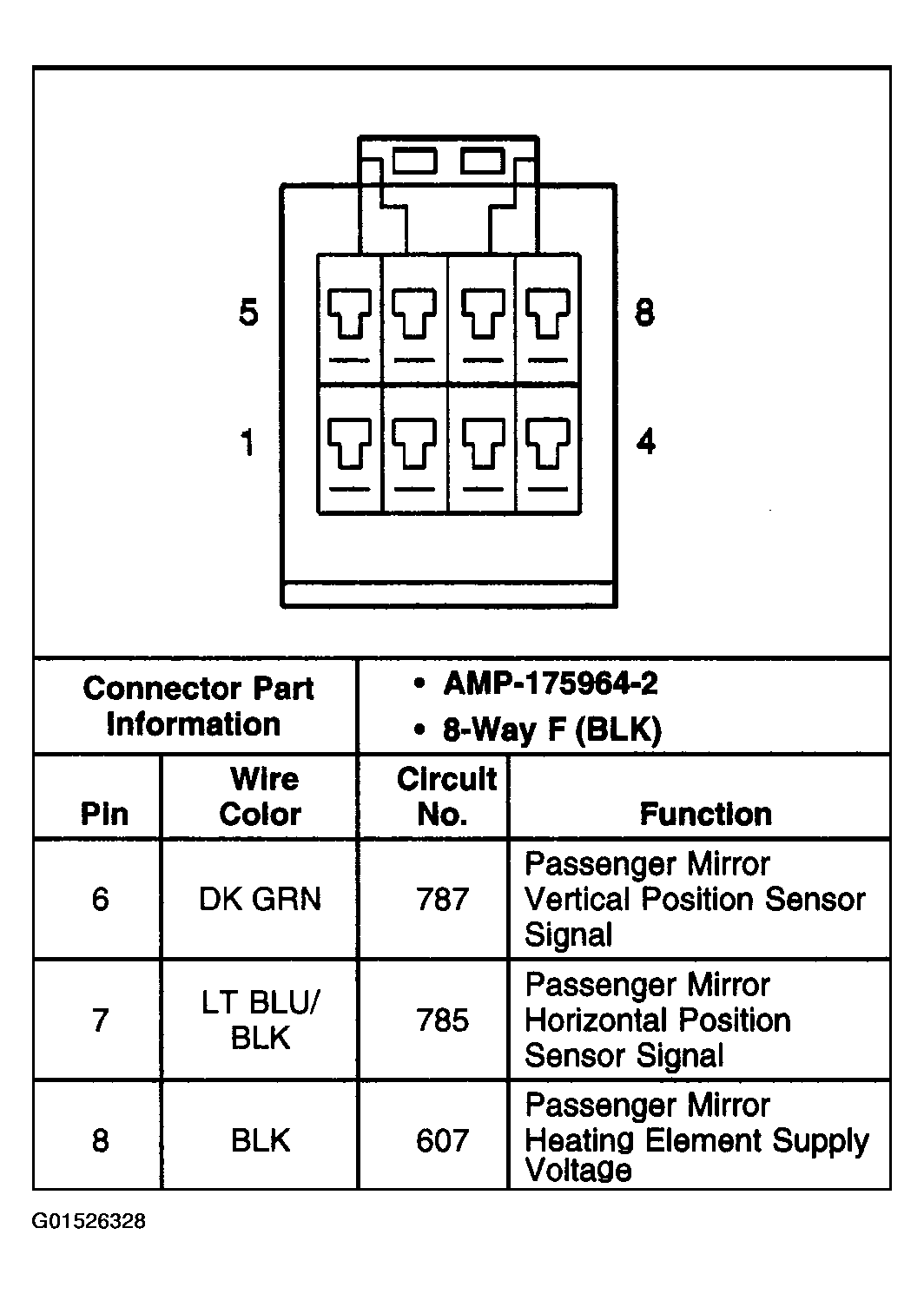

Fig 22: Passenger Door Module C4 Connector End View (2 Of 2)
G01526328Courtesy of GENERAL MOTORS CORP.

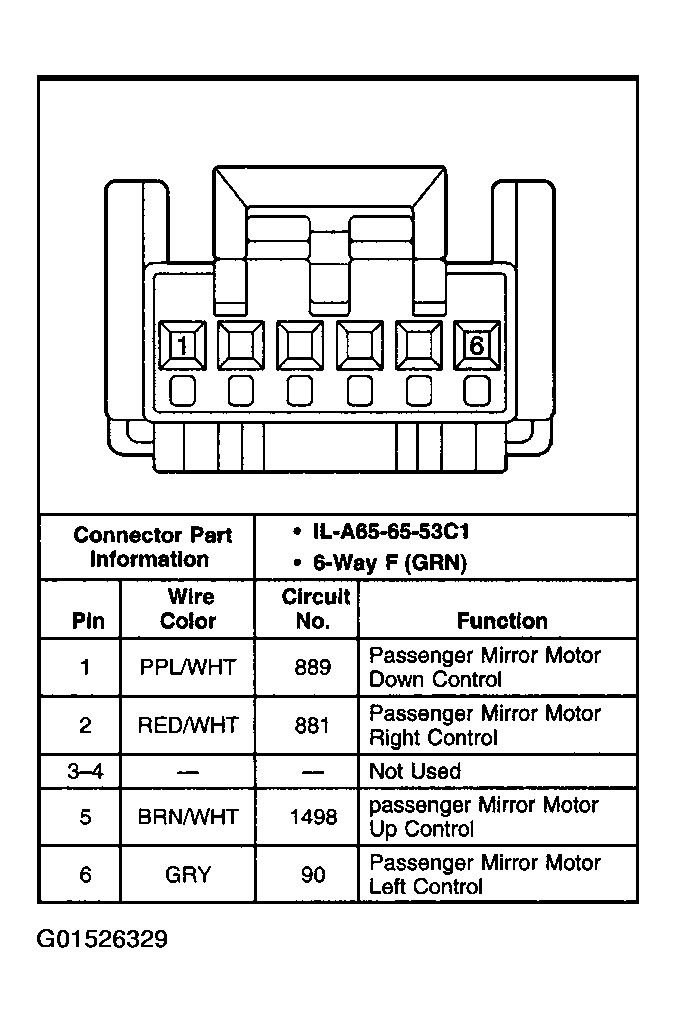

Fig 23: Passenger Door Module (PDM) C5 Connector End View
G01526329Courtesy of GENERAL MOTORS CORP.

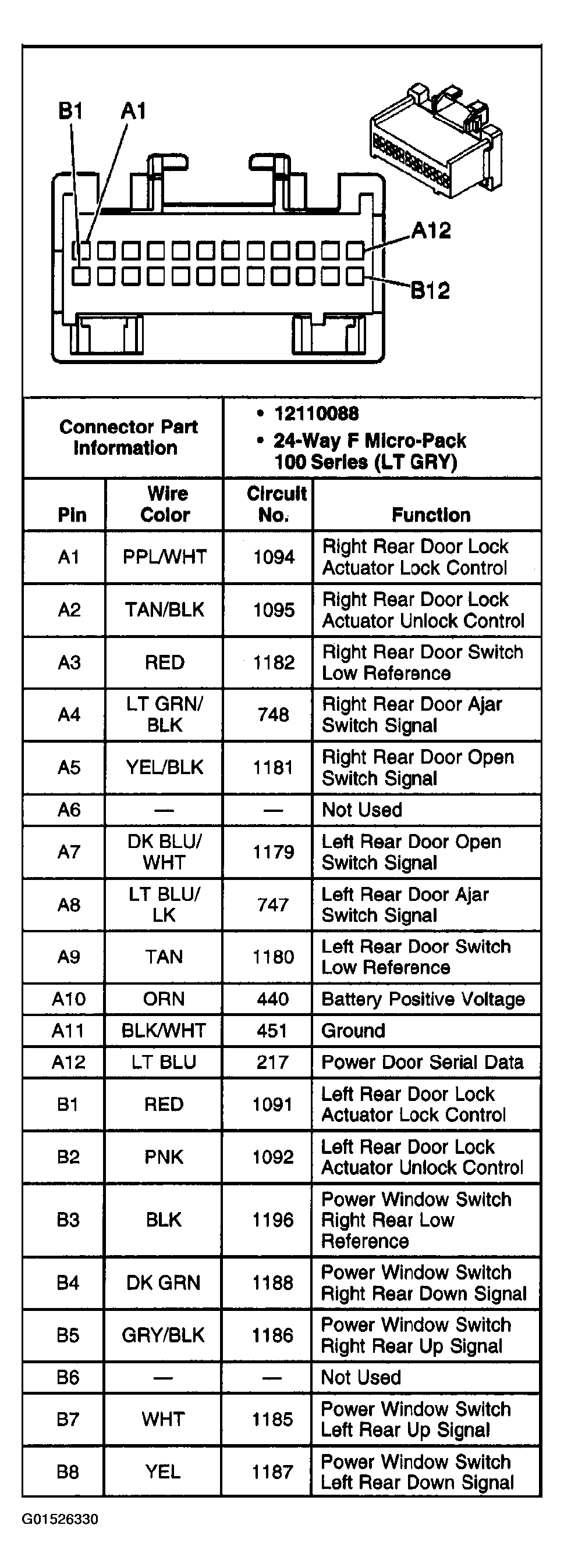

Fig 24: Rear Door Module C1 Connector End View (1 Of 2)
G01526330Courtesy of GENERAL MOTORS CORP.

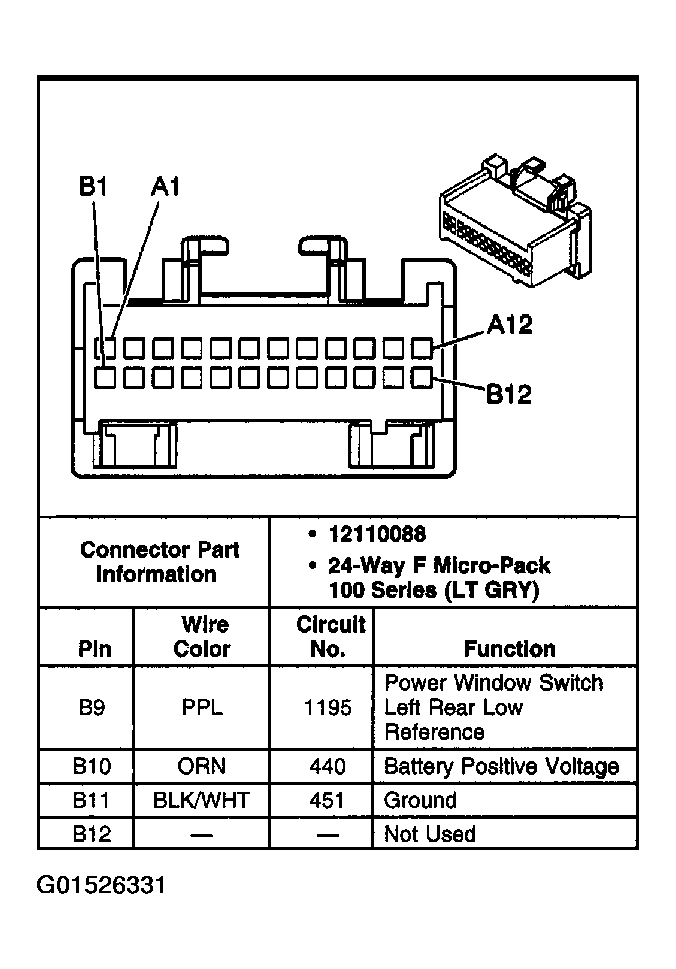

Fig 25: Rear Door Module C1 Connector End View (2 Of 2)
G01526331Courtesy of GENERAL MOTORS CORP.

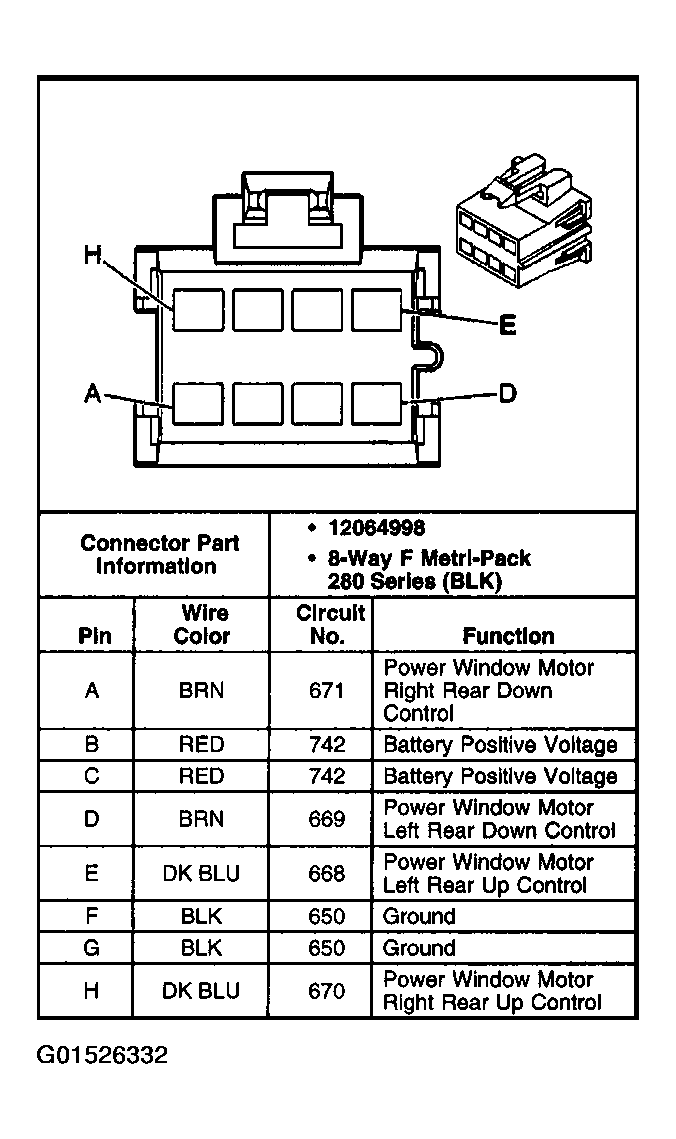

Fig 26: Rear Door Module (RDM) C2 Connector End View
G01526332Courtesy of GENERAL MOTORS CORP.

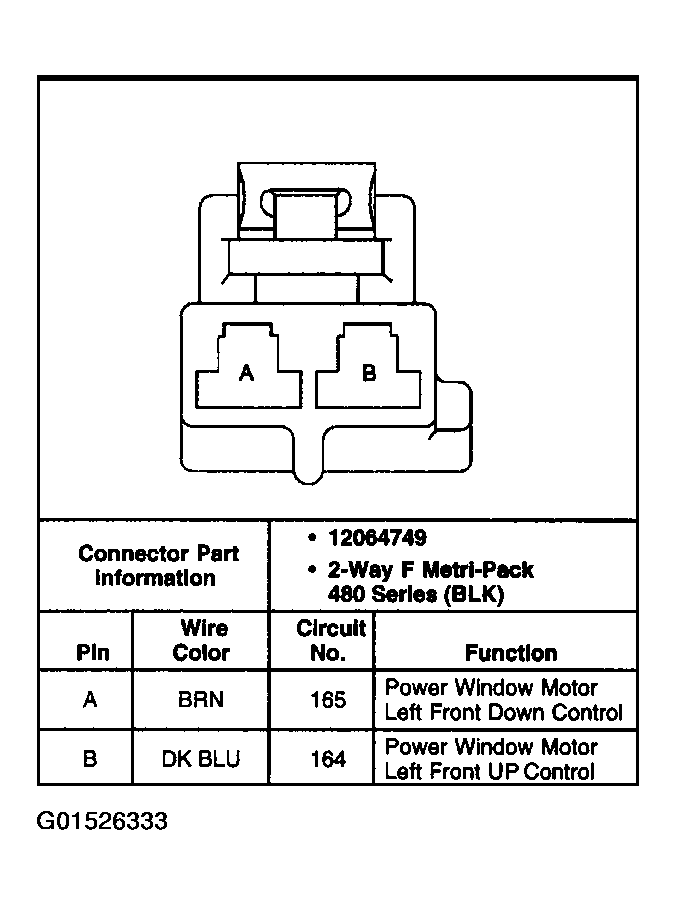

Fig 27: Window Motor (Driver) Connector End View
G01526333Courtesy of GENERAL MOTORS CORP.

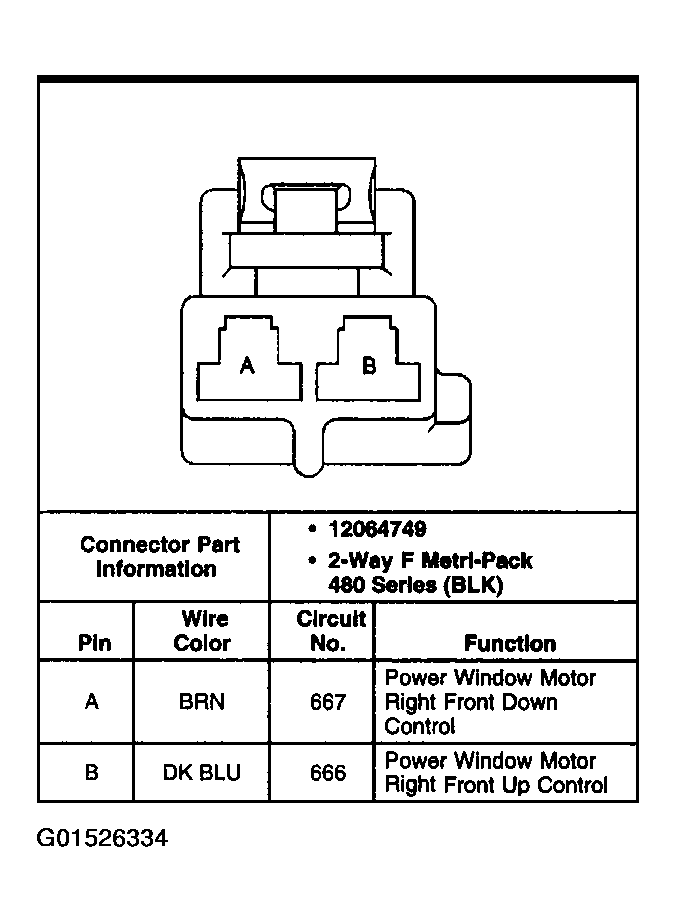

Fig 28: Window Motor (Front Passenger) Connector End View
G01526334Courtesy of GENERAL MOTORS CORP.

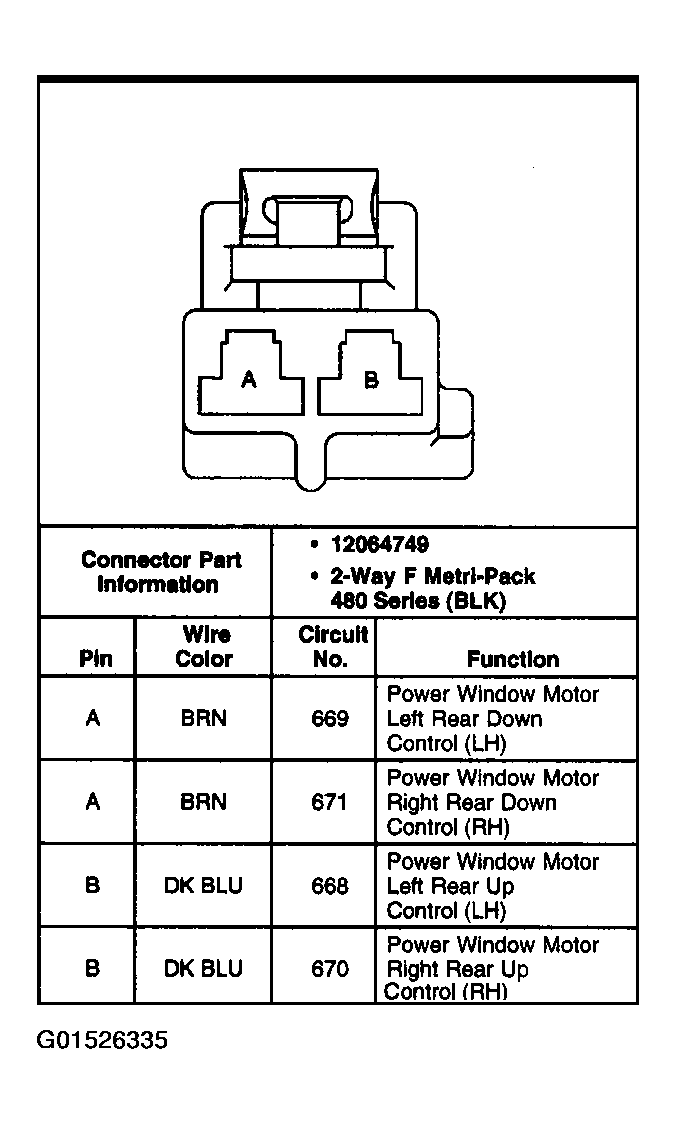

Fig 29: Window Motor (LR & RR) Connector End View
G01526335Courtesy of GENERAL MOTORS CORP.

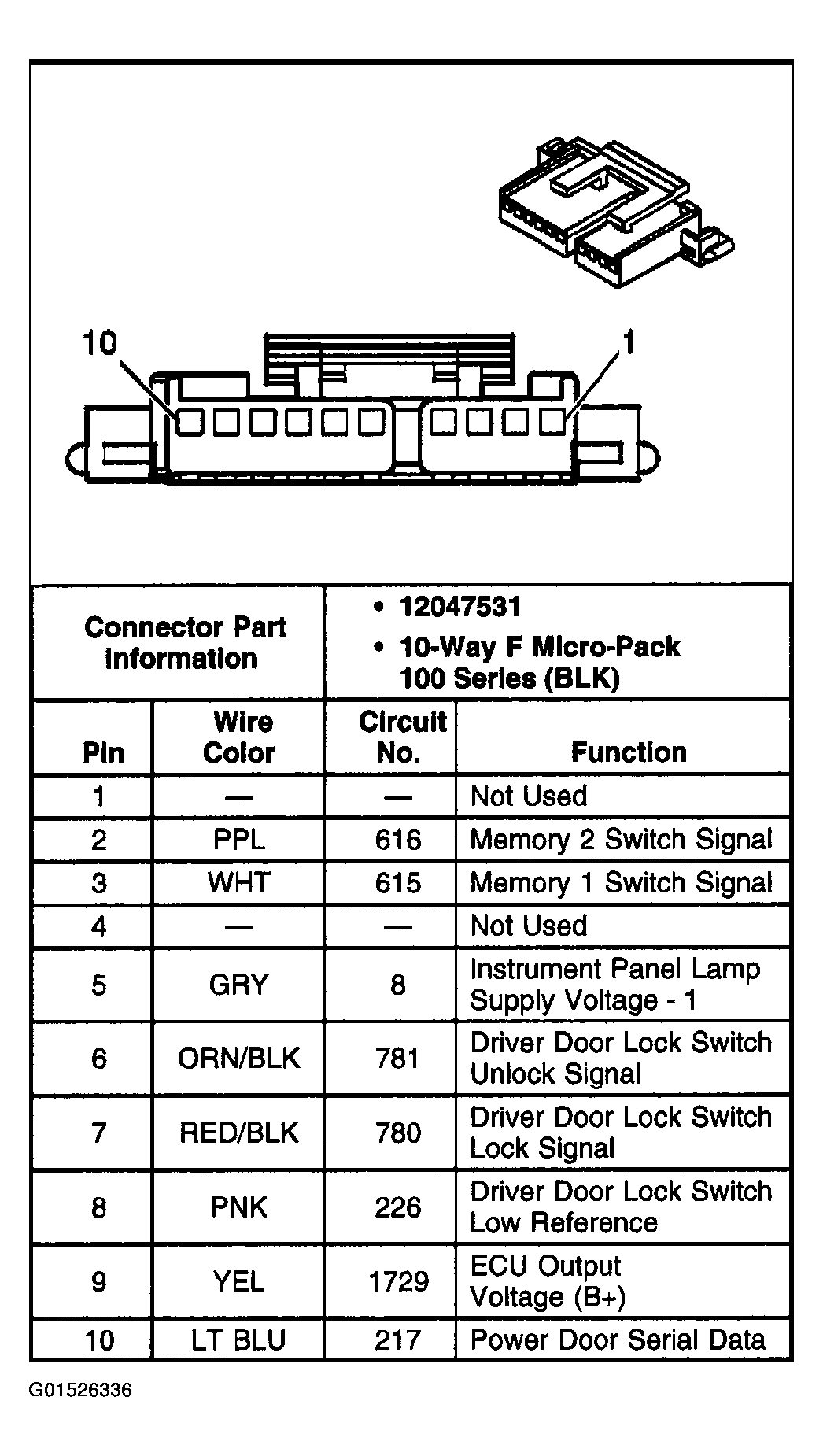

Fig 30: Window Switch (Driver) Connector End View
G01526336Courtesy of GENERAL MOTORS CORP.

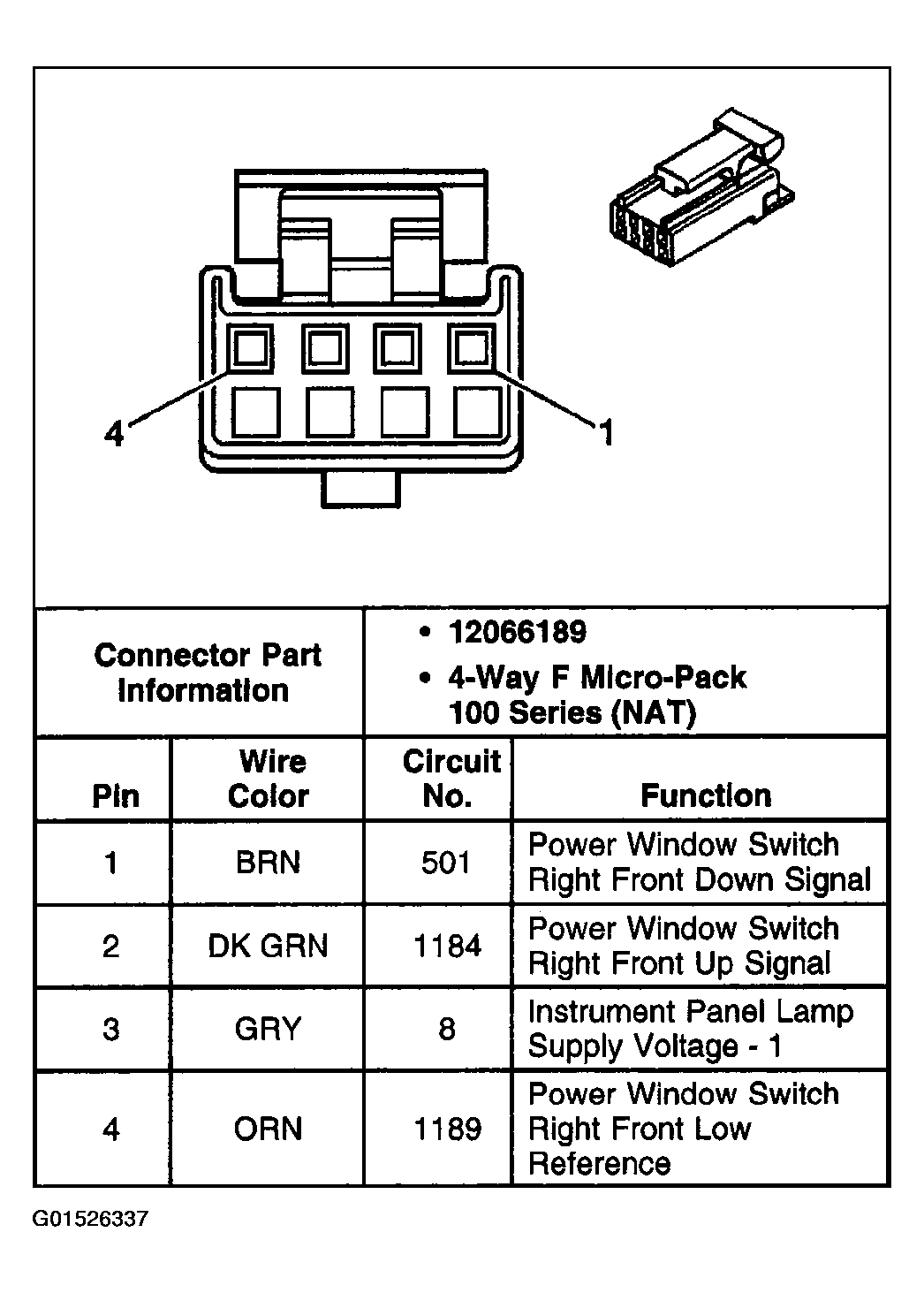

Fig 31: Window Switch (Front Passenger) Connector End View
G01526337Courtesy of GENERAL MOTORS CORP.

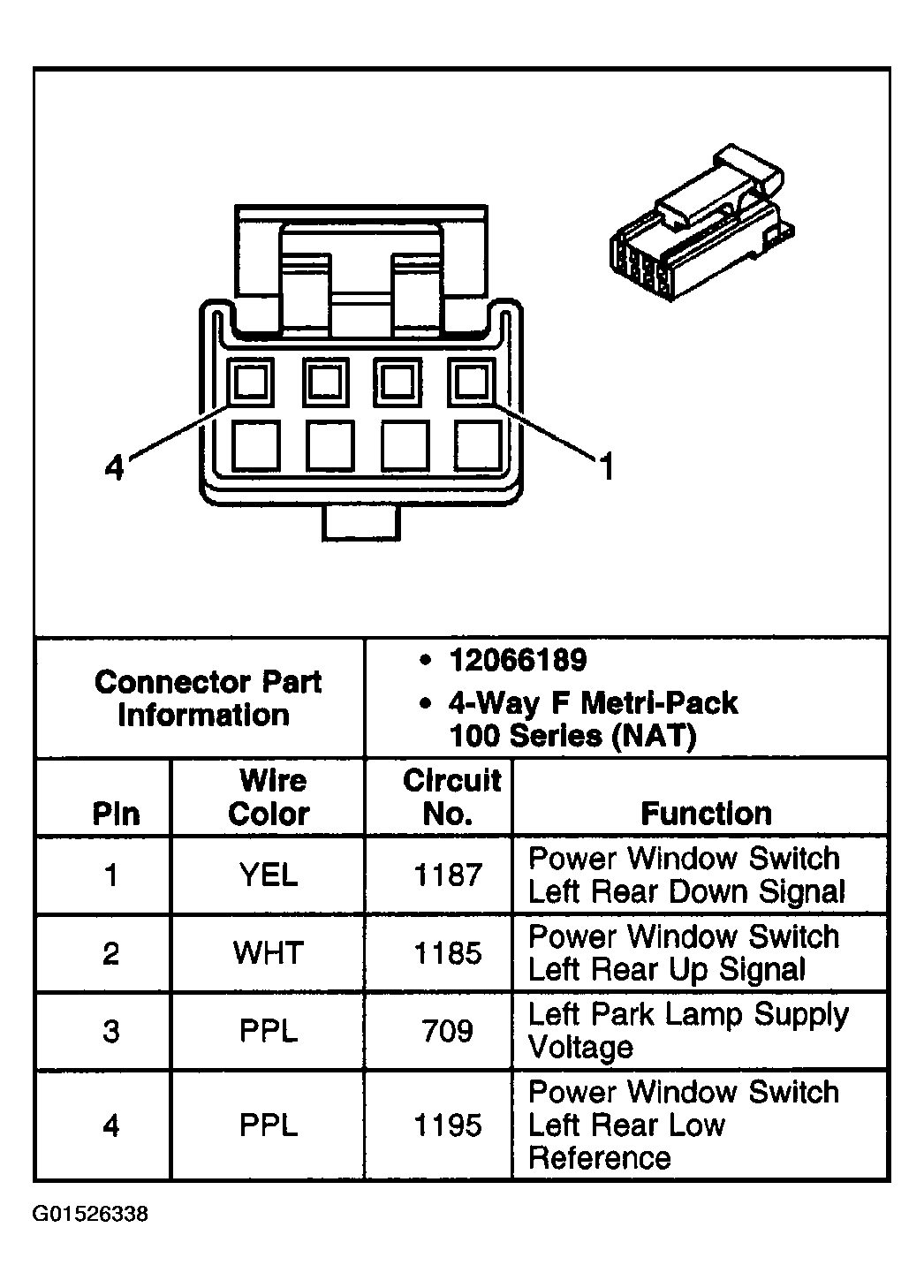

Fig 32: Window Switch (LR) Connector End View
G01526338Courtesy of GENERAL MOTORS CORP.

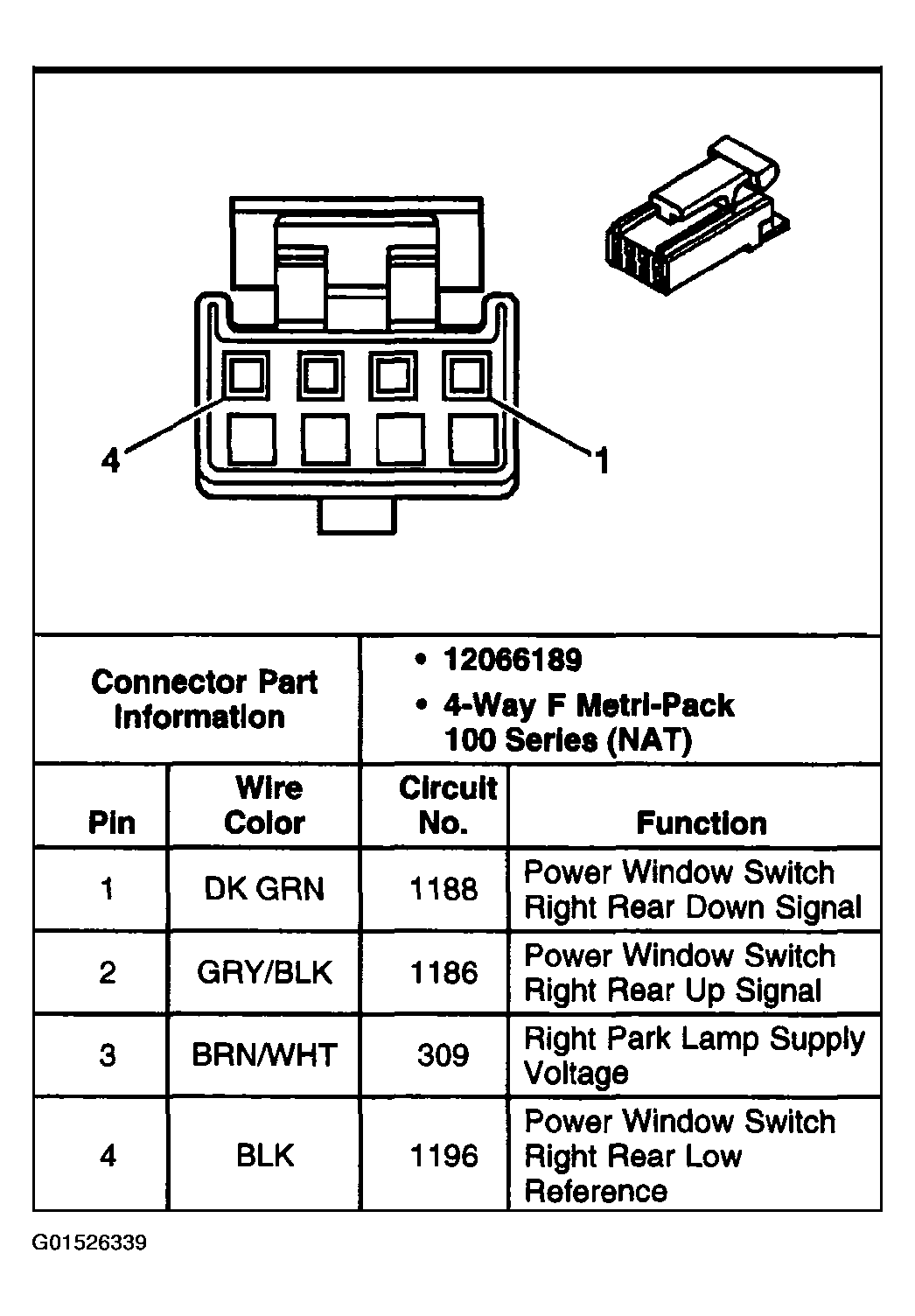

Fig 33: Window Switch (RR) Connector End View
G01526339Courtesy of GENERAL MOTORS CORP.
