ABS Component Views

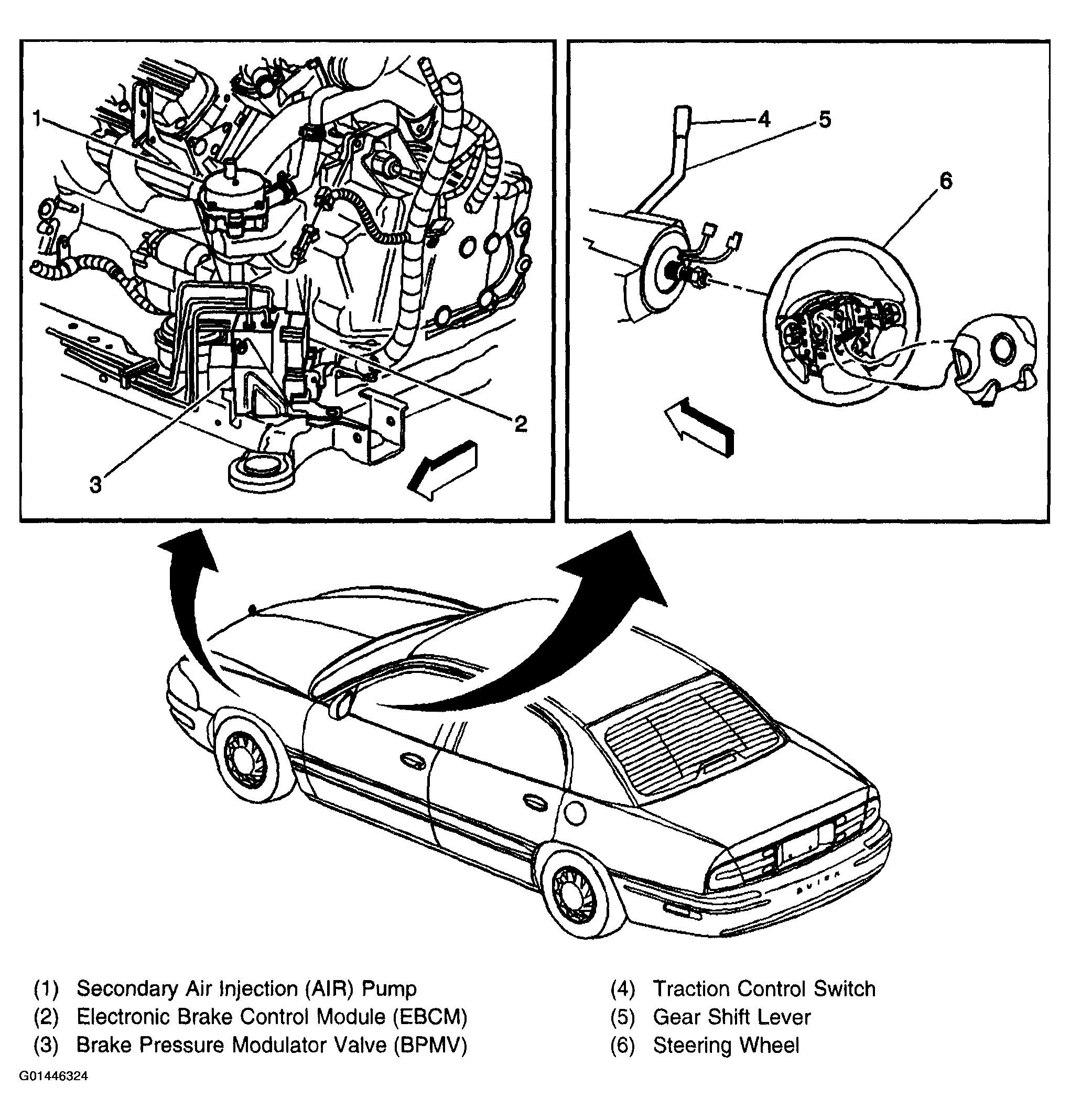

Fig 1: EBCM And Switch
G01446324Courtesy of GENERAL MOTORS CORP.

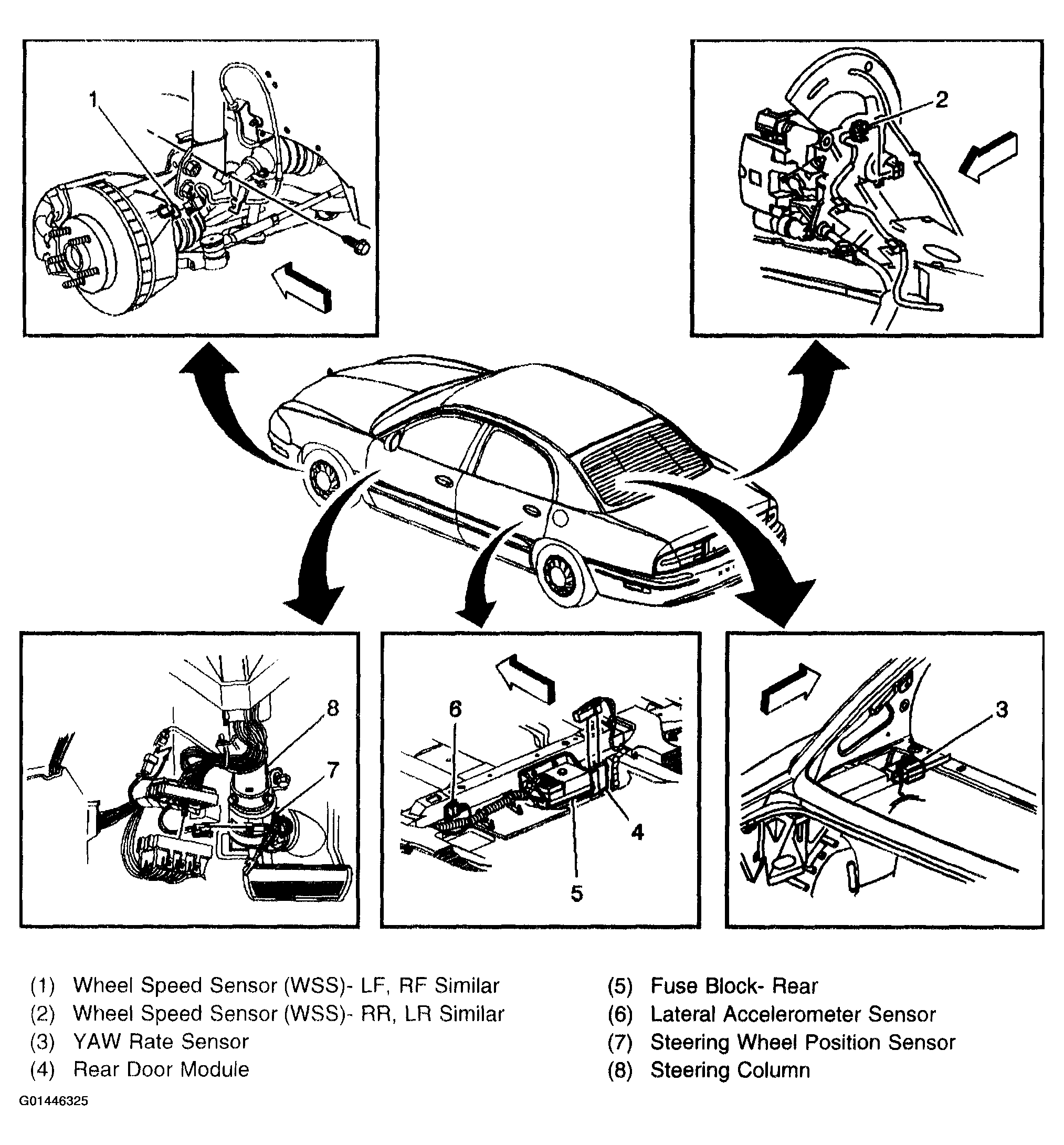

Fig 2: Sensors
G01446325Courtesy of GENERAL MOTORS CORP.
