Installation Procedure

Install the lateral accelerometer sensor (3).

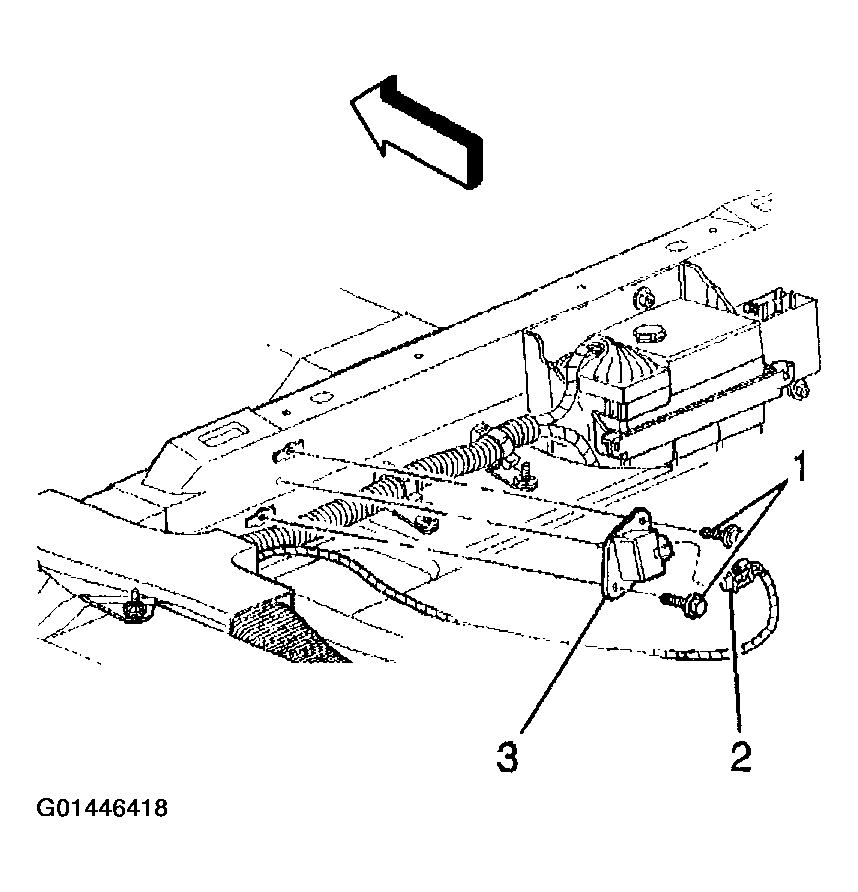

Fig 1: Installing Lateral Accelerometer Sensor
Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to FASTENER NOTICE .
Install the 2 lateral accelerometer sensor mounting screws (1).
Tighten

Tighten the 2 lateral accelerometer sensor mounting screws to 2.4 N.m (21 lb in).
Connect the lateral accelerometer sensor electrical connector (2).
Install the rear seat cushion. Refer to SEAT CUSHION REPLACEMENT - REAR in Seats.
Perform the ABS Diagnostic System Check. Refer to DIAGNOSTIC SYSTEM CHECK-ABS .
