Installation Procedure

Connect the yaw rate sensor electrical connector (3).

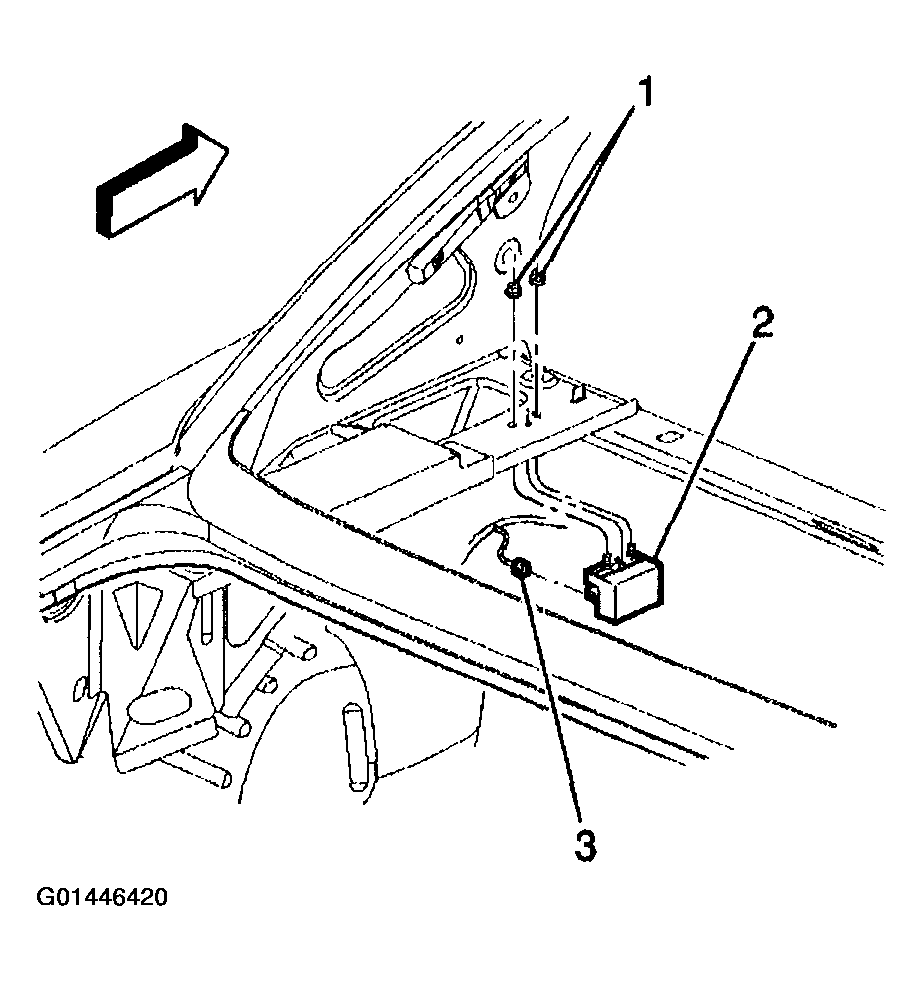

Fig 1: Installing Yaw Rate Sensor
Courtesy of GENERAL MOTORS CORP.
Install the yaw rate sensor.
NOTE: Refer to FASTENER NOTICE .
Install the yaw rate sensor nuts (1).
Tighten

Tighten the yaw rate sensor mounting nuts (1) to 6 N.m (53 lb in).
Install the rear shelf trim panel. Refer to TRIM PANEL REPLACEMENT - REAR WINDOW SHELF in Interior Trim.
Install the rear compartment trim. Refer to COMPARTMENT TRIM PANEL REPLACEMENT - REAR in Body Rear End.
Perform the ABS Diagnostic System Check. Refer to DIAGNOSTIC SYSTEM CHECK-ABS .
