Removal Procedure

  1. Turn OFF the ignition.
  2. Remove the rear compartment trim. Refer to COMPARTMENT TRIM PANEL REPLACEMENT - REAR in Body Rear End.
  3. Remove the rear shelf trim panel. Refer to TRIM PANEL REPLACEMENT - REAR WINDOW SHELF in Interior Trim.
  4. Remove the 2 yaw rate sensor mounting nuts (1).
  5. Remove the yaw rate sensor (2).
  6. Disconnect the yaw rate sensor electrical connector (3).

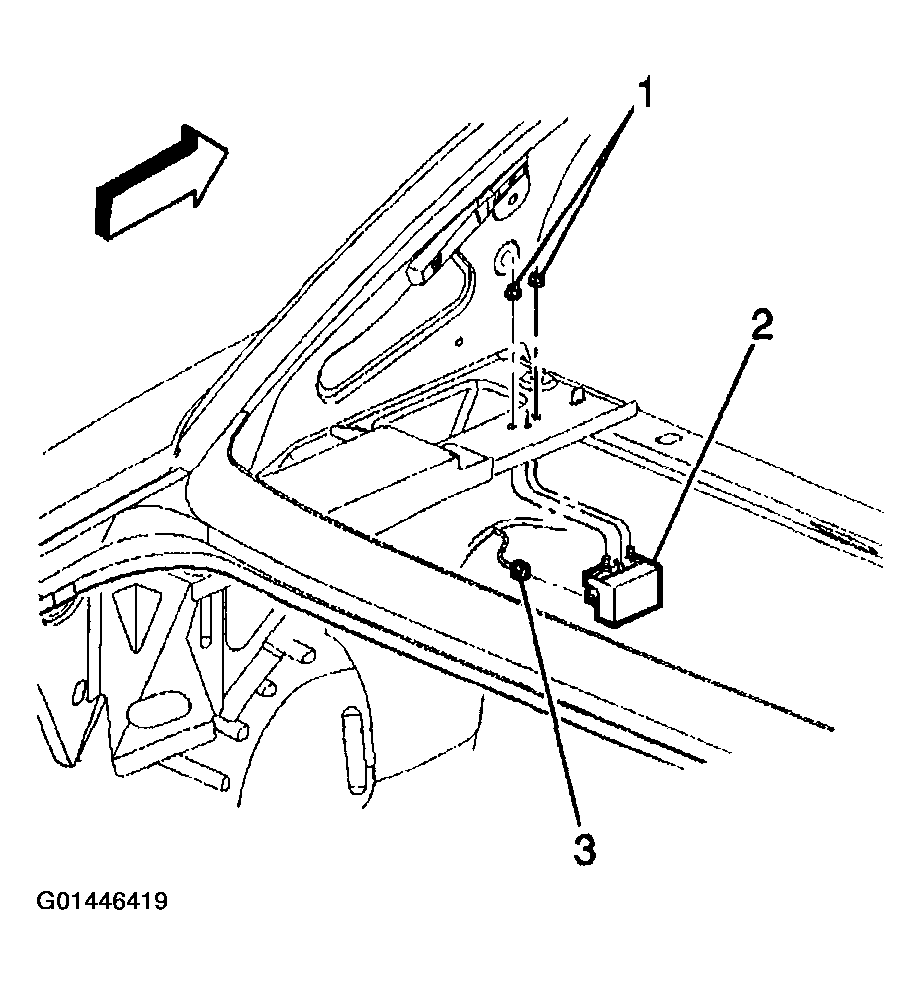

    Fig 1: Removing Yaw Rate Sensor
    G01446419Courtesy of GENERAL MOTORS CORP.
