Memory Seat Module (MSM) Connector End View C2

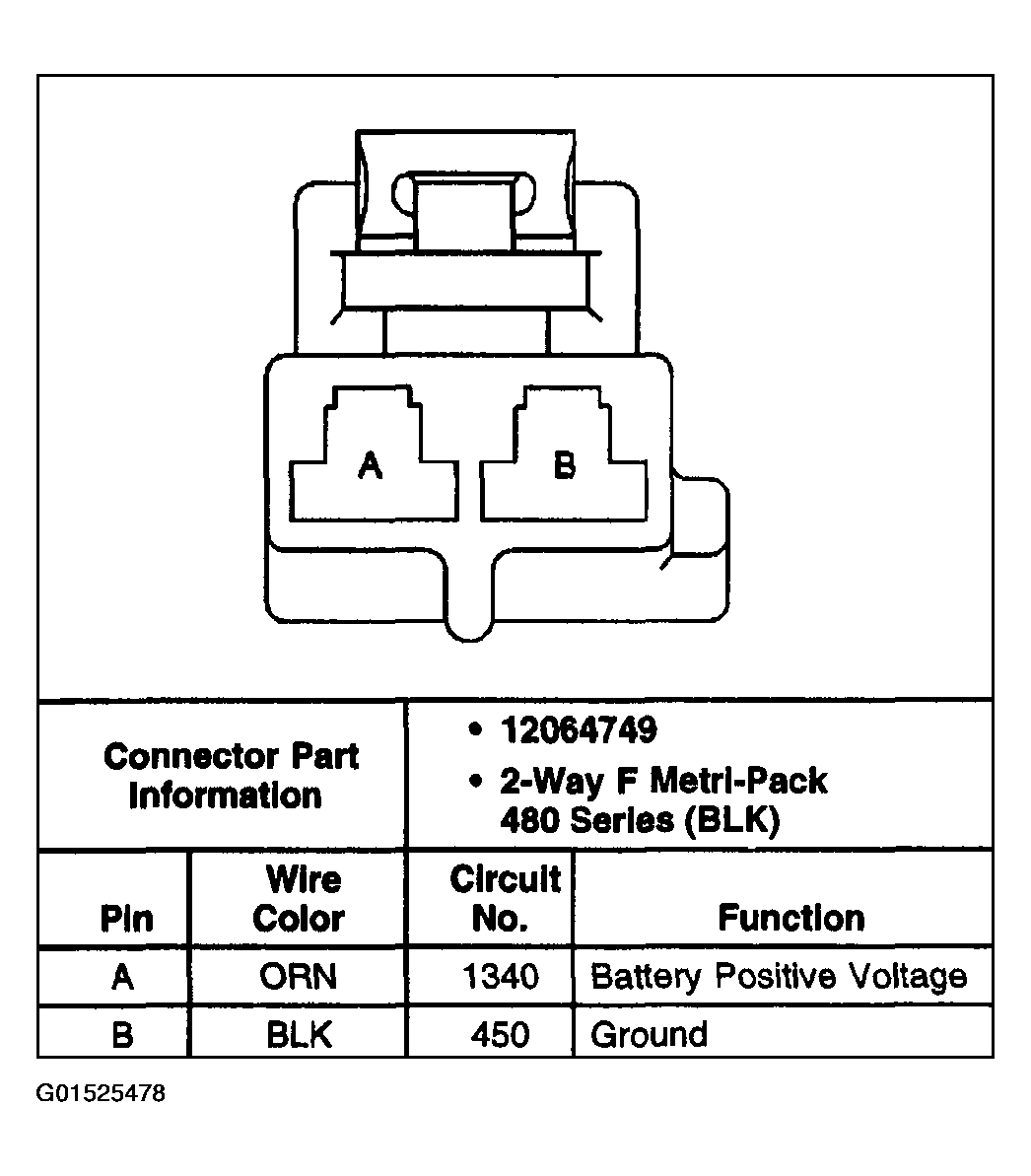

Fig 1: Memory Seat Module (MSM) C2
G01525478Courtesy of GENERAL MOTORS CORP.
