Stop Lamp/AT Shift Lock Control Switch Connector End View C2

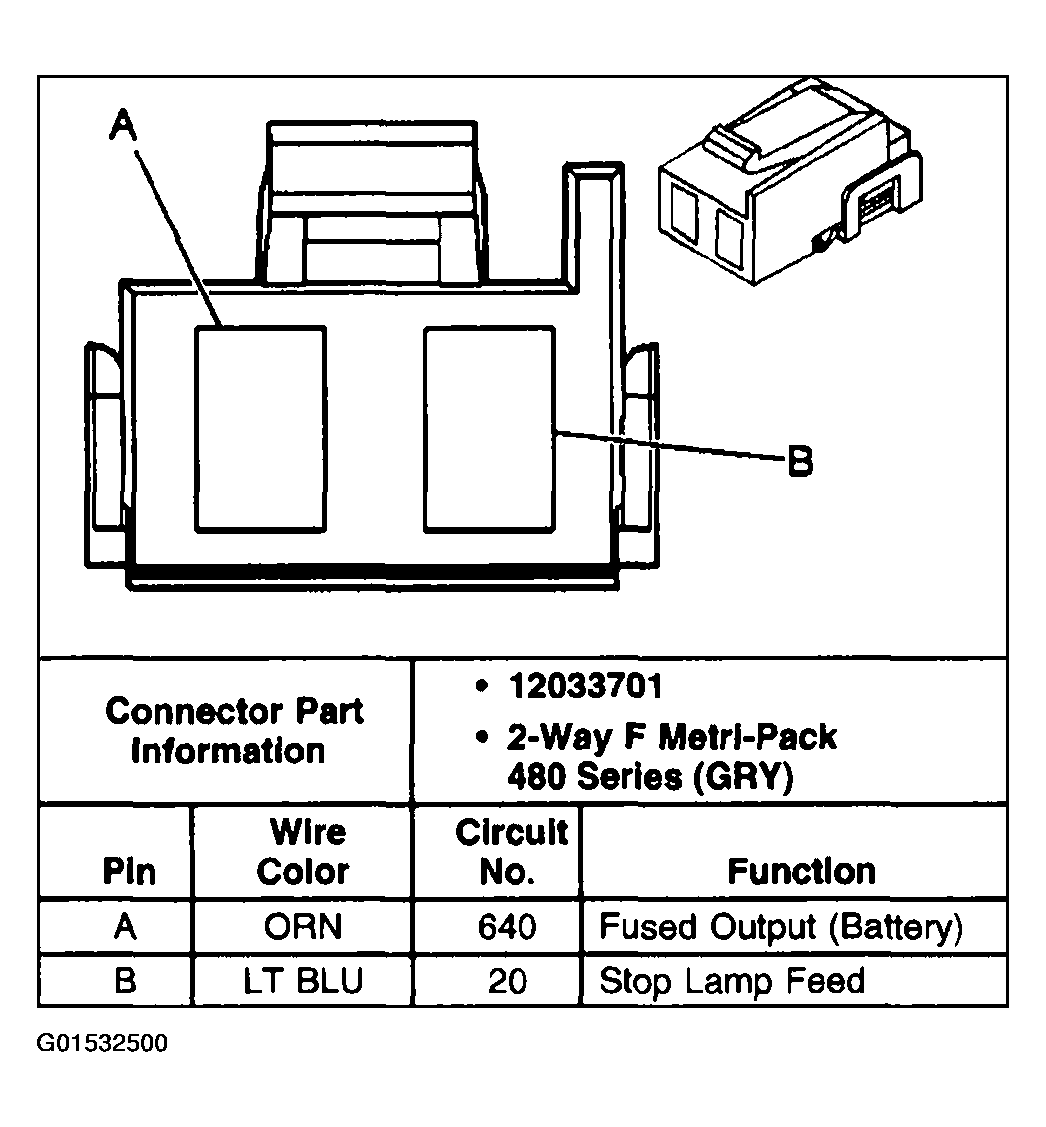

Fig 1: Stop Lamp/AT Shift Lock Control Switch C2
G01532500Courtesy of GENERAL MOTORS CORP.
