Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

Fig 1: Rear Of Engine (3.8L VIN K)

Courtesy of GENERAL MOTORS CORP.

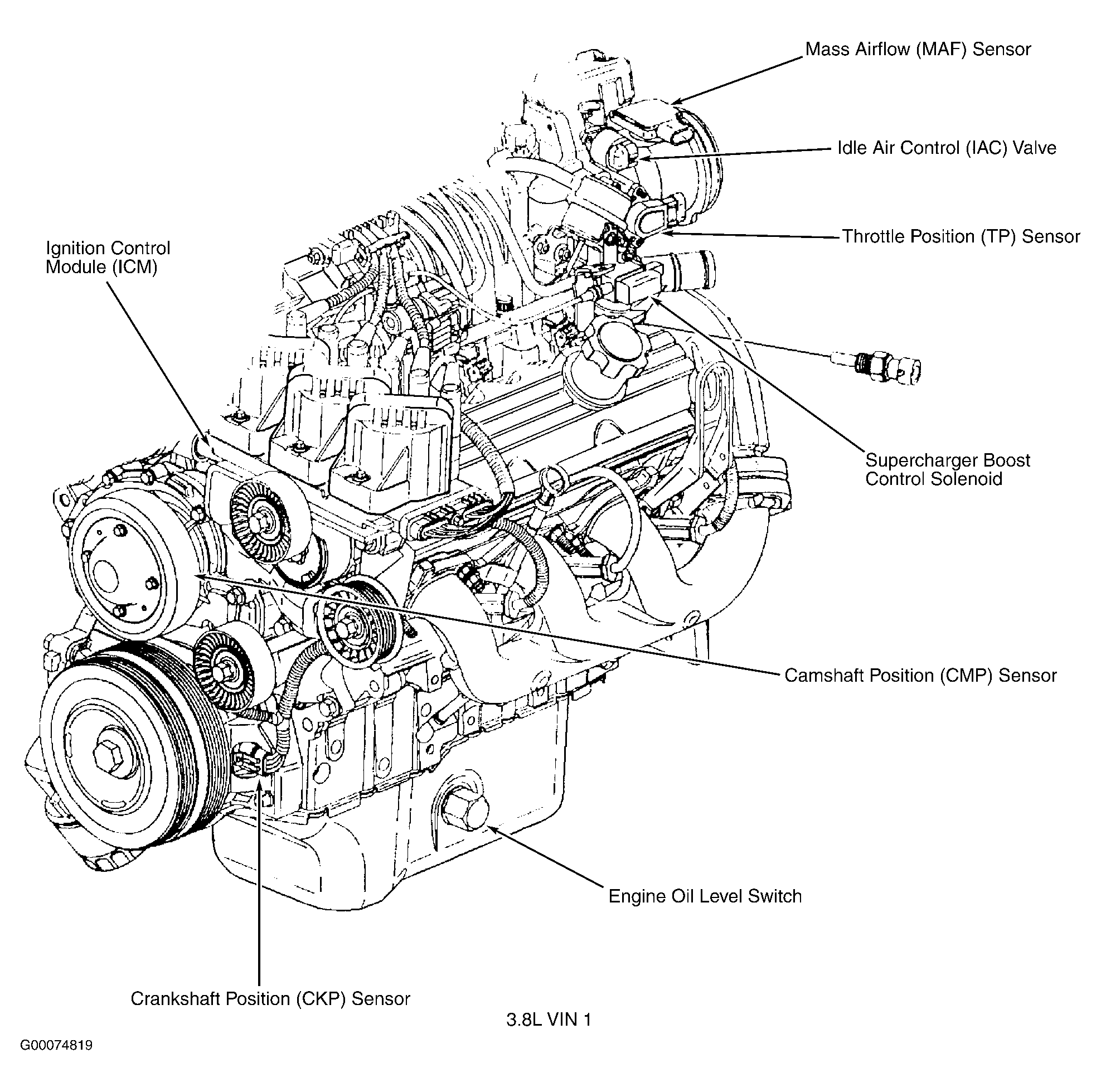

Fig 2: Left Front Of Engine (3.8L VIN 1)

Courtesy of GENERAL MOTORS CORP.

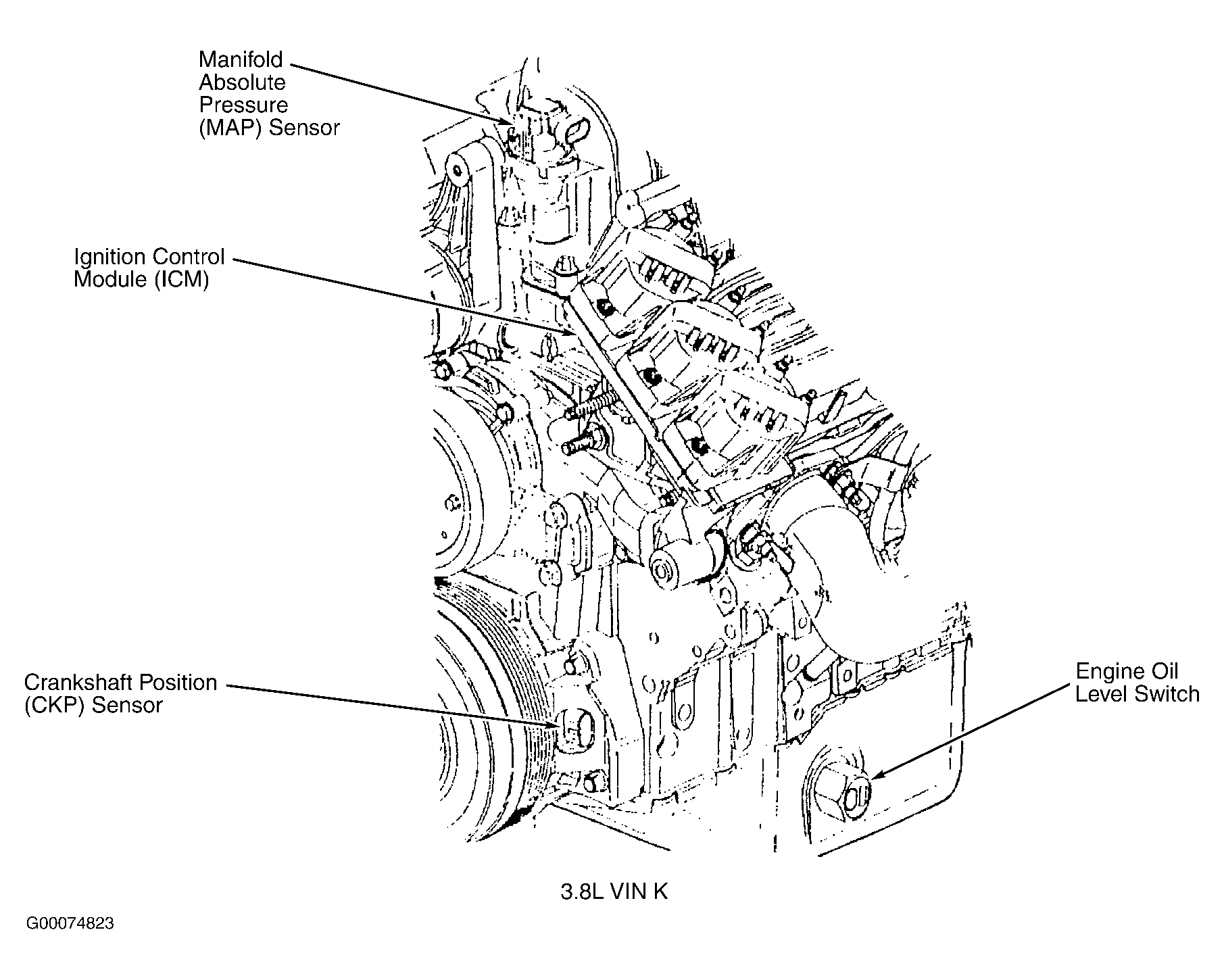

Fig 3: Left Front Of Engine (3.8L VIN K)

Courtesy of GENERAL MOTORS CORP.

Fig 4: Left Rear Of Engine (3.8L VIN K)

Courtesy of GENERAL MOTORS CORP.

Fig 5: Top Rear Of Engine (3.8L VIN 1)

Courtesy of GENERAL MOTORS CORP.

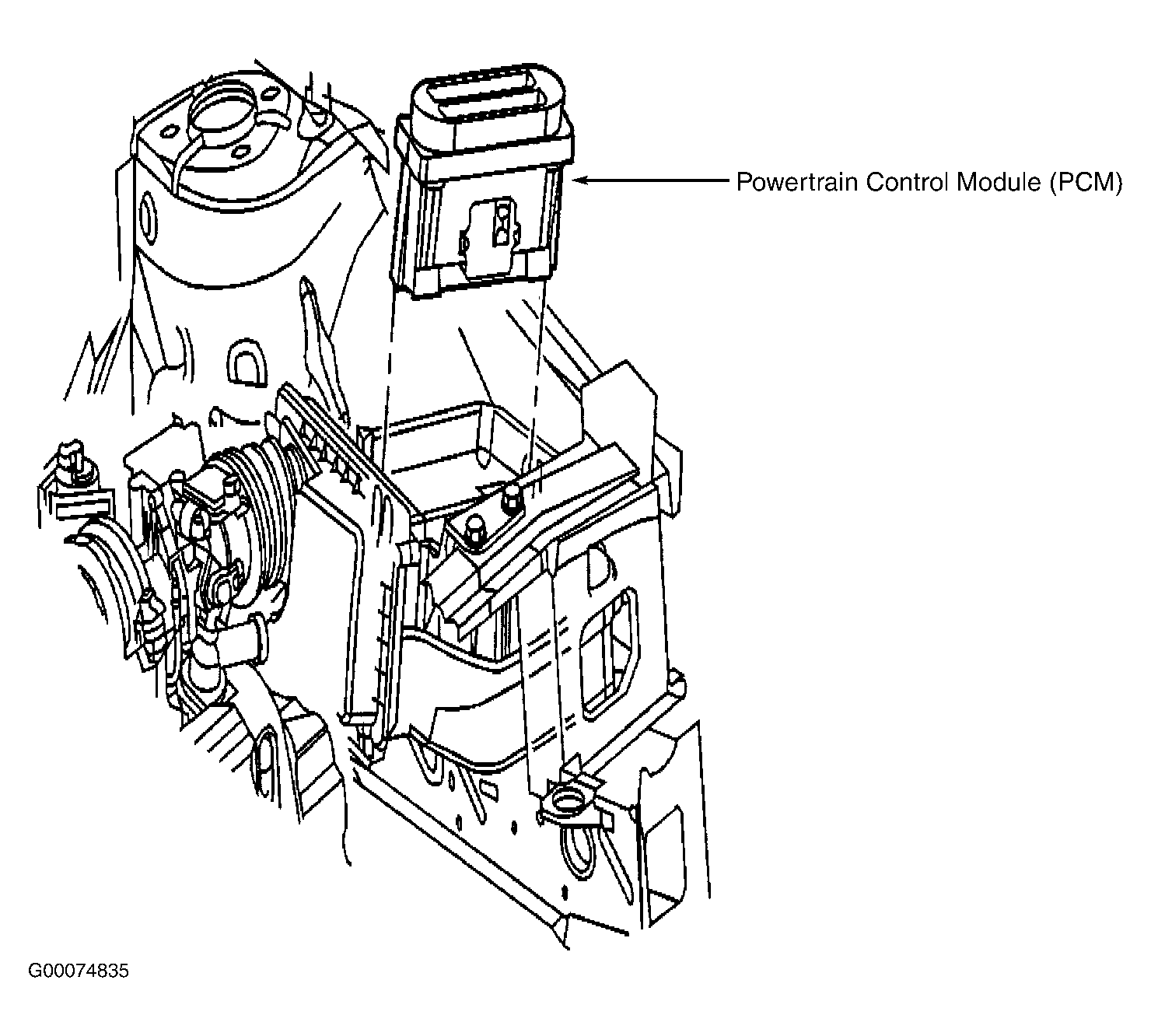

Fig 6: Left Front Of Engine Compartment

Courtesy of GENERAL MOTORS CORP.
