Radio Antenna Module Connector End View C2
Radio Antenna Module Connector End View C2

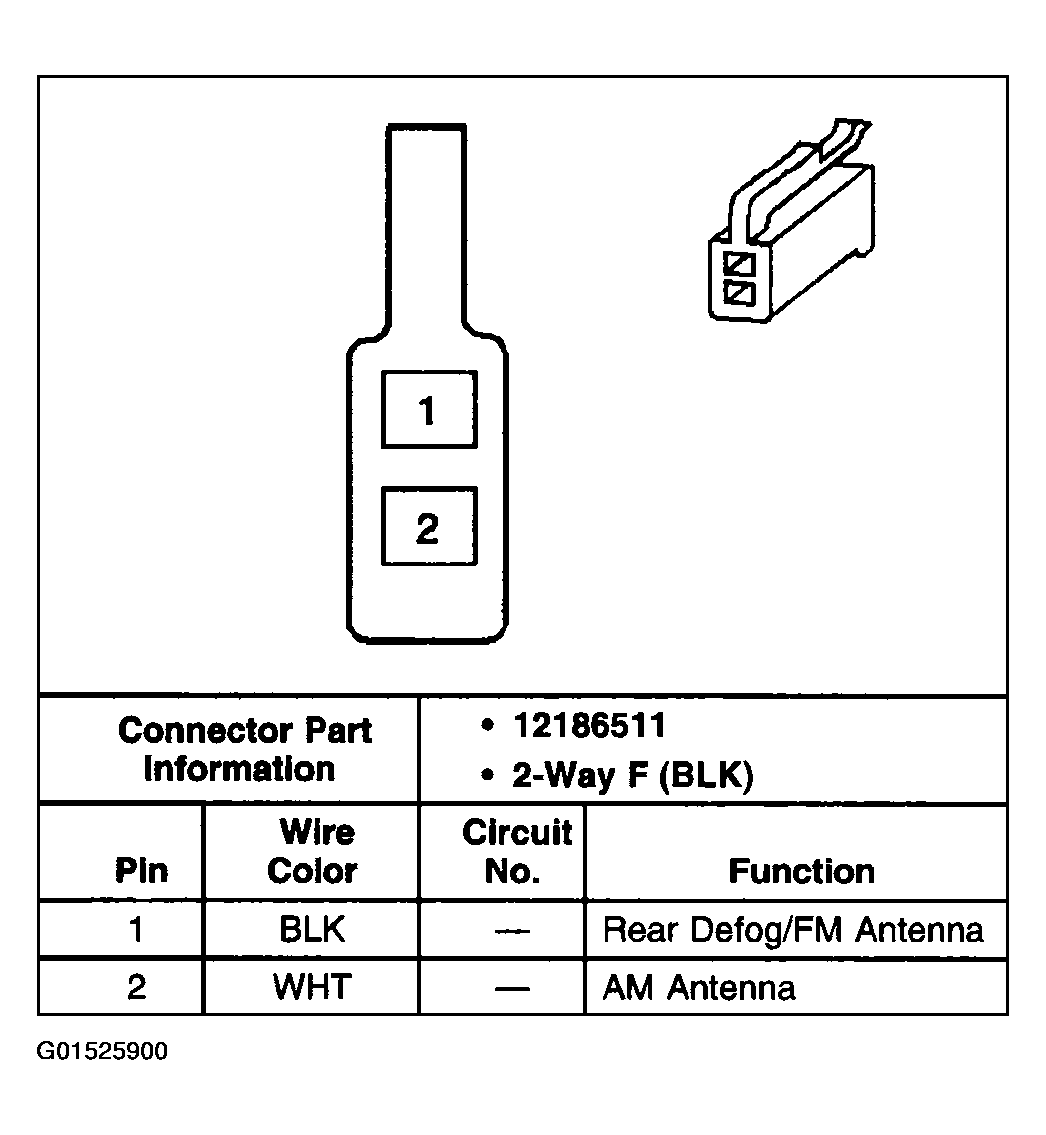

Fig 1: Radio Antenna Module C2
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
