Cellular Communication Component Views

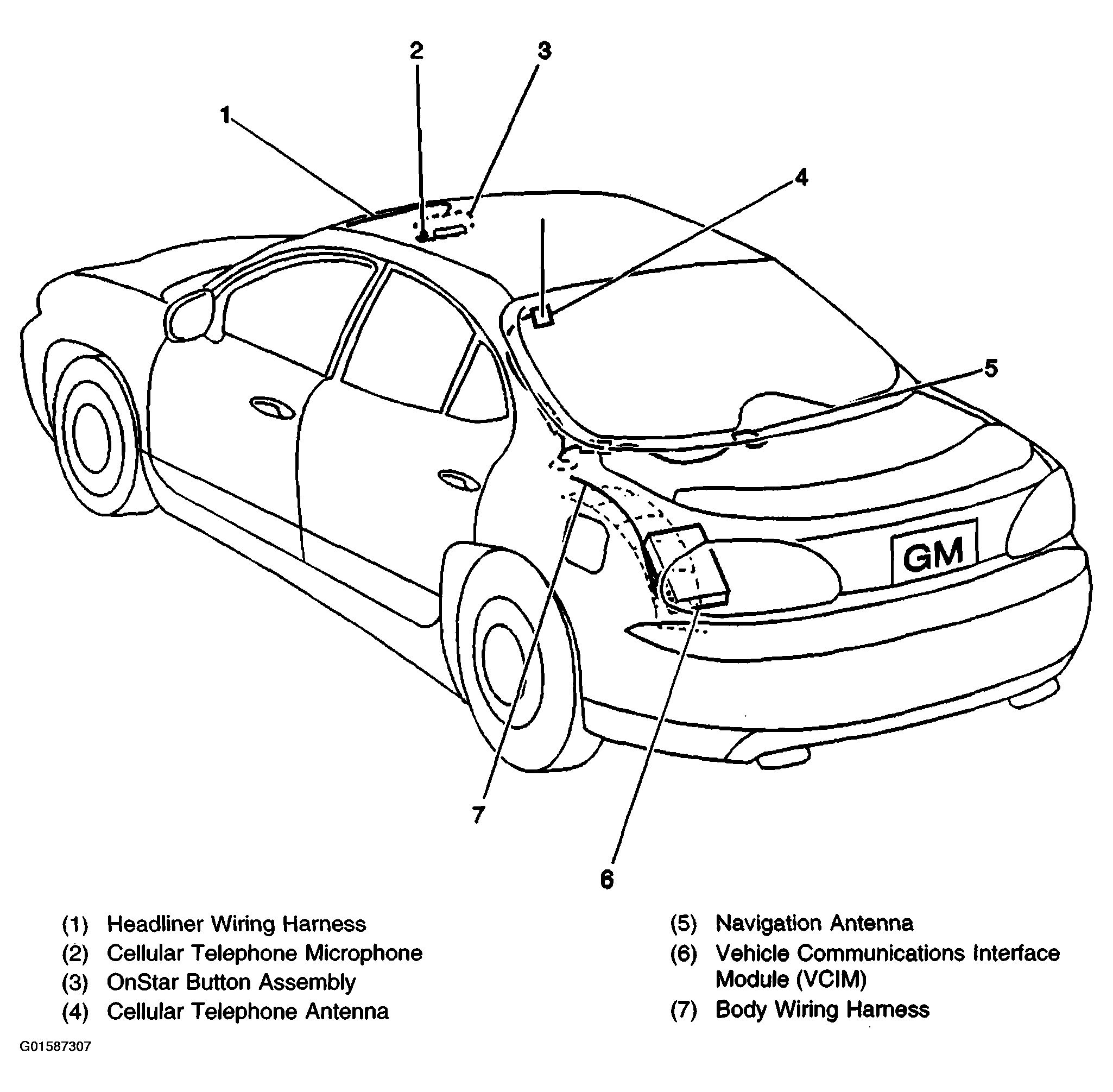

Fig 1: OnStar System Component View
G01587307Courtesy of GENERAL MOTORS CORP.

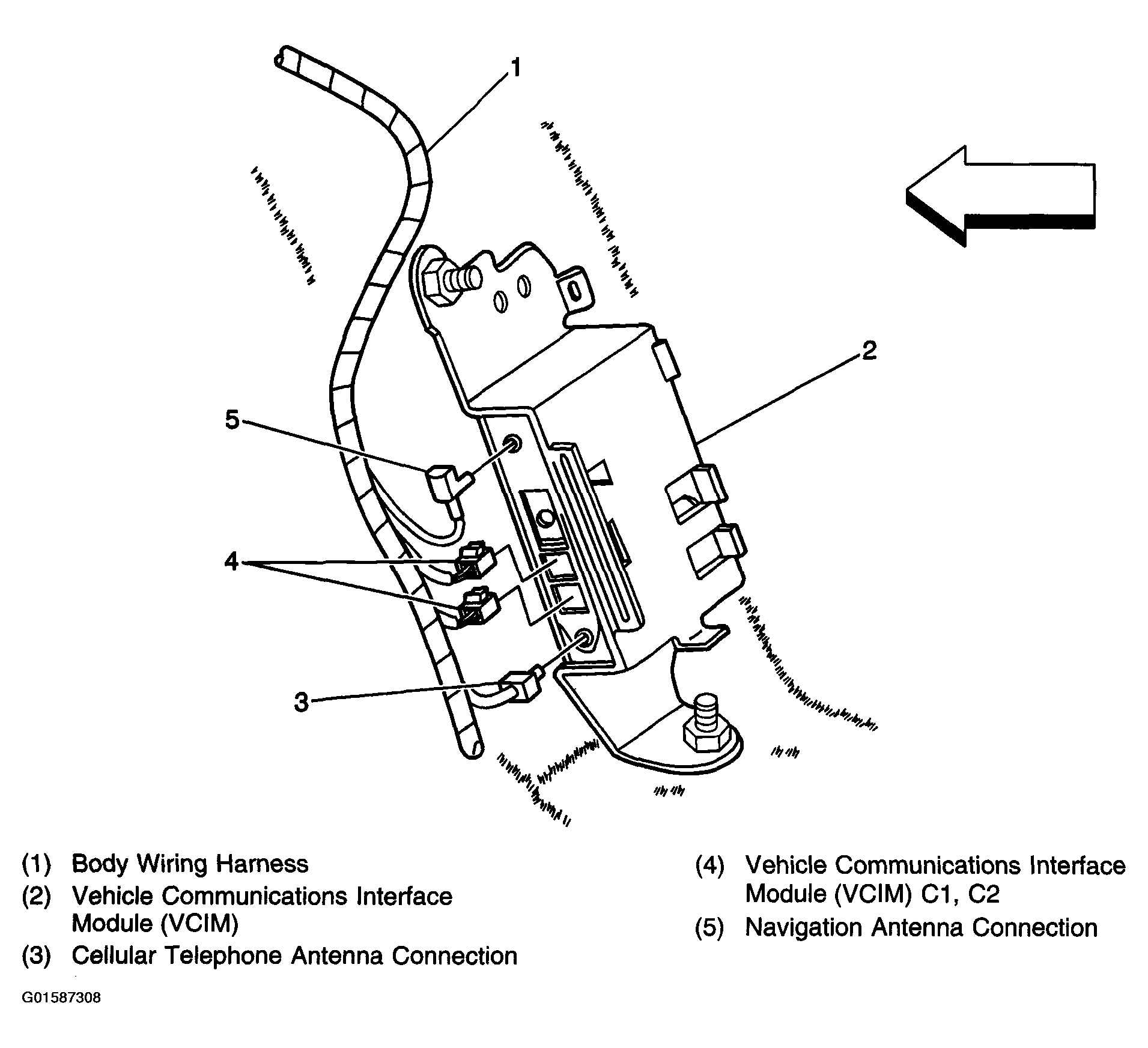

Fig 2: Left Side Of Luggage Compartment Component View
G01587308Courtesy of GENERAL MOTORS CORP.

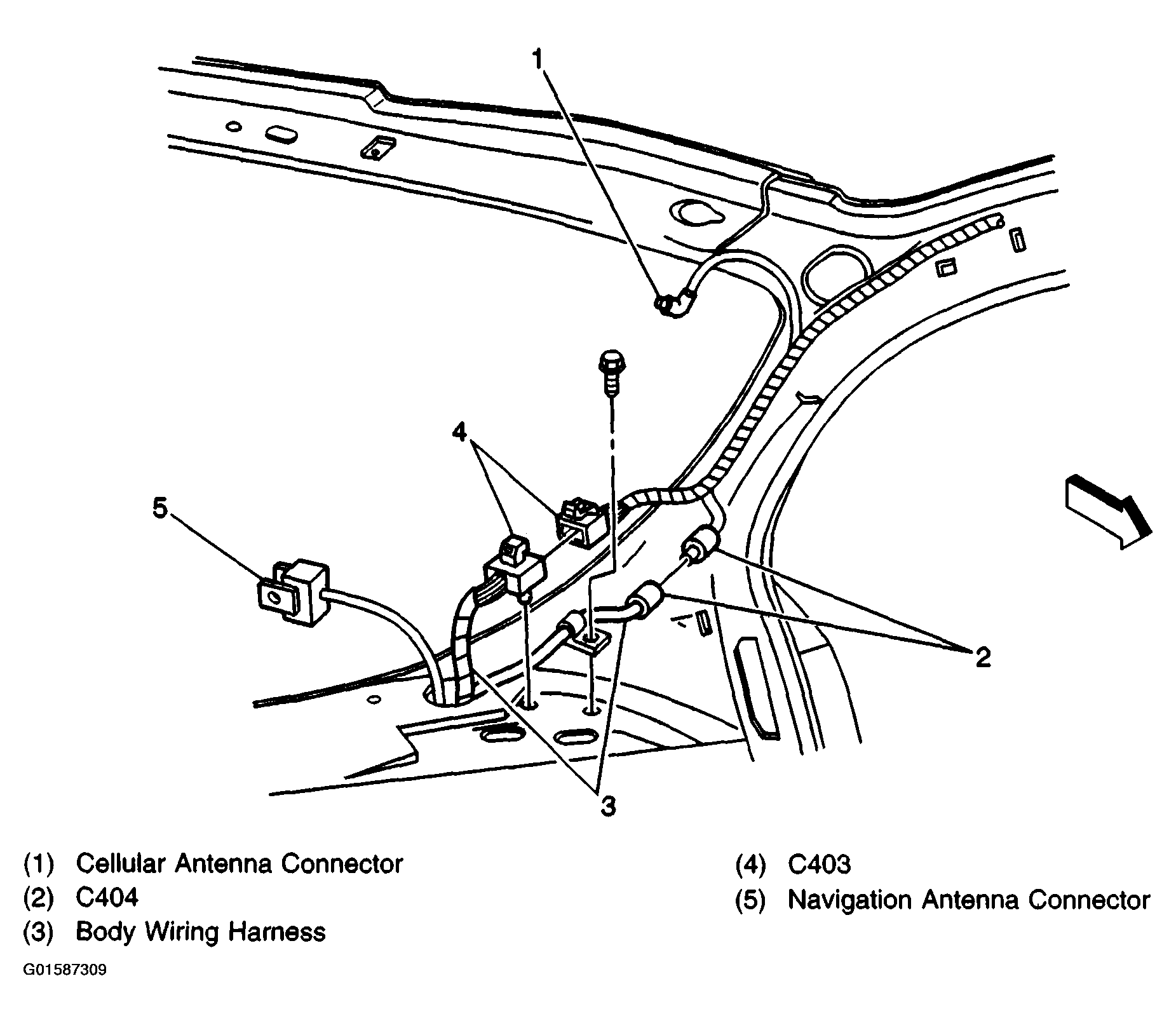

Fig 3: Left Side Of Rear Window Shelf Component View
G01587309Courtesy of GENERAL MOTORS CORP.
