Traction Control Switch Connector End View
Traction Control Switch Connector End View

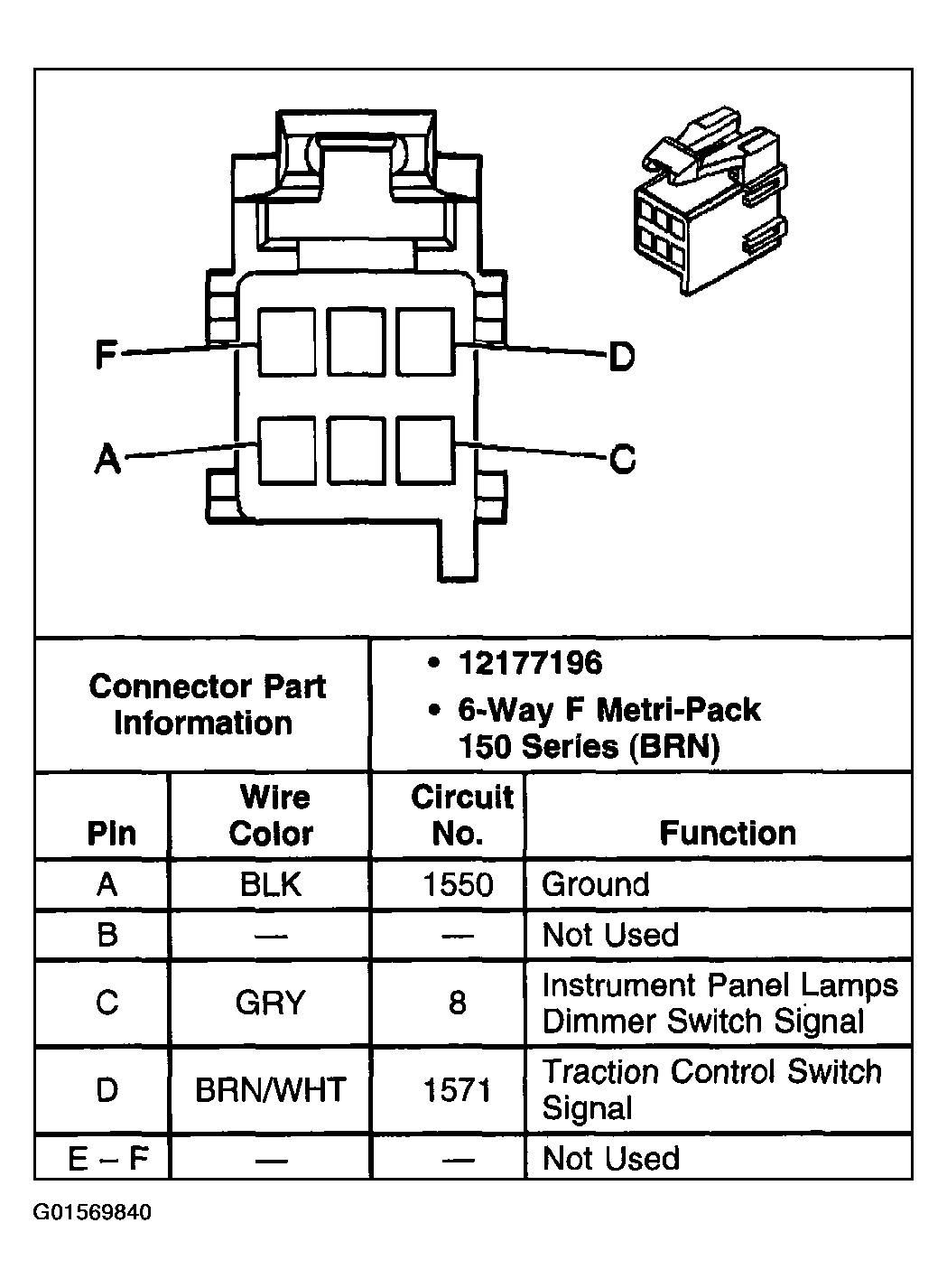

Fig 1: Traction Control Switch Connector End View
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
