Vehicle Communications Interface Module C1 Connector End View
Vehicle Communications Interface Module C1 Connector End View

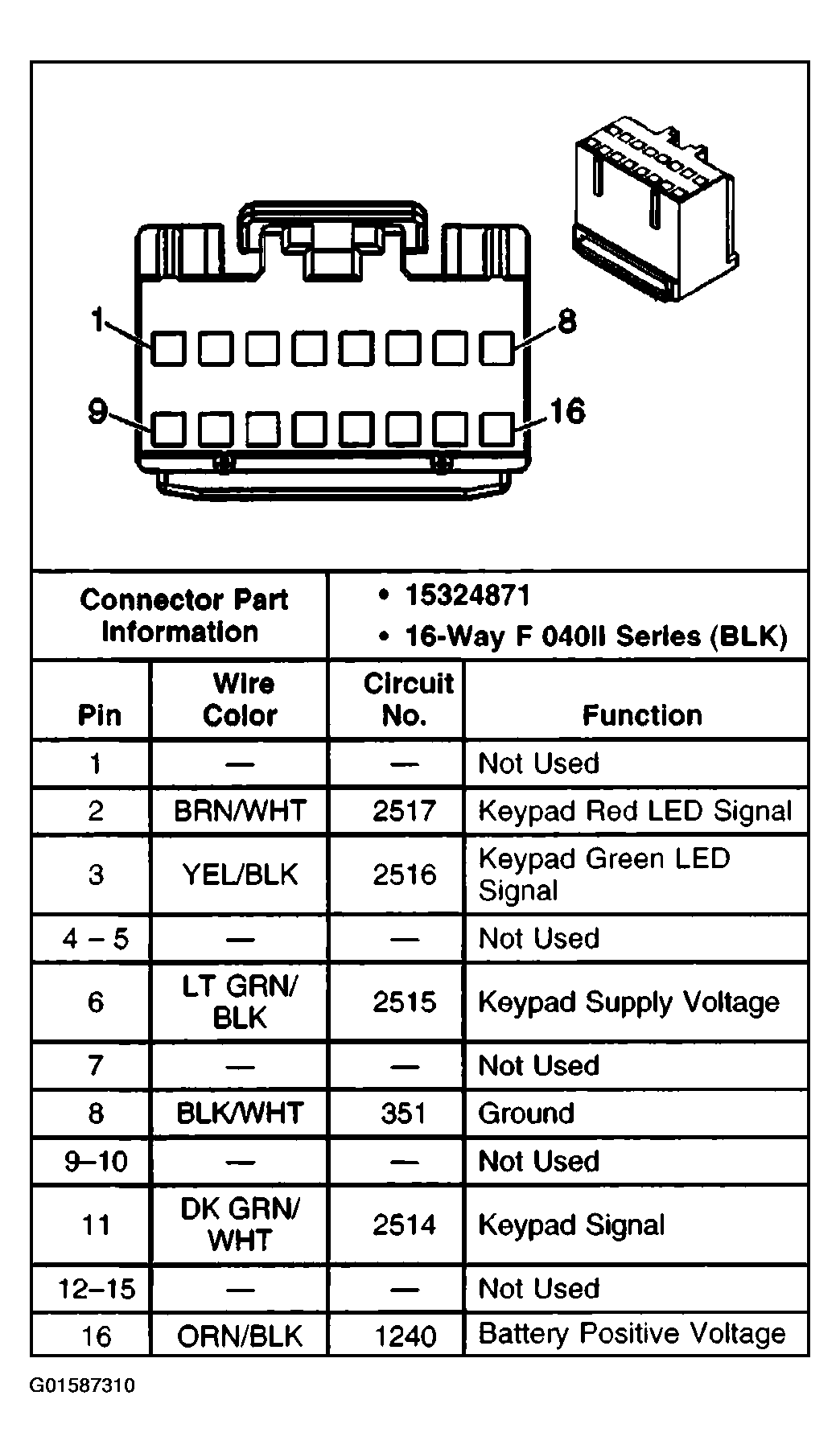

Fig 1: Vehicle Communications Interface Module C1 Connector End View
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
