HVAC Control Module, C2 Connector End View Terminal

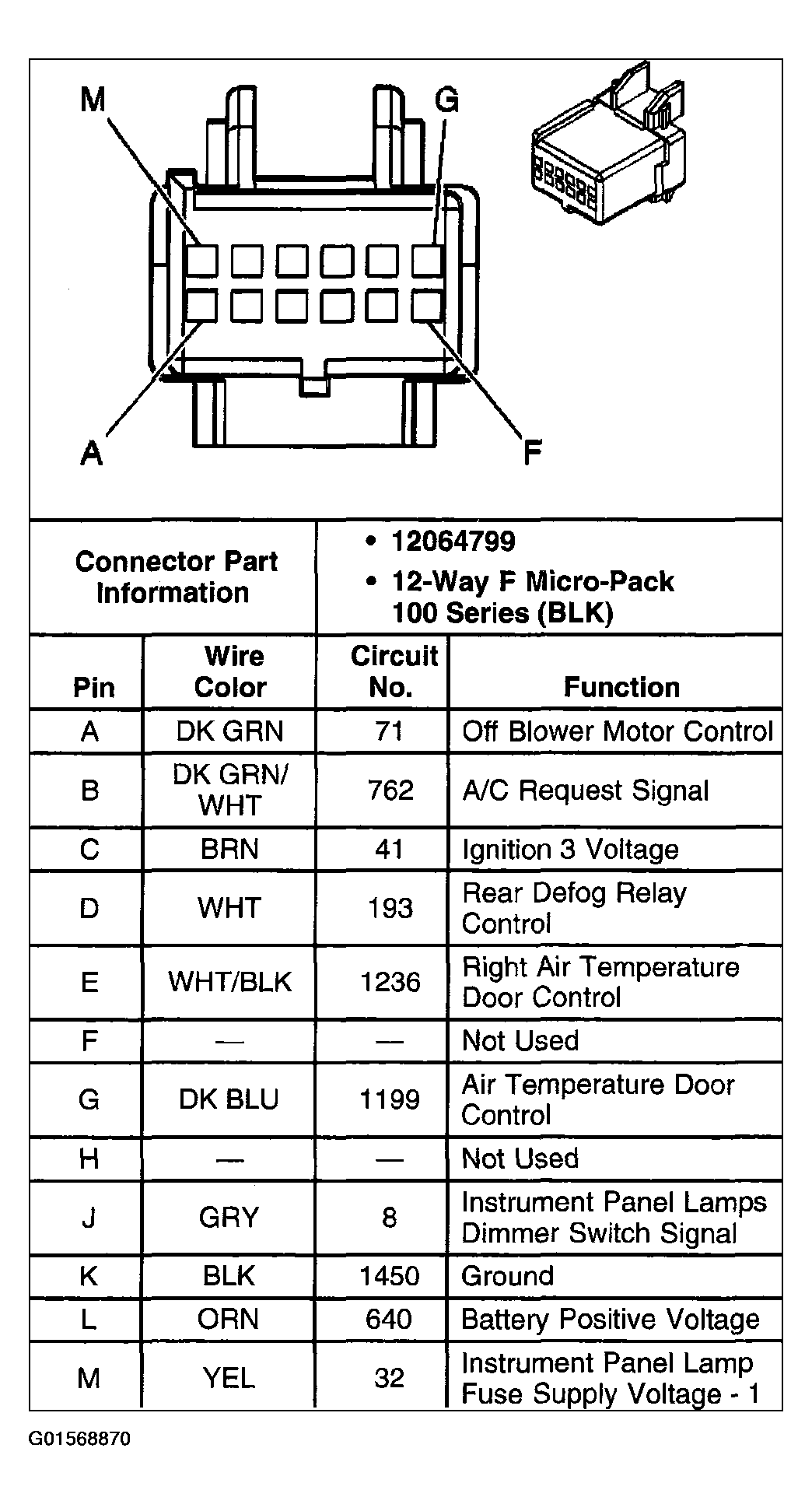

Fig 1: HVAC Control Module, C2 Connector End View Terminal
G01568870Courtesy of GENERAL MOTORS CORP.
