Installation Procedure

  1. Connect the electrical connectors.

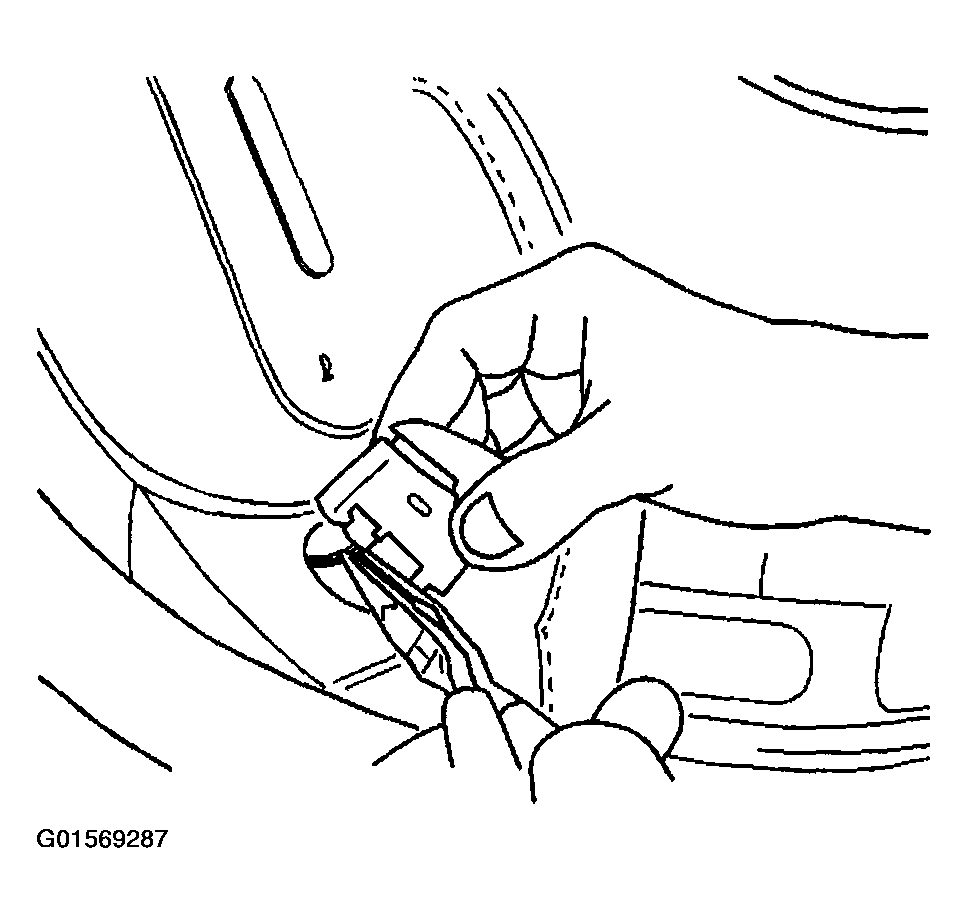

    Fig 1: Connecting Electrical Connectors
    G01569287Courtesy of GENERAL MOTORS CORP.
  2. Position the steering wheel control switches to the steering wheel.

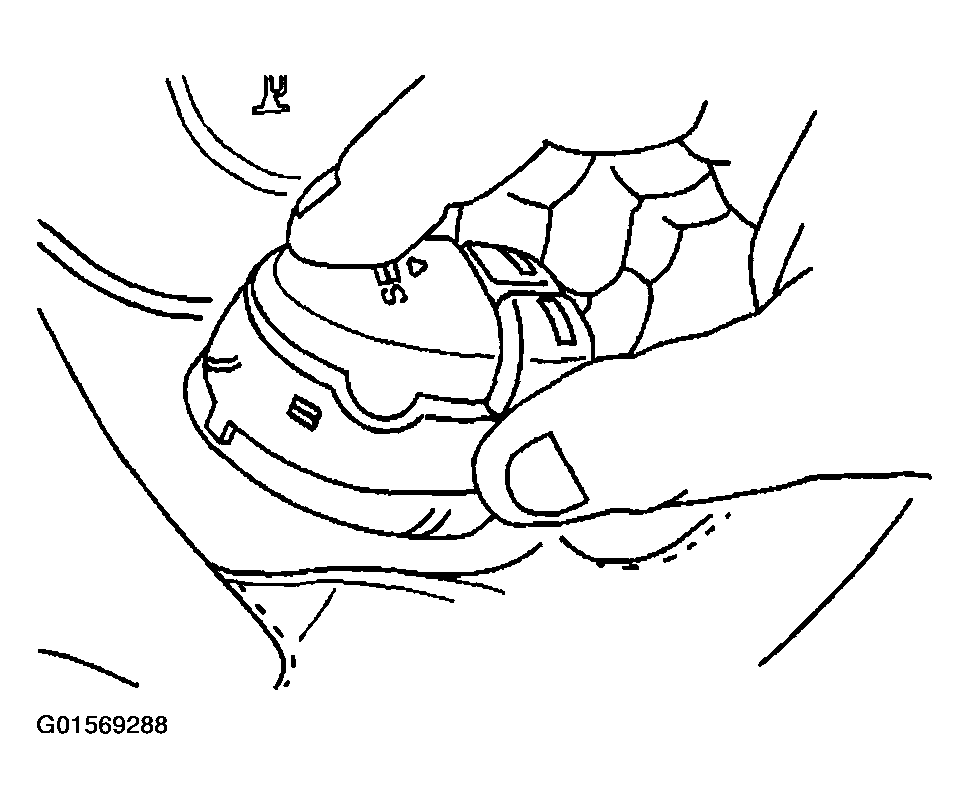

    Fig 2: Installing Steering Wheel Control Switches To Steering Wheel
    G01569288Courtesy of GENERAL MOTORS CORP.
  3. Install the steering wheel control switches by pressing into place until fully seated.
    Fig 3: Installing Steering Wheel Control Switches By Pressing Into Place
    G01569289Courtesy of GENERAL MOTORS CORP.
