Removal Procedure

  1. Remove the steering wheel control switches using a small flat bladed tool.

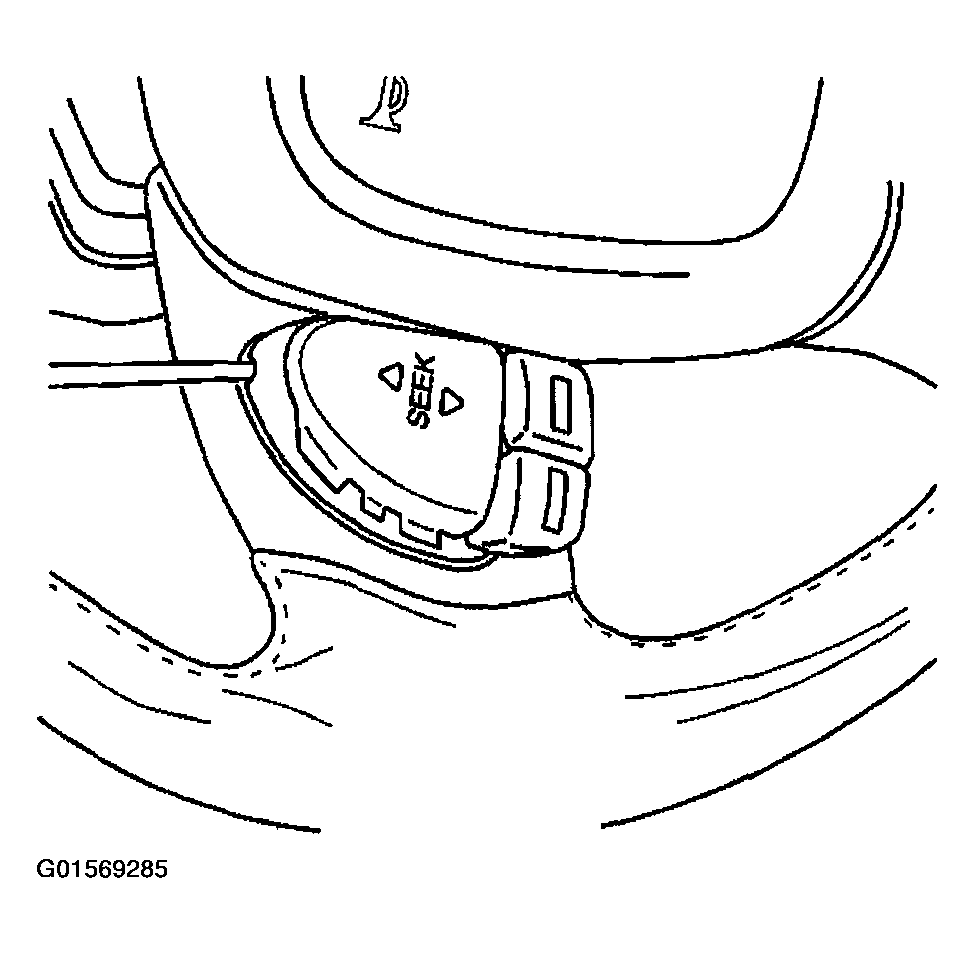

    Fig 1: Removing Steering Wheel Control Switches
    G01569285Courtesy of GENERAL MOTORS CORP.
  2. Disconnect the electrical connectors.

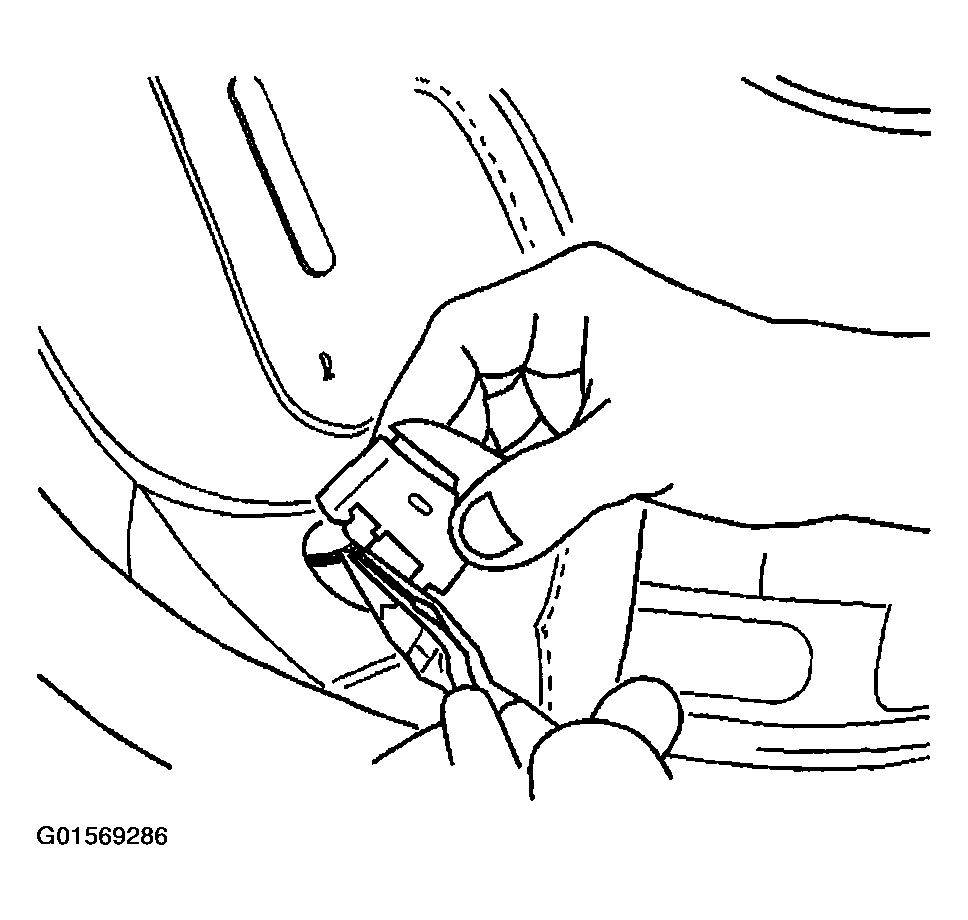

    Fig 2: Disconnecting Electrical Connectors
    G01569286Courtesy of GENERAL MOTORS CORP.
