Symptom Testing

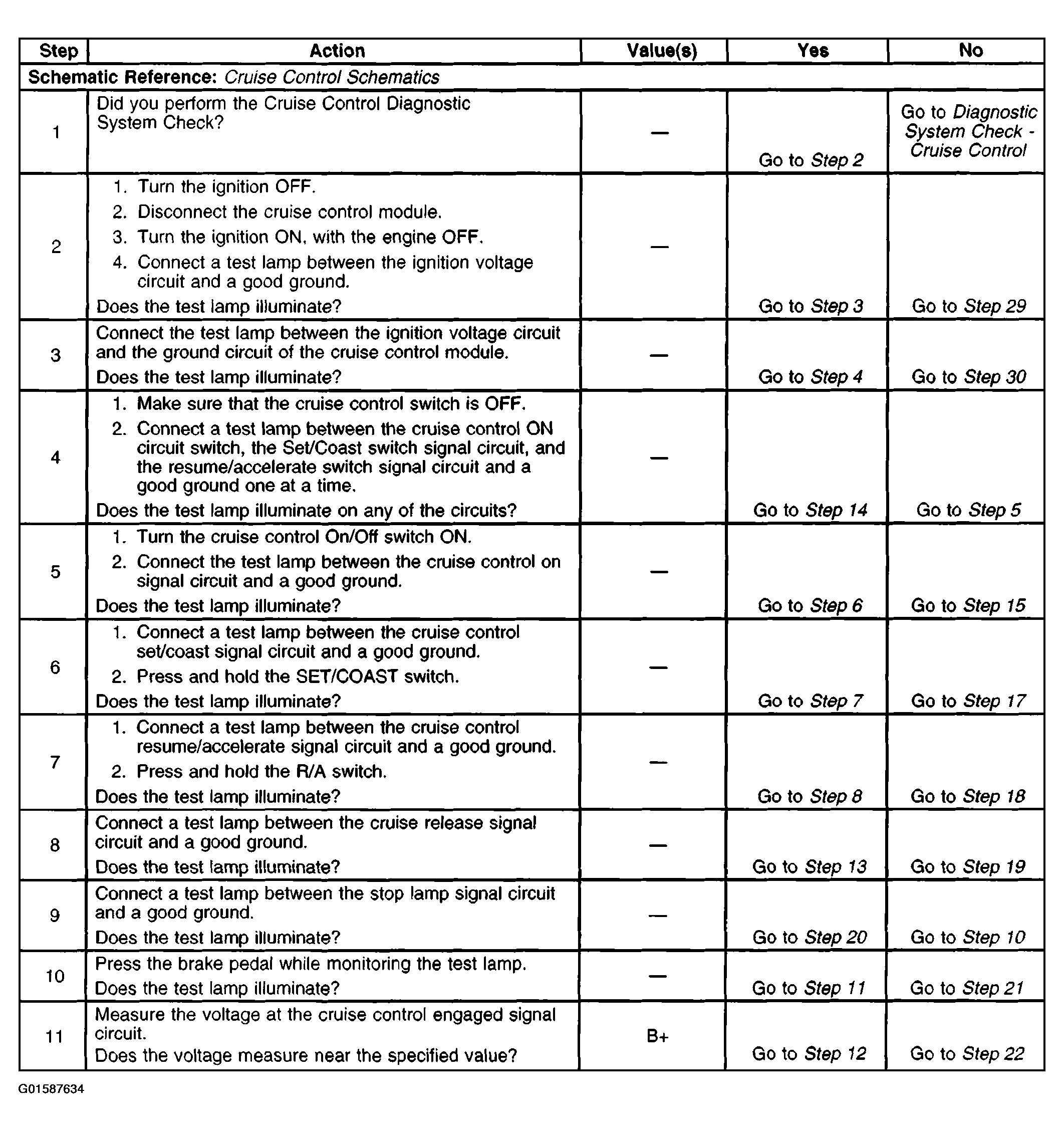

Fig 1: Diagnostic System Check - Cruise Control Inoperative/Malfunctioning (Steps 1-11)
G01587634Courtesy of GENERAL MOTORS CORP.

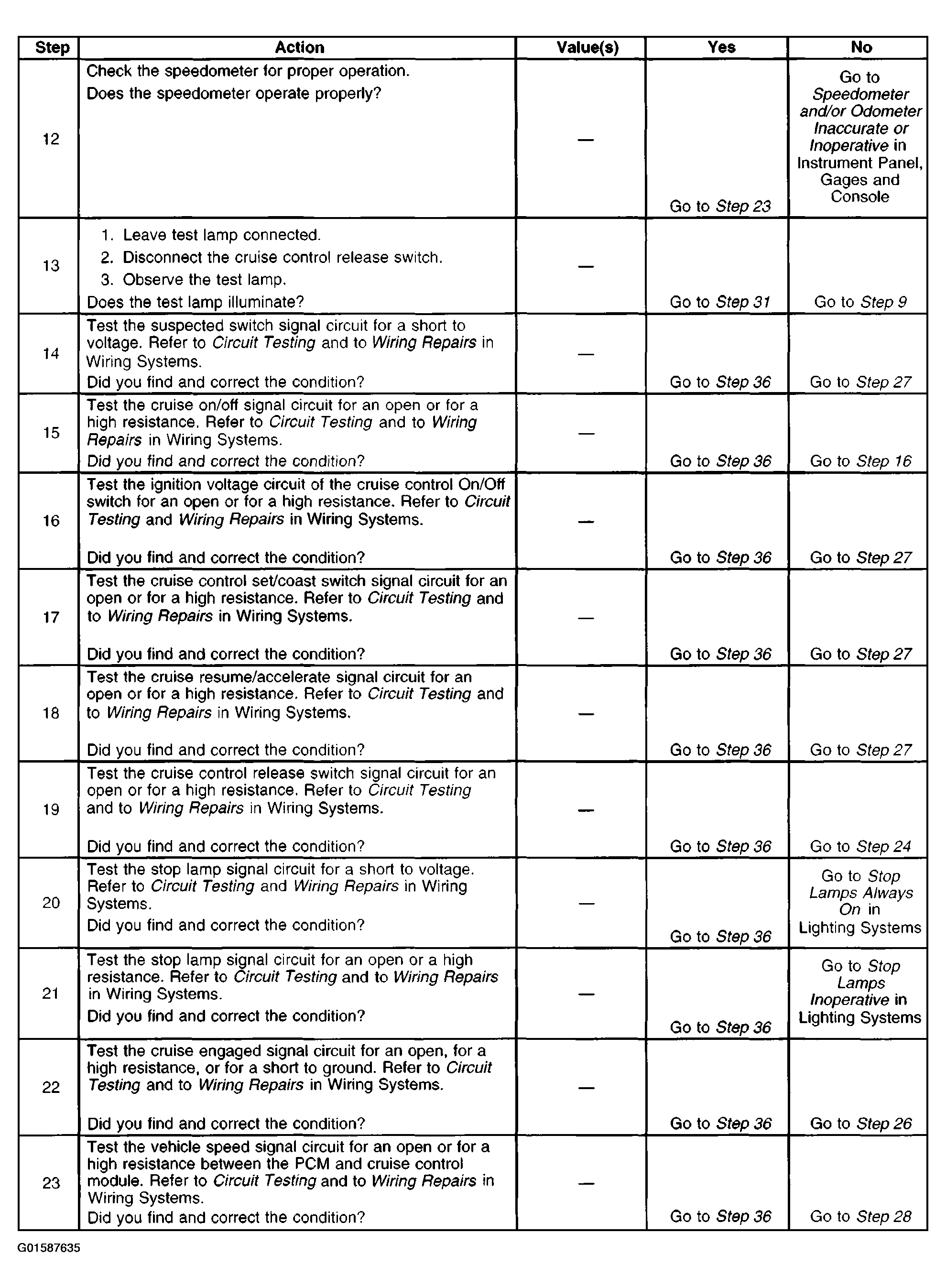

Fig 2: Diagnostic System Check - Cruise Control Inoperative/Malfunctioning (Steps 12-23)
G01587635Courtesy of GENERAL MOTORS CORP.

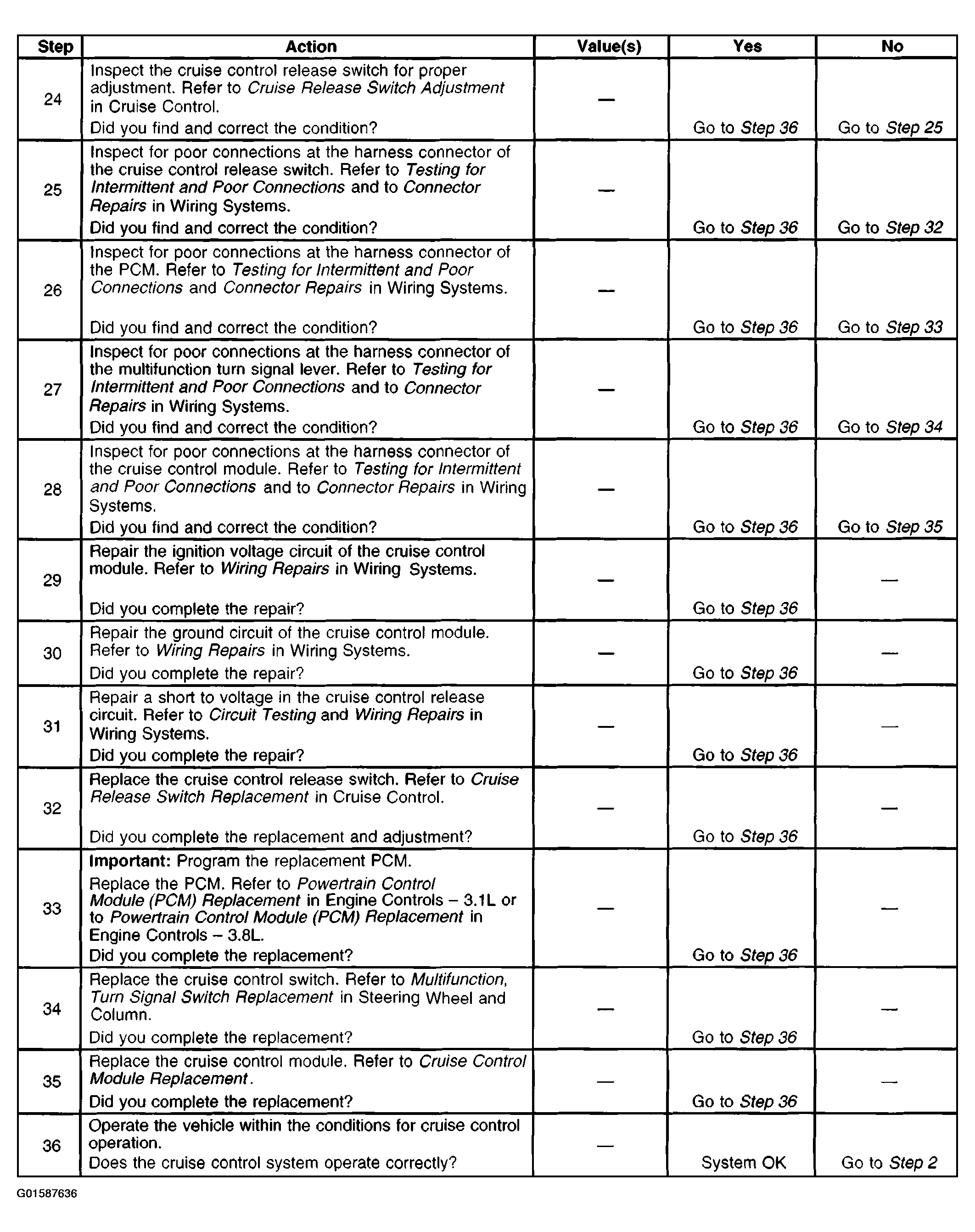

Fig 3: Diagnostic System Check - Cruise Control Inoperative/Malfunctioning (Steps 24-36)
G01587636Courtesy of GENERAL MOTORS CORP.
