Test Description

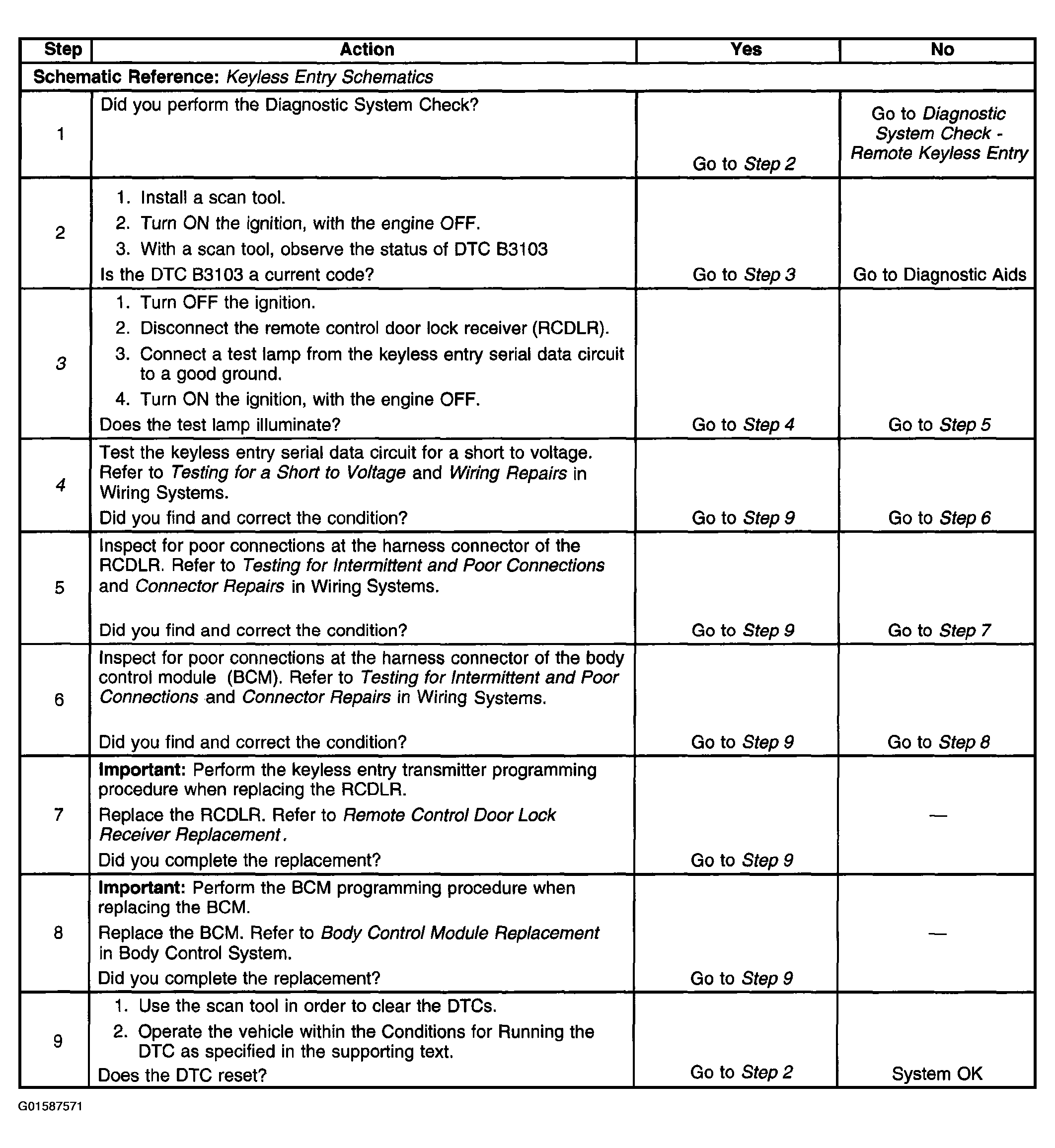

The number below refers to the step number on the diagnostic table.
- 3. B+ voltage should be present on the serial data terminal when tested with a DMM, but should not illuminate the test lamp. An illuminated test lamp indicates a short to voltage in the serial data circuit.
- 4. This step checks for a short to voltage in the keyless entry serial data circuit.
