Retained Accessory Power (RAP) Component Views
Retained Accessory Power (RAP) Component Views

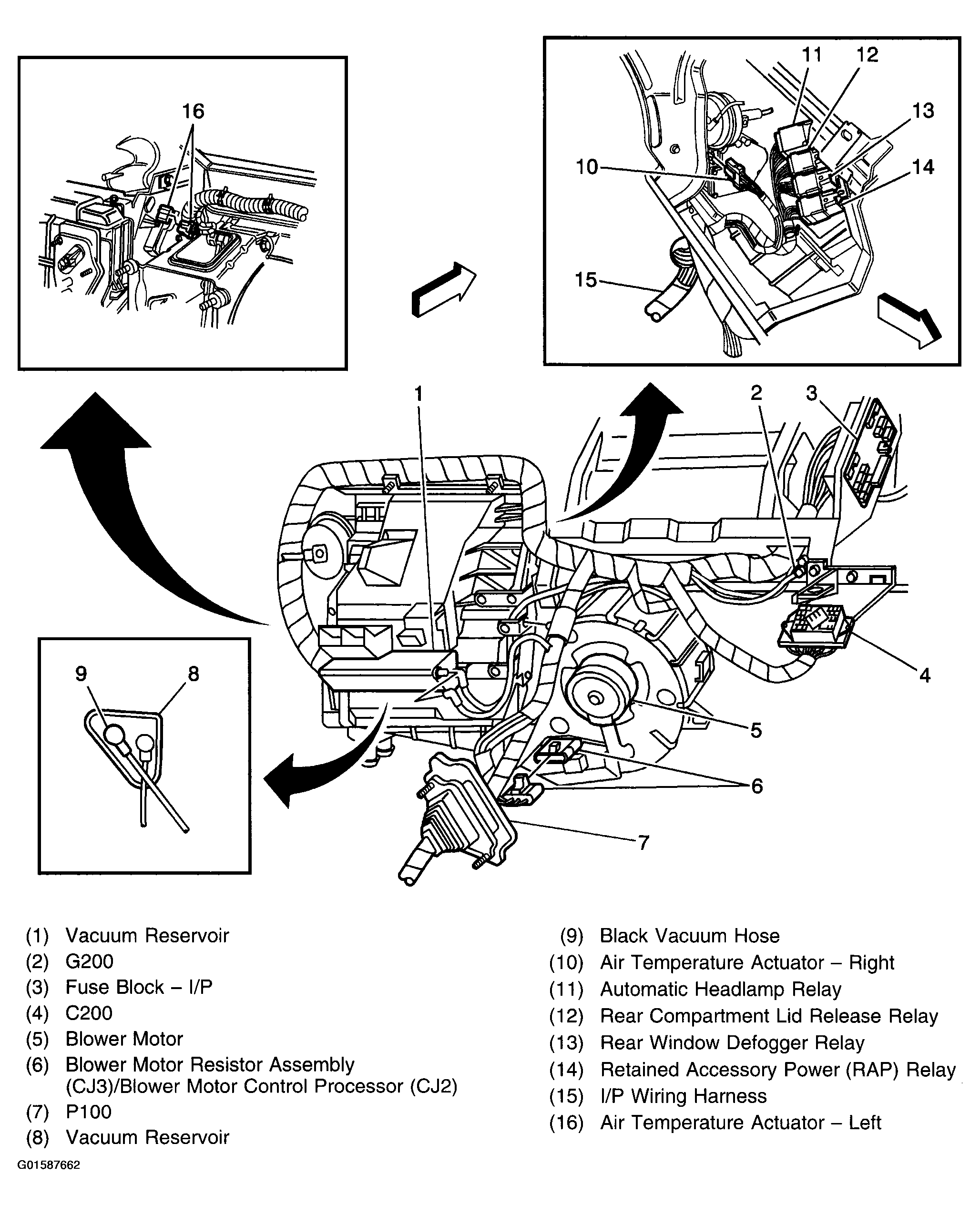

Fig 1: Identifying Behind the Right Side of the I/P Component View
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
