Home › Buick › 2003 › Regal LS › Repair and Diagnosis › Engine Performance › System › Engine Control System Self-Diagnostics - 3.8L › Diagnostic Tests › DTC P0101: MAF System Performance › Diagnostic Procedures

Diagnostic Procedures

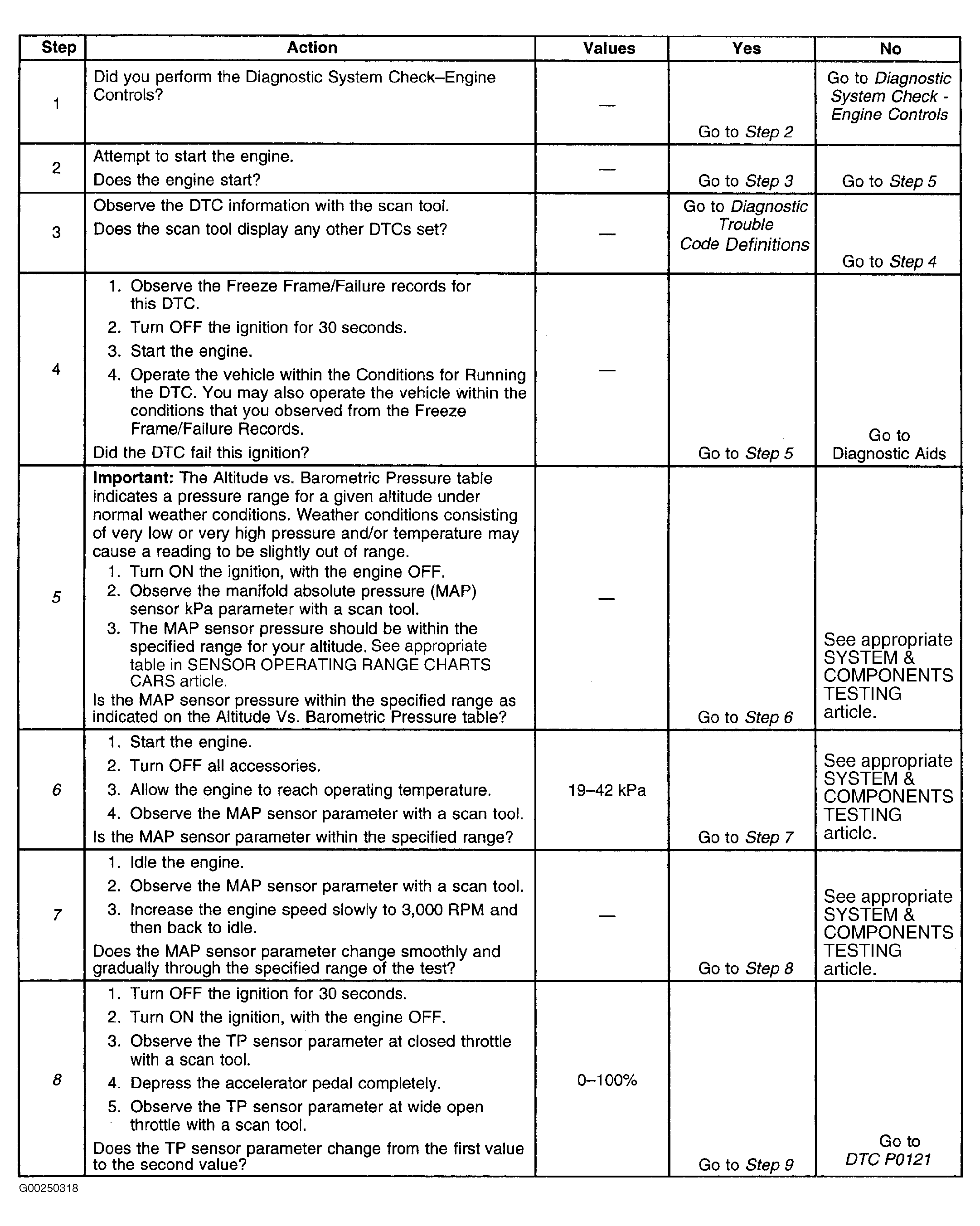

Fig 1: DTC P0101: MAF System Performance (Steps 1-8)
G00250318Courtesy of GENERAL MOTORS CORP.

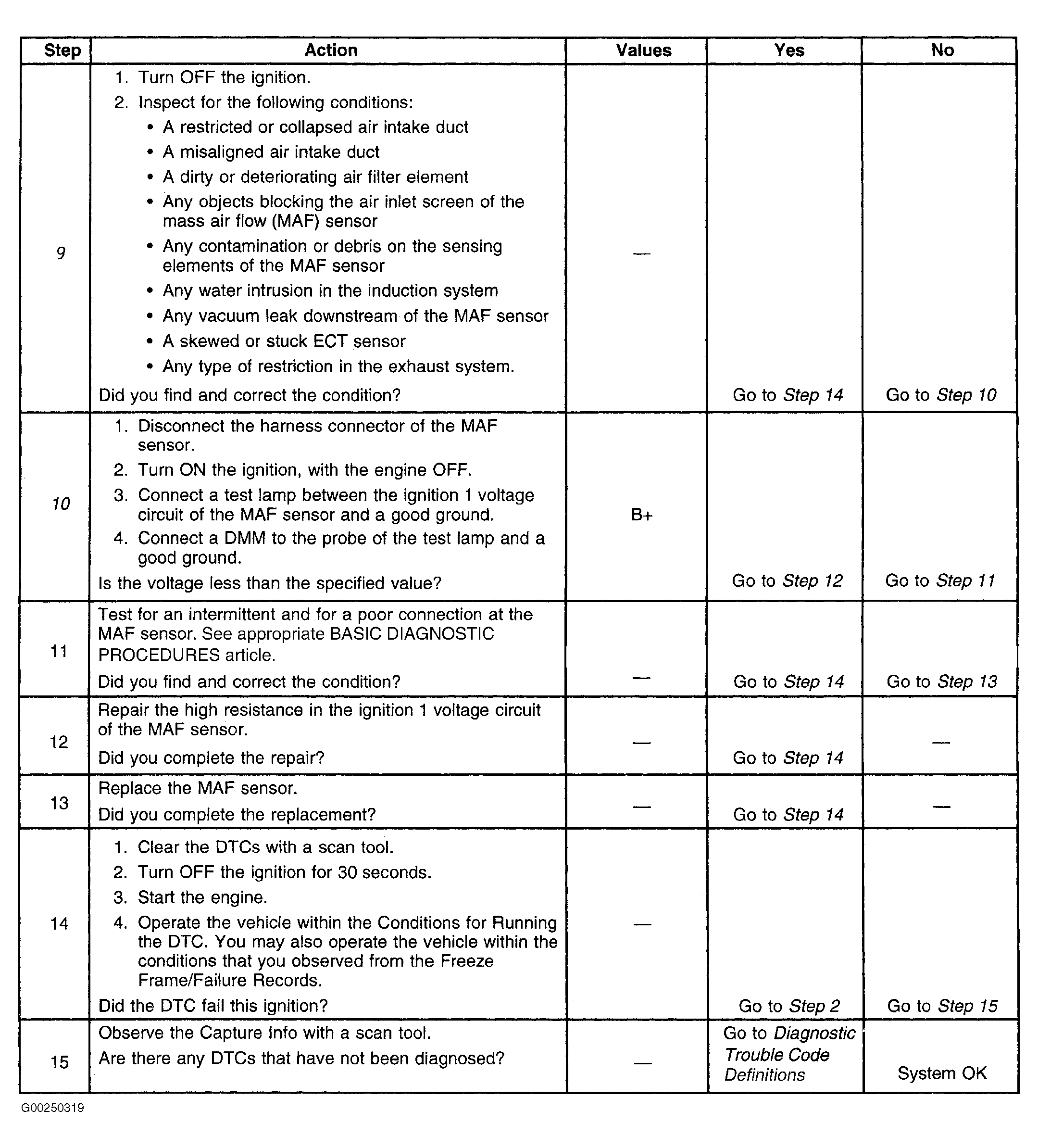

Fig 2: DTC P0101: MAF System Performance (Steps 9-15)
G00250319Courtesy of GENERAL MOTORS CORP.
