Removal Procedure

  1. Open the seat belt guide loop cover.
  2. Remove the guide loop nut.

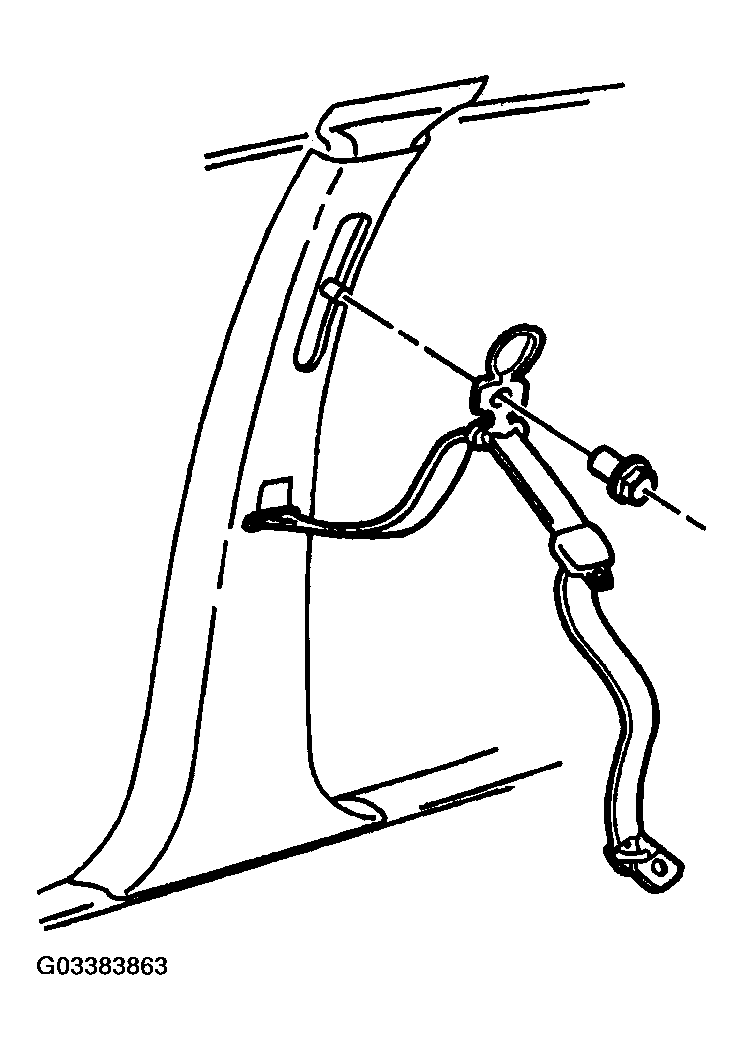

    Fig 1: Removing Guide Loop Nut
    G03383863Courtesy of GENERAL MOTORS CORP.
  3. Remove the guide loop from the guide adjuster bracket.
  4. Remove the lower center pillar trim. Refer to TRIM PANEL REPLACEMENT - LOWER CENTER PILLAR  in Interior Trim.
  5. Remove the intermediate guide bolts.
    Fig 2: Removing Intermediate Guide Bolts
    G03383864Courtesy of GENERAL MOTORS CORP.
  6. Remove the anchor plate nut from the seat stud.

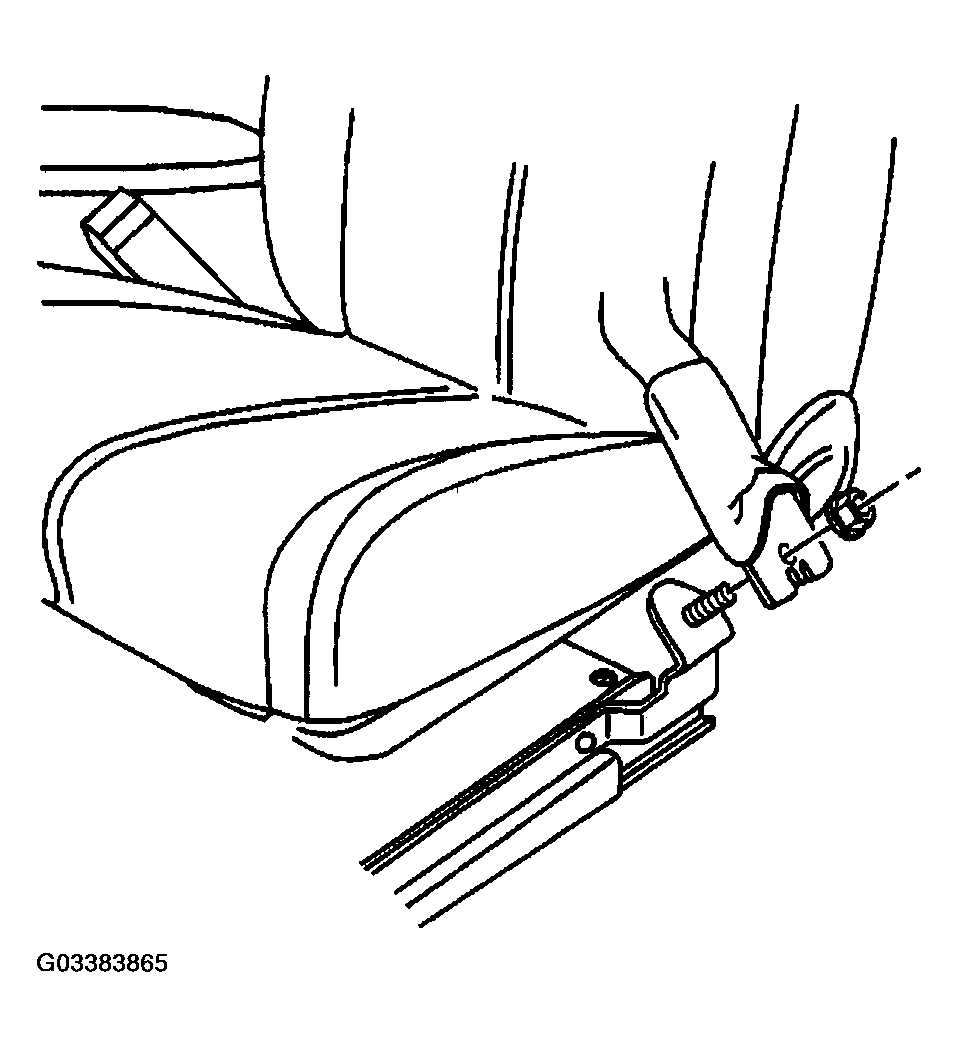

    Fig 3: Removing Anchor Plate Nut From Seat Stud
    G03383865Courtesy of GENERAL MOTORS CORP.
  7. Remove the anchor plate from the seat stud.
  8. Remove the seat belt retractor bolt.
  9. Remove the seat belt retractor from the lower center pillar.

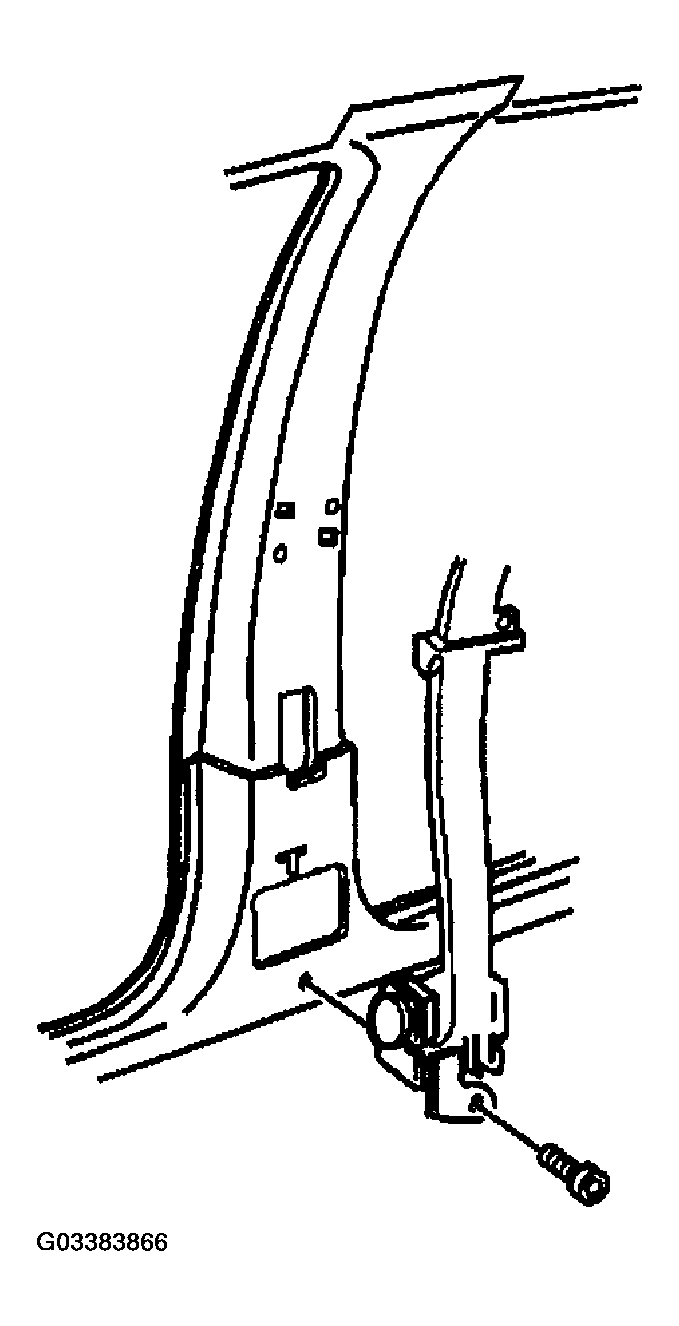

    Fig 4: Removing Seat Belt Retractor Bolt
    G03383866Courtesy of GENERAL MOTORS CORP.
