Door Lock/Indicator Schematics

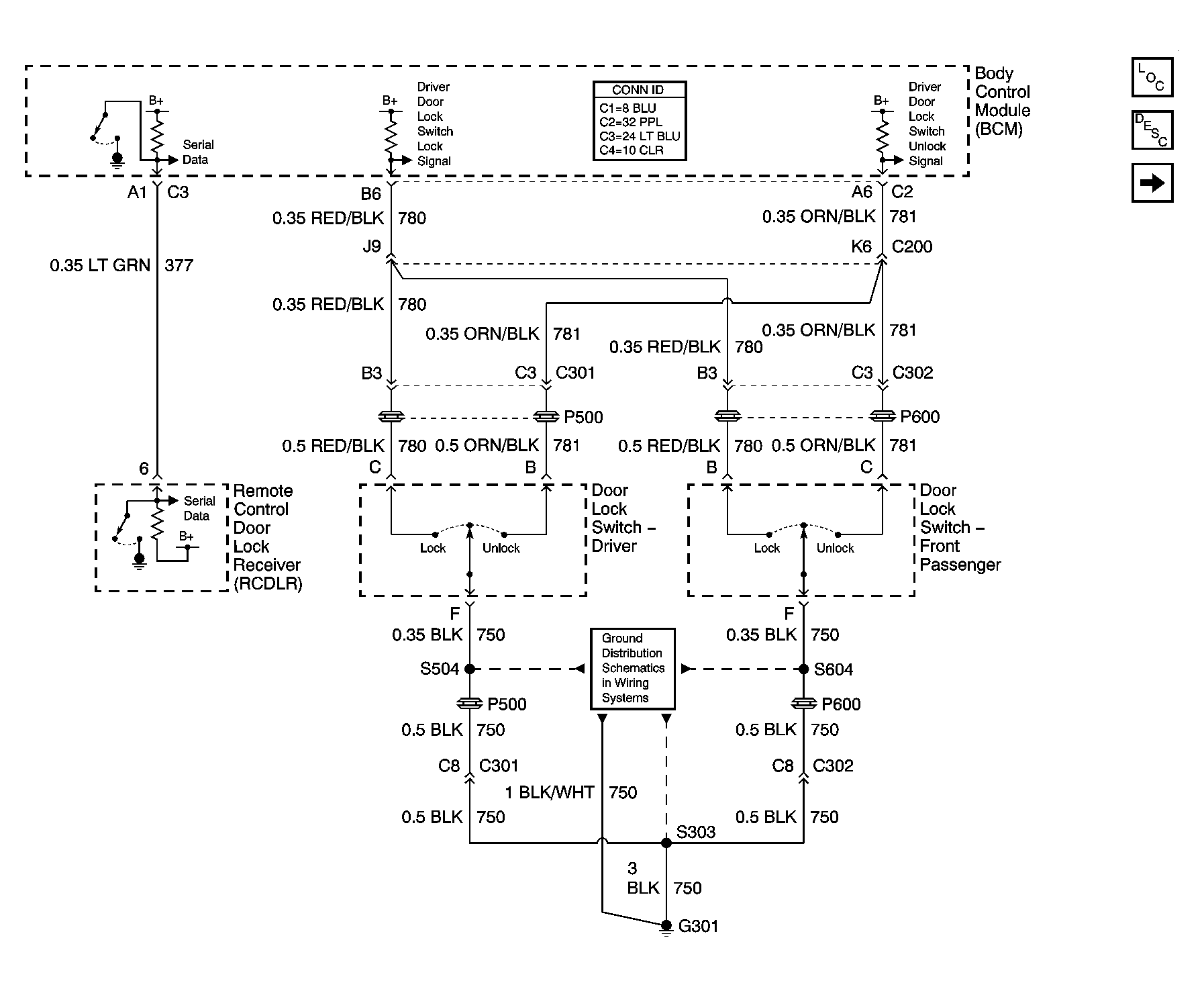

Fig 1: Door Lock/Indicator Schematics - Switches

Courtesy of GENERAL MOTORS CORP.

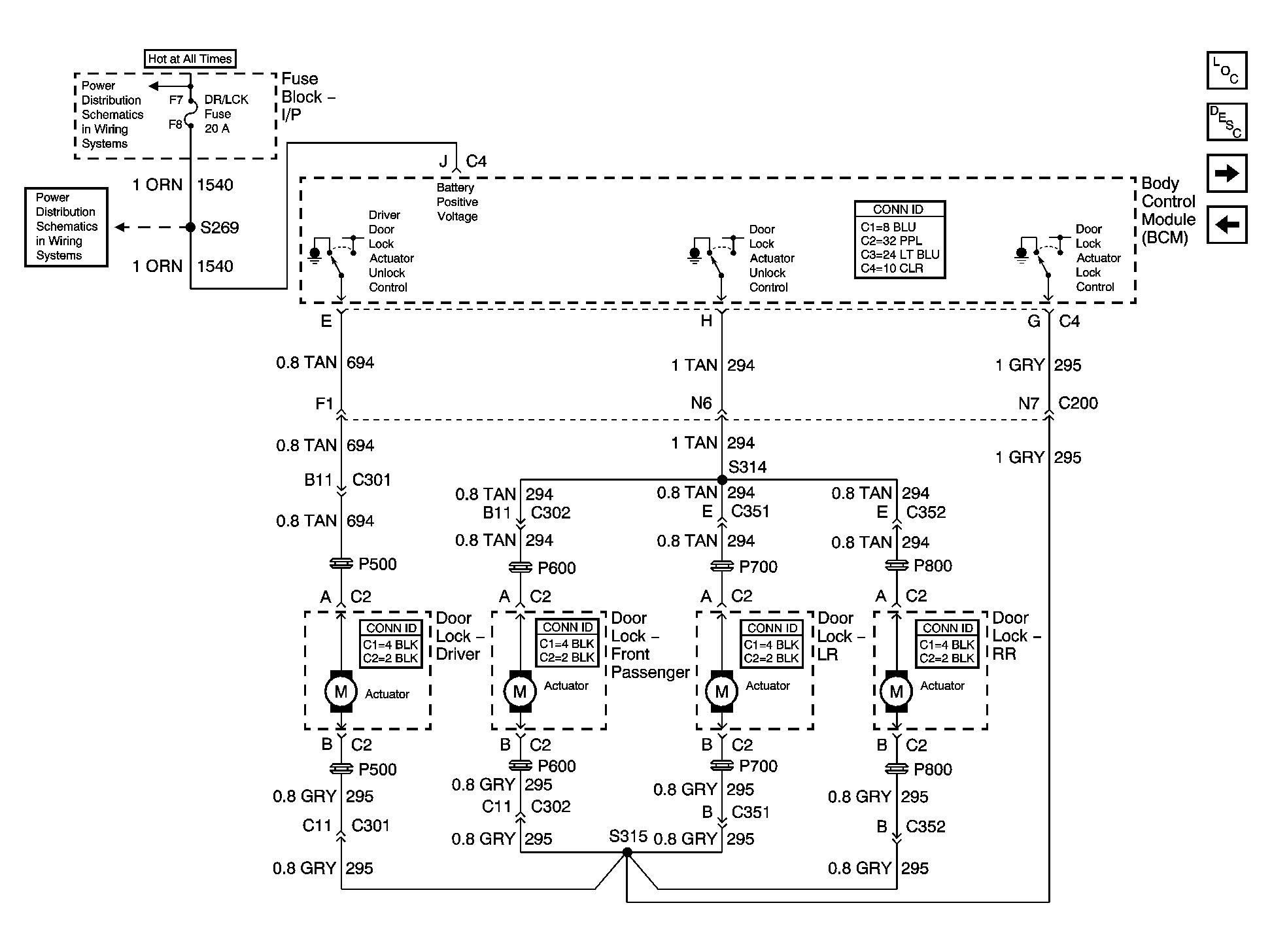

Fig 2: Door Lock/Indicator Schematics - Actuators

Courtesy of GENERAL MOTORS CORP.

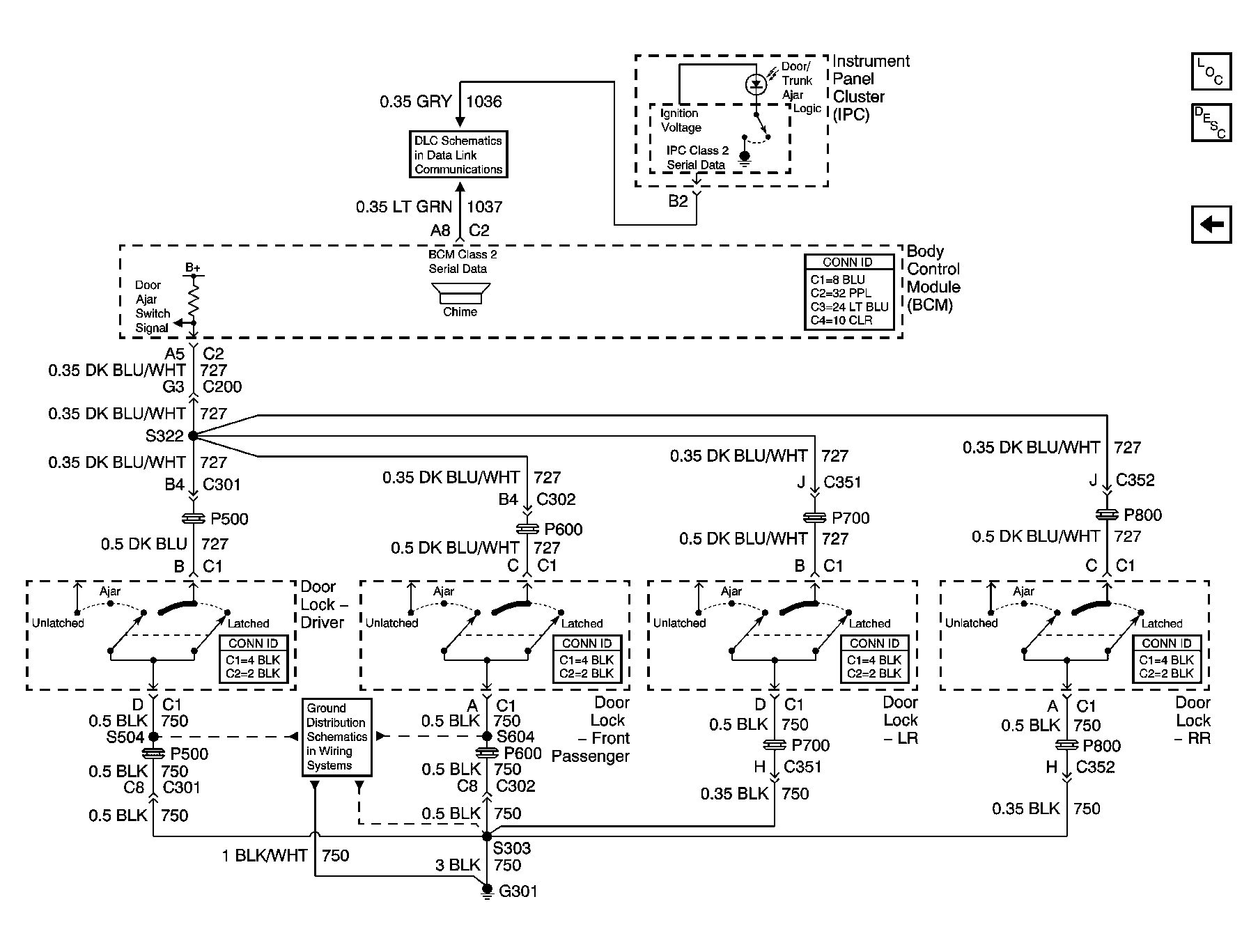

Fig 3: Door Lock/Indicator Schematics - Ajar Indicator

Courtesy of GENERAL MOTORS CORP.
