Power Window Schematics

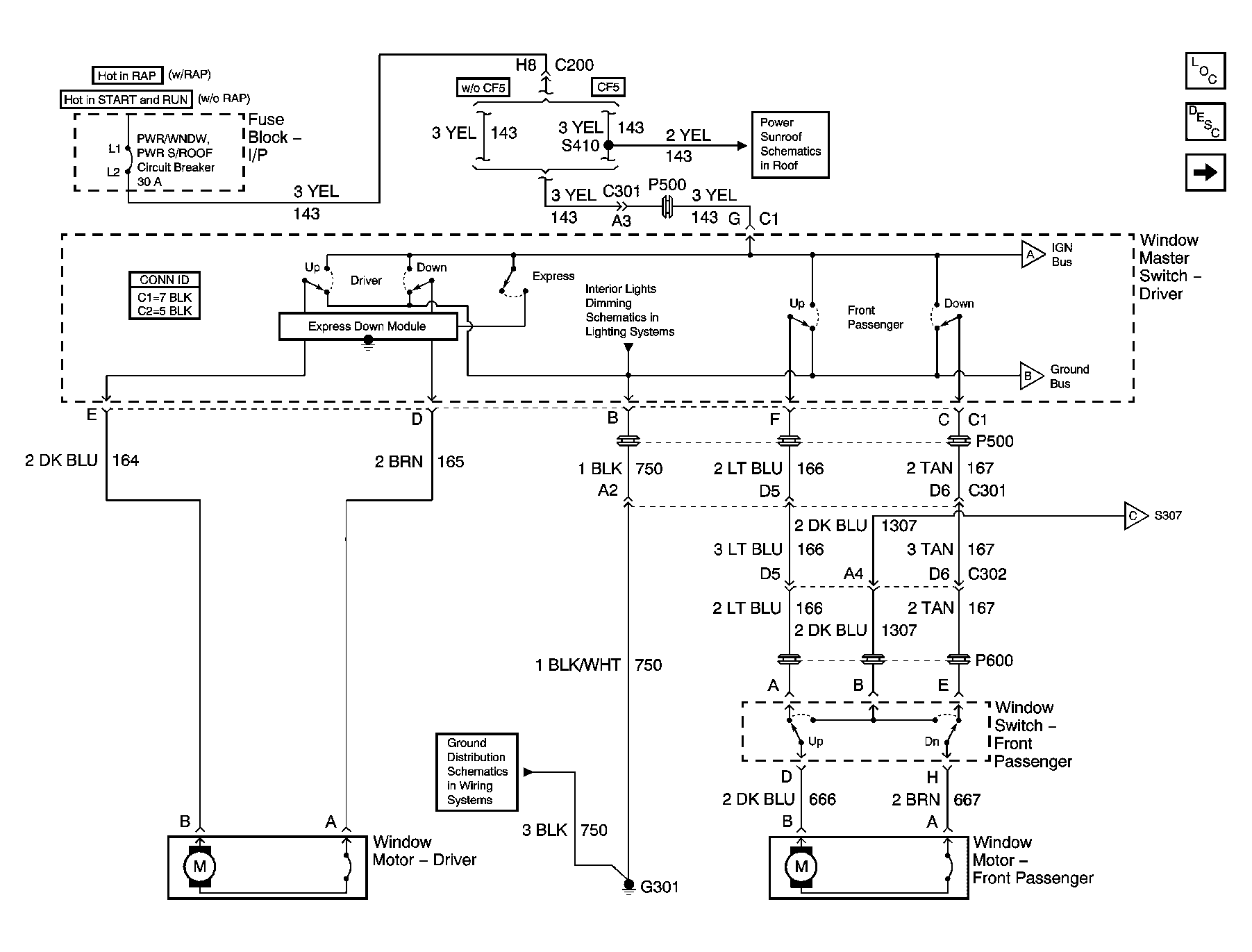

Fig 1: Power Window Schematics Front
GM1354607Courtesy of GENERAL MOTORS CORP.

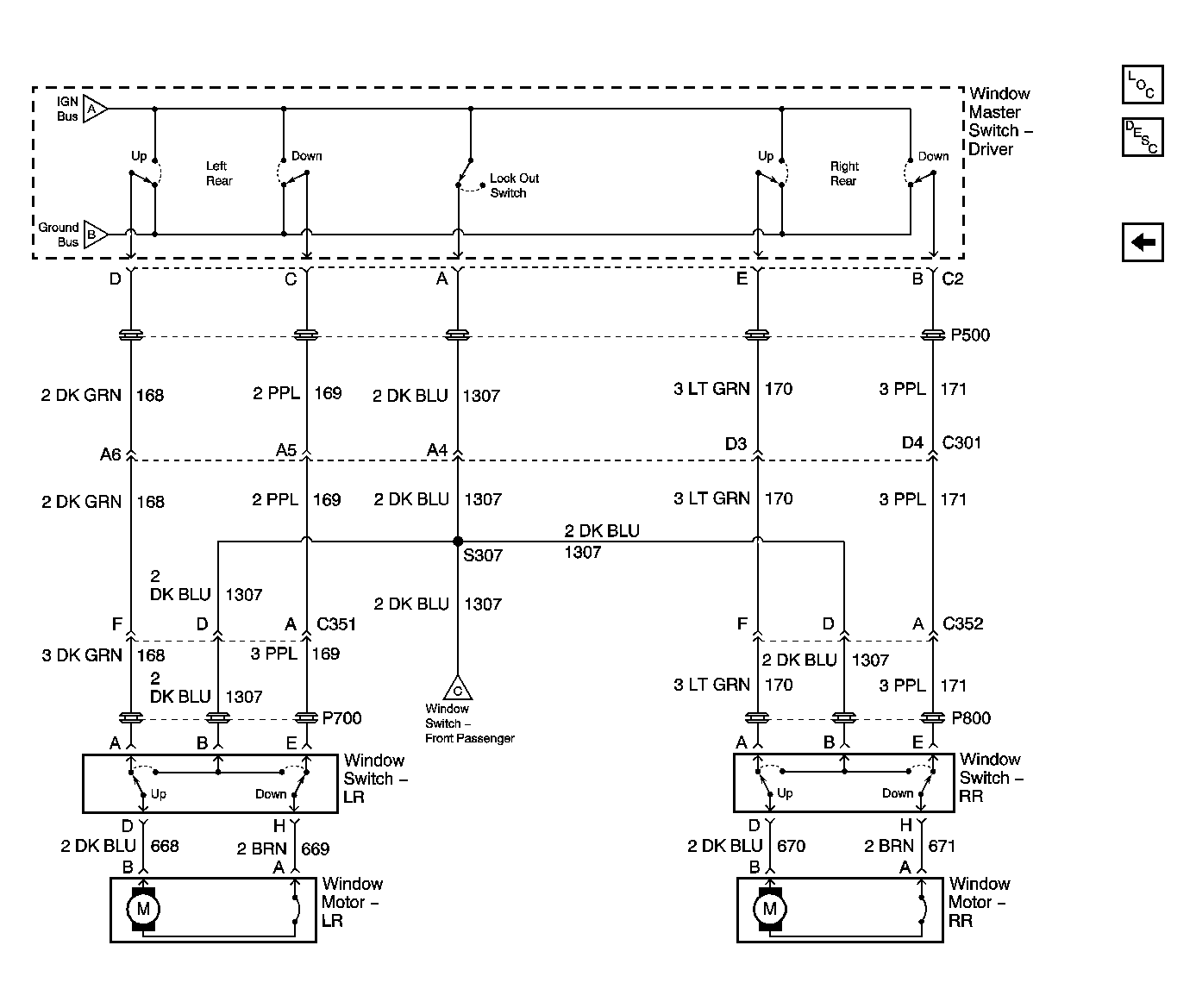

Fig 2: Power Window Schematics Rear
GM819987Courtesy of GENERAL MOTORS CORP.
