Power Outlet Component Views

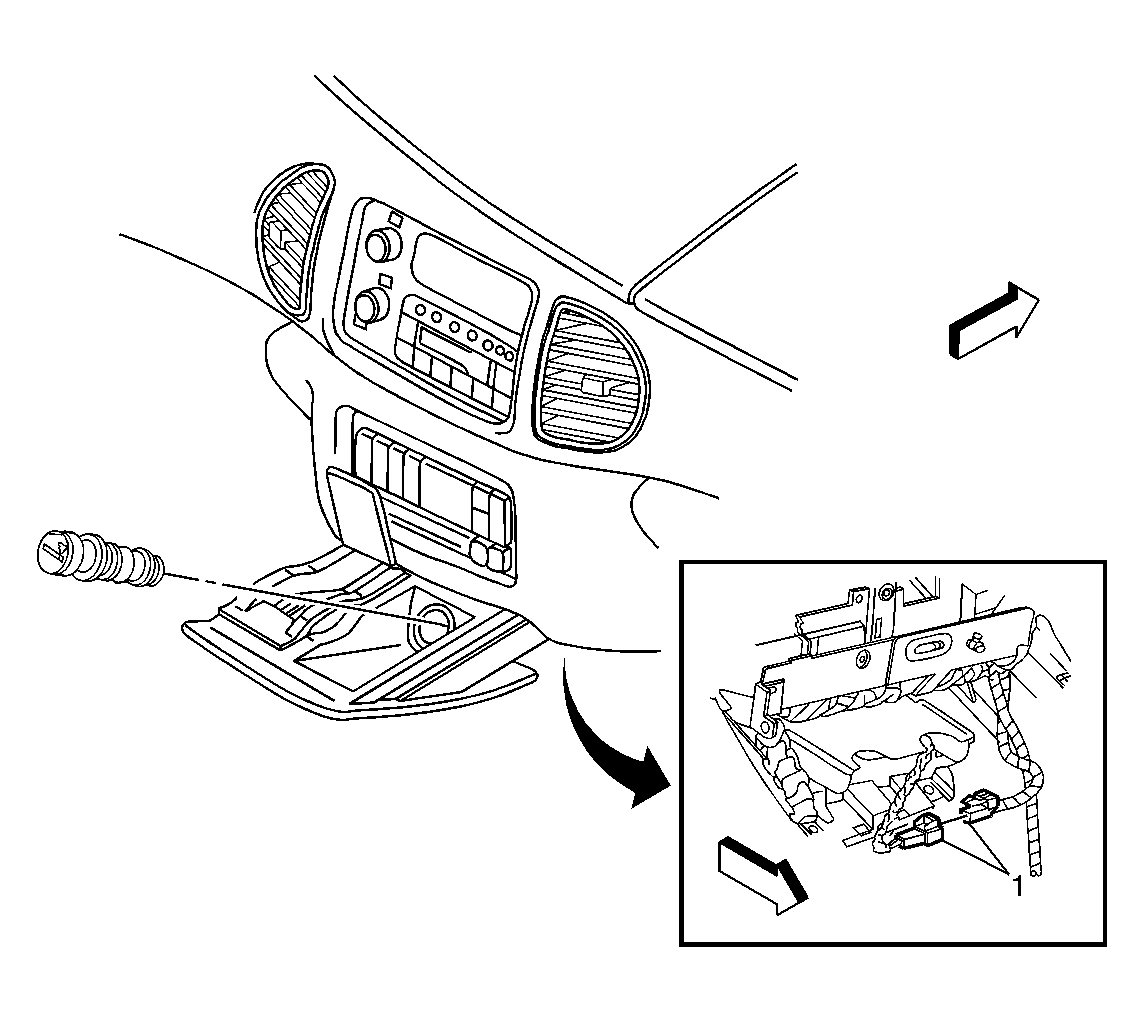

Fig 1: Cigar Lighter (Century)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	C242

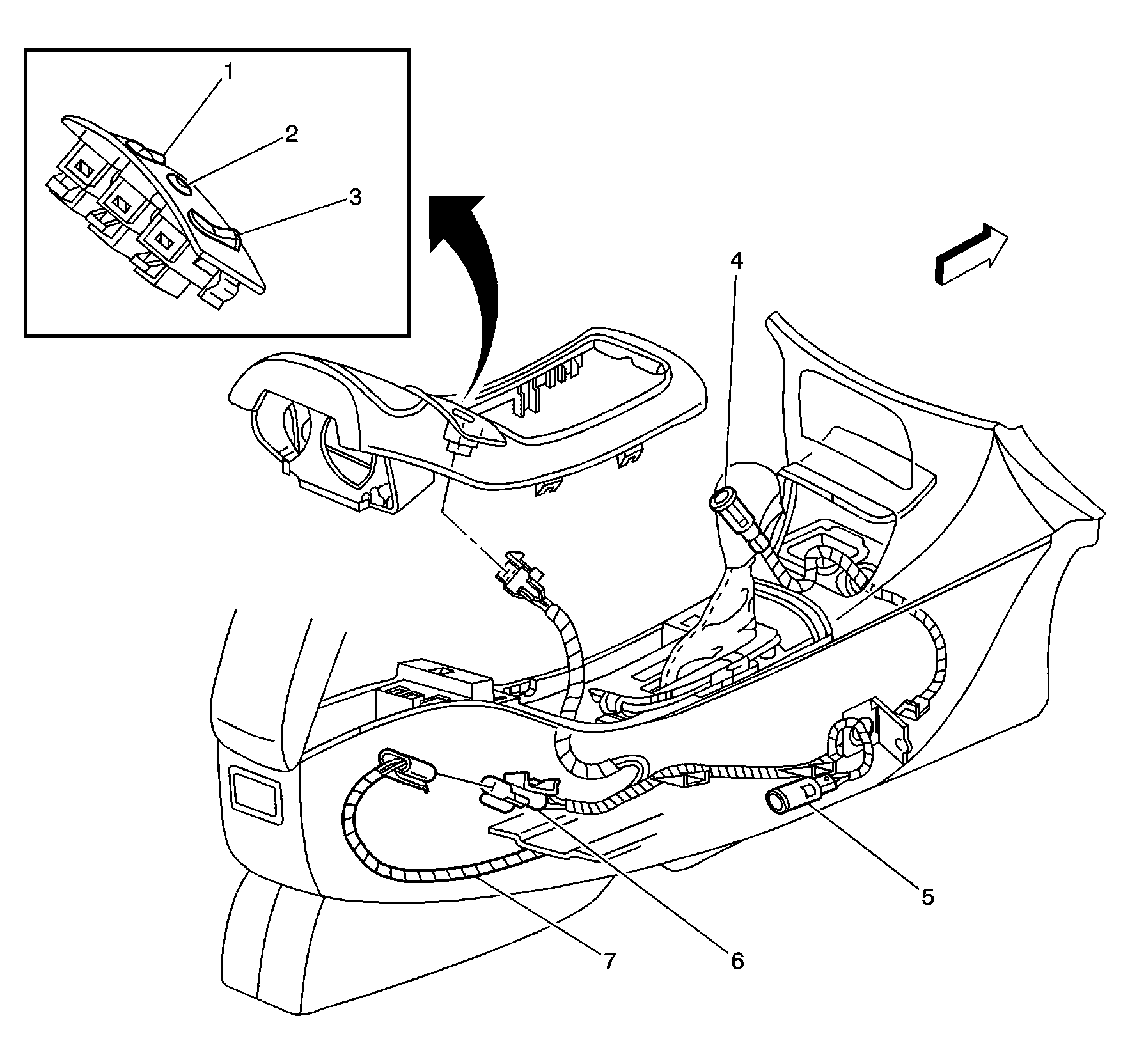

Fig 2: Center Console Component Views (D06)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Heated Seat Switch - Driver (KA1)
2	Traction Control Switch (Regal)
3	Heated Seat Switch - Passenger (KA1)
4	Cigar Lighter
5	Auxiliary Power Outlet (Regal)
6	C240 (Regal)
7	I/P Wiring Harness
