Installation Procedure

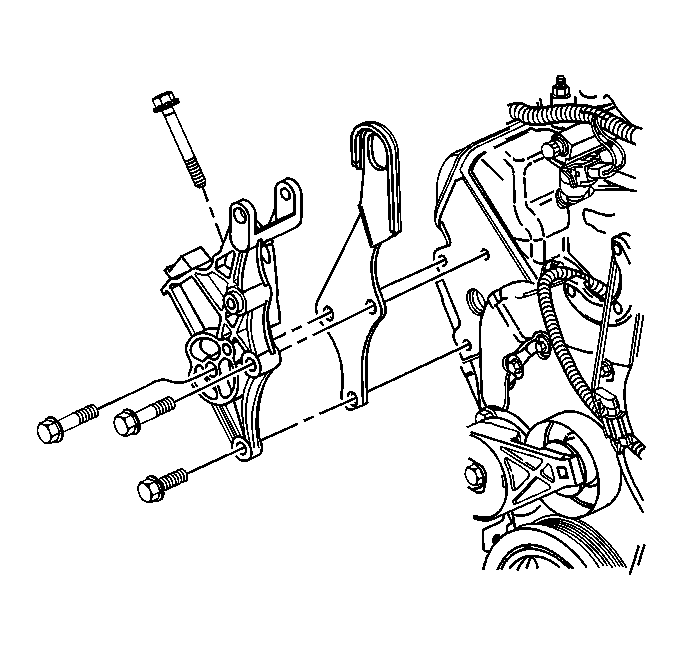

Fig 1: Generator Bracket & Bolts

Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to Fastener Notice in Cautions and Notices.

Install and finger tighten the generator bracket bolts.
Tighten: Tighten the bolts to 50 N.m (37 lb ft).
Install the generator. Refer to Generator Replacement (3.1L) or Generator Replacement (3.8L) .
Connect the negative battery cable to the battery. Refer to Battery Negative Cable Disconnect/Connect Procedure .
