Drive Belt Routing

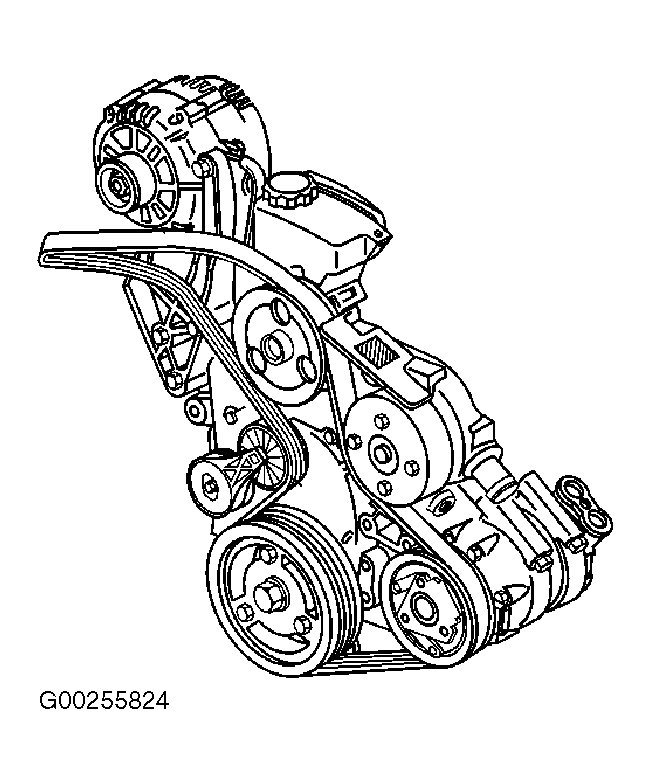

Fig 1: Drive Belt Routing (3.1)
G00255824Courtesy of GENERAL MOTORS CORP.

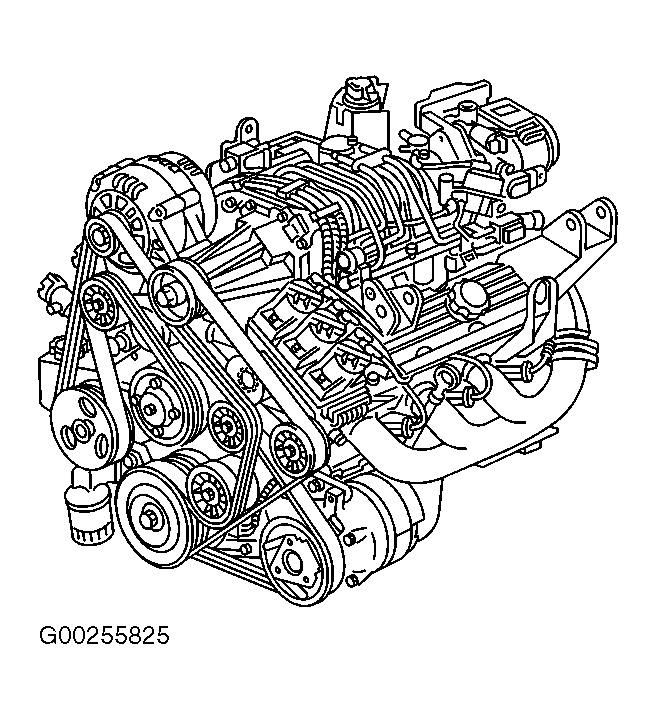

Fig 2: Drive Belt Routing (1 Of 2 - 3.8L)
G00255825Courtesy of GENERAL MOTORS CORP.

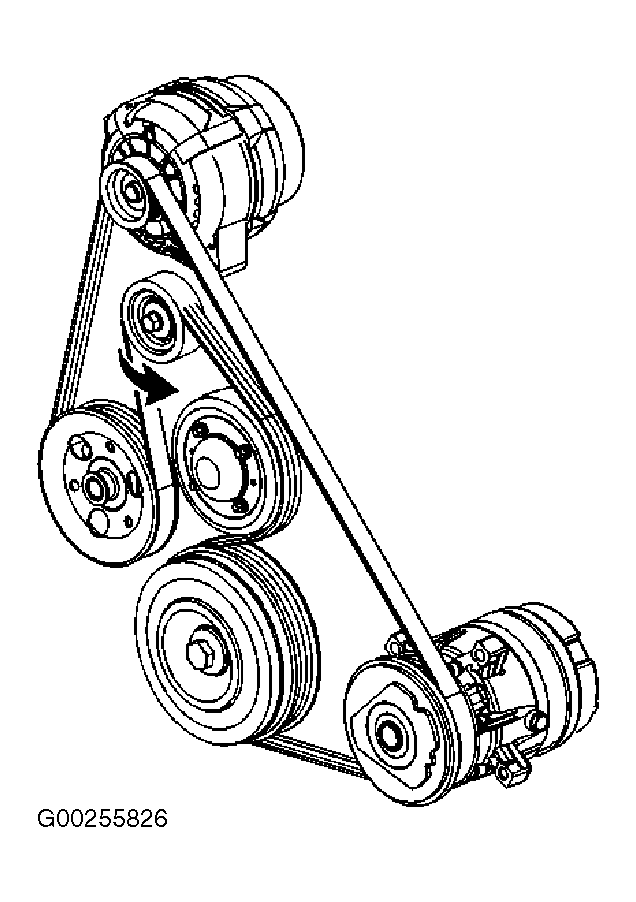

Fig 3: Drive Belt Routing (2 Of 2 - 3.8L)
G00255826Courtesy of GENERAL MOTORS CORP.

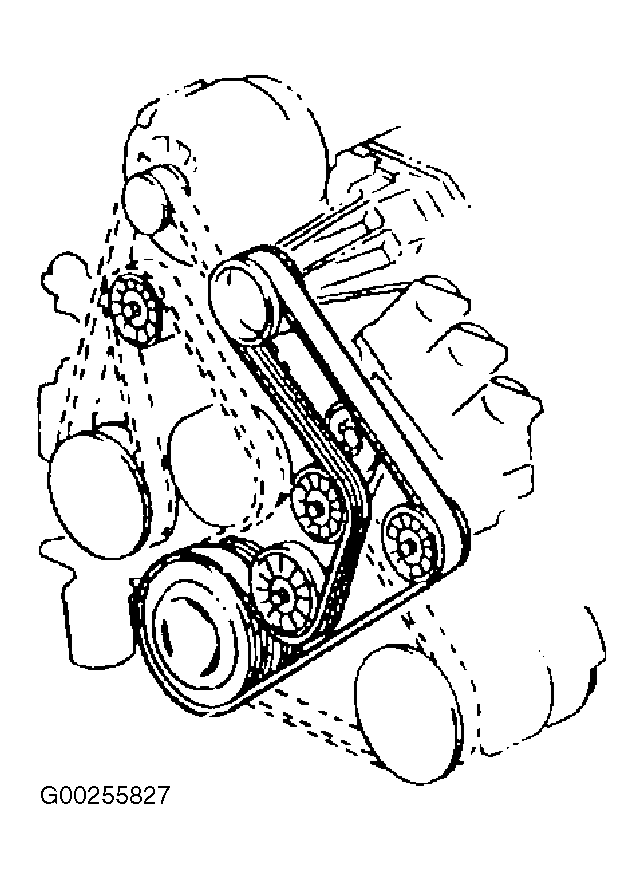

Fig 4: Drive Belt Routing (Supercharger - 3.8L)
G00255827Courtesy of GENERAL MOTORS CORP.
