Seat Belt Component Views

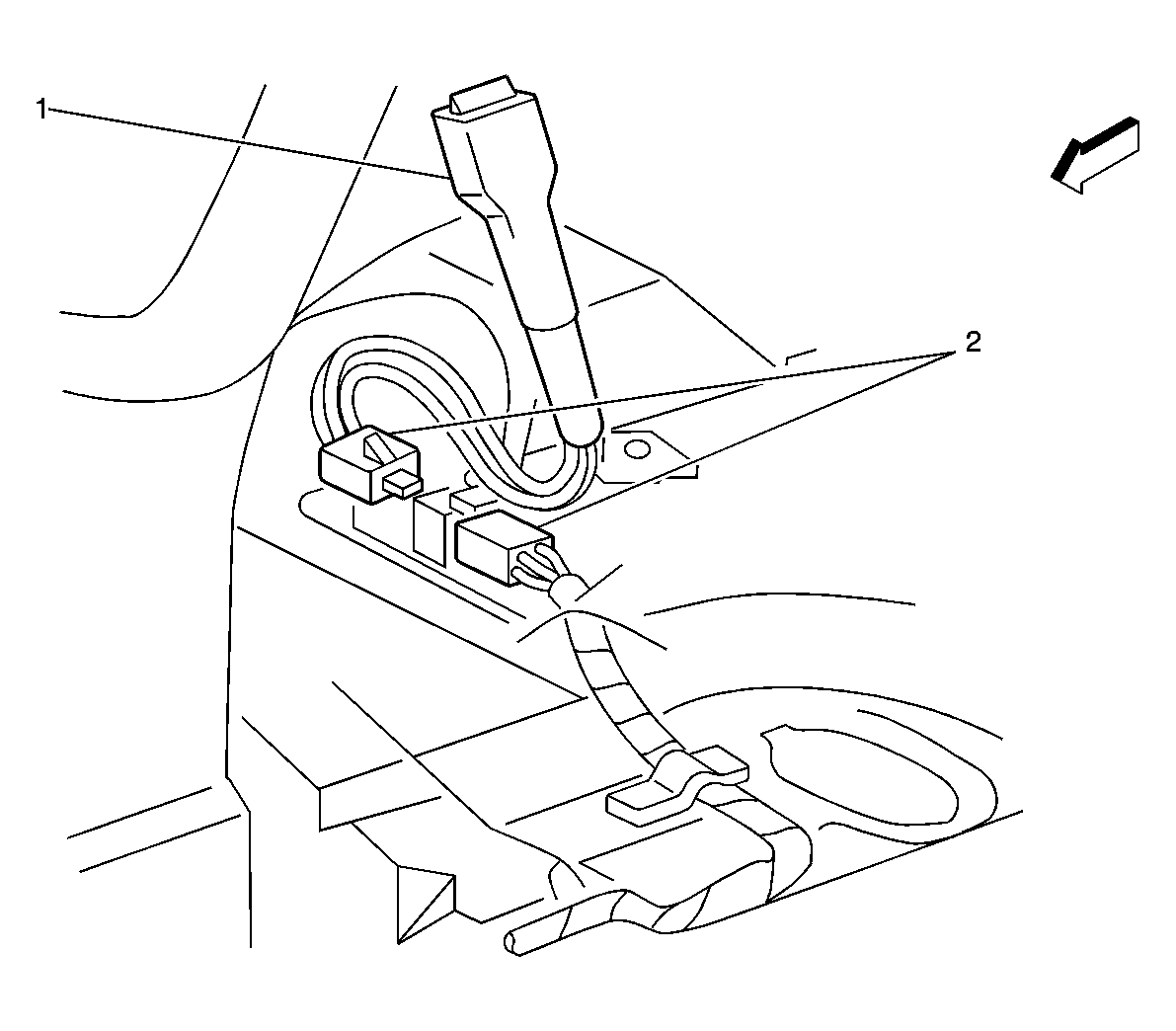

Fig 1: Right Side of Driver Seat
GM1252562Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Seat Belt Switch - Driver
2 Seat Belt Switch - Driver Connector (AG1)
