ABS Schematics

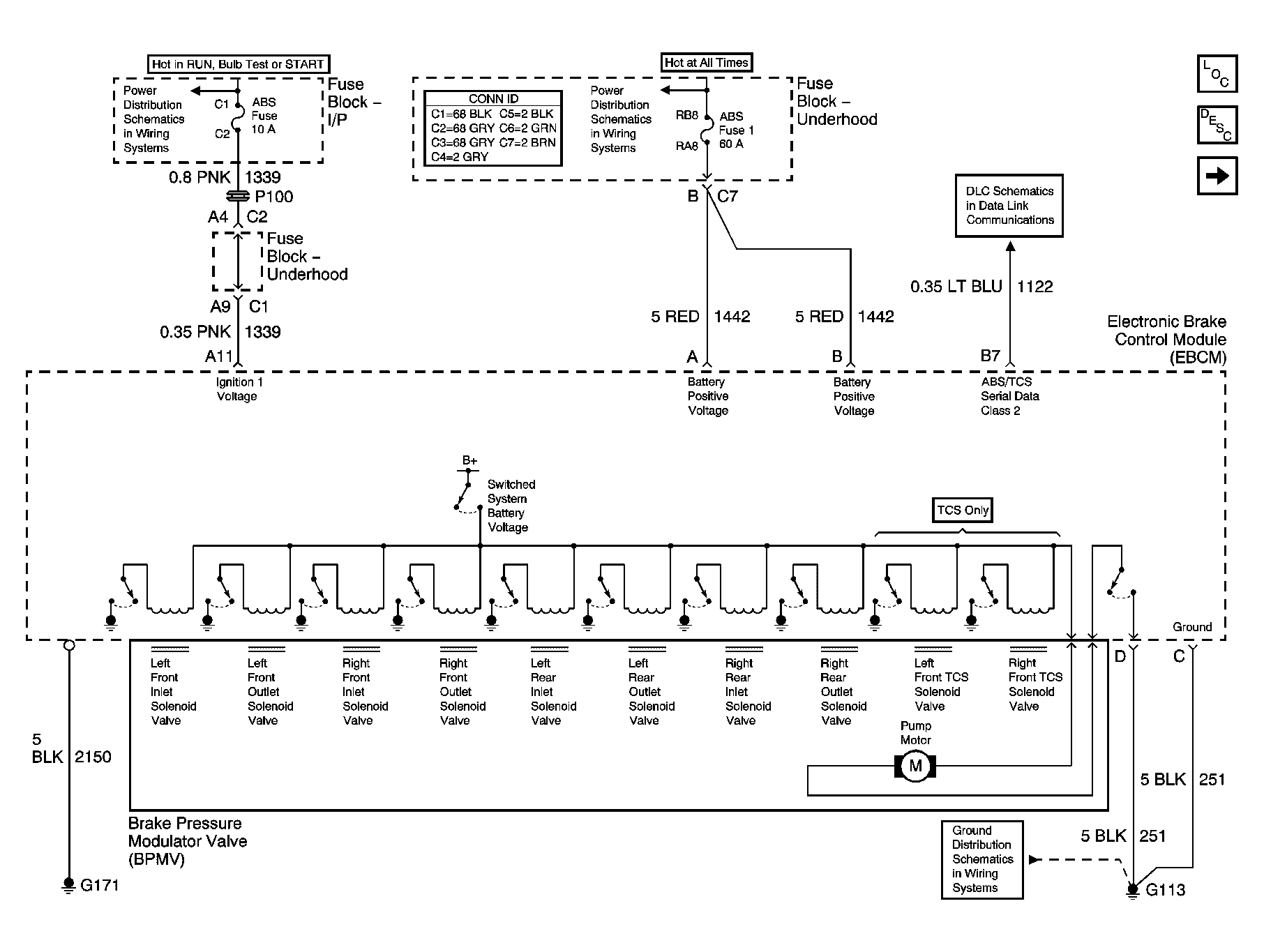

Fig 1: Power, Ground, And Serial Data Schematic

GM1199504

Courtesy of GENERAL MOTORS CORP.

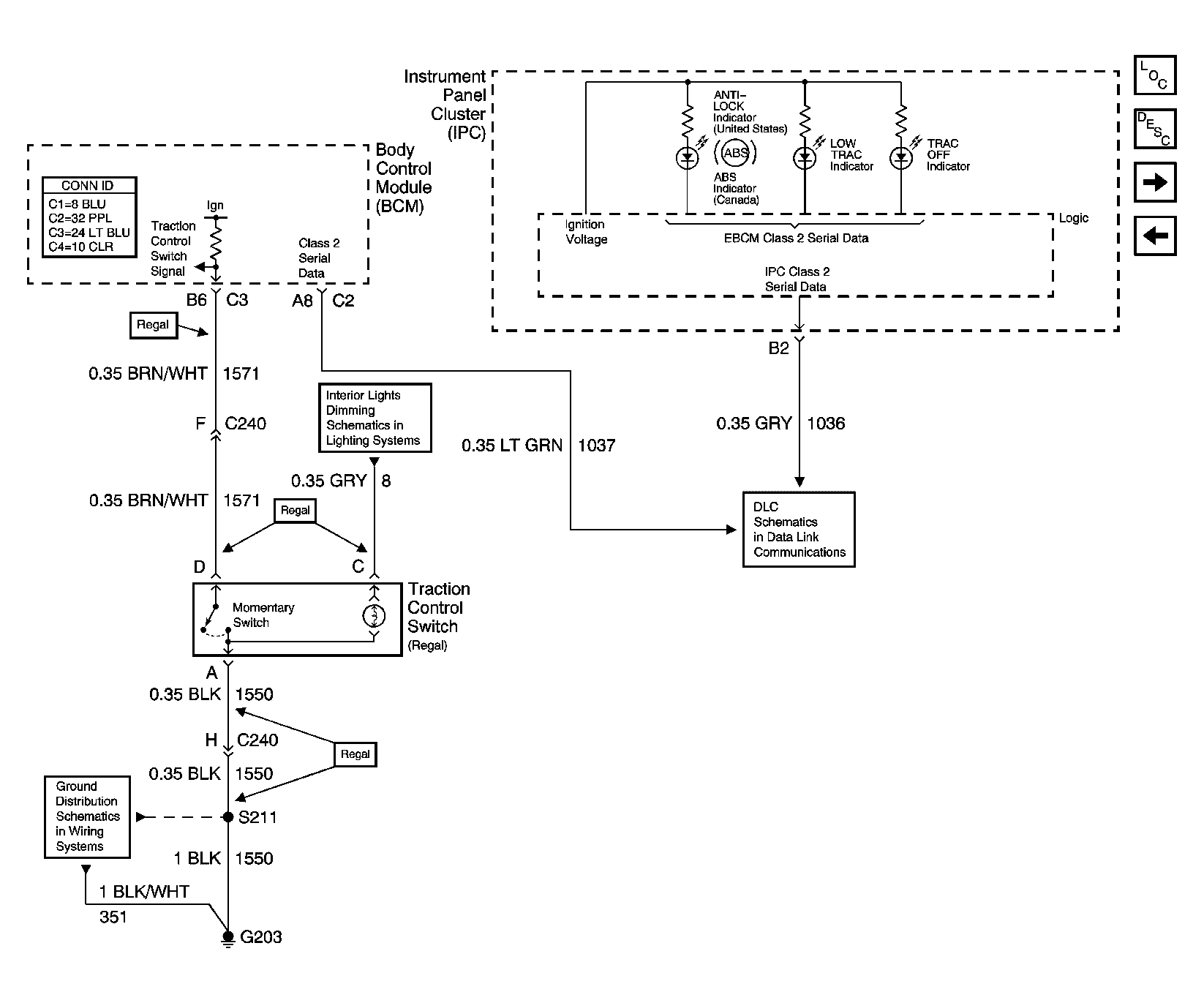

Fig 2: Indicators And Traction Control Schematic

GM1215952

Courtesy of GENERAL MOTORS CORP.

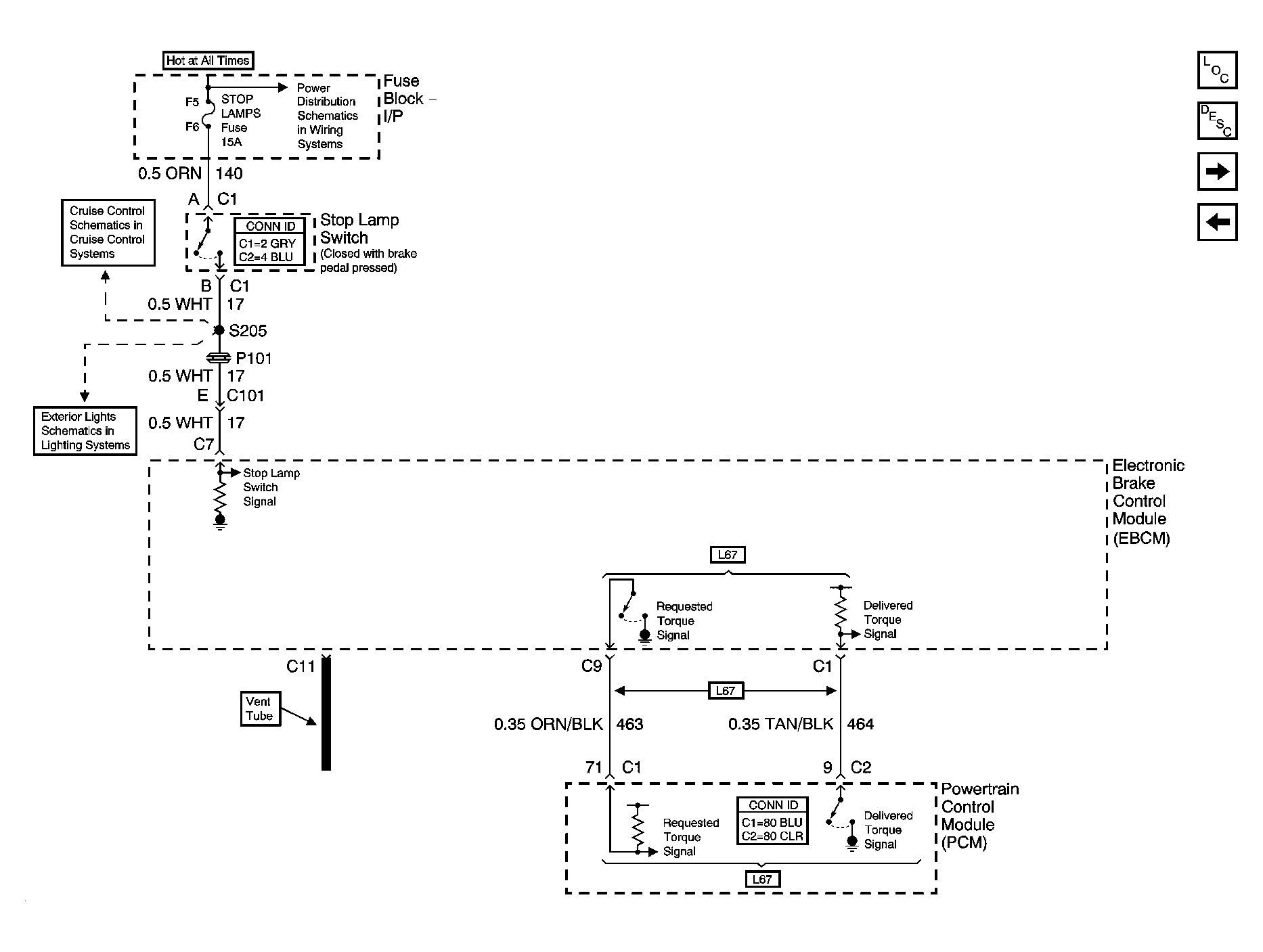

Fig 3: Stop Lamp And Torque Signals Schematic

GM1203432

Courtesy of GENERAL MOTORS CORP.

Fig 4: Wheel Speed Sensors Schematic

GM1353605

Courtesy of GENERAL MOTORS CORP.
