Engine Support Fixture

Tools Required

• J 28467-B  Universal Engine Support Fixture. See Special Tools and Equipment .
• J 36462-A Engine Support Adapter Leg Set. See Special Tools and Equipment .
• J-28467-501  Engine Support Fixture Adapters. See Special Tools and Equipment .

1. Disconnect the negative battery cable. Refer to Battery Negative Cable Disconnect/Connect Procedure in Engine Electrical.

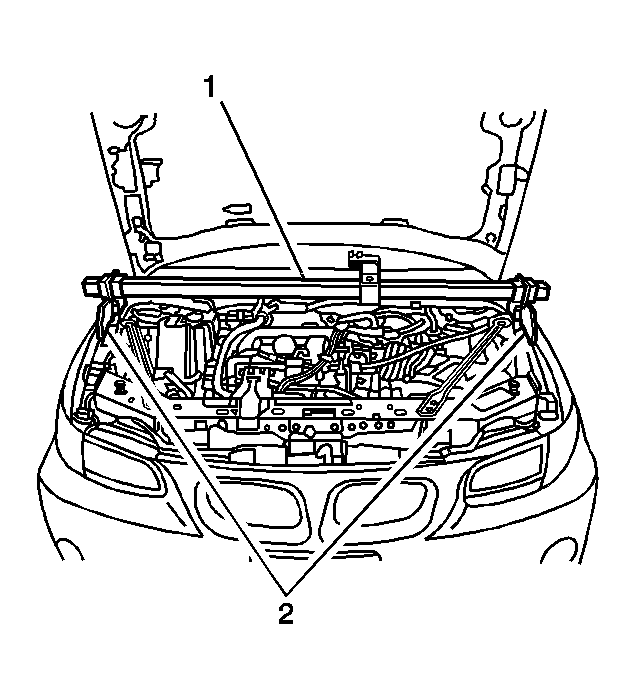

Fig 1: J 28467-B & J-28467-501
Courtesy of GENERAL MOTORS CORP.
2. Remove the left engine mount strut and the bracket from the upper radiator support. Refer to Engine Mount Strut Bracket Replacement - Upper Radiator Support .
3. Assemble the J-28467-501  (2) to the J 28467-B  cross bar (1). See Special Tools and Equipment .
4. Install the J 28467-B  (1) and the J-28467-501  (2) to the fender rails.

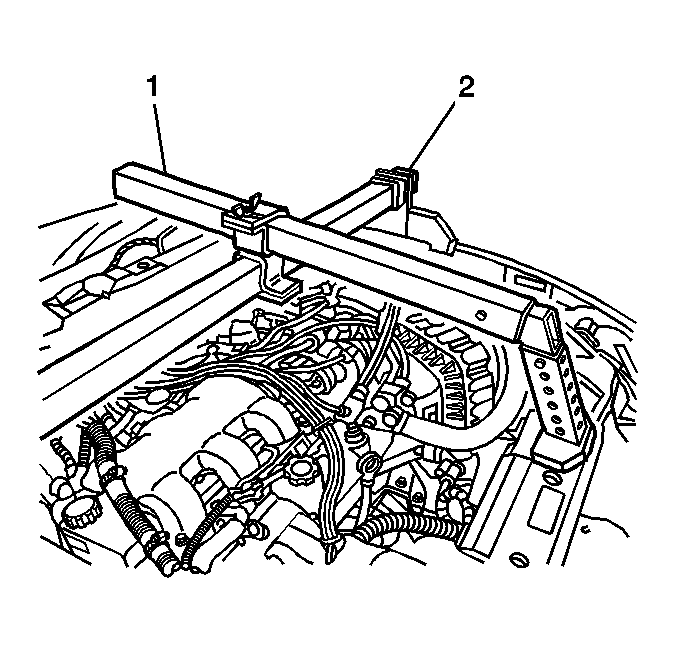

Fig 2: J 36462-A & Cross Bar
Courtesy of GENERAL MOTORS CORP.
5. Install the J 36462-A  (1) to the cross bar (2).

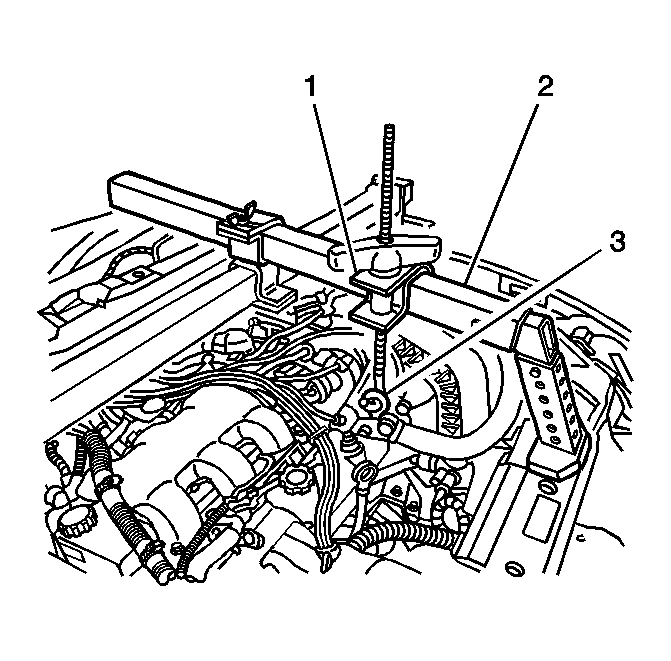

Fig 3: Support Lift Hook, Cross Bar & Right Engine Lift Hook
Courtesy of GENERAL MOTORS CORP.
6. Install the support lift hook (1) to the cross bar (2).
7. Install the support hook (1) to the right engine lift hook (3).
Fig 4: Support Hook, J 36462-A & Engine Lift Hook
Courtesy of GENERAL MOTORS CORP.
8. Install the support hook (1) to the J 36462-A  (2).
9. Install the support hook (1) to the left engine lift hook (3).

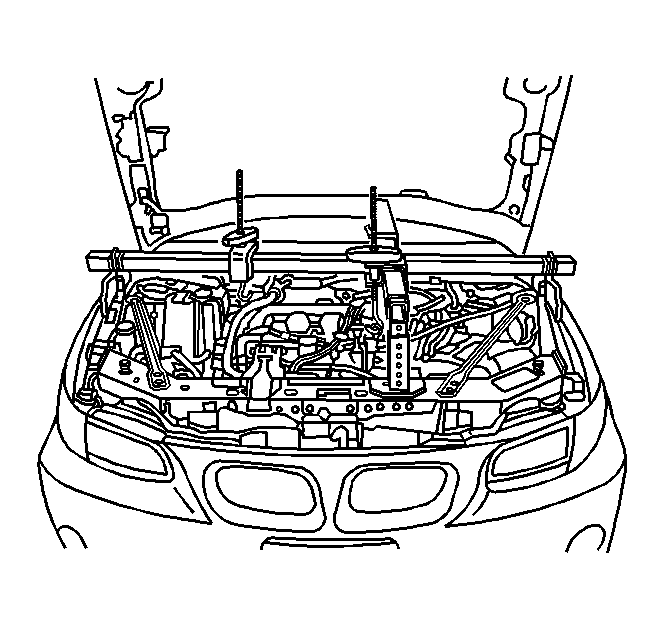

Fig 5: Raising Engine
Courtesy of GENERAL MOTORS CORP.
10. Raise the engine to release the pressure off of the engine mounts.
