Installation Procedure

  1. Install the seat belt to the front seat track.
    2. IMPORTANT: The rivet is only used for installation alignment.

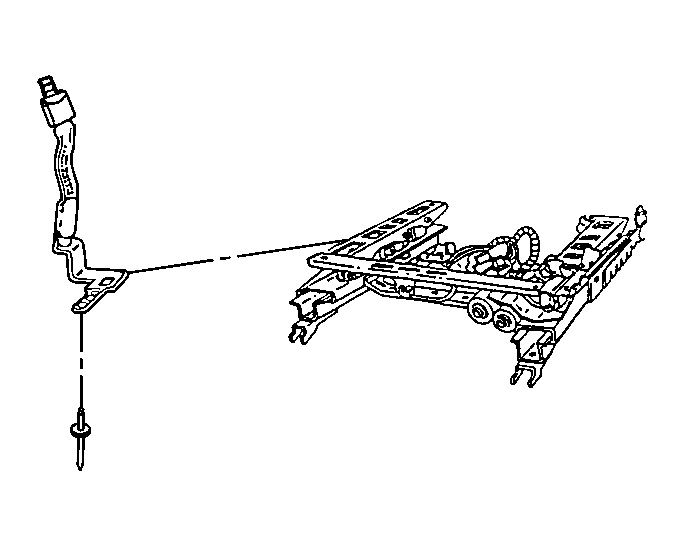

    Fig 1: View Of Center Front Seat Belt
    GM374291Courtesy of GENERAL MOTORS CORP.
  2. Install the new rivet to secure the seat belt to the rear of the front seat track.
  3. Install the front seat. Refer to Seat Replacement - Split Bench in Seats.
