Defogger Schematics

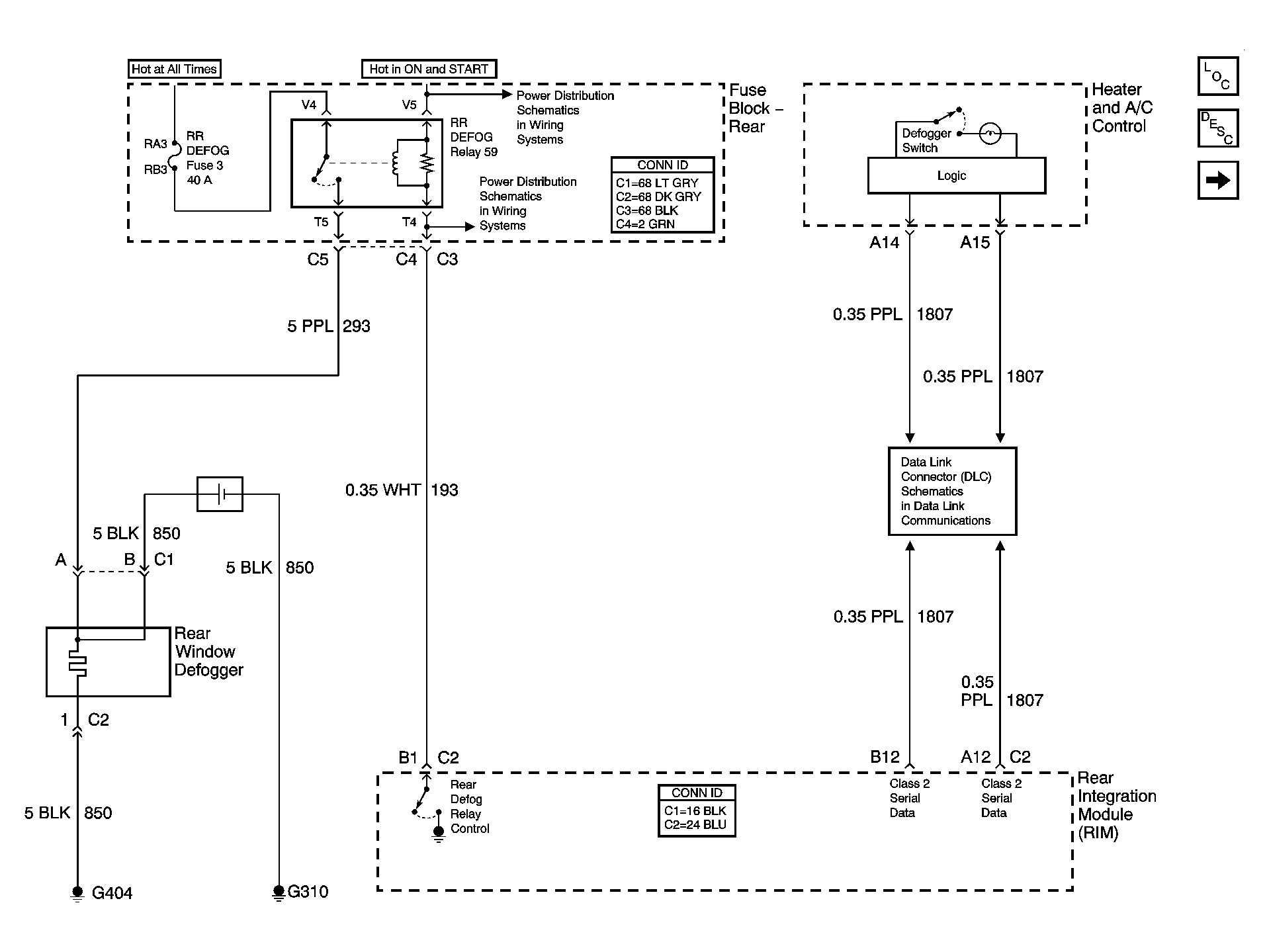

Fig 1: Rear Window Defogger Schematics
GM889549Courtesy of GENERAL MOTORS CORP.

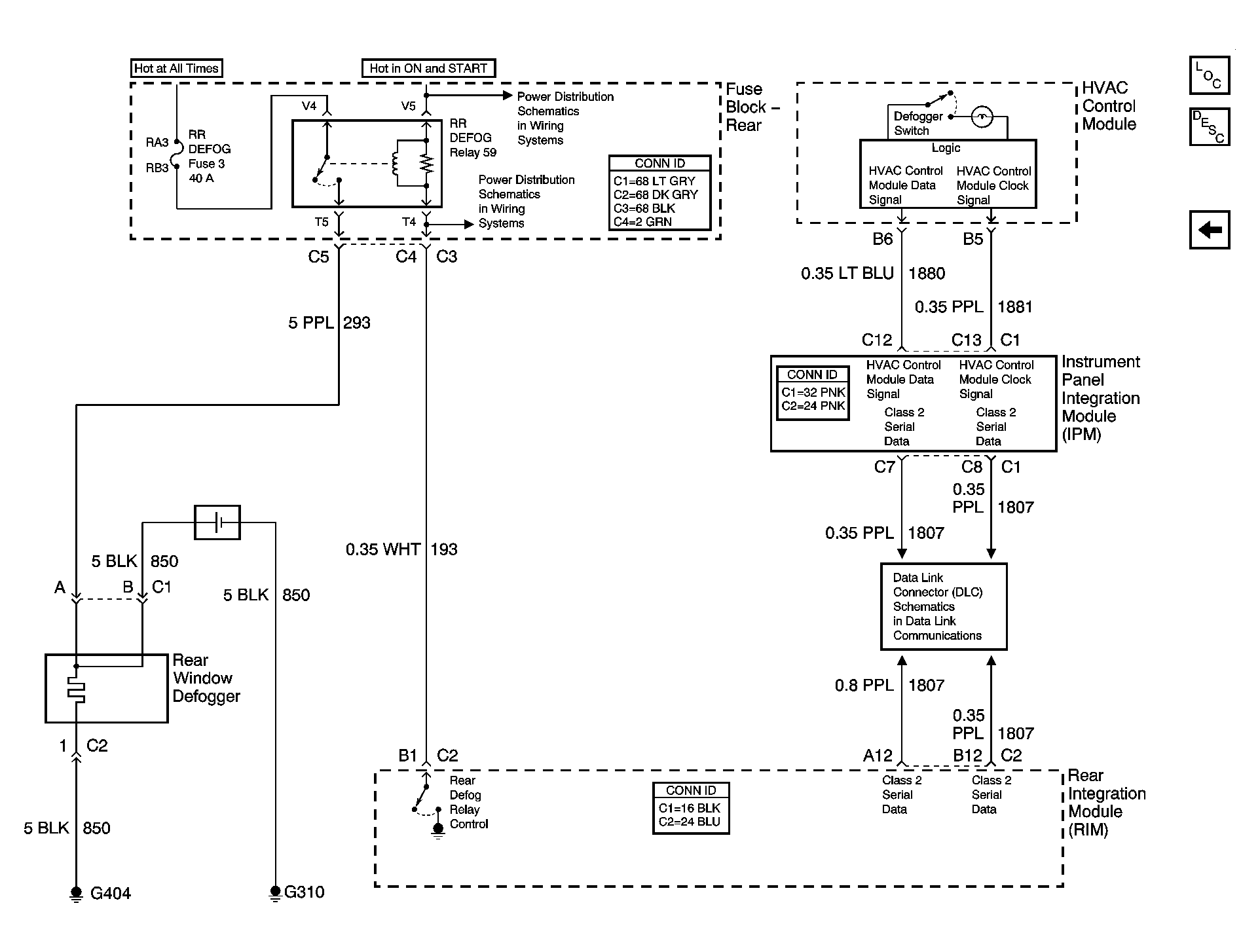

Fig 2: Defogger Schematics (w/CJ2) Schematics
GM889112Courtesy of GENERAL MOTORS CORP.
