Power Seat Systems Component Views

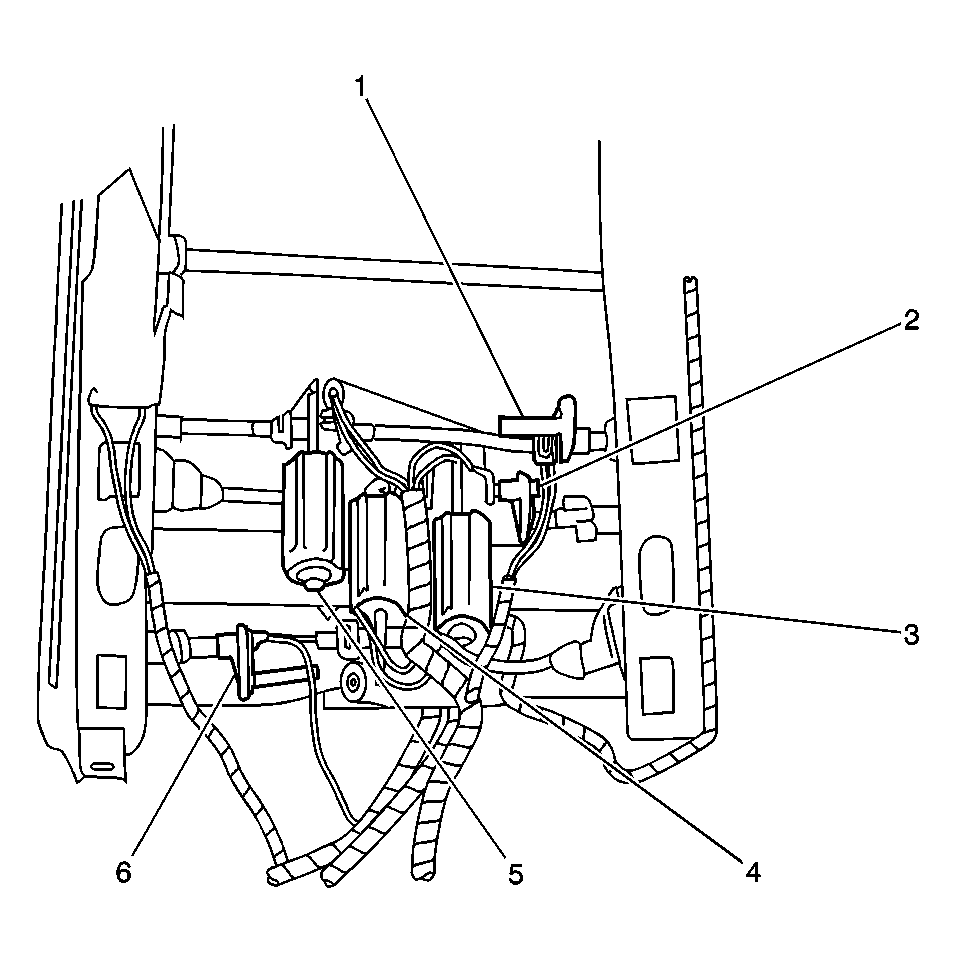

Fig 1: Left Front Seat Back Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Seat Lumbar Vertical Position Sensor - Driver
2	Seat Lumbar Vertical Motor - Driver
3	Seat Recline Motor - Driver
4	S331
5	S330
6	Lumbar Horizontal Motor - Driver
7	Lumbar Horizontal Position Sensor - Driver

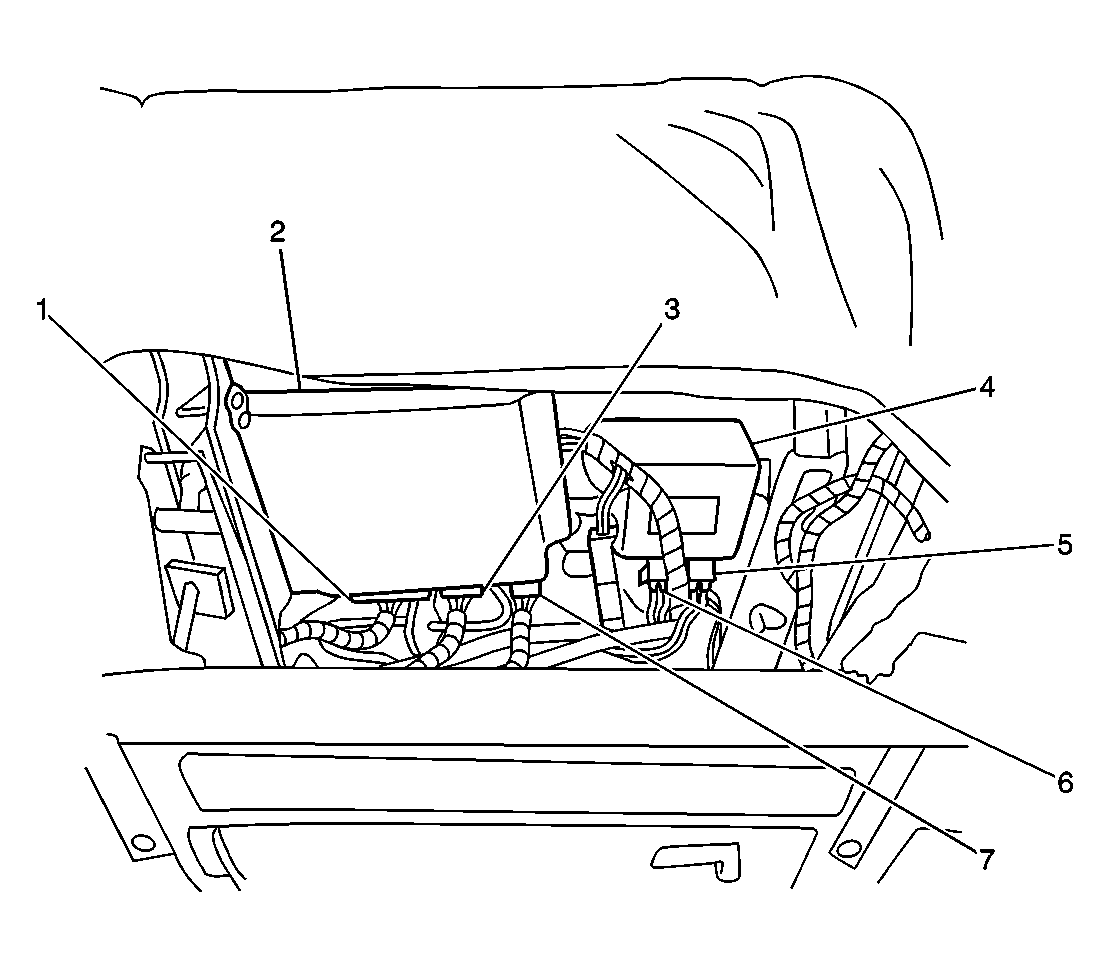

Fig 2: MSM and the Heated Seat Module Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Memory Seat Module (MSM) C2
2	Memory Seat Module (MSM)
3	Memory Seat Module (MSM) C1
4	Heated Seat Module
5	Heated Seat Module C2
6	Heated Seat Module C1
7	Memory Seat Module (MSM) C3

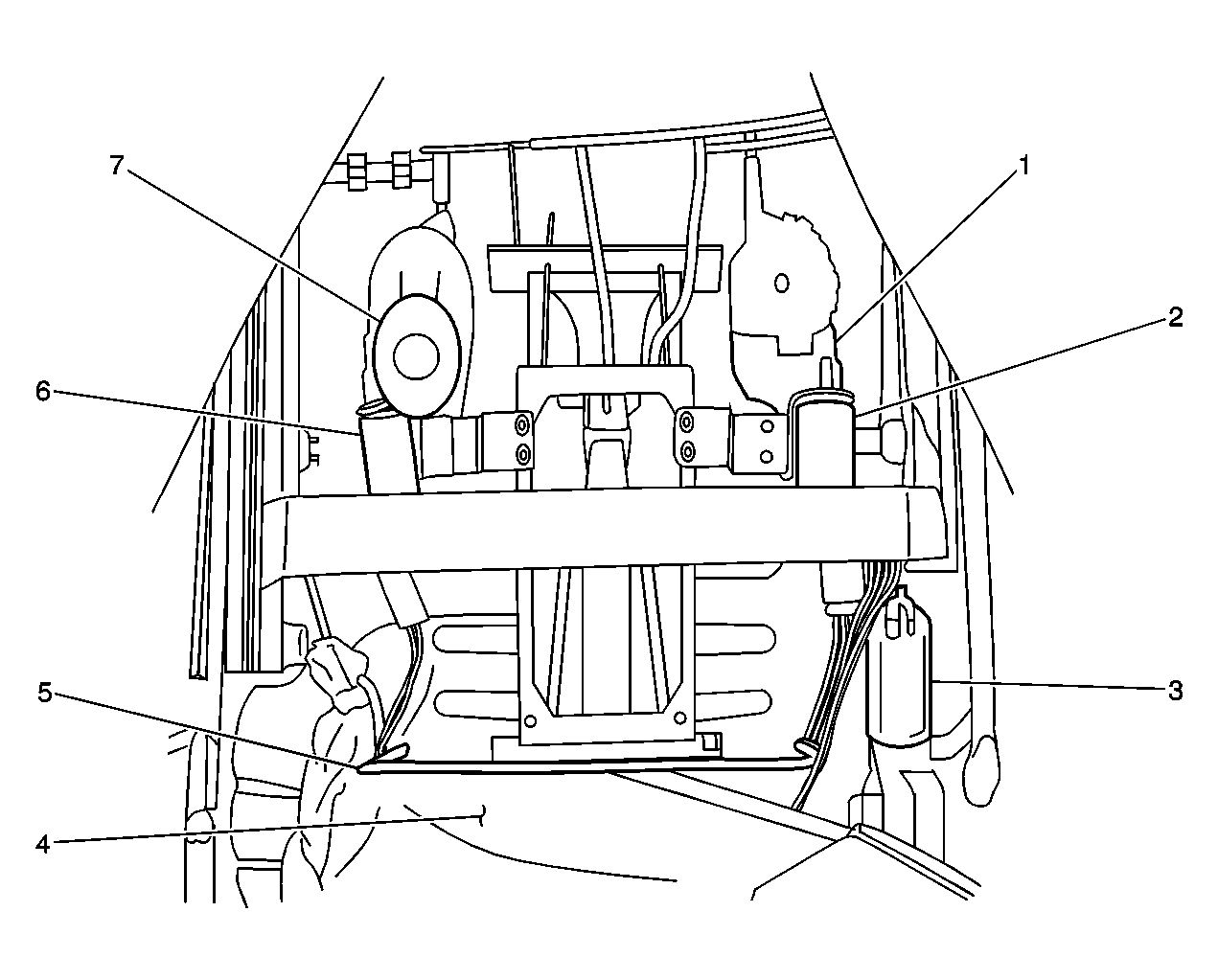

Fig 3: Left Front Seat Horizontal and Vertical Motors and Sensors Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Seat Horizontal Position Sensor - Driver
2	Seat Rear Vertical Position Sensor - Driver
3	Seat Rear Vertical Motor - Driver
4	Seat Front Vertical Motor - Driver
5	Seat Horizontal Motor - Driver
6	Seat Front Vertical Position Sensor - Driver

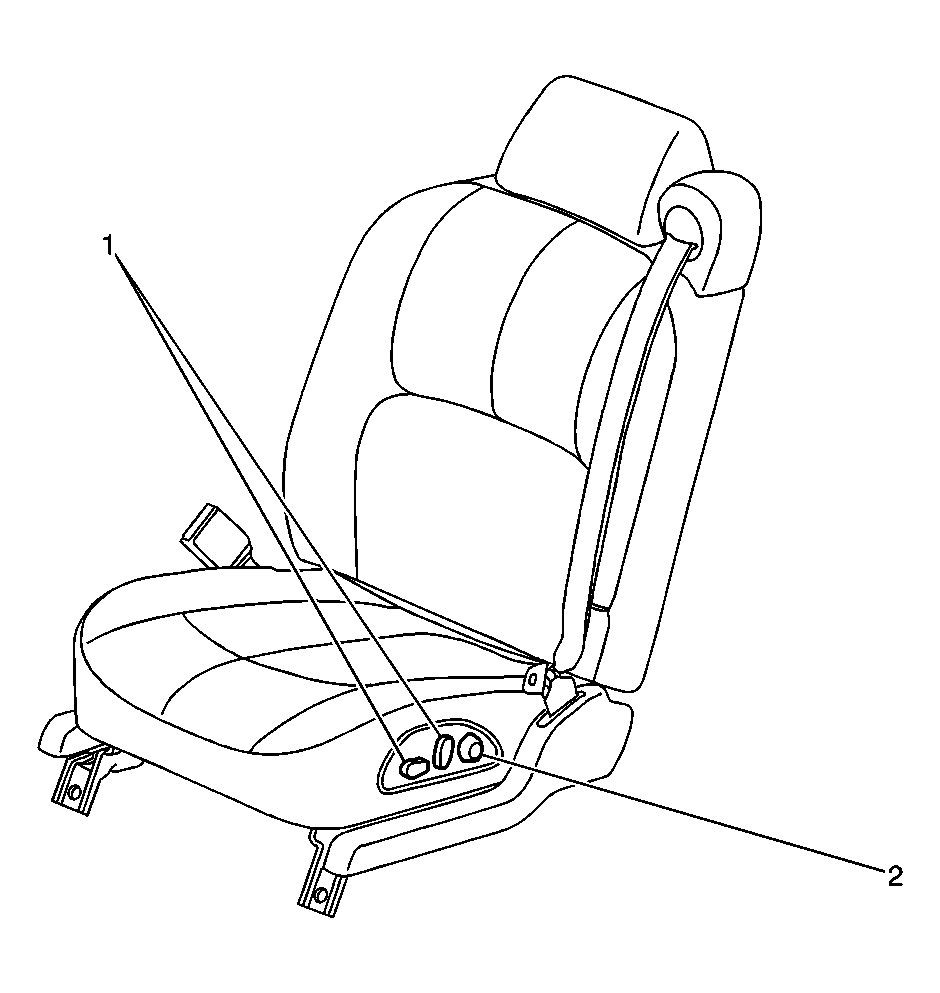

Fig 4: Left Lumbar and Seat Switch Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Seat Adjuster Switch - Driver
2	Seat Lumbar Switch - Driver

Fig 5: LH Seat Connectors Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	C302
2	Inflatable Restraint Connector
