Power Outlet Component Views

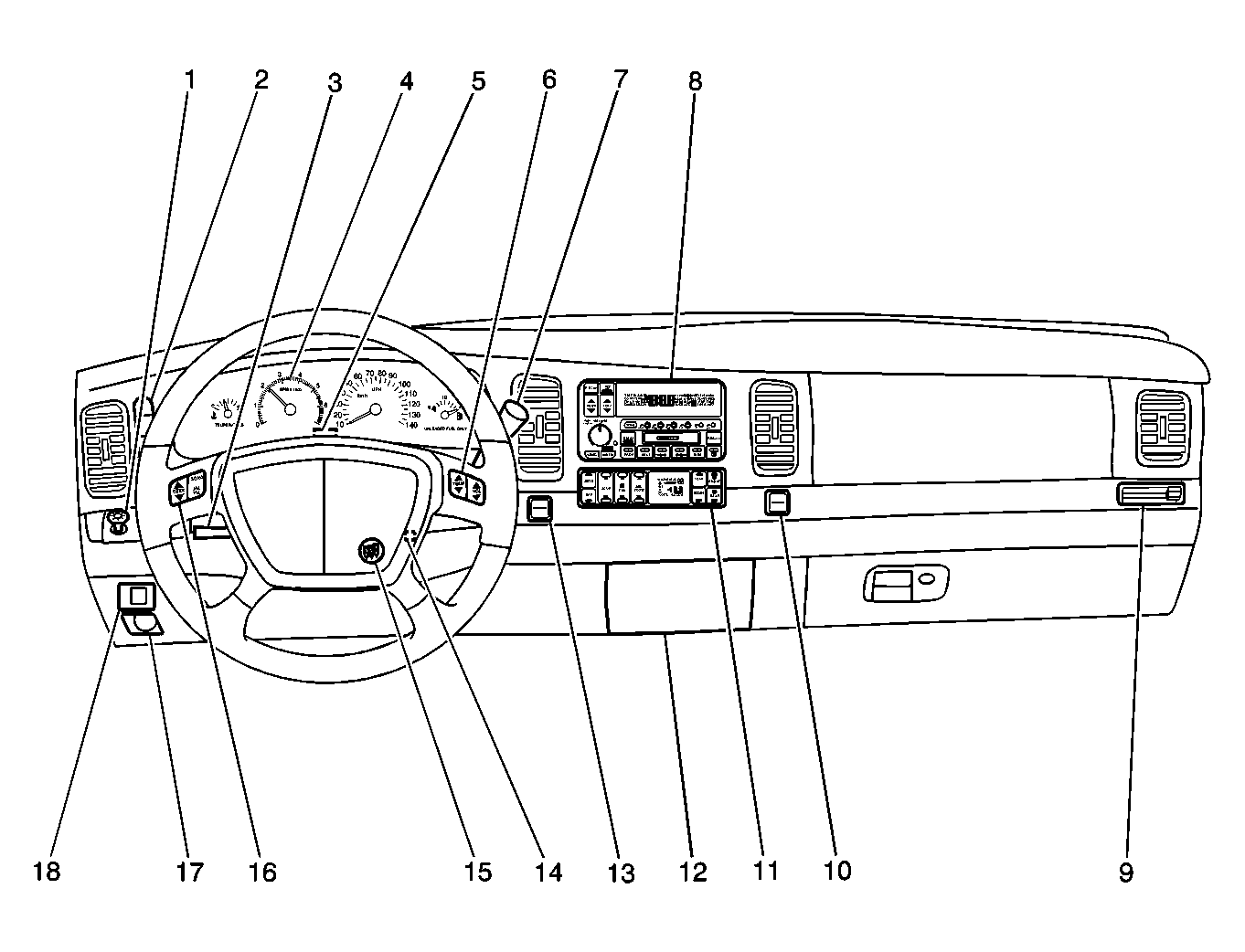

Fig 1: Passenger Compartment, the Front of the I/P Component Views
GM403049Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Headlamp Dimmer Switch
2 Driver Information Center (DIC) Switch
3 Multifunction Lever
4 Instrument Panel Cluster (IPC)
5 Turn Signal/Multifunction Switch
6 Steering Wheel Control Assembly
7 Traction Control Switch
8 Radio
9 Air Temperature Switch Assembly - Right
10 Heated Seat Switch - Front Passenger
11 HVAC Control Module
12 Cigar Lighter - Instrument Panel and Ashtray Lamp
13 Heated Seat Switch - Driver
14 Ignition Switch
15 Horn Switch
16 Steering Wheel Control Assembly
17 Rear Compartment Lid Release Switch
18 Fuel Door Release Switch
Fig 2: Center Console Component Views
GM724620Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Accessory Power Outlet - Rear
