Automatic Transmission Shift Lock Control Schematics

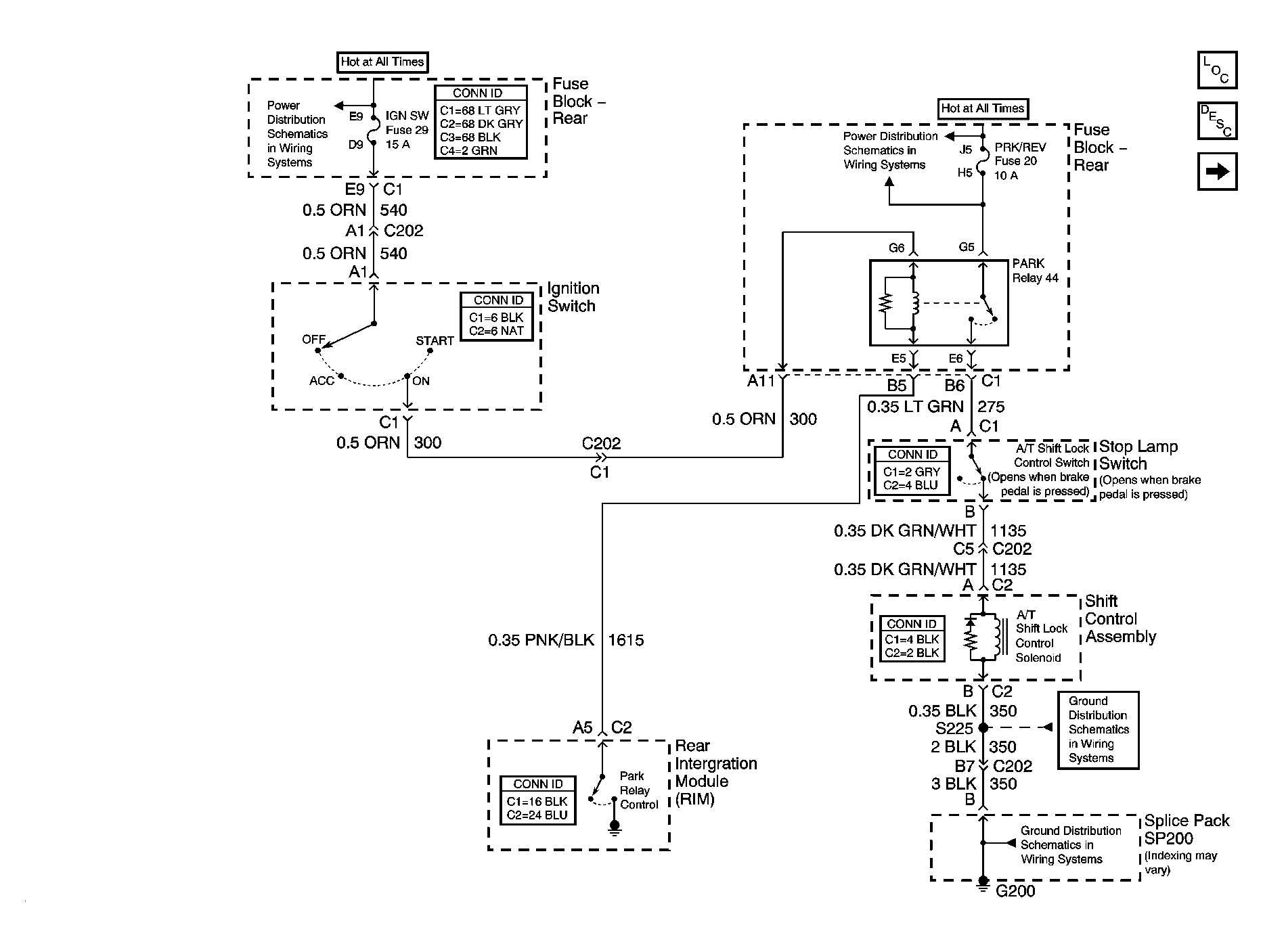

Fig 1: A/T Shift Lock Control Solenoid: Class 2 Schematic

Courtesy of GENERAL MOTORS CORP.

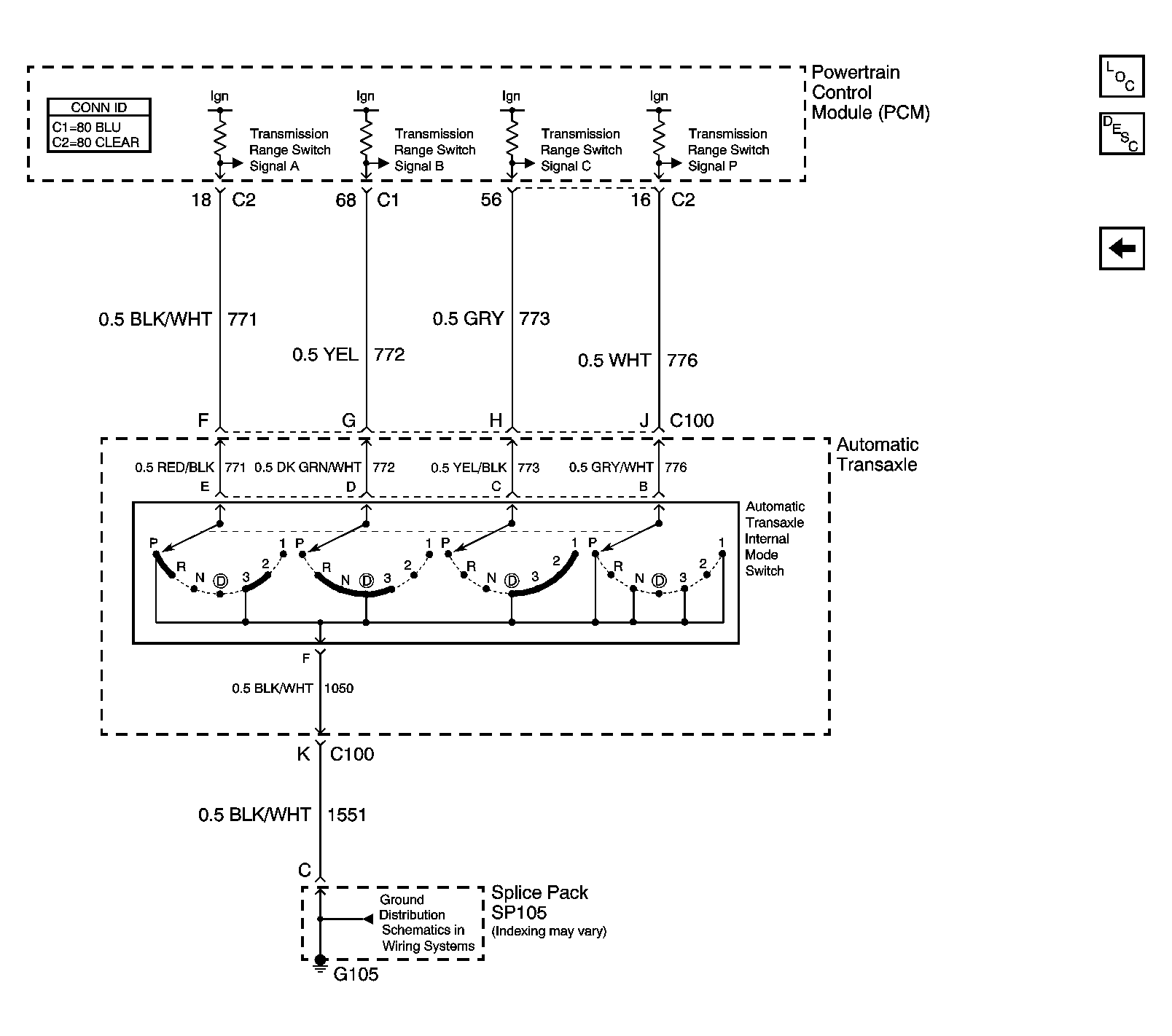

Fig 2: Internal Mode Switch (IMS) Inputs Schematic

Courtesy of GENERAL MOTORS CORP.
