Removal Procedure

  1. Remove the fuel injector site shield. Refer to Fuel Injector Sight Shield Replacement (L36)Fuel Injector Sight Shield Replacement (L67) .

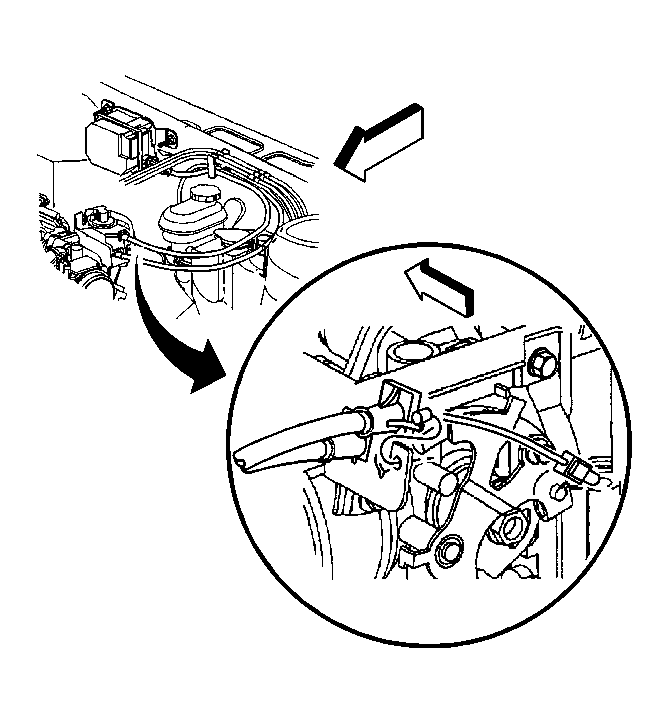

    2. Fig 1: Disconnecting/Connecting Cruise Control Cable
    GM522271Courtesy of GENERAL MOTORS CORP.
  2. Push the lock release and remove the cruise control cable at the engine bracket and throttle body.
    3. Fig 2: Disconnecting/Connecting Cruise Control Cable At Module Assembly Connector
    GM141845Courtesy of GENERAL MOTORS CORP.
  3. Disconnect the cruise control cable (1) and the connector (2) from the module assembly connector (3).
  4. Disconnect the electrical connector from the module assembly.
    5. Fig 3: Removing/Installing Retaining Nuts & Module
    GM141846Courtesy of GENERAL MOTORS CORP.
  5. Remove the retaining nuts (2) and the module (1) from the mounting studs.
    6. Fig 4: Removing/Installing Cruise Control Module Bracket Bolts
    GM141841Courtesy of GENERAL MOTORS CORP.
  6. Remove the cruise control module bracket bolts (3) from the module bracket (2) and the module (1).
