Cellular Communication Component Views

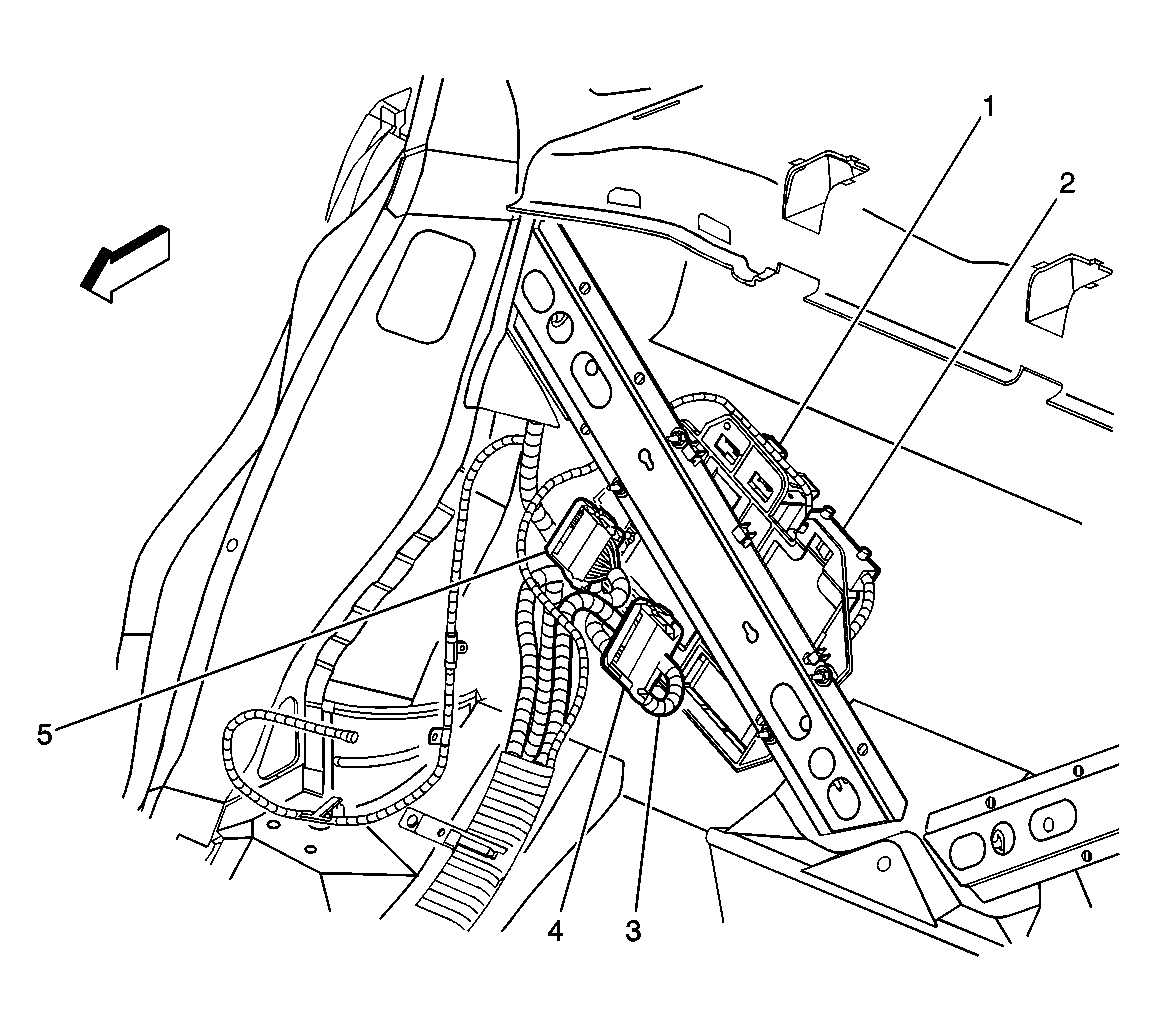

Fig 1: Viewing Rear Compartment Behind Rear Seat

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Vehicle Interface Unit (VIU)
2	Vehicle Communication Unit (VCU)
3	S360, S361
4	C345
5	C307 (w/UE1)
