Keyless Entry Component Views

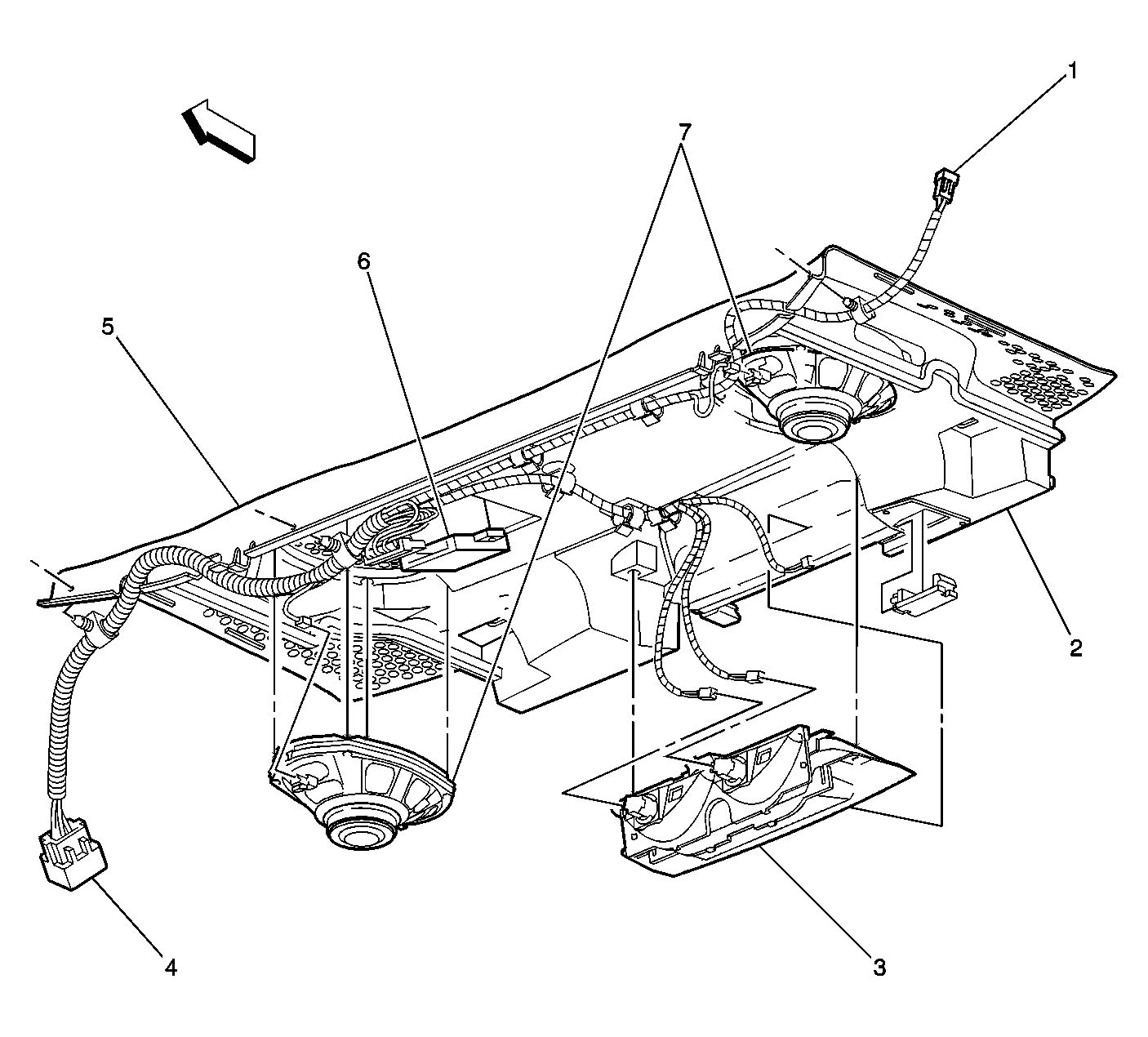

Fig 1: Locating Rear Compartment, Below the Rear Shelf Trim Panel Components

Courtesy of GENERAL MOTORS CORP.

Identifying Callouts For Fig. 3

Callout	Component Name
1	C402
2	Rear Compartment Lamp
3	Center High Mount Stop Lamp (CHMSL)
4	C310
5	Rear Shelf Trim Panel
6	Remote Control Door Lock Receiver (RCDLR)
7	Speakers - LR and RR
