Power Outlet Component Views

Fig 1: Identifying Passenger Compartment, The Front Of The I/P Component View

Courtesy of GENERAL MOTORS CORP.

Identifying Callouts For Fig. 2

Callout	Component Name
1	Headlamp Dimmer Switch
2	Driver Information Center (DIC) Switch
3	Multifunction Lever
4	Instrument Panel Cluster (IPC)
5	Turn Signal/Multifunction Switch
6	Steering Wheel Control Assembly
7	Traction Control Switch
8	Radio
9	Air Temperature Switch Assembly - Right
10	Heated Seat Switch - Front Passenger
11	HVAC Control Module
12	Cigar Lighter - Instrument Panel and Ashtray Lamp
13	Heated Seat Switch - Driver
14	Ignition Switch
15	Horn Switch
16	Steering Wheel Control Assembly
17	Rear Compartment Lid Release Switch
18	Fuel Door Release Switch

Fig 2: Identifying Center Console Power Outlet Component View

Courtesy of GENERAL MOTORS CORP.

Identifying Callouts For Fig. 3

Callout	Component Name
1	Accessory Power Outlet - Rear

Fig 3: Identifying Center Console Component View (w/D07)

Courtesy of GENERAL MOTORS CORP.

Identifying Callouts For Fig. 4

Callout	Component Name
1	Accessory Power Outlet - Front

Fig 4: Identifying Driver Seat Component View (w/o D07)

Courtesy of GENERAL MOTORS CORP.

Identifying Callouts For Fig. 5

Callout	Component Name
1	Accessory Power Outlet

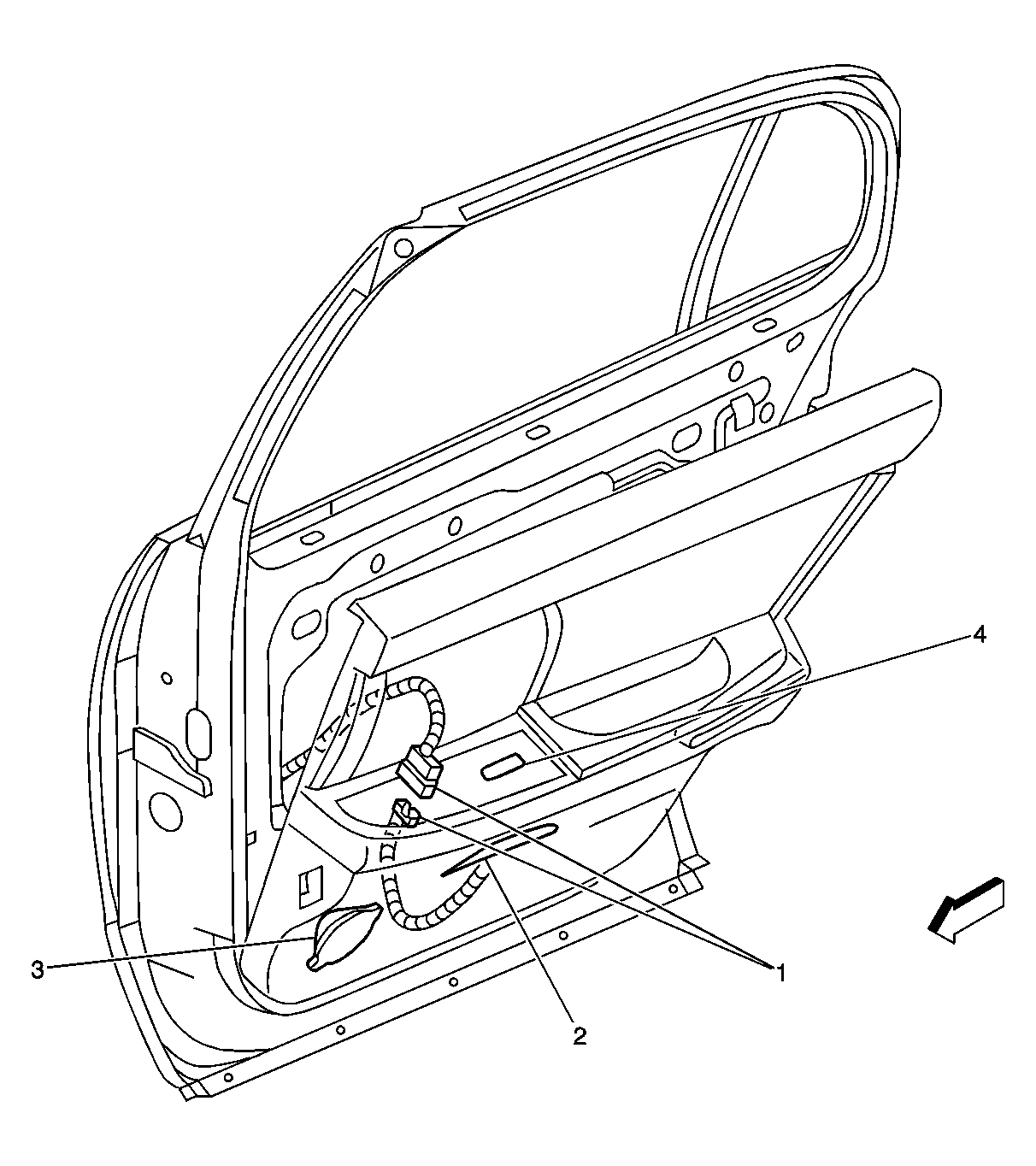

Fig 5: Identifying Right Rear Door Components

Courtesy of GENERAL MOTORS CORP.

Identifying Callouts For Fig. 6

Callout	Component Name
1	C800 - Right, C700 - Left
2	Courtesy/Reading Lamp - RR, LR Similar
3	Speaker - RR Door - Midrange, LR Door Similar
4	Cigar Lighter - RR Door, LR Door Similar
