Electrical Component Locator
›
Component Location Graphics
Component Location Graphics
NOTE:
Figures may show multiple component locations. Refer to appropriate table for proper figure references.

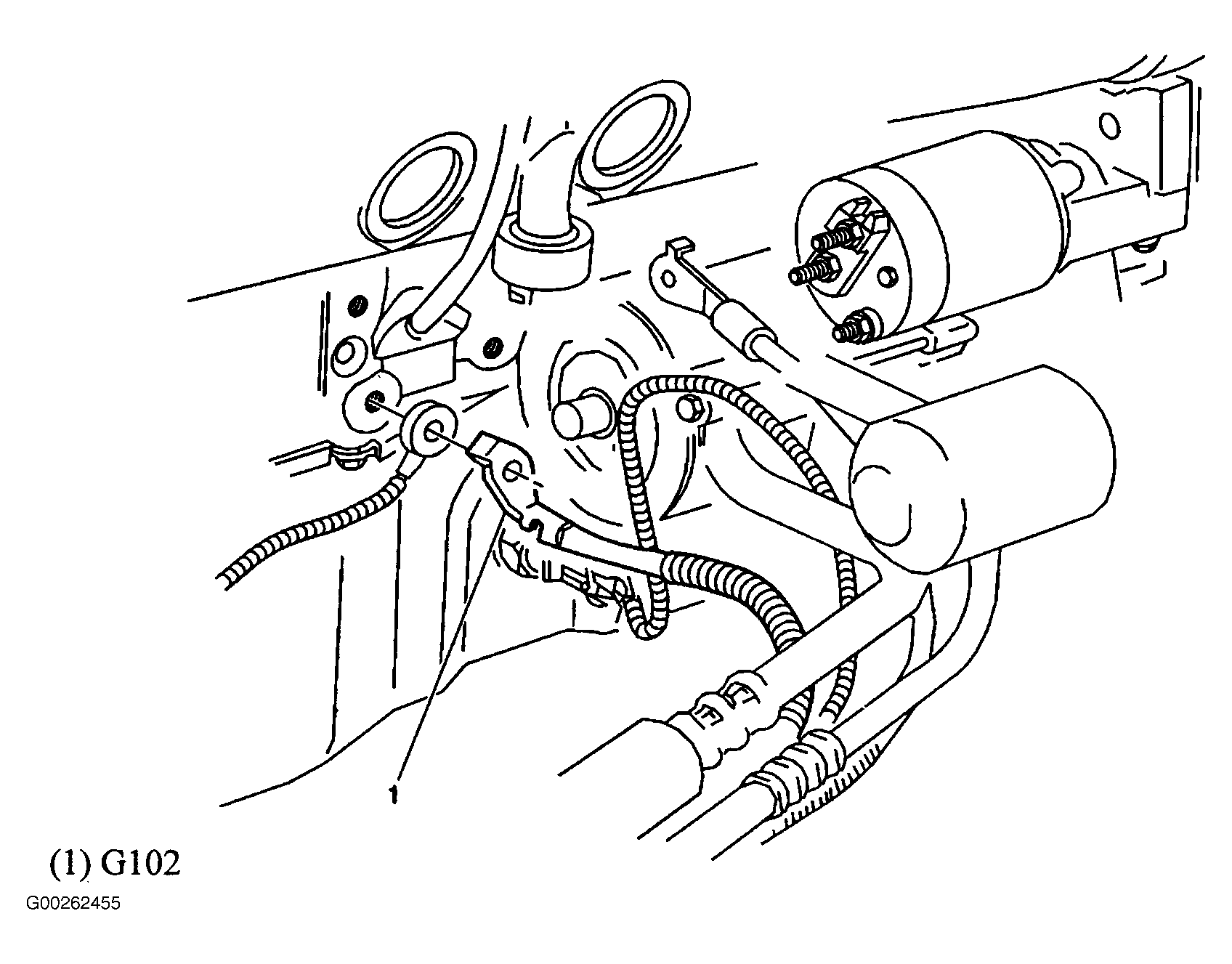

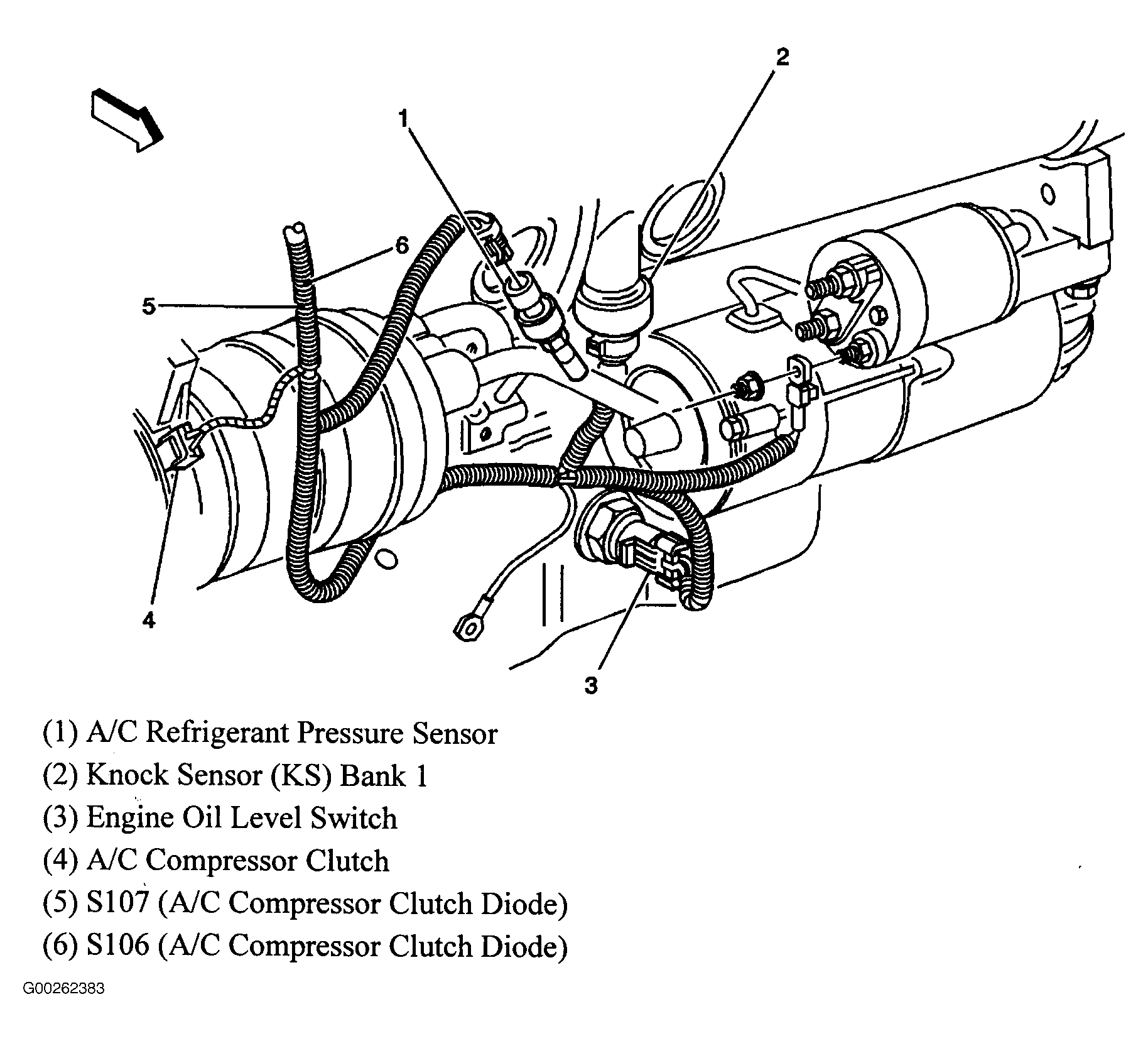

Fig 1: Lower Left Front Of Engine
Courtesy of GENERAL MOTORS CORP.

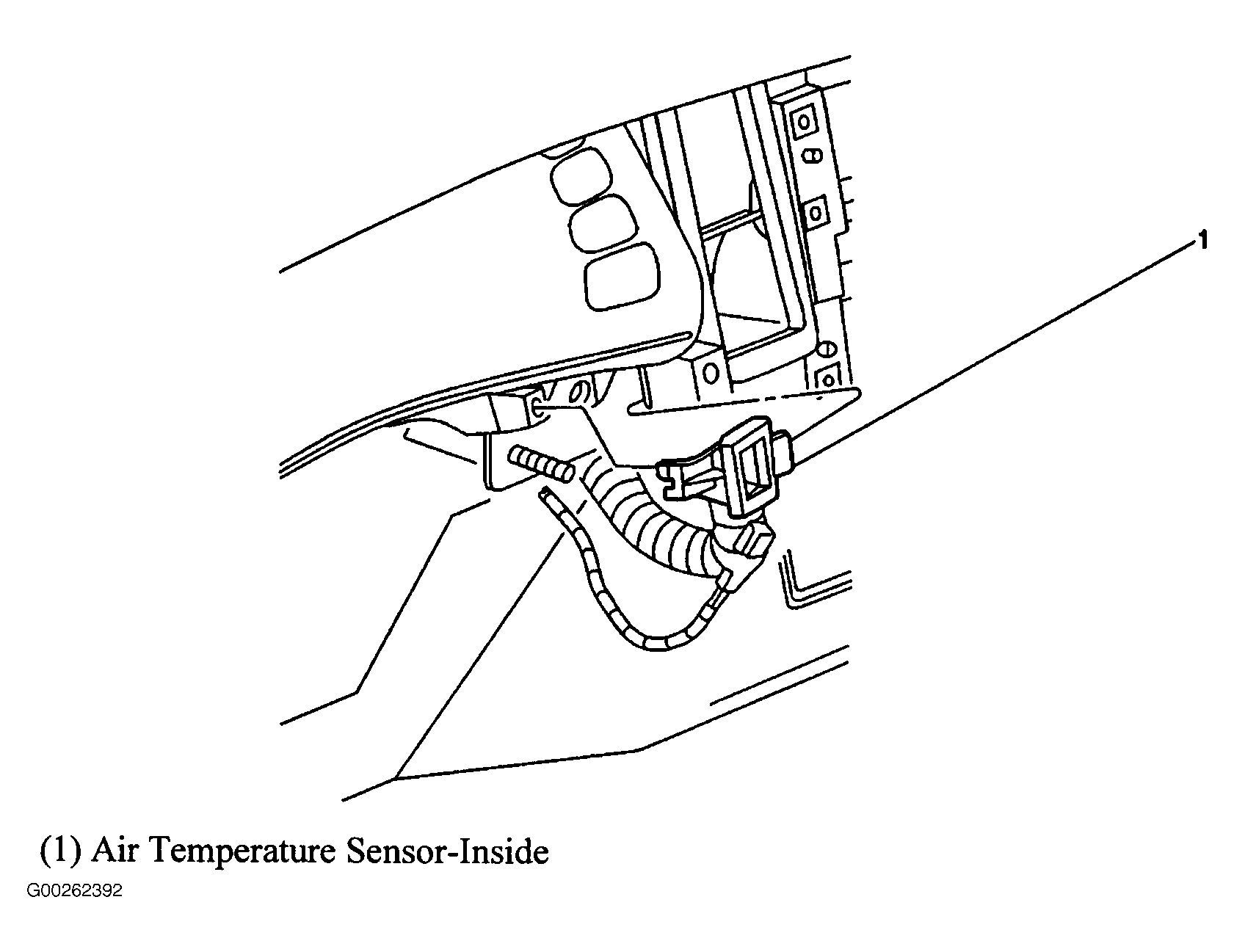

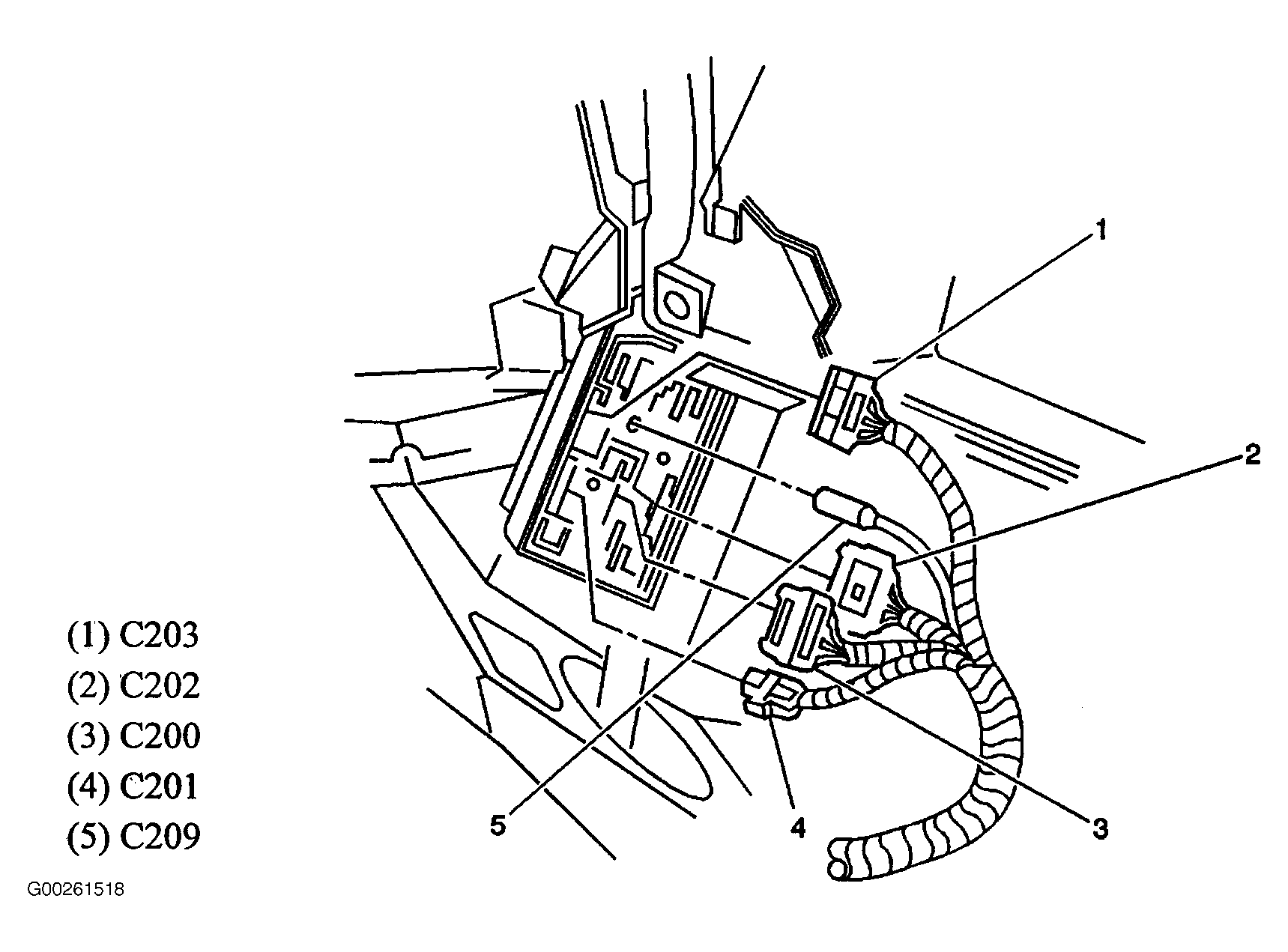

Fig 2: Behind Right Side Of Instrument Panel
Courtesy of GENERAL MOTORS CORP.

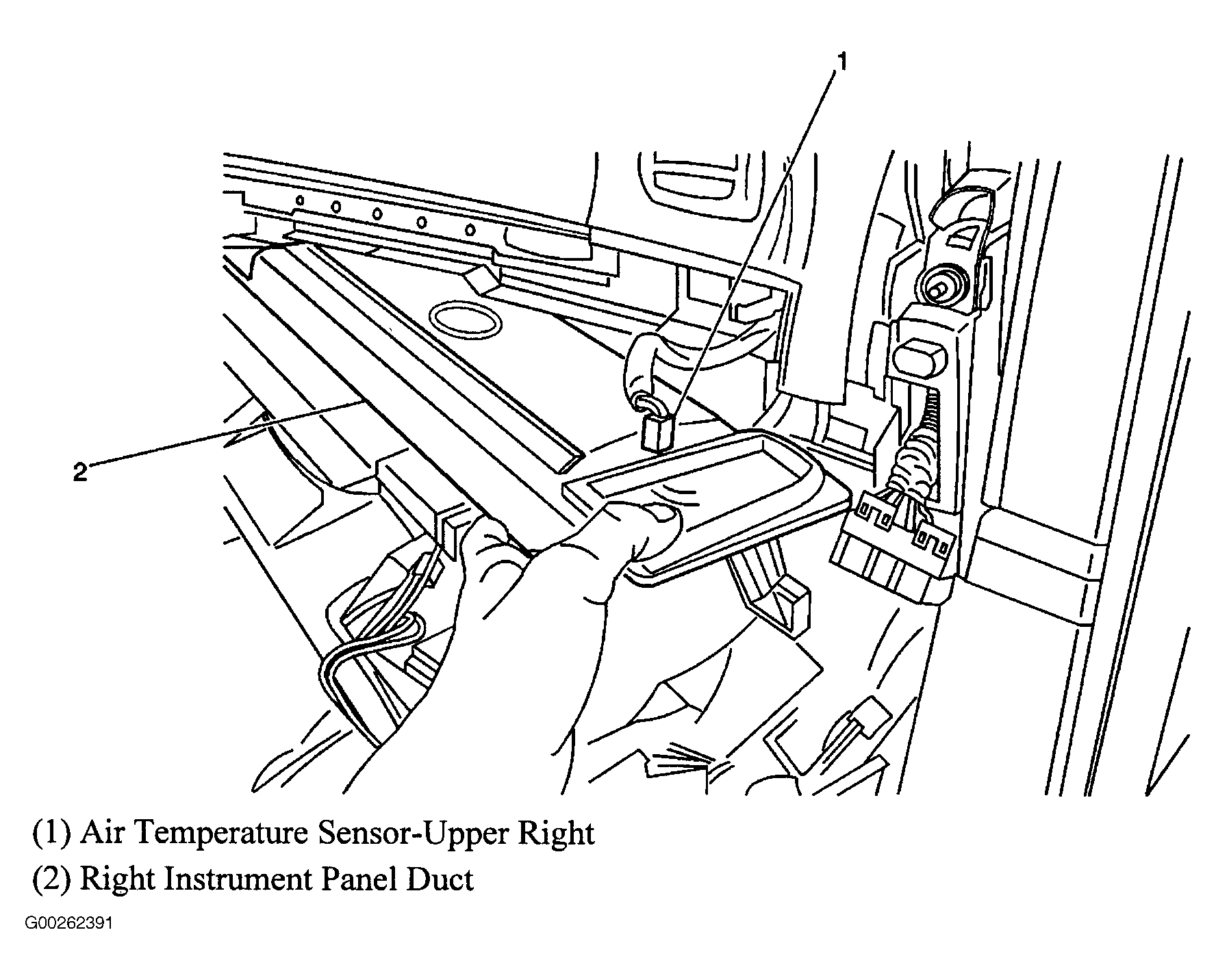

Fig 3: Behind Right Side Of Instrument Panel
Courtesy of GENERAL MOTORS CORP.

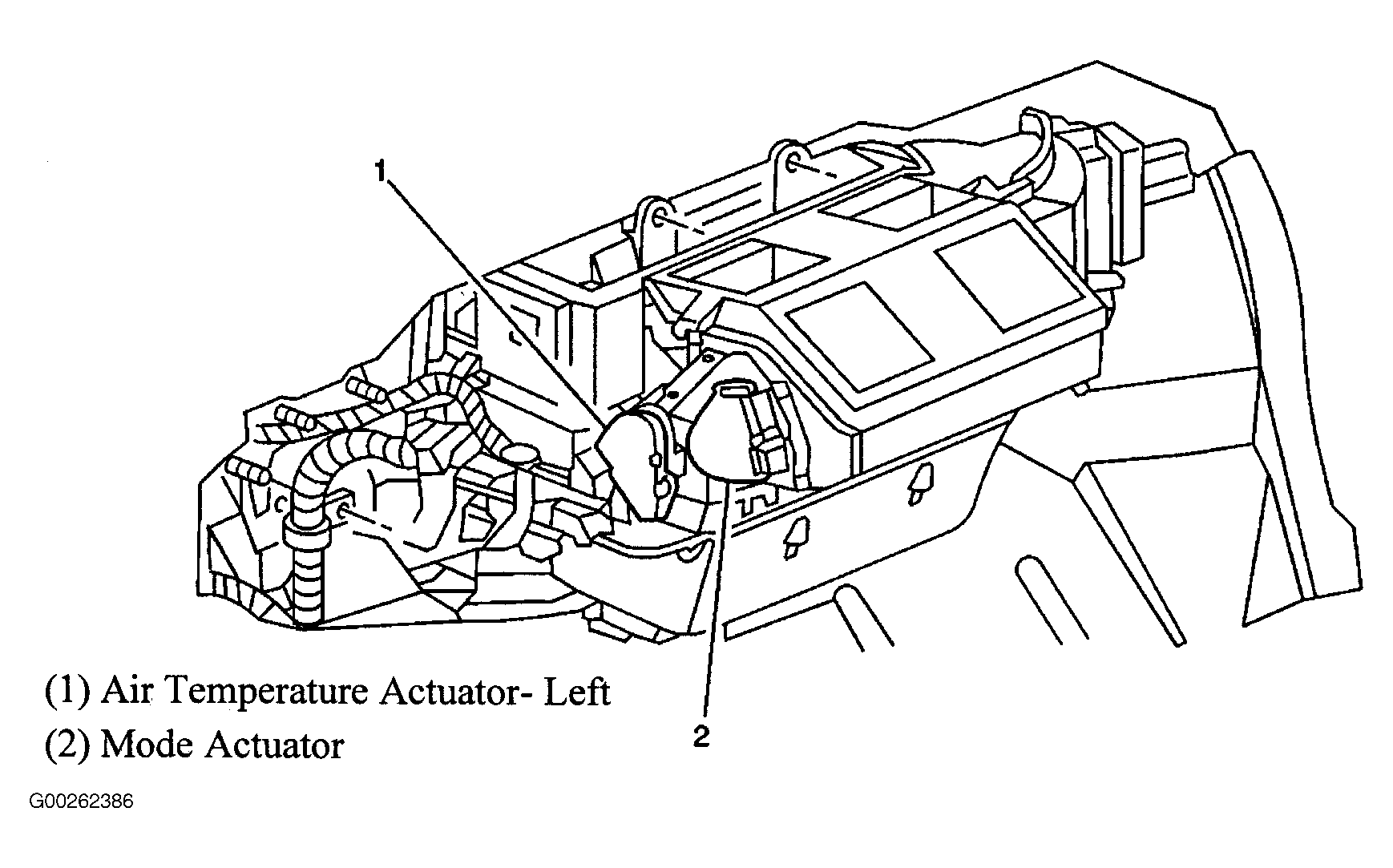

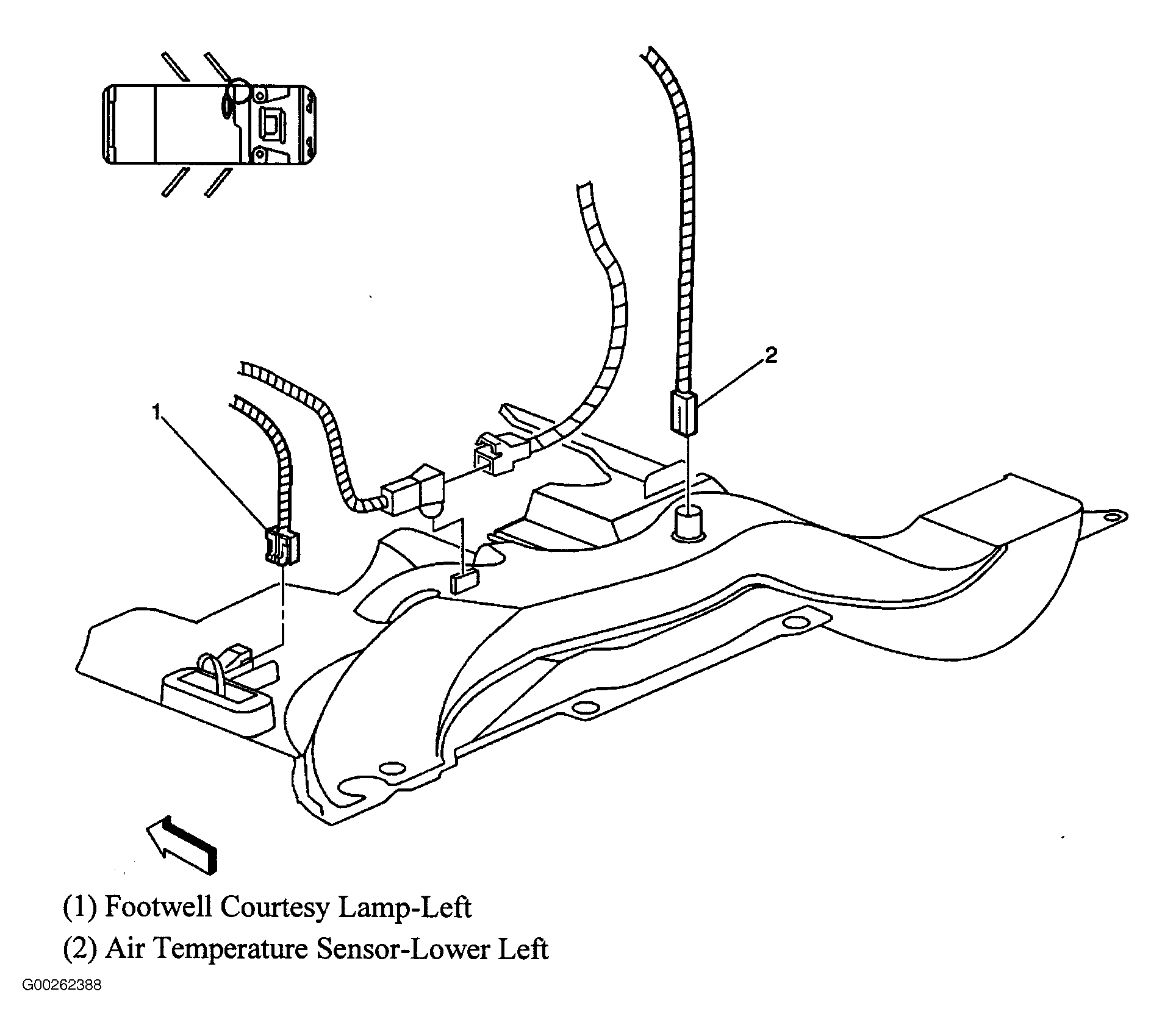

Fig 4: Left Side Of HVAC Housing
Courtesy of GENERAL MOTORS CORP.

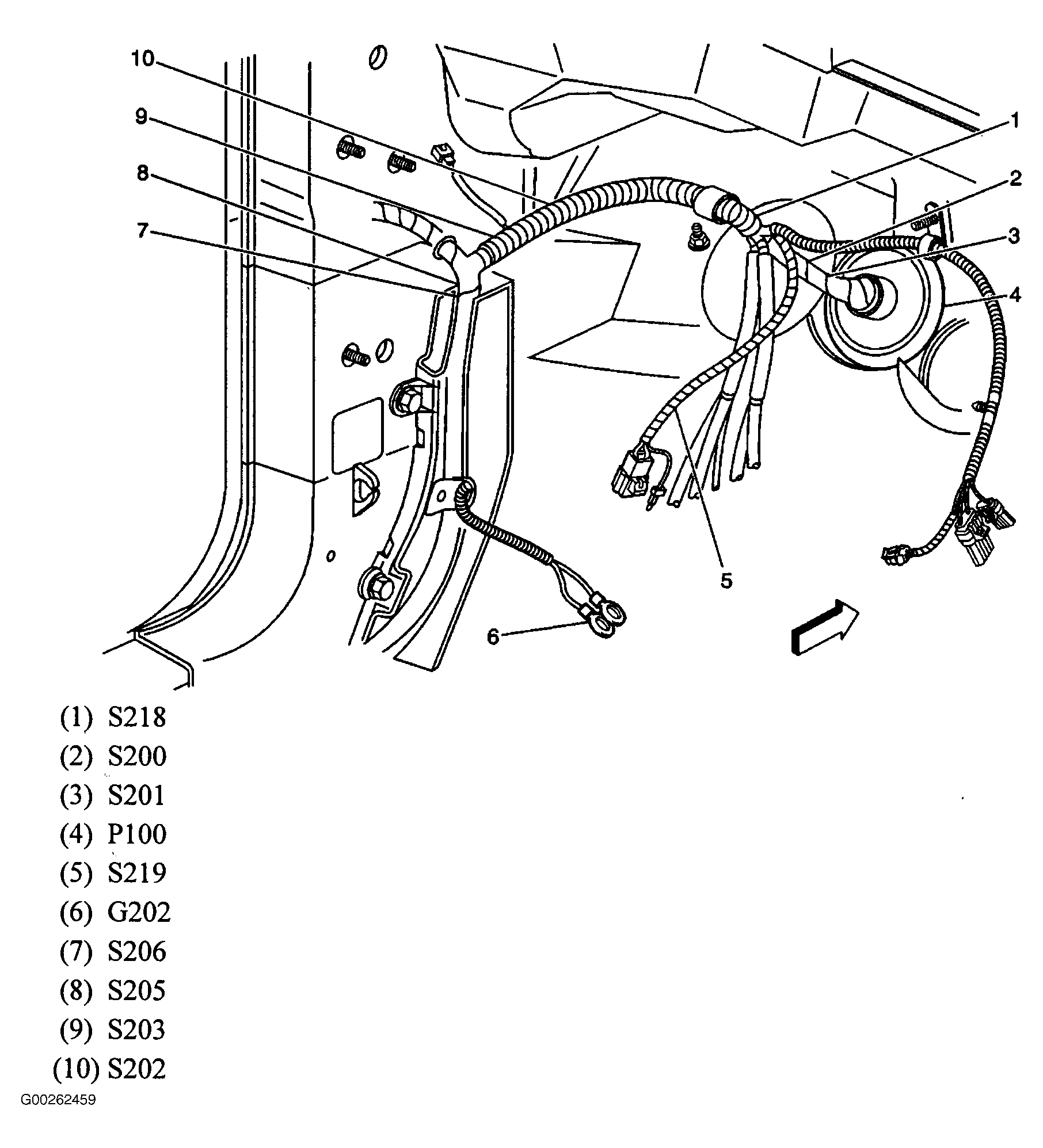

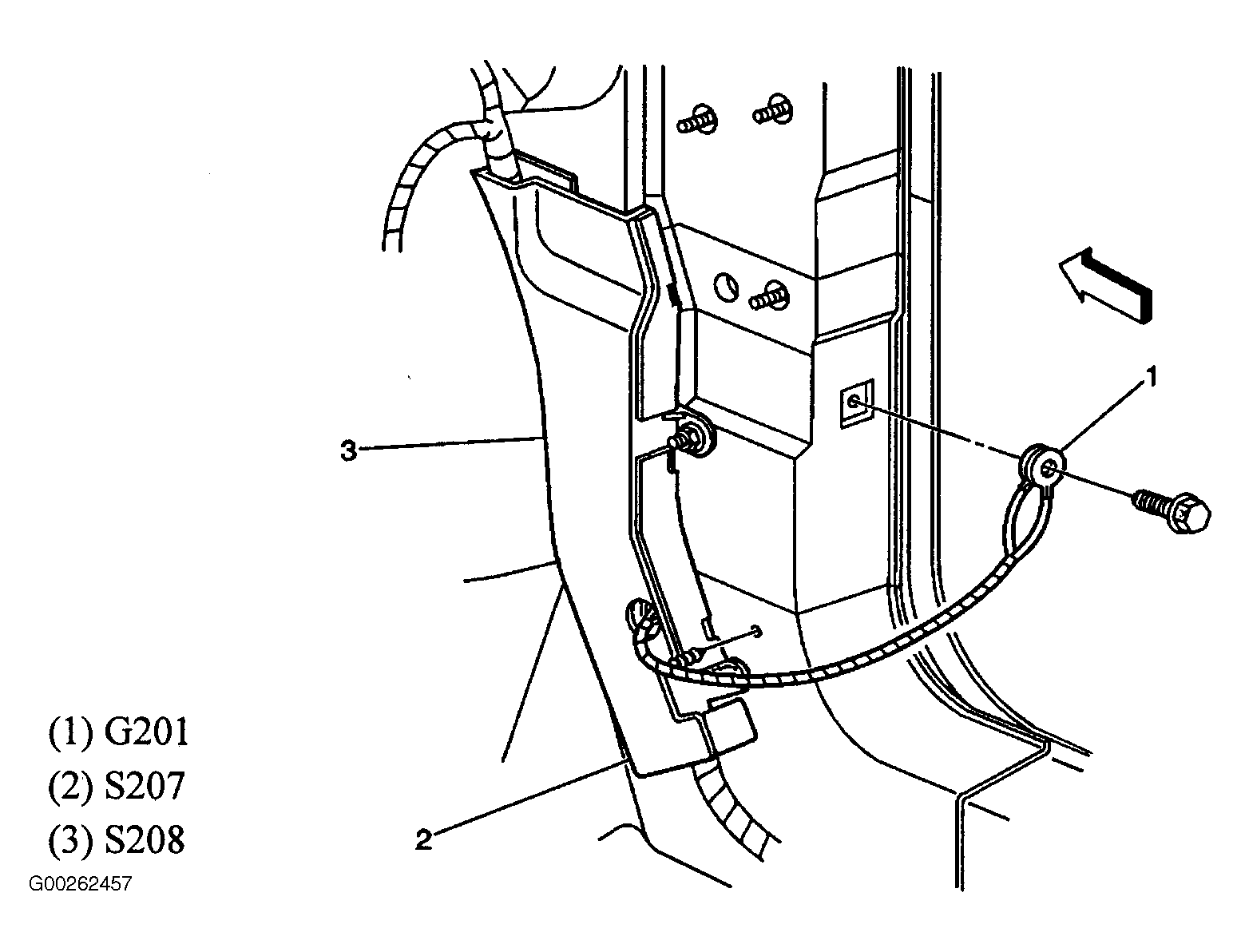

Fig 5: Left Kick Panel
Courtesy of GENERAL MOTORS CORP.

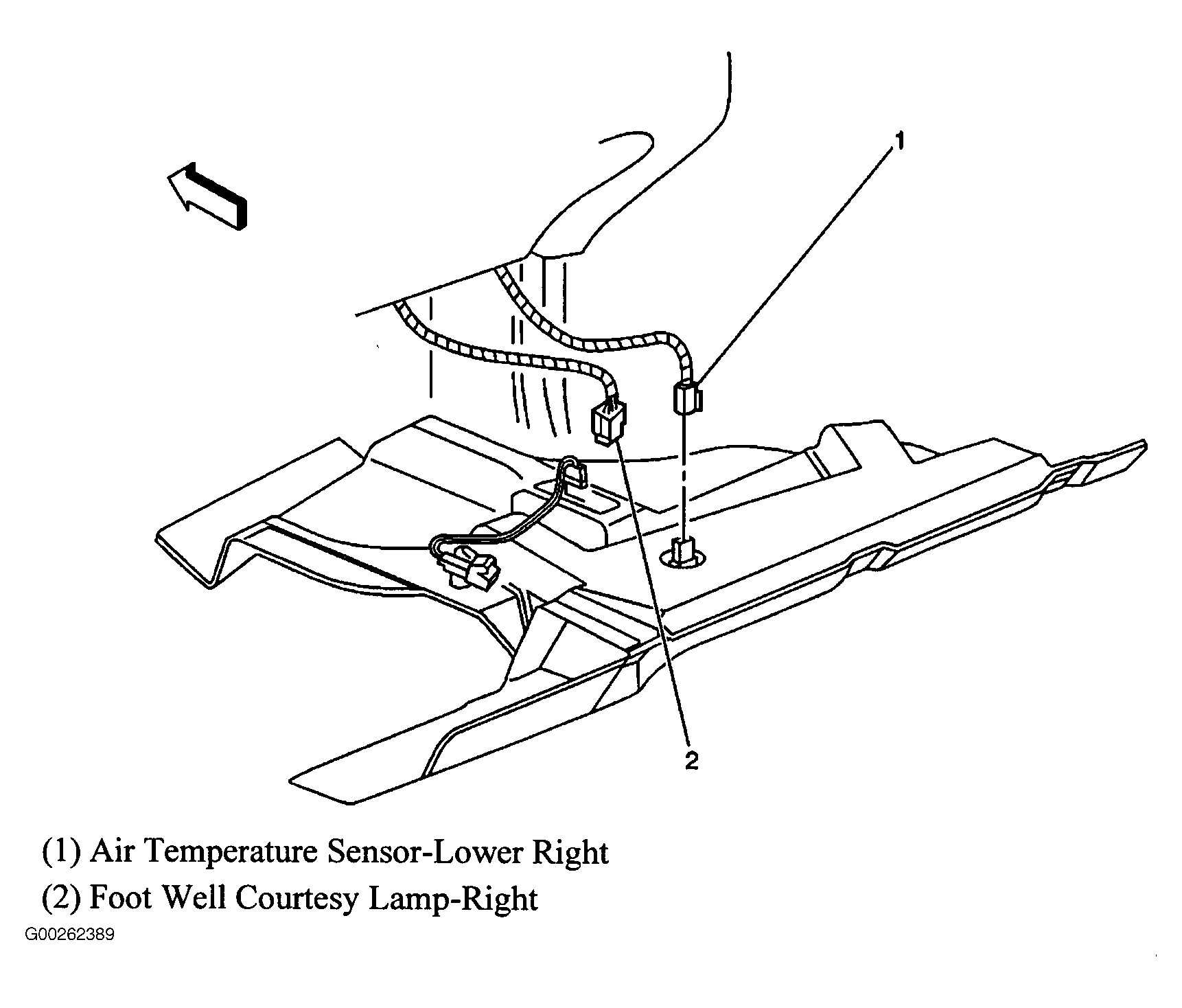

Fig 6: Right Footwell
Courtesy of GENERAL MOTORS CORP.
Fig 7: Left Side Of Instrument Panel
Courtesy of GENERAL MOTORS CORP.
Fig 8: Right Side Of Instrument Panel
Courtesy of GENERAL MOTORS CORP.
Fig 9: Instrument Panel Right Of Steering Column
Courtesy of GENERAL MOTORS CORP.

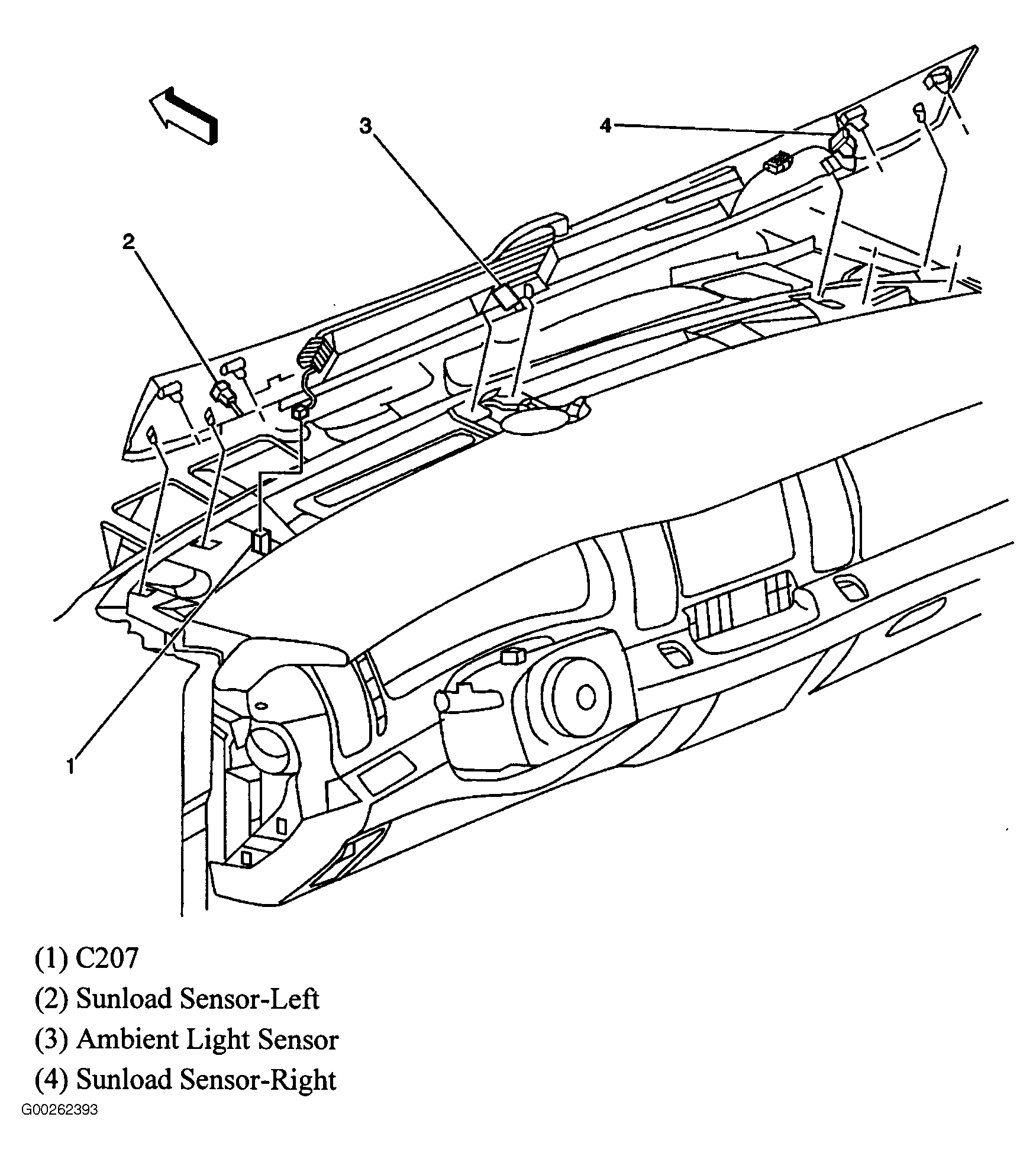

Fig 10: Top Of Instrument Panel
Courtesy of GENERAL MOTORS CORP.

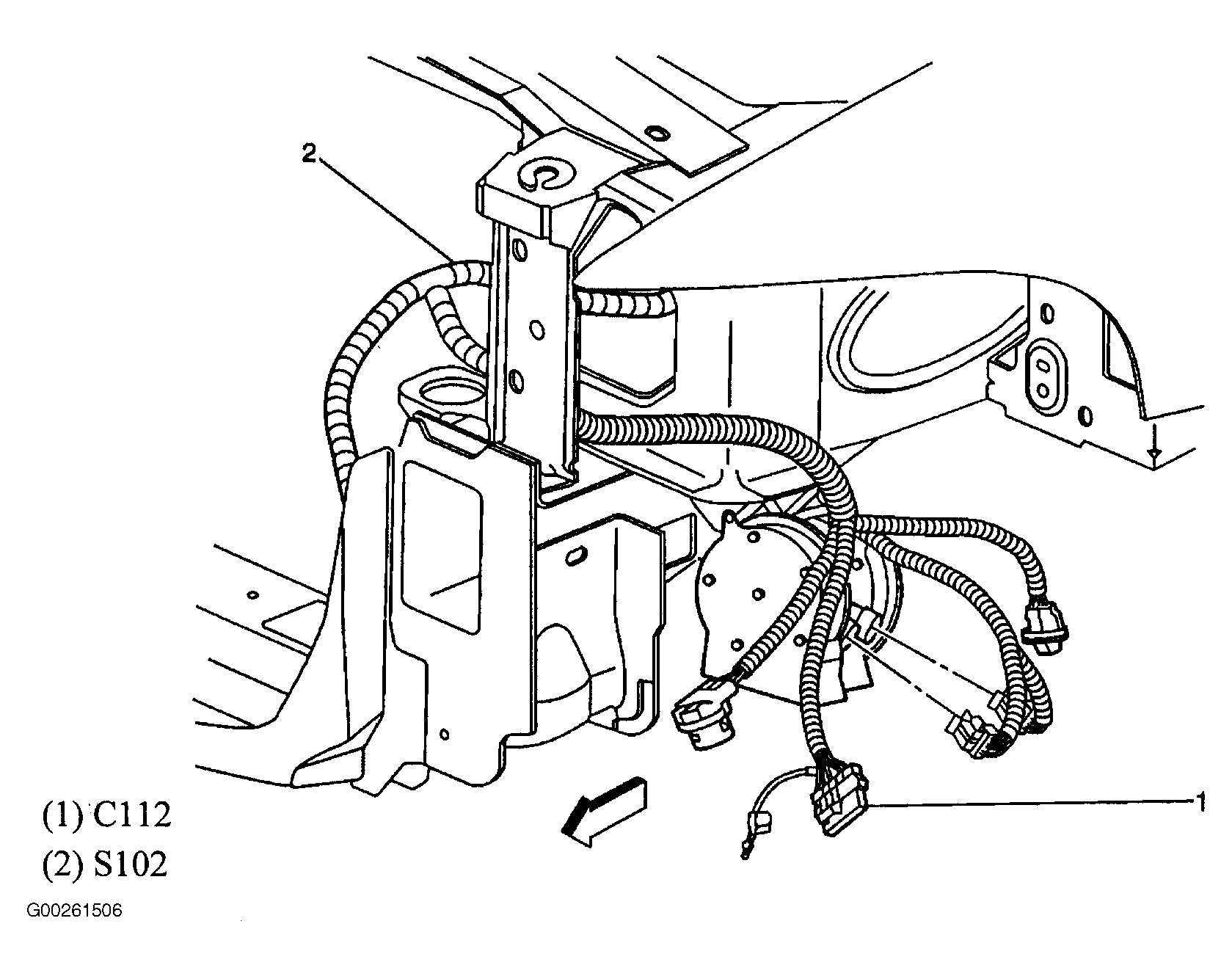

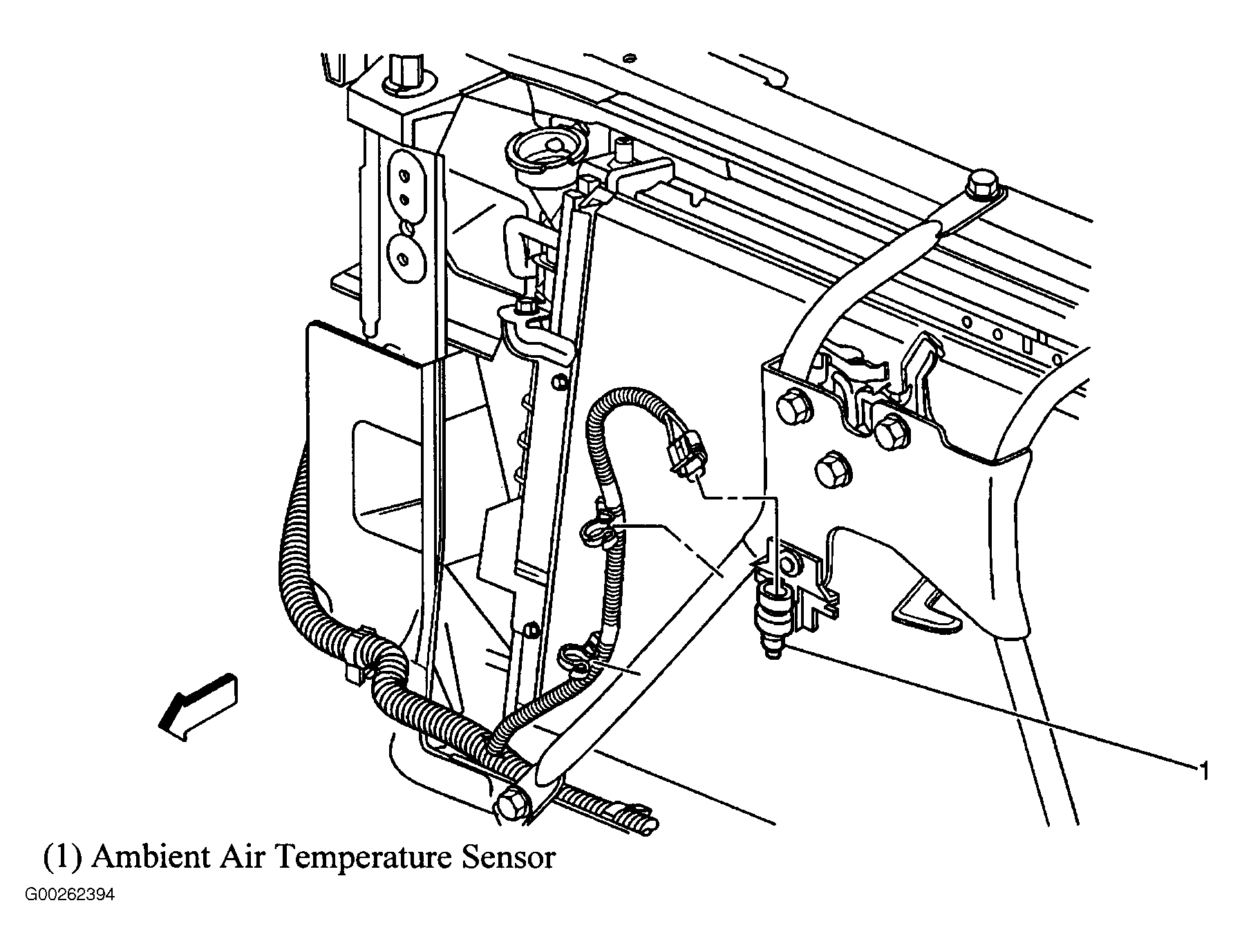

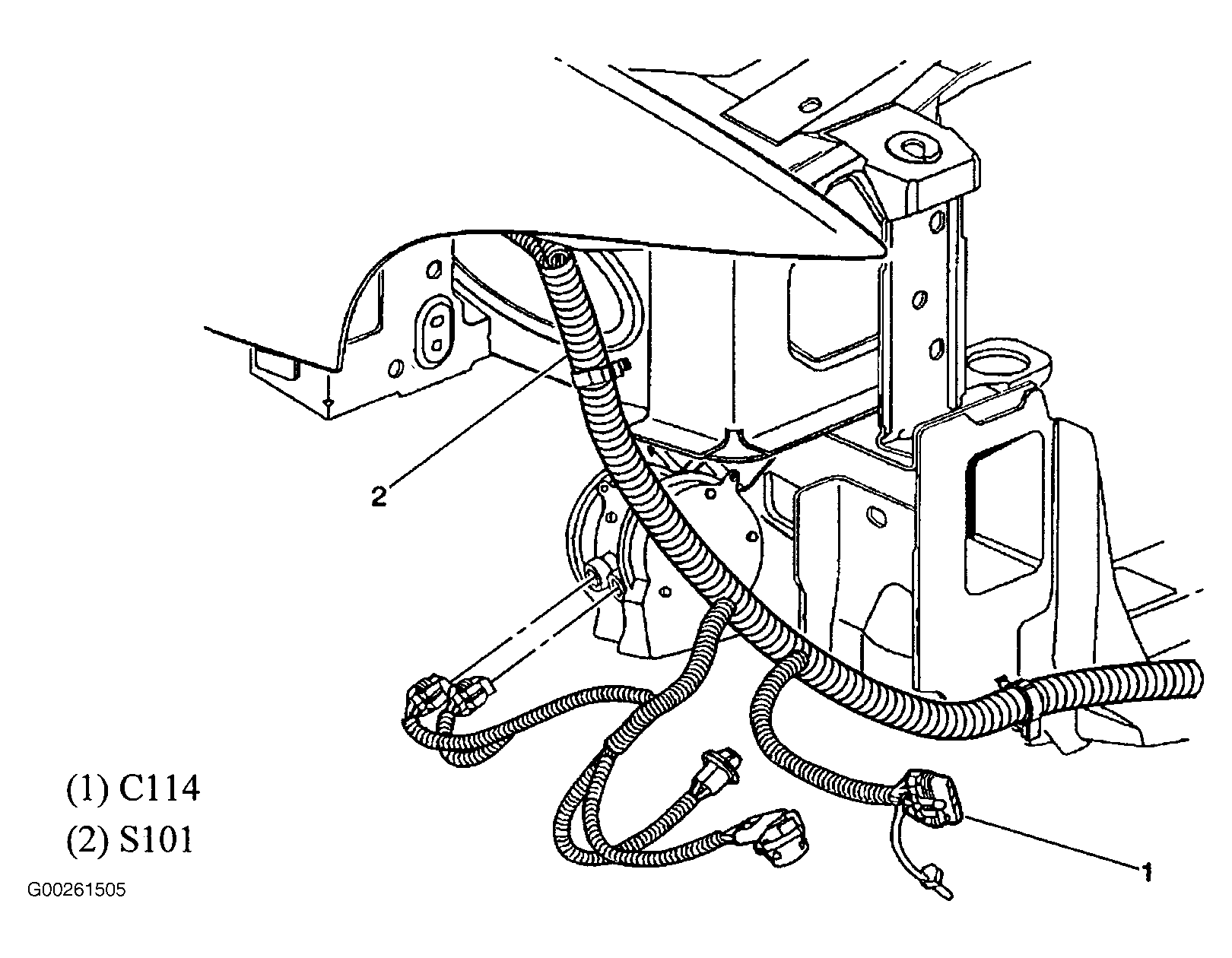

Fig 11: Center Front Of Vehicle
Courtesy of GENERAL MOTORS CORP.

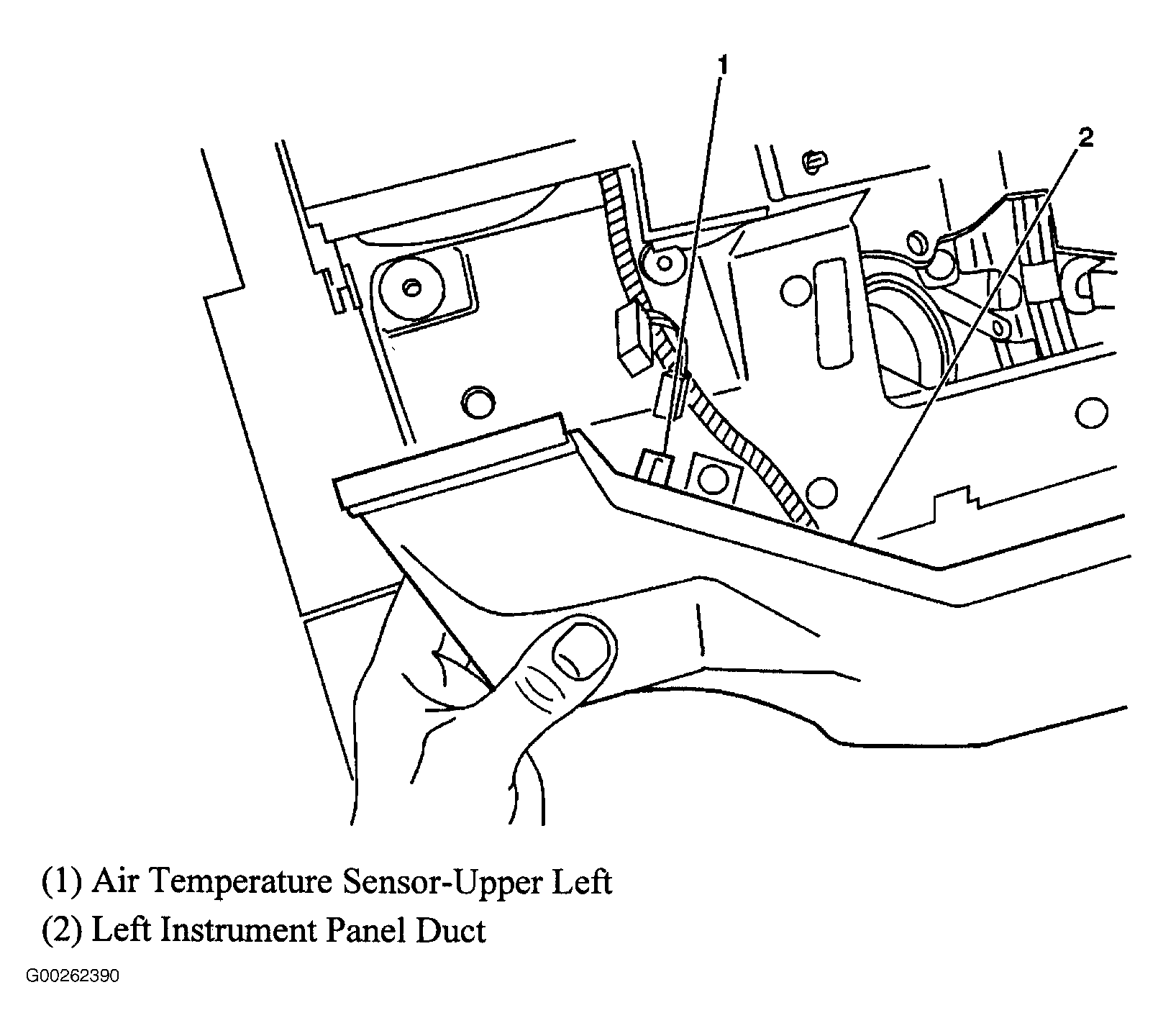

Fig 12: Behind Left Side Of Instrument Panel
Courtesy of GENERAL MOTORS CORP.

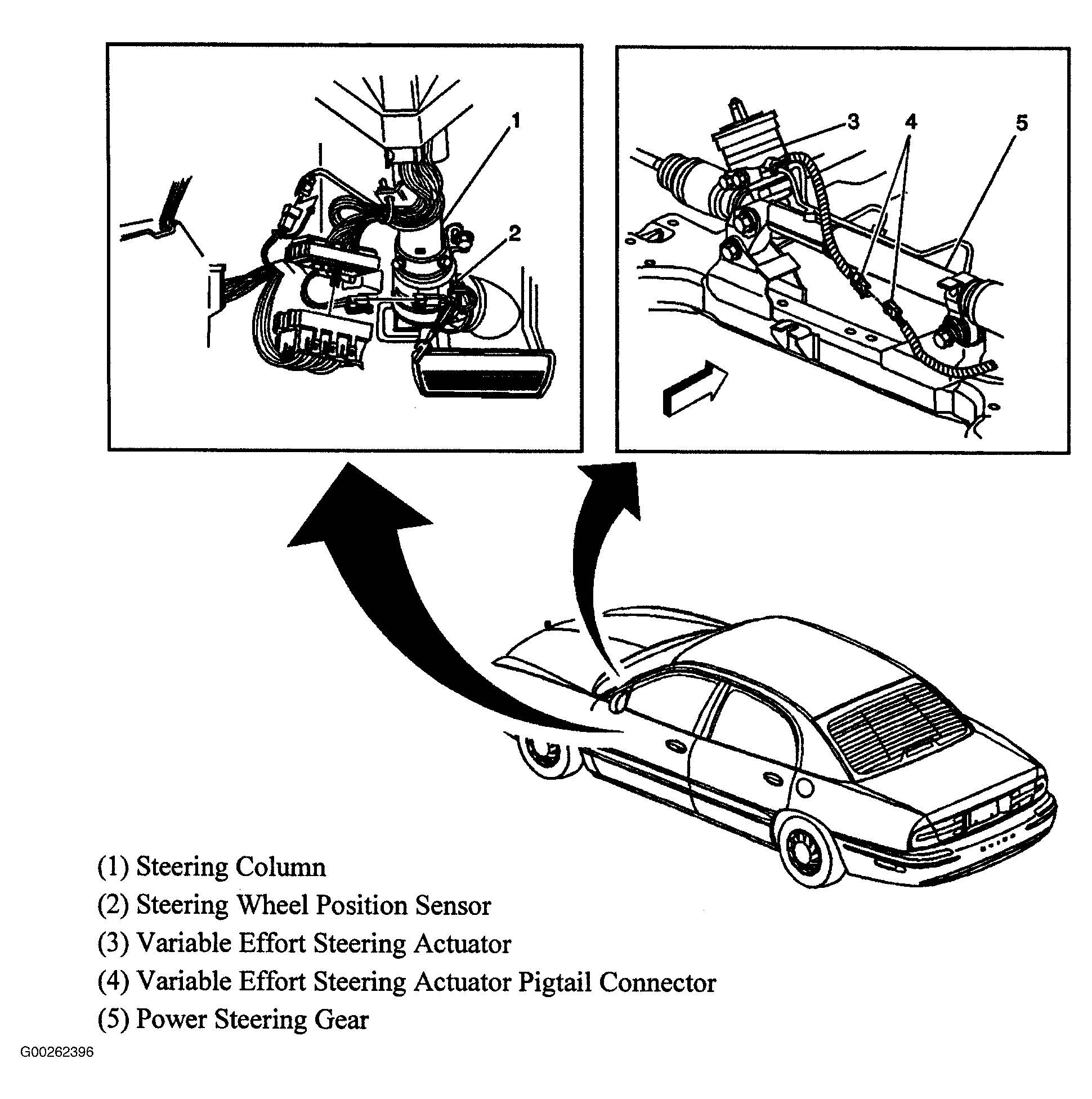

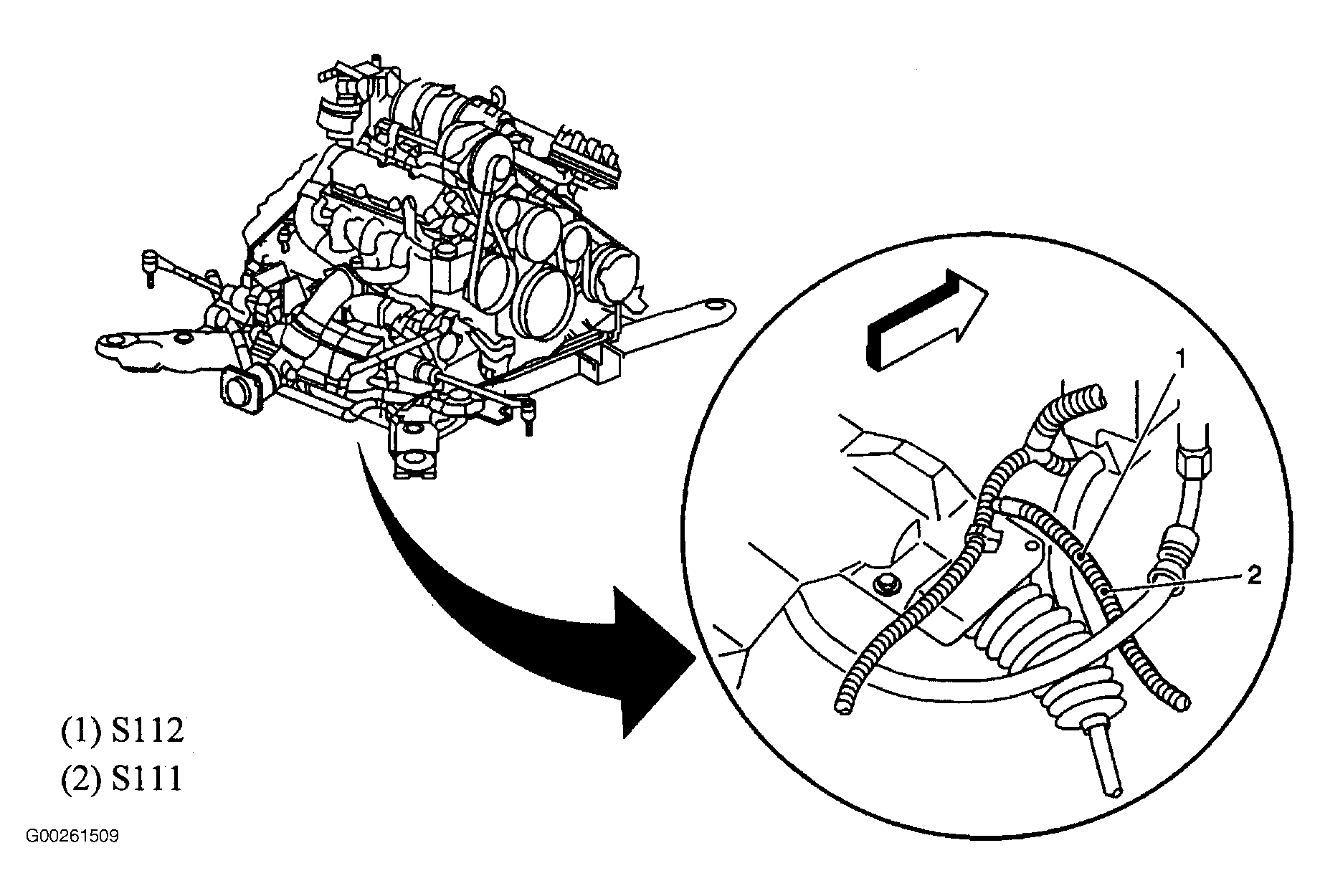

Fig 13: Steering Components
Courtesy of GENERAL MOTORS CORP.

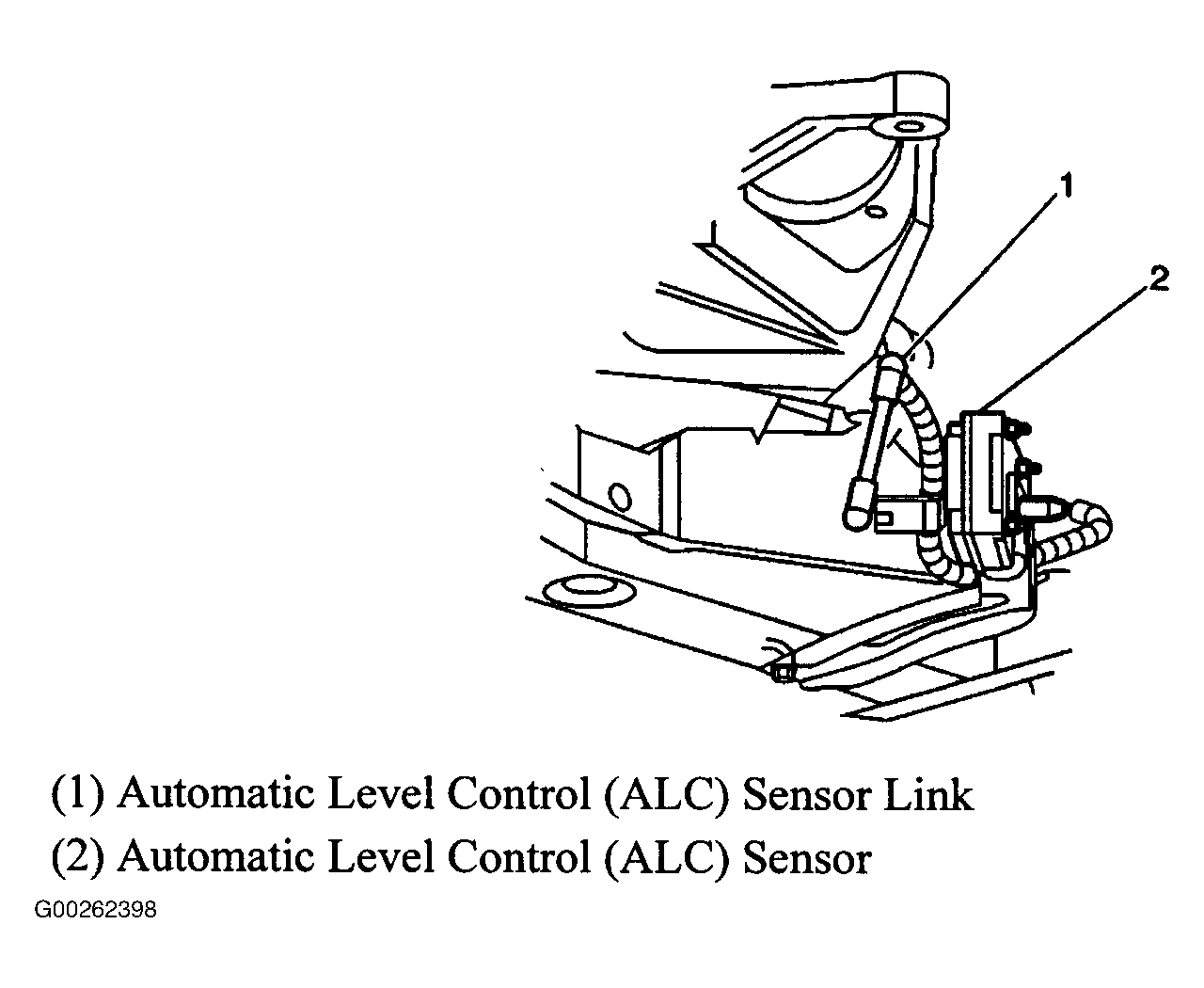

Fig 14: Below Right Rear Of Vehicle
Courtesy of GENERAL MOTORS CORP.

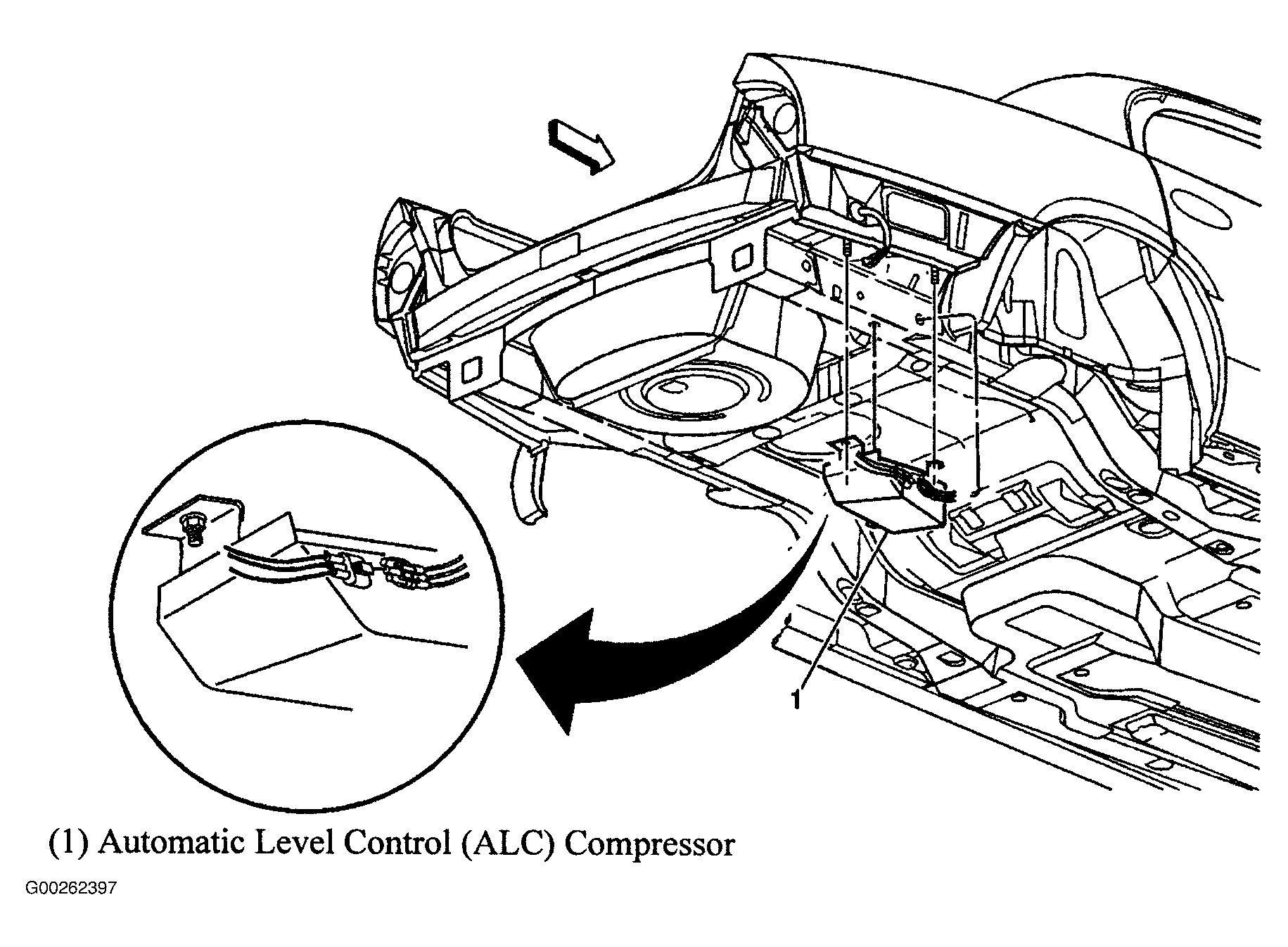

Fig 15: Under Rear Of Vehicle
Courtesy of GENERAL MOTORS CORP.

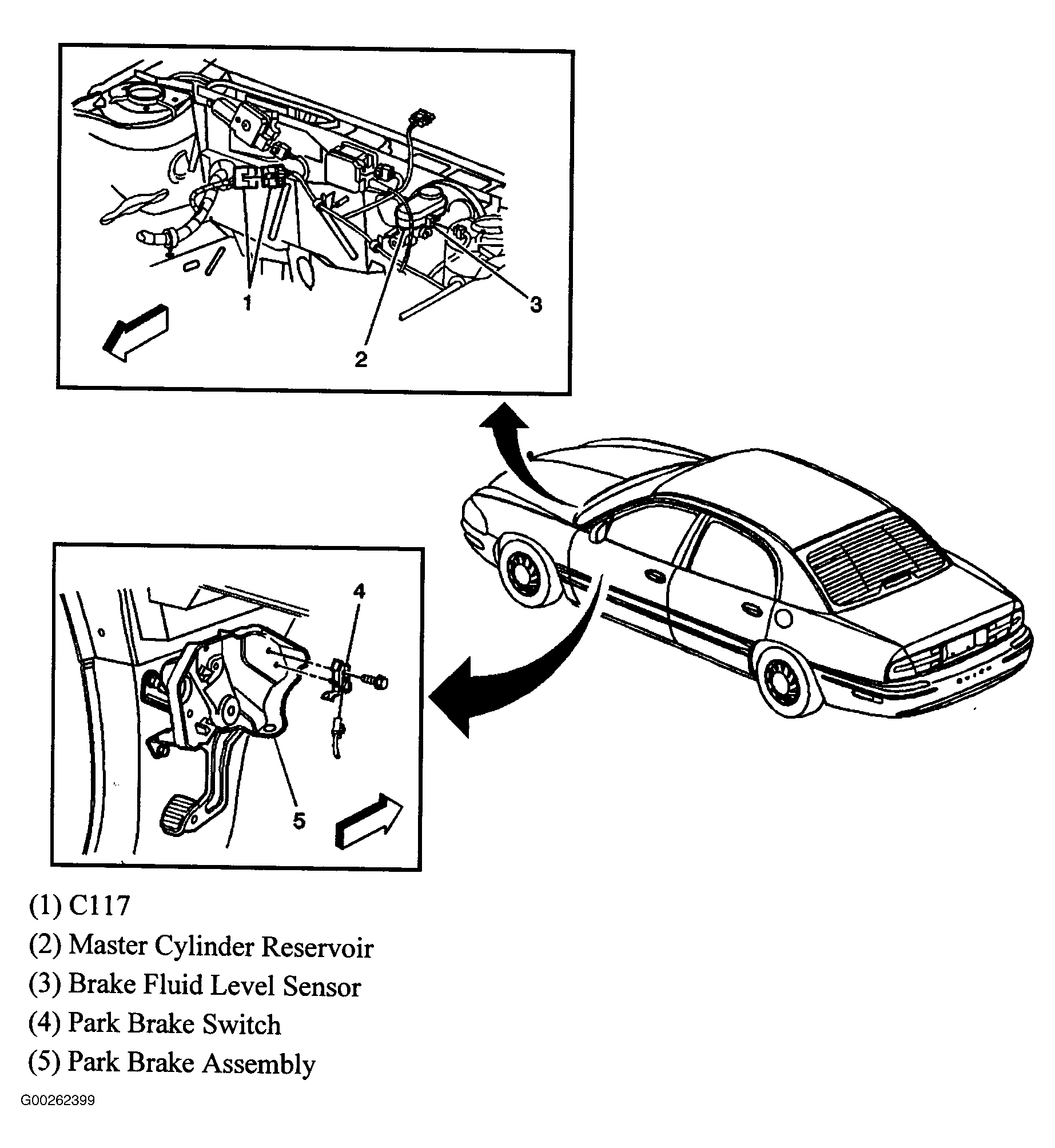

Fig 16: Brake Components
Courtesy of GENERAL MOTORS CORP.
Fig 17: Left Front Of Engine Compartment & Top Of Steering Column
Courtesy of GENERAL MOTORS CORP.

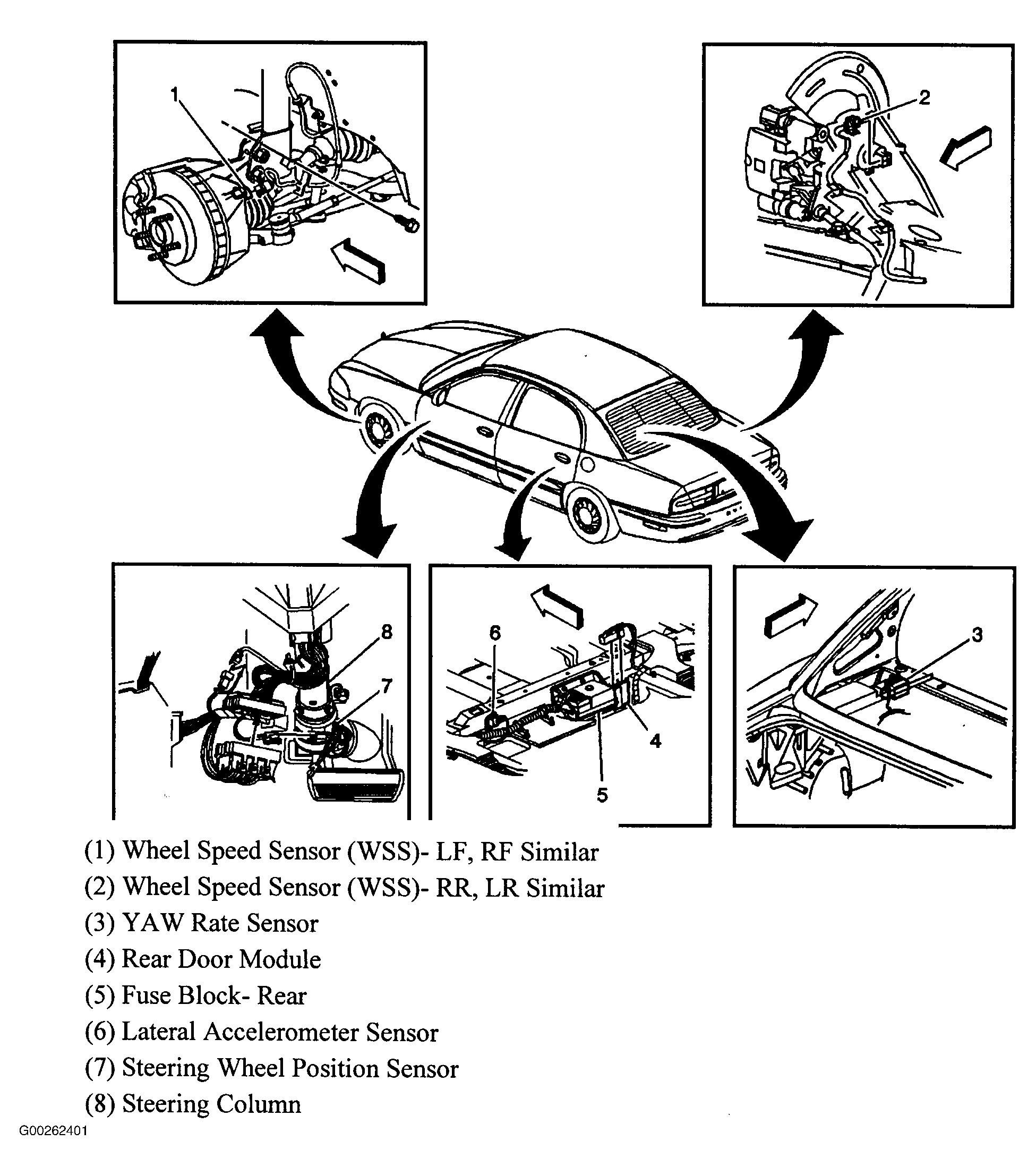

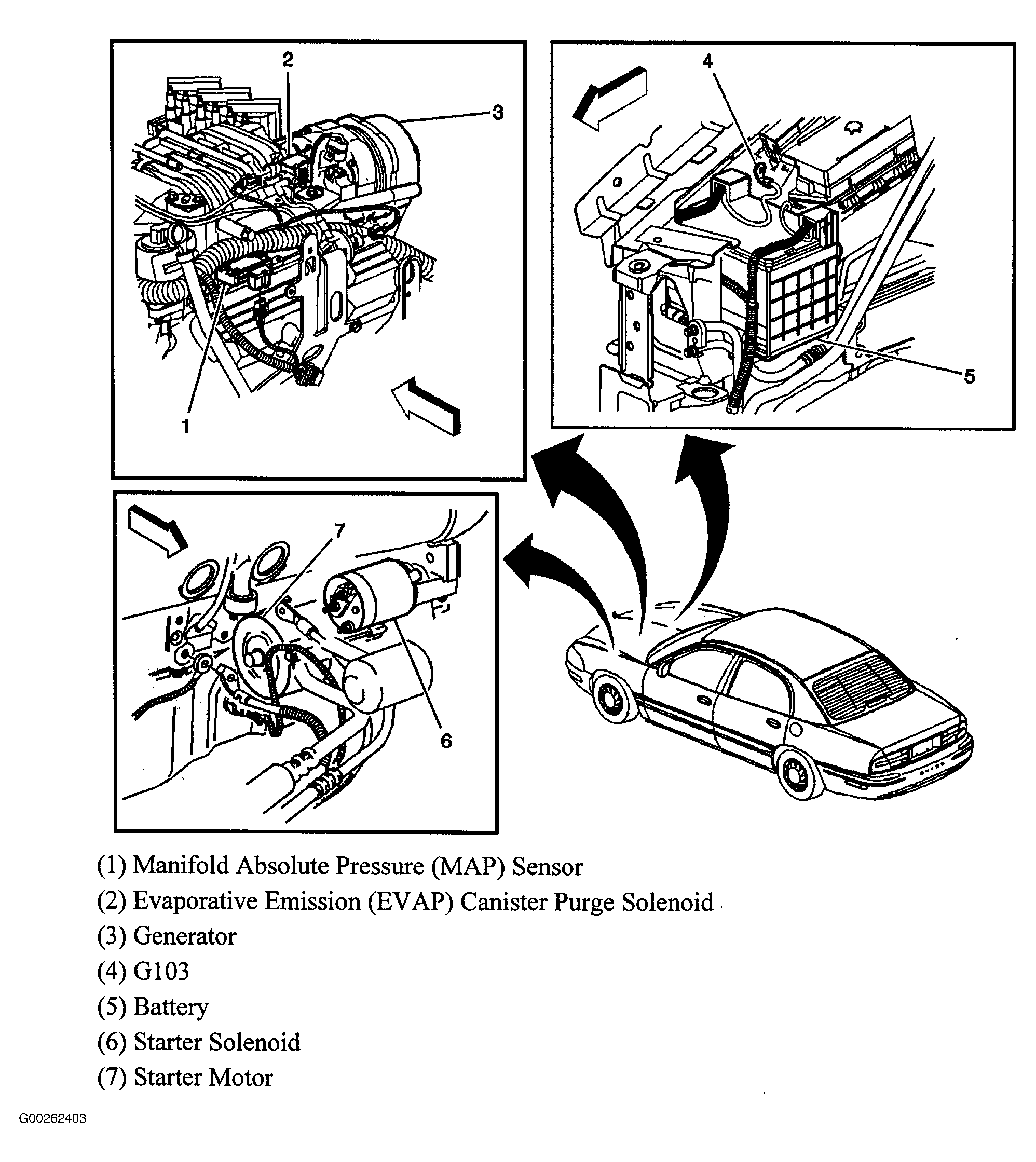

Fig 18: Vehicle Overview
Courtesy of GENERAL MOTORS CORP.

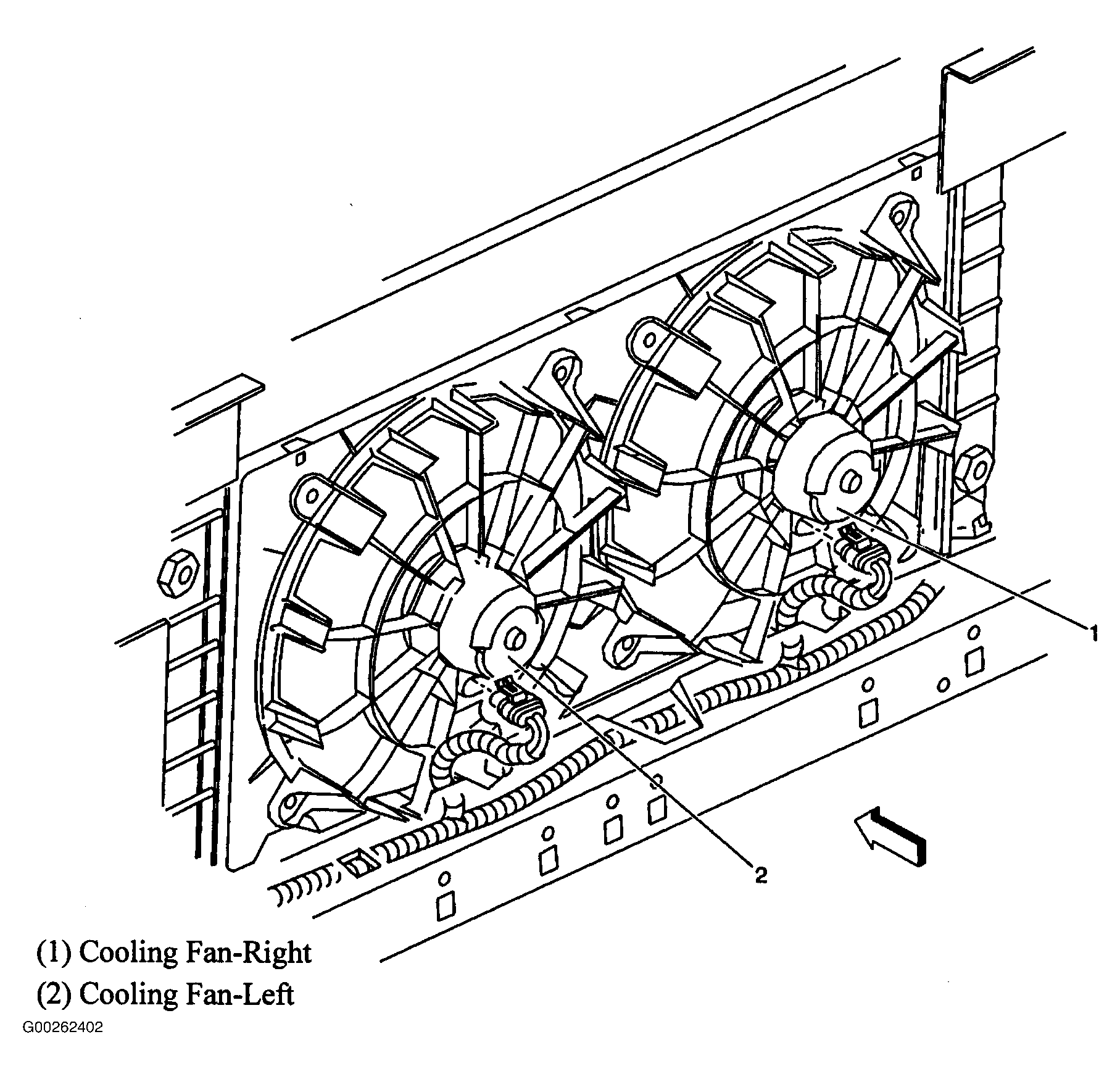

Fig 19: Engine Cooling Fans
Courtesy of GENERAL MOTORS CORP.
Fig 20: Engine Electrical Components
Courtesy of GENERAL MOTORS CORP.

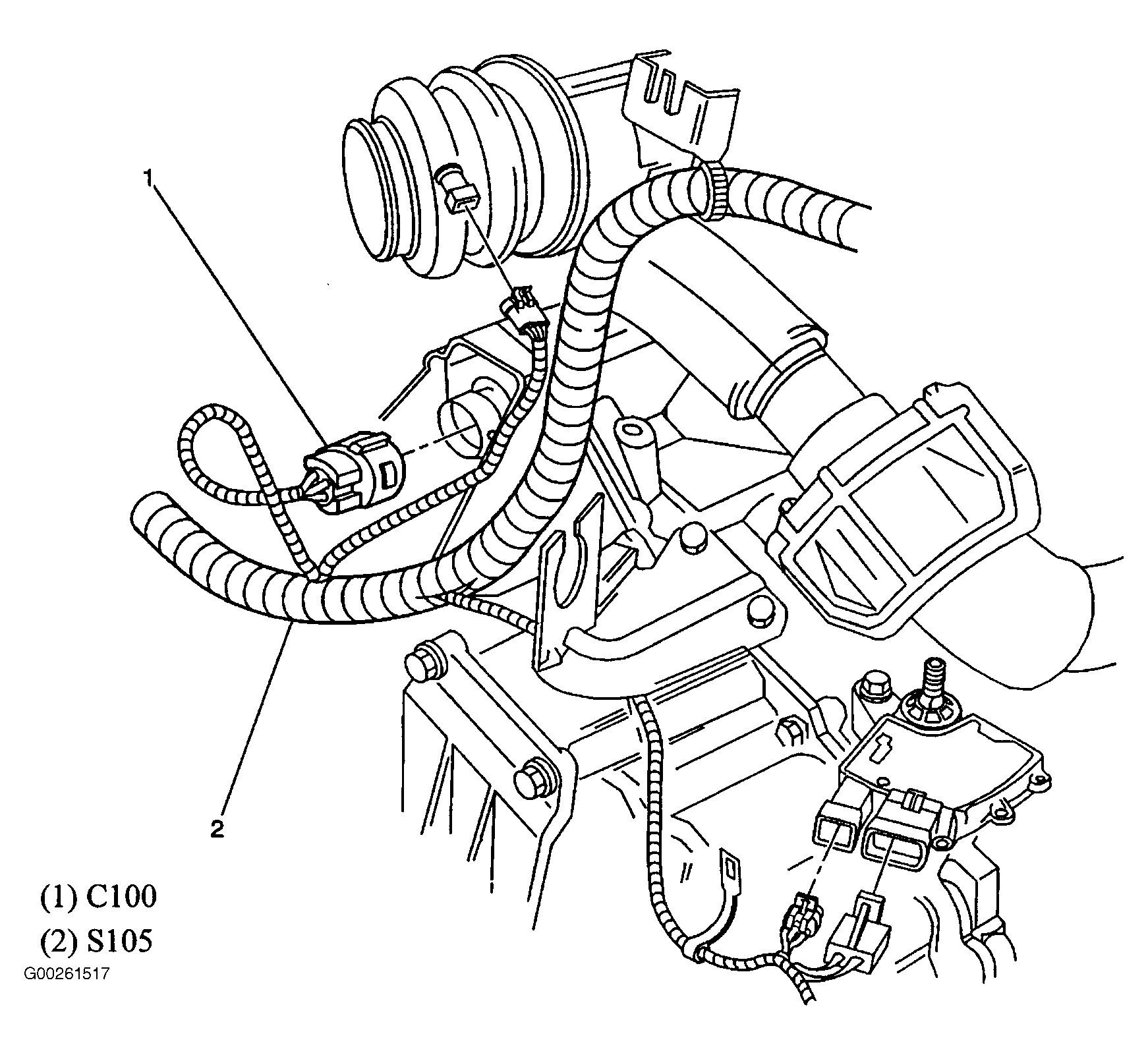

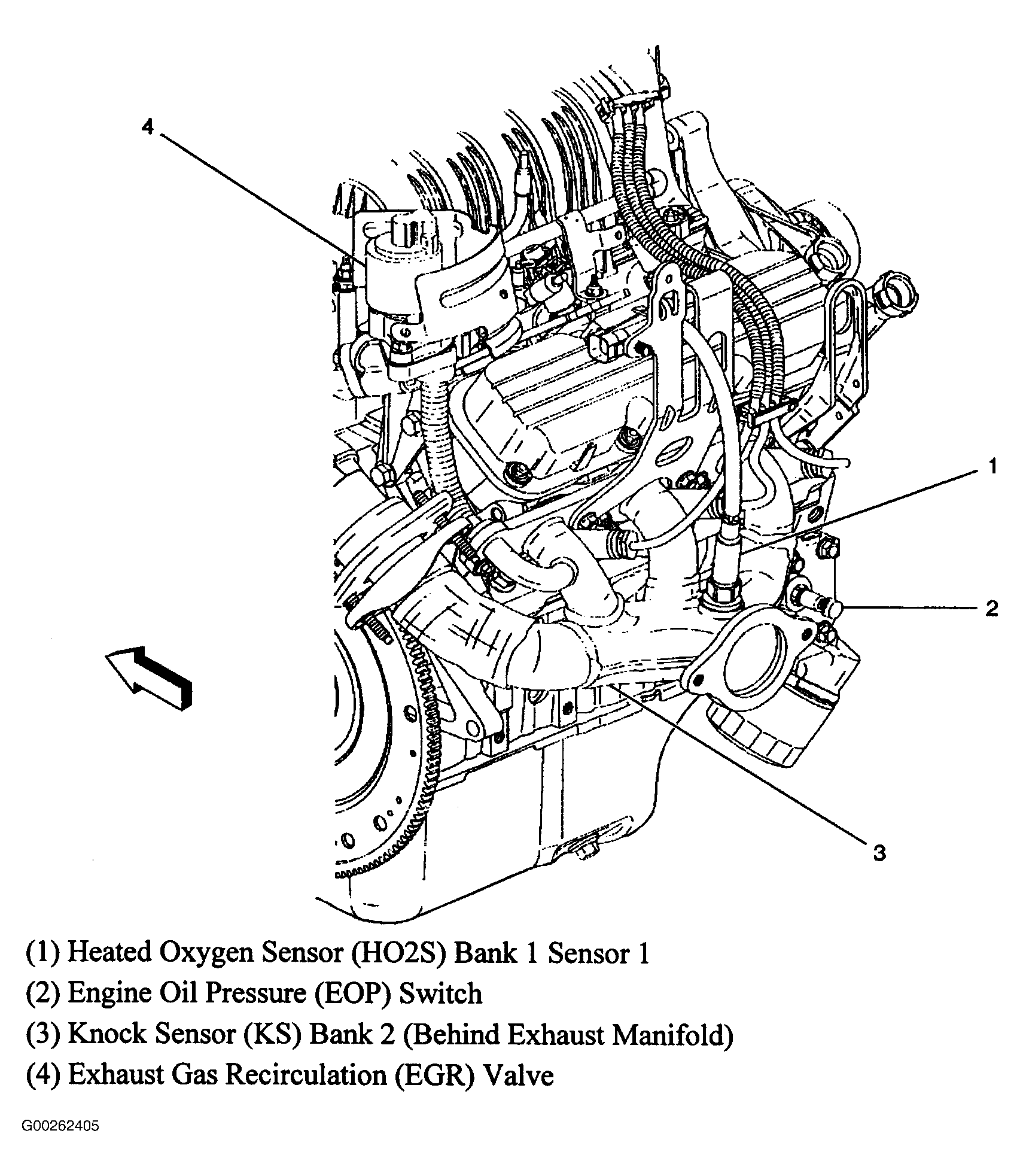

Fig 21: Left Side Of Engine (3.8L VIN K)
Courtesy of GENERAL MOTORS CORP.
Fig 22: Right Side Of Engine (3.8L VIN K)
Courtesy of GENERAL MOTORS CORP.

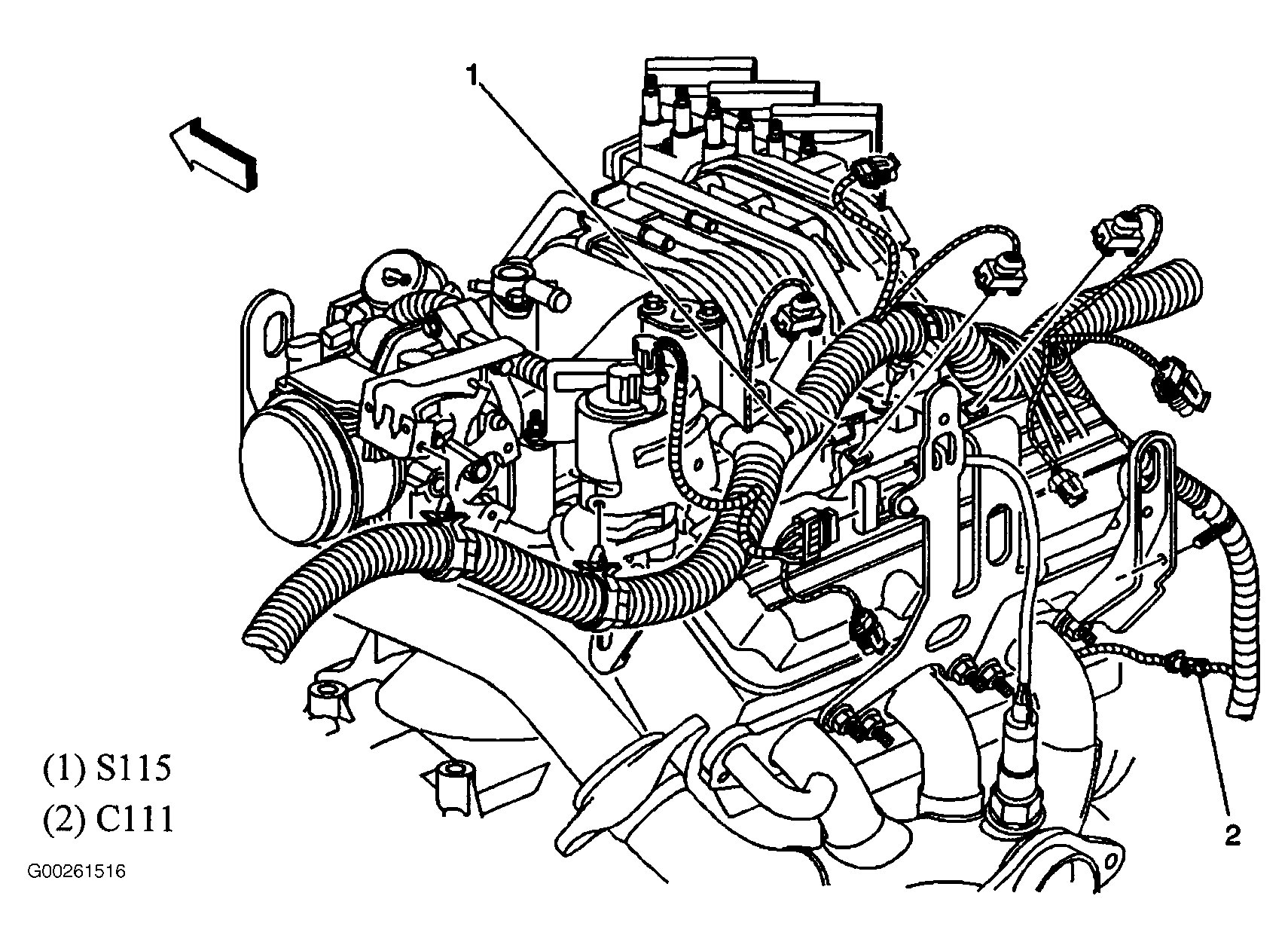

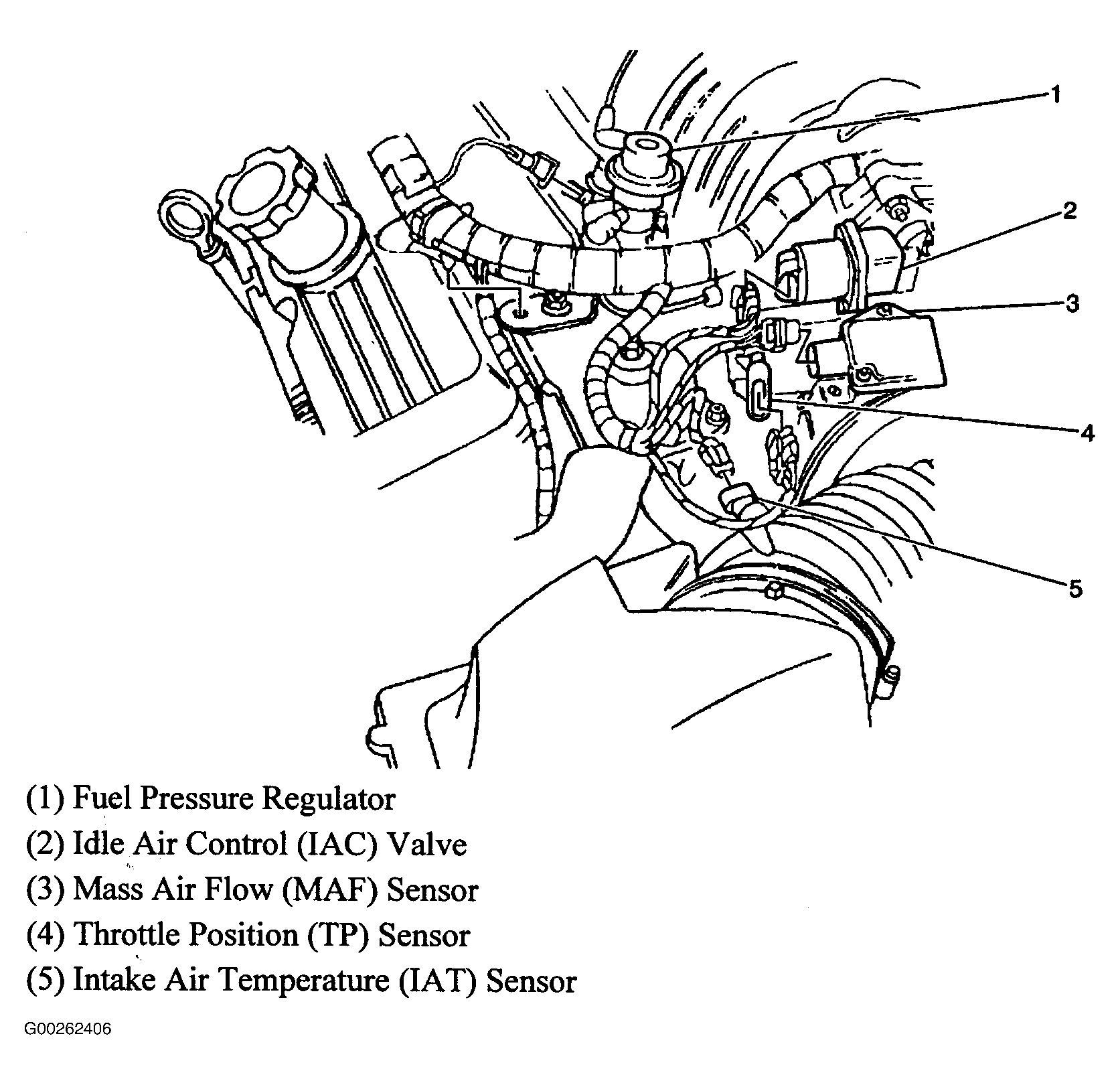

Fig 23: Top Rear Of Engine (3.8L VIN K)
Courtesy of GENERAL MOTORS CORP.

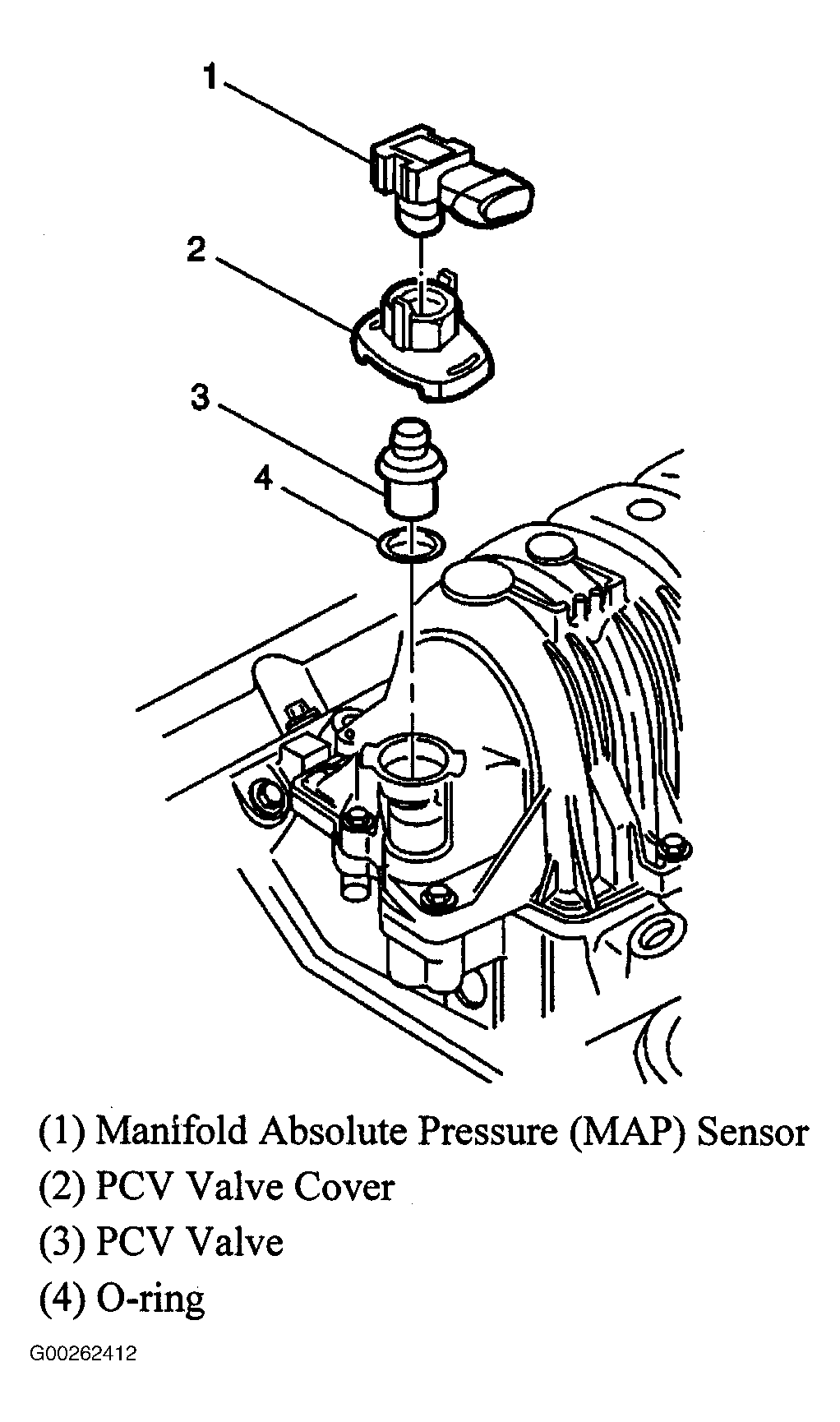

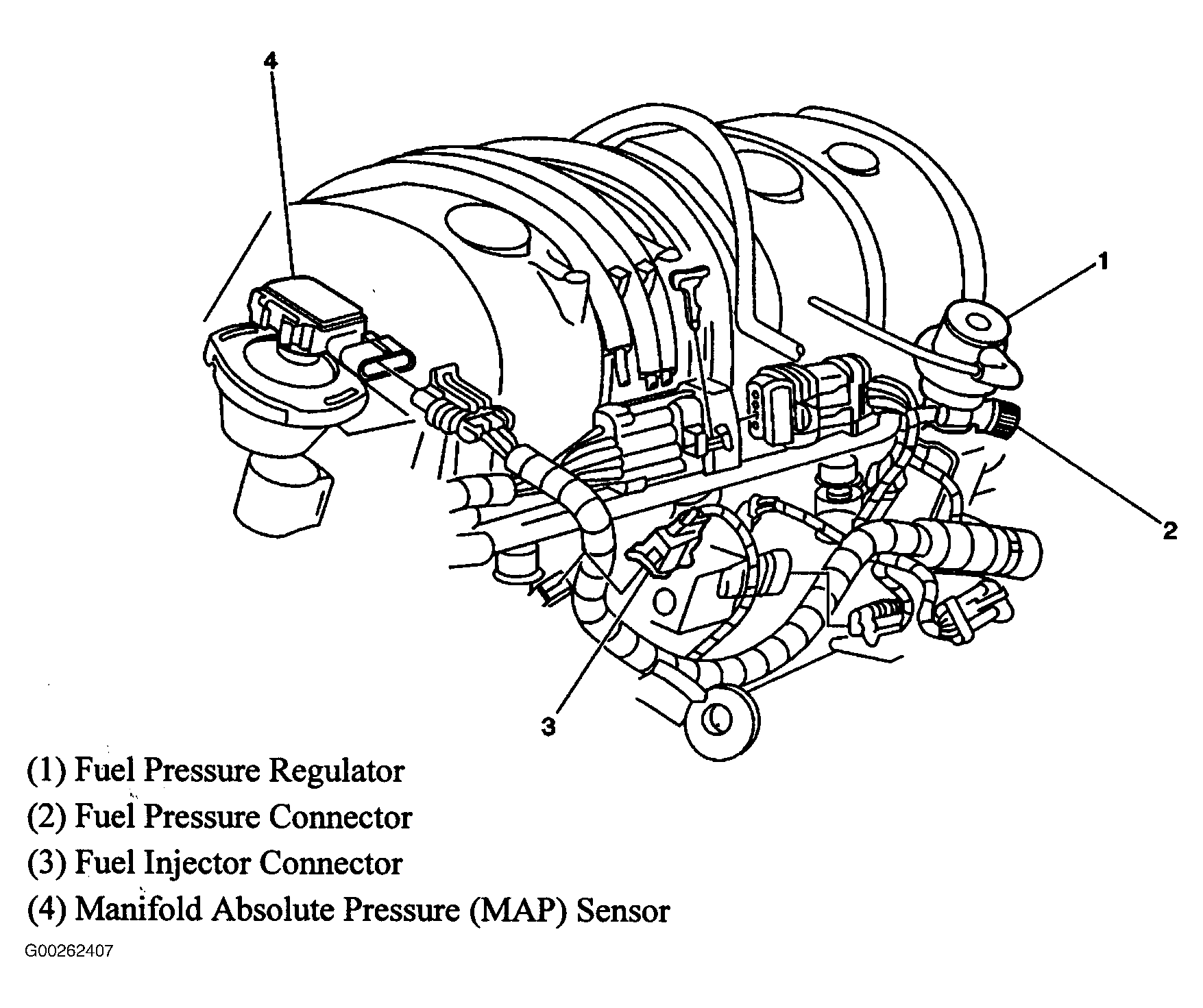

Fig 24: Manifold Absolute Pressure (MAP) Sensor & Fuel System Components (3.8L VIN K)
Courtesy of GENERAL MOTORS CORP.

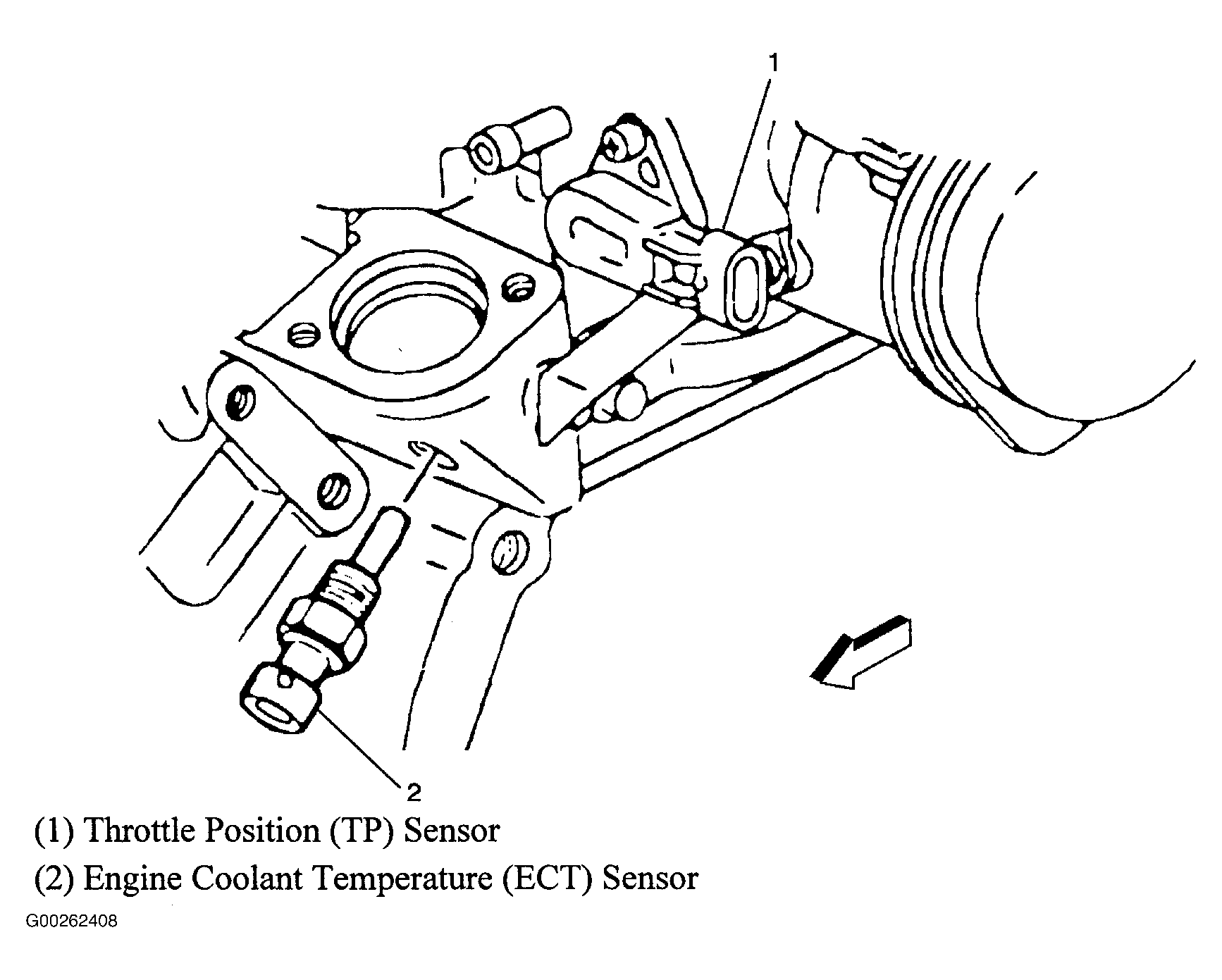

Fig 25: Engine Coolant Temperature (ECT) Sensor & Throttle Position (TP) Sensor (3.8L VIN K)
Courtesy of GENERAL MOTORS CORP.

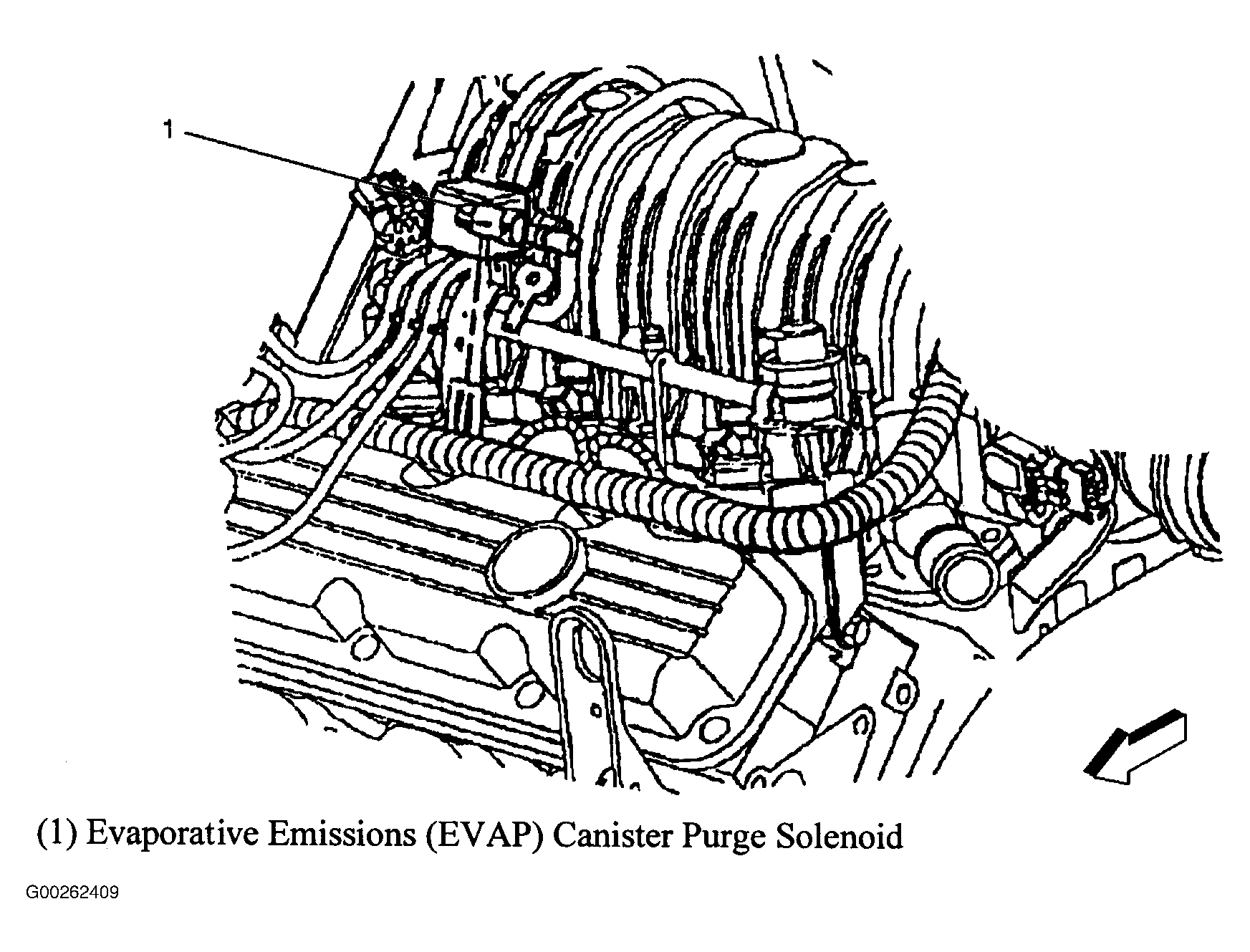

Fig 26: EVAP Canister Purge Valve (3.8L VIN K)
Courtesy of GENERAL MOTORS CORP.

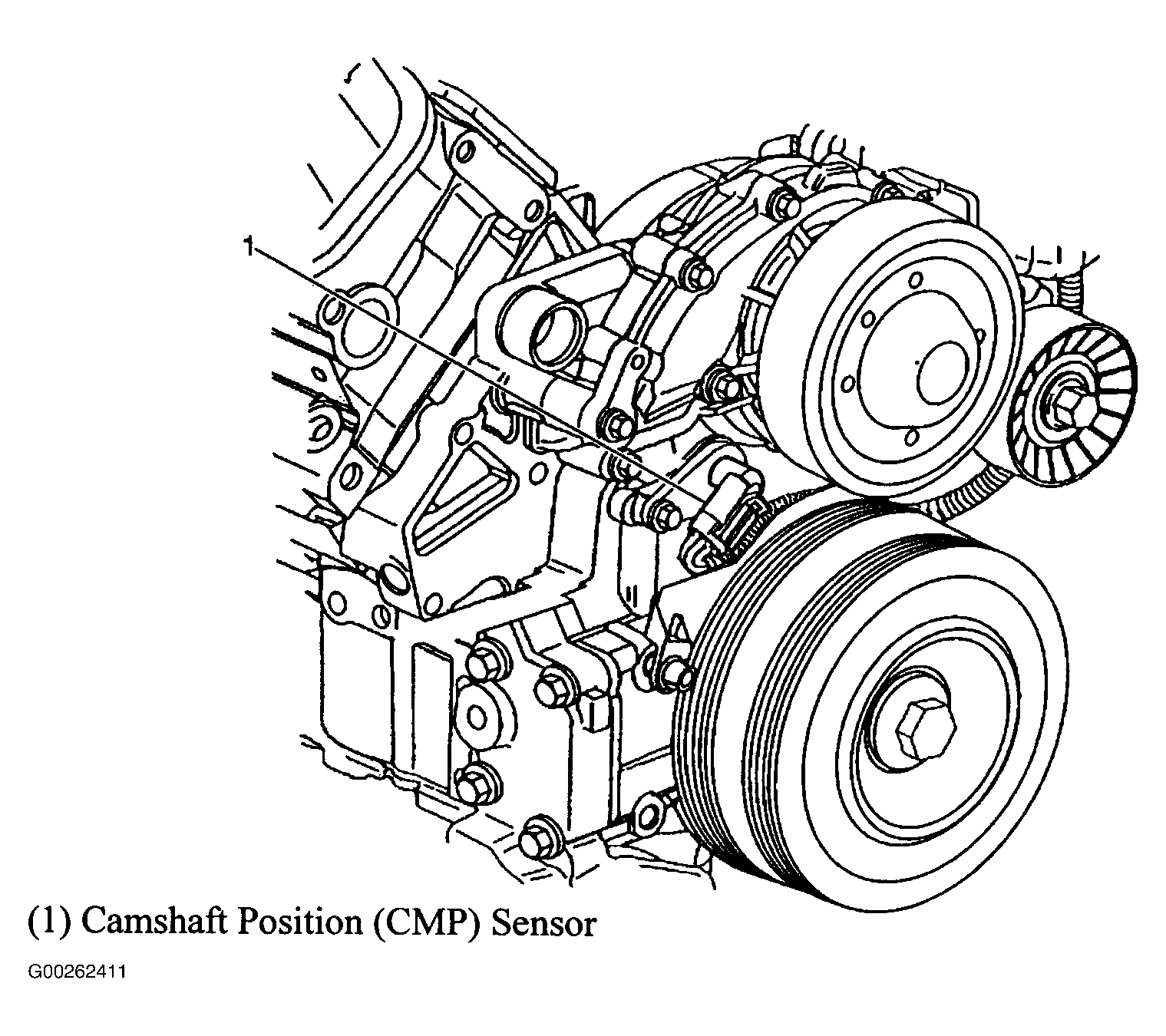

Fig 27: Front Of Engine (3.8L VIN K)
Courtesy of GENERAL MOTORS CORP.
Fig 28: Top Rear Of Engine (3.8L VIN K)
Courtesy of GENERAL MOTORS CORP.

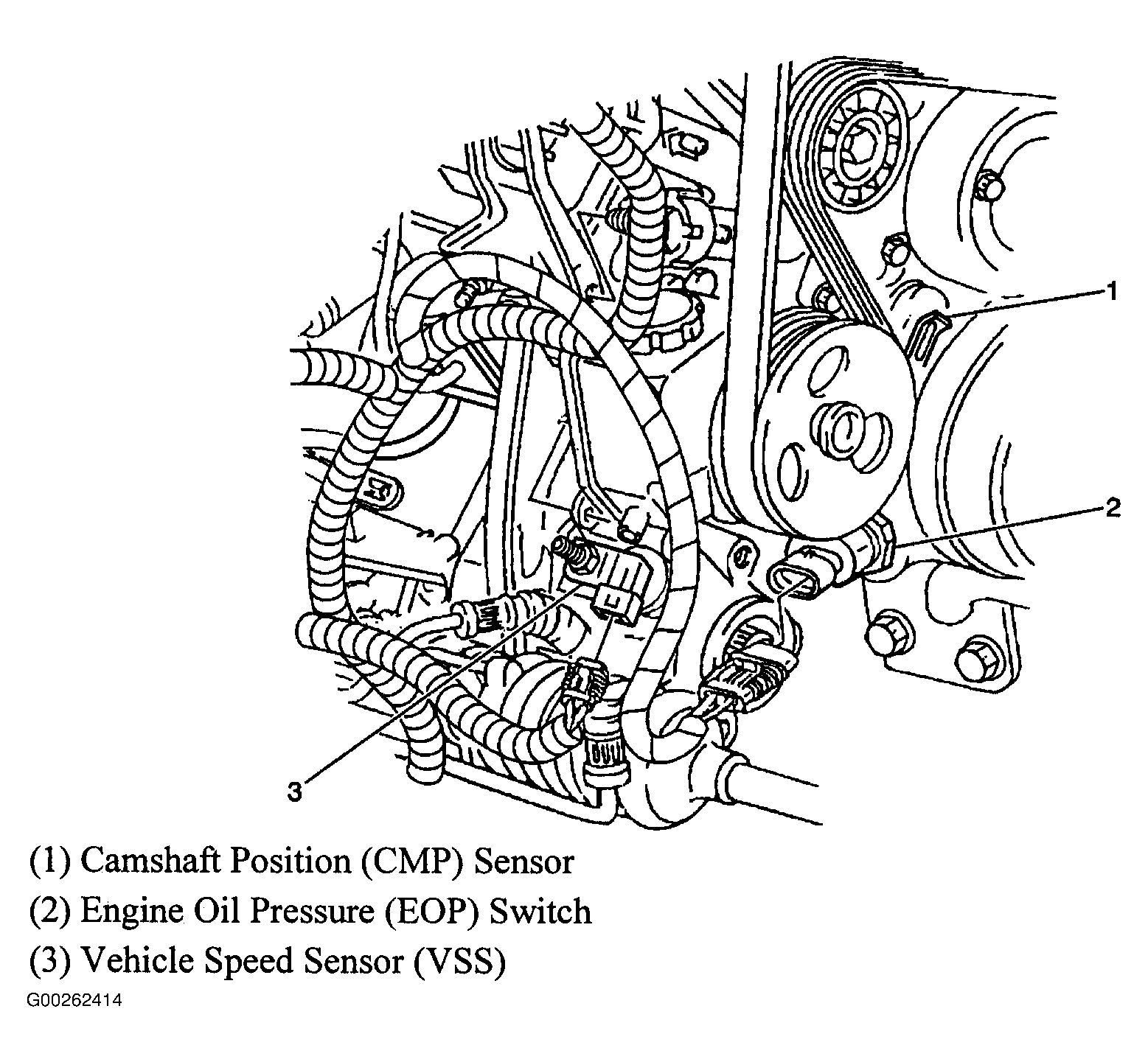

Fig 29: Lower Right Front Of Engine (3.8L VIN K)
Courtesy of GENERAL MOTORS CORP.

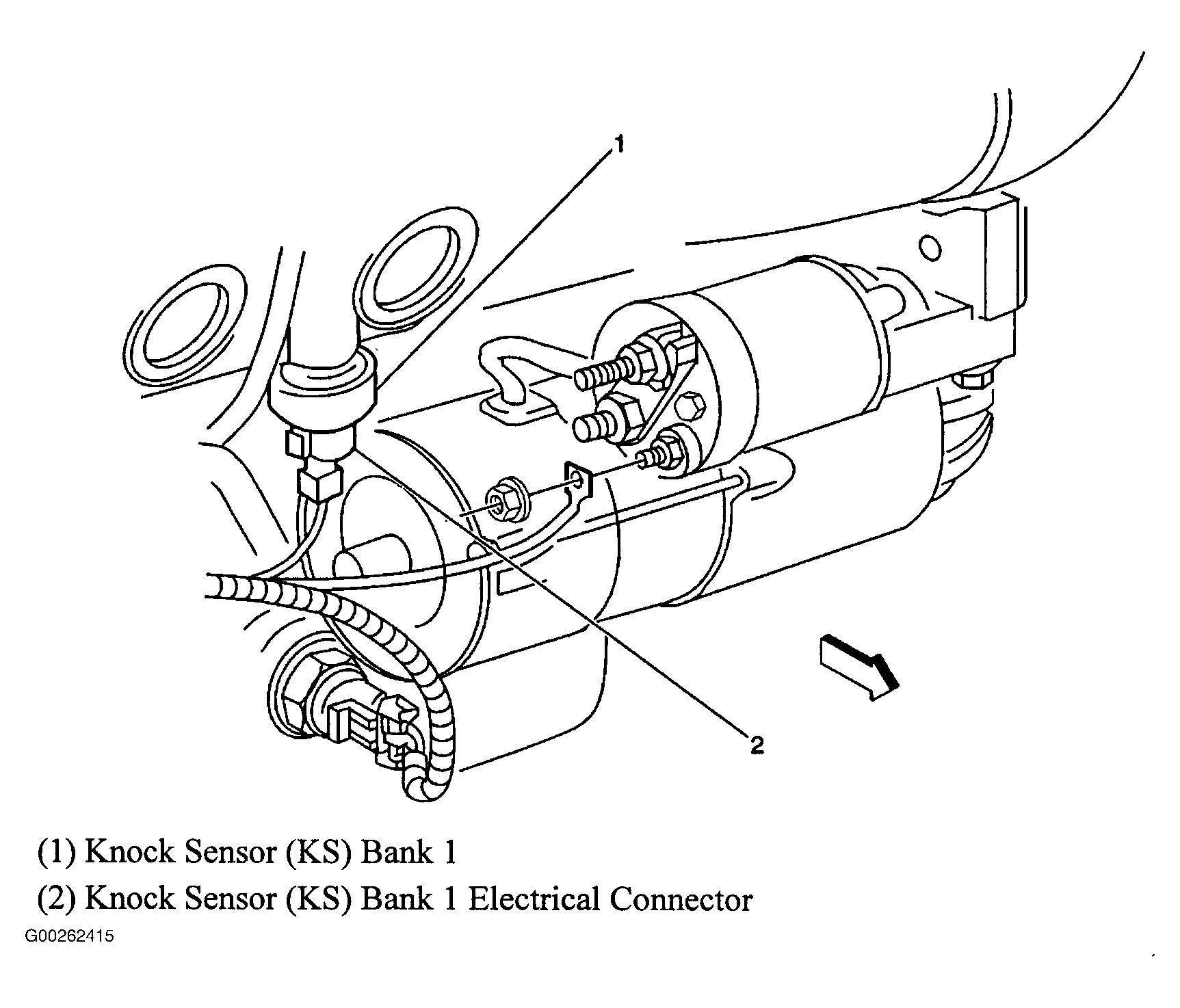

Fig 30: Lower Left Side Of Engine (3.8L VIN K)
Courtesy of GENERAL MOTORS CORP.

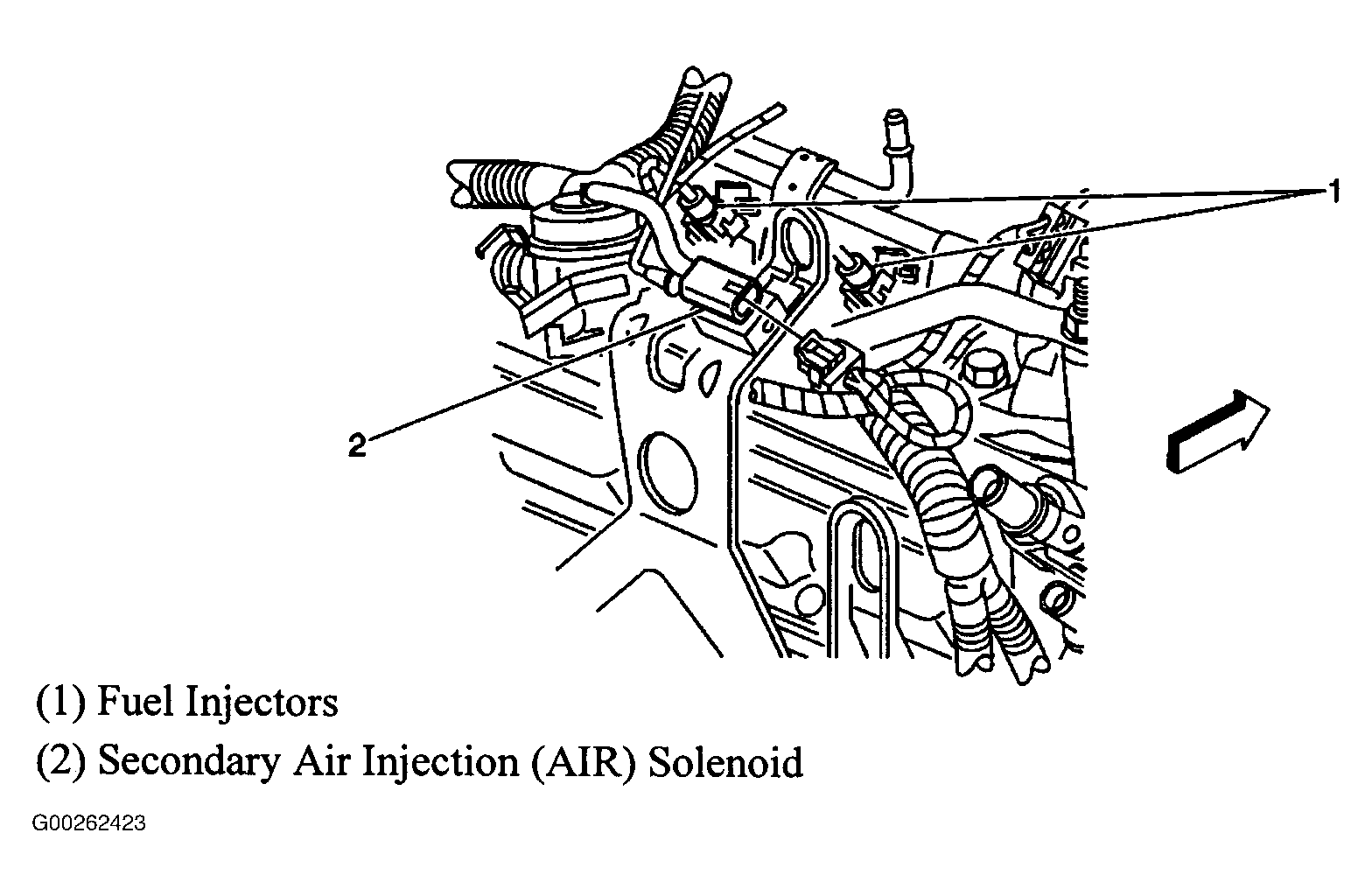

Fig 31: Left Side Of Engine (3.8L VIN 1)
Courtesy of GENERAL MOTORS CORP.

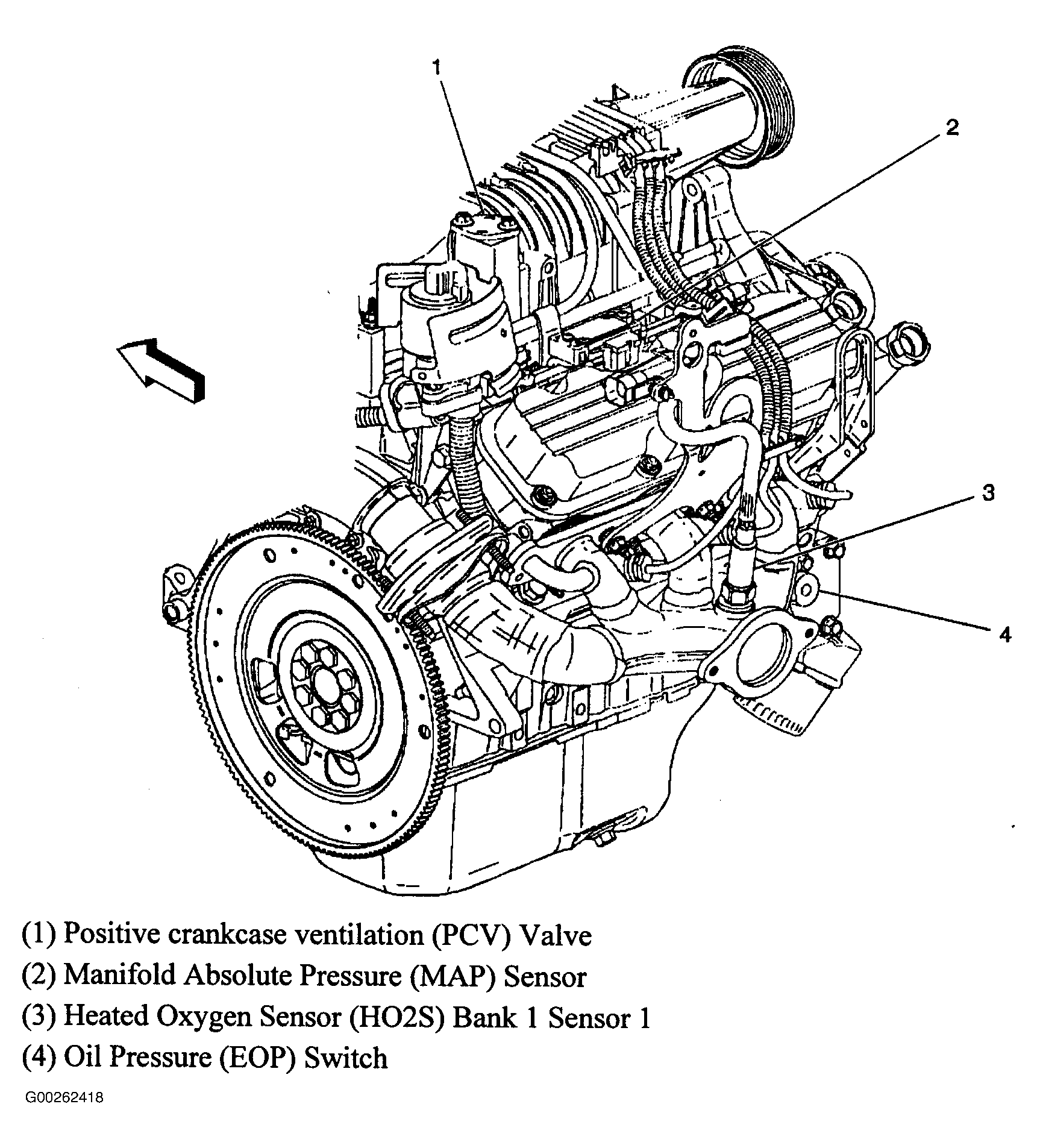

Fig 32: Right Rear Of Engine (3.8L VIN 1)
Courtesy of GENERAL MOTORS CORP.

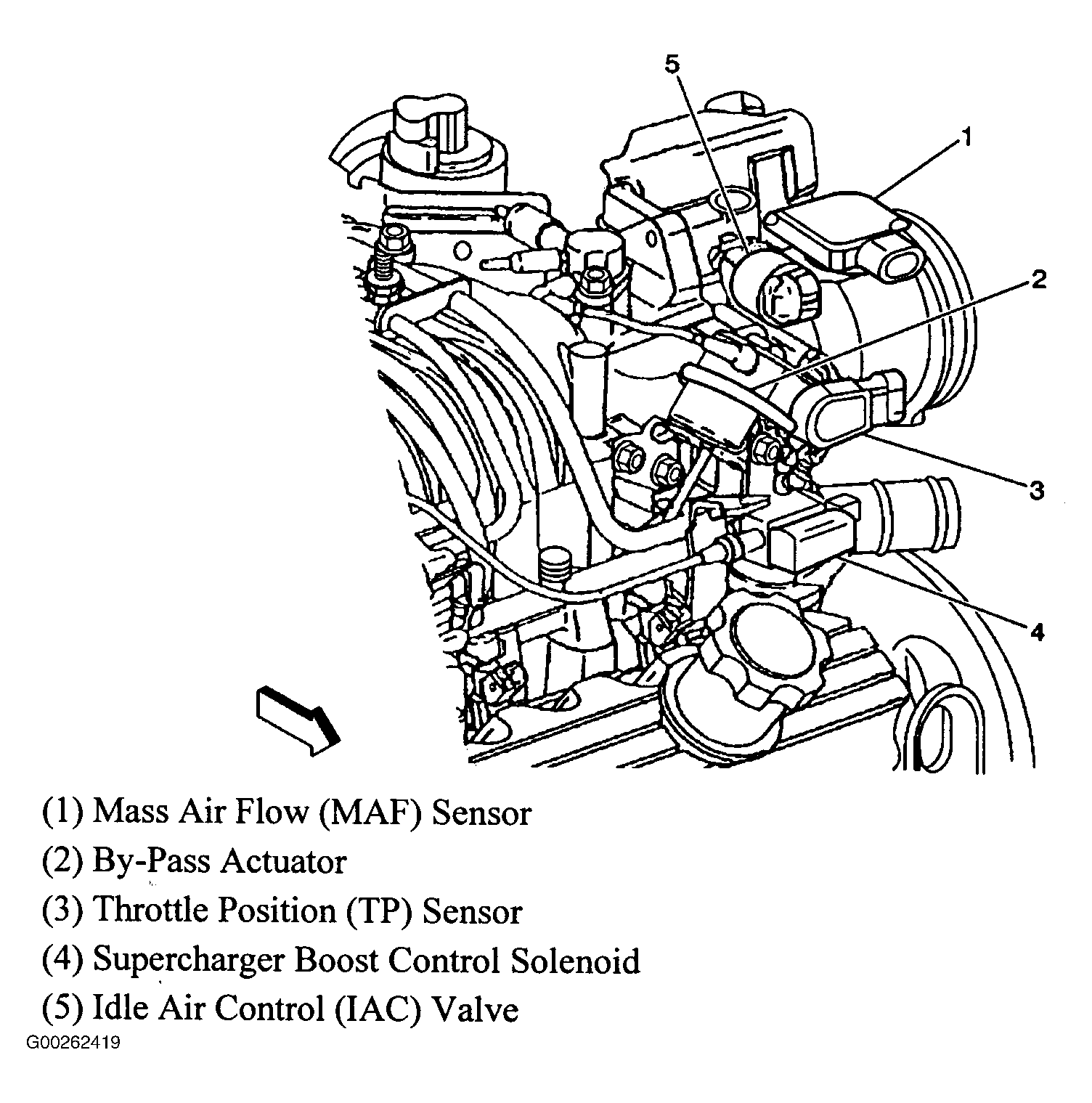

Fig 33: Top Rear Of Engine (3.8L VIN 1)
Courtesy of GENERAL MOTORS CORP.
Fig 34: Top Right Side Of Engine
Courtesy of GENERAL MOTORS CORP.

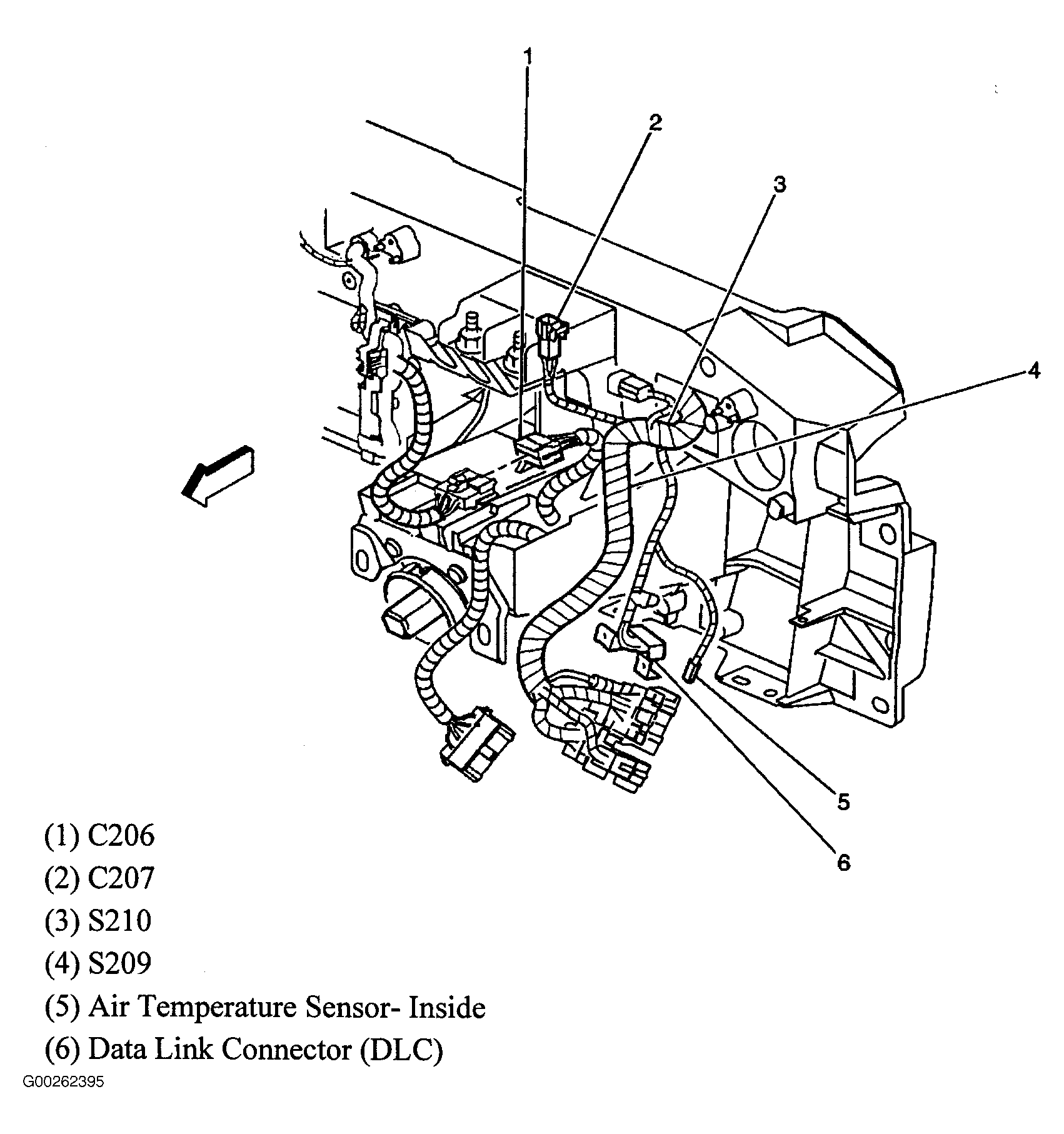

Fig 35: Under Left Side Of Instrument Panel
Courtesy of GENERAL MOTORS CORP.

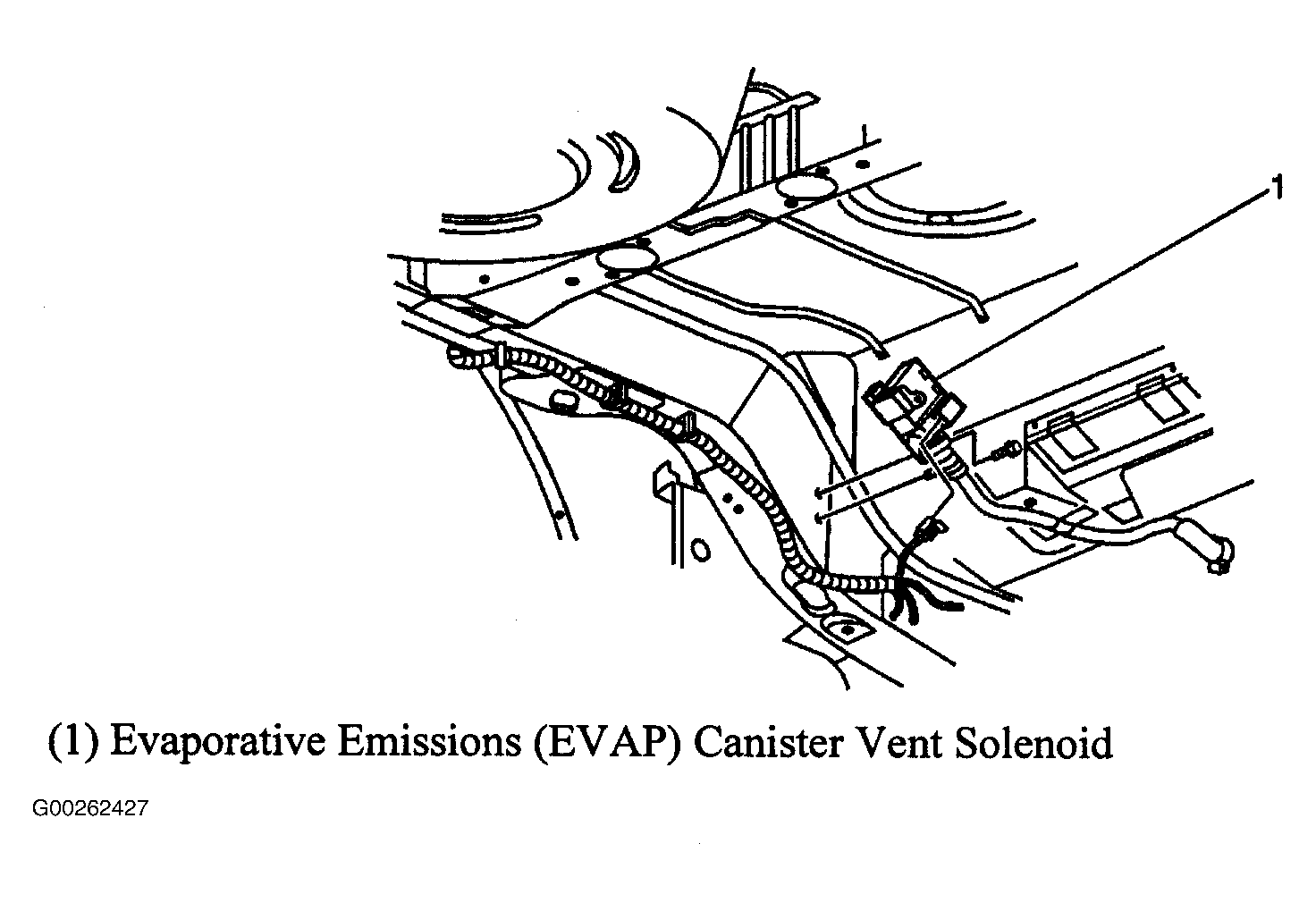

Fig 36: EVAP Canister Vent Solenoid
Courtesy of GENERAL MOTORS CORP.

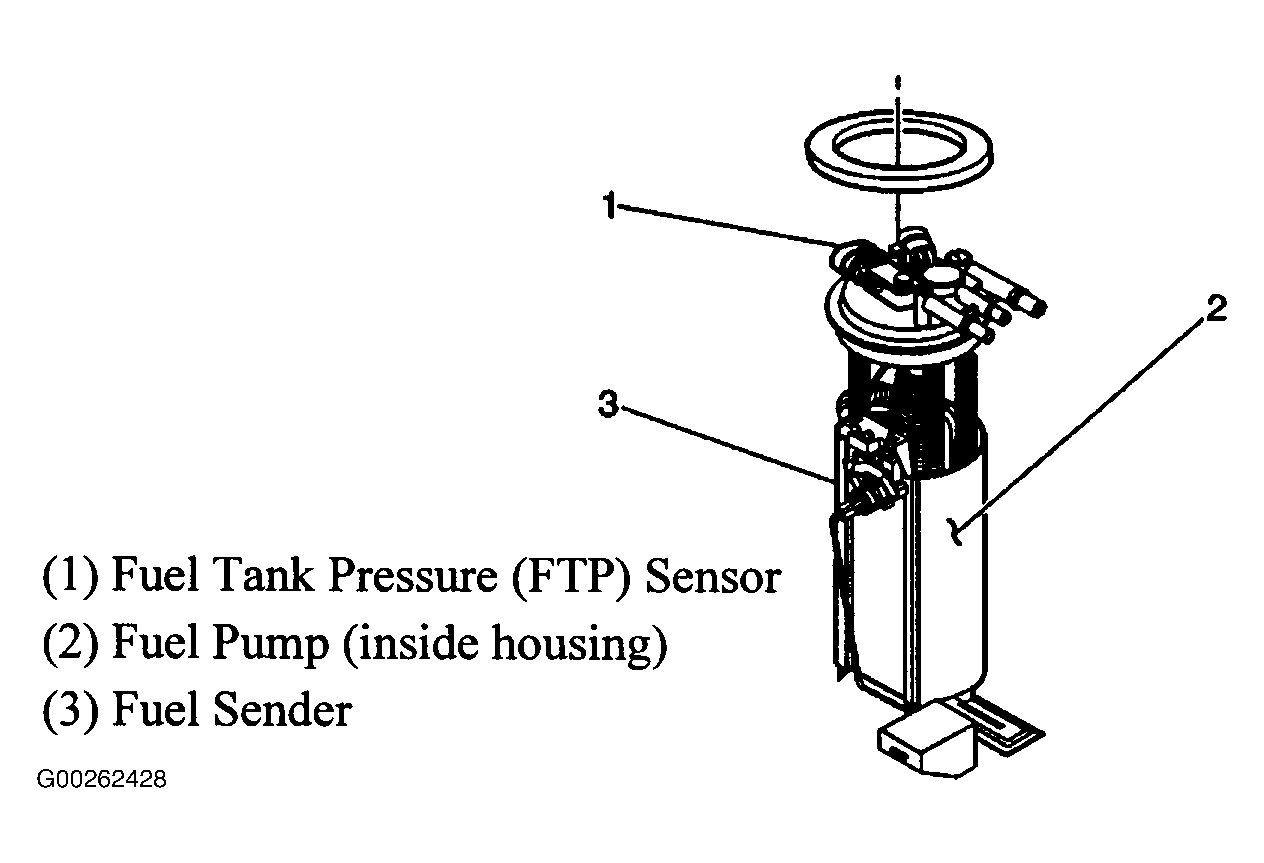

Fig 37: Fuel Pump & Sender
Courtesy of GENERAL MOTORS CORP.
Fig 38: Powertrain Control Module (PCM)
Courtesy of GENERAL MOTORS CORP.

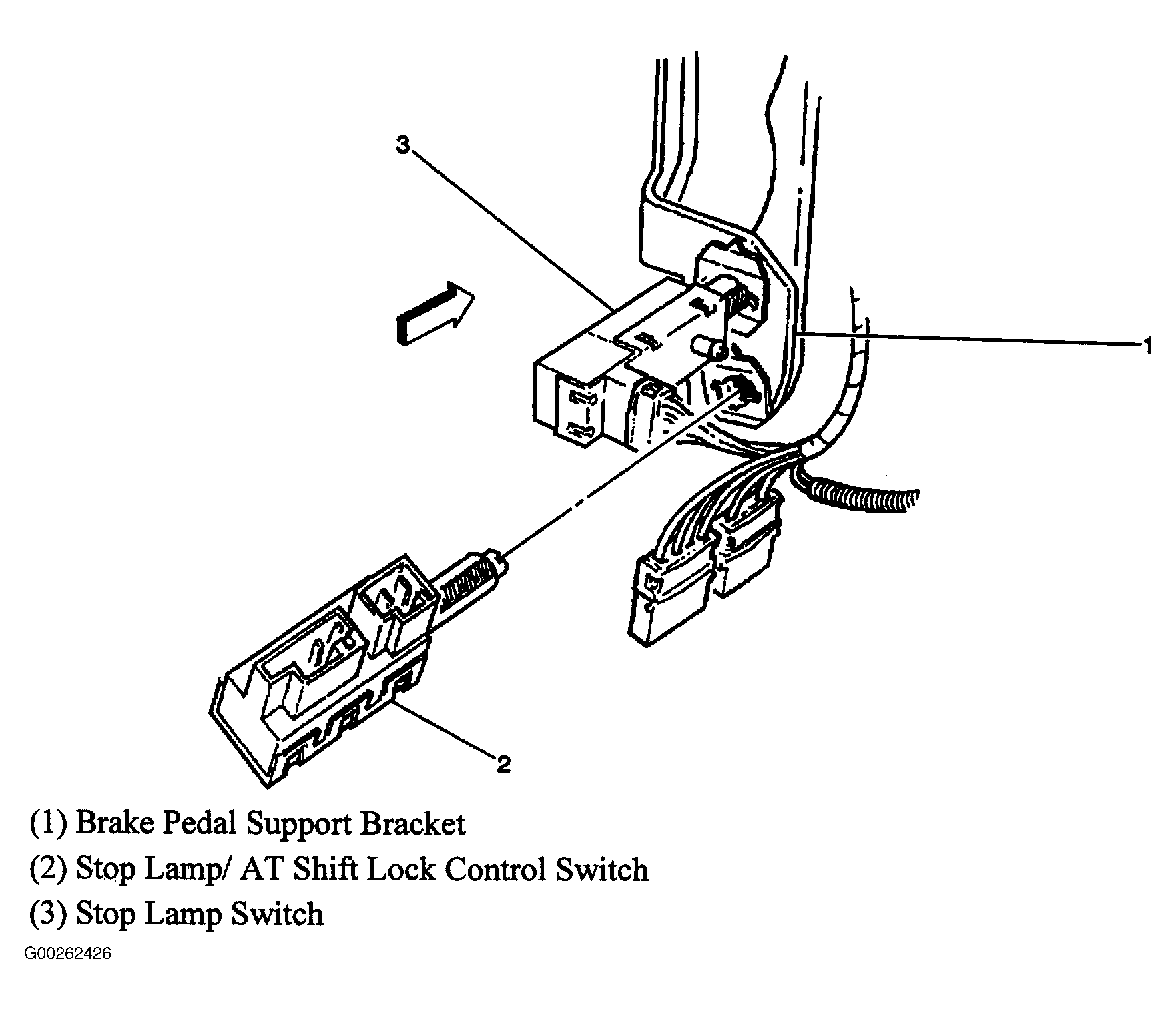

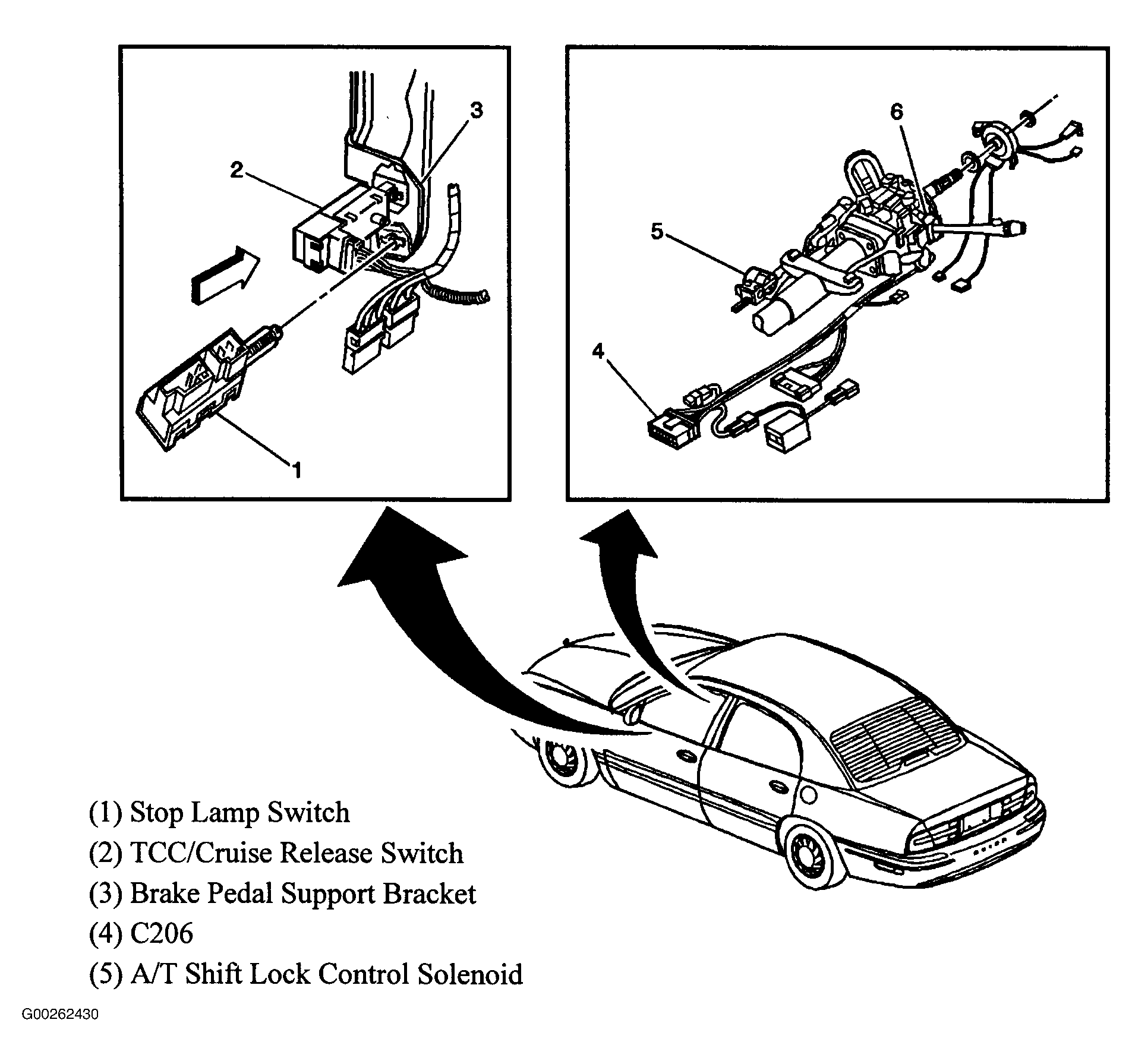

Fig 39: A/T Shift Lock Components
Courtesy of GENERAL MOTORS CORP.

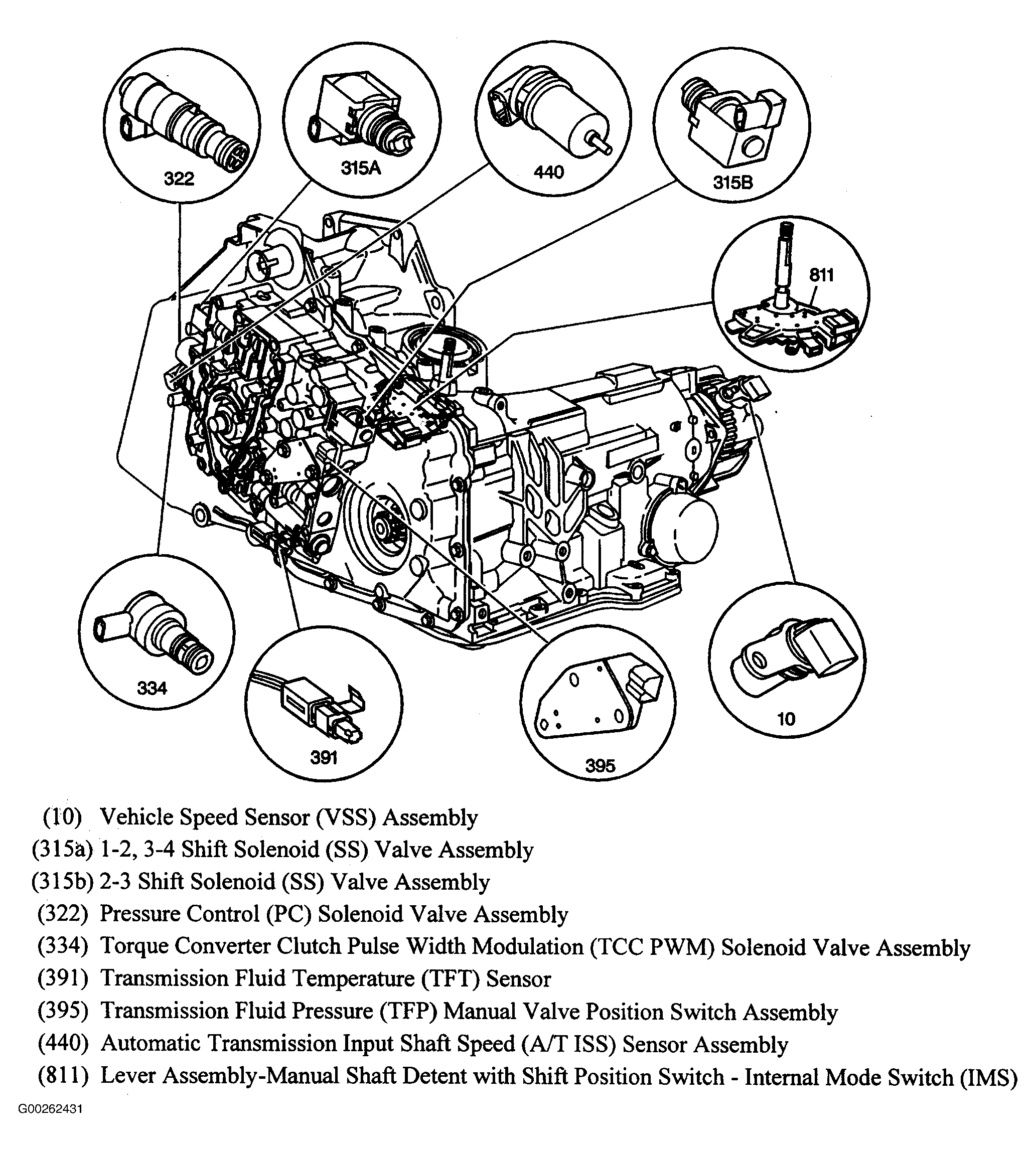

Fig 40: A/T Components
Courtesy of GENERAL MOTORS CORP.

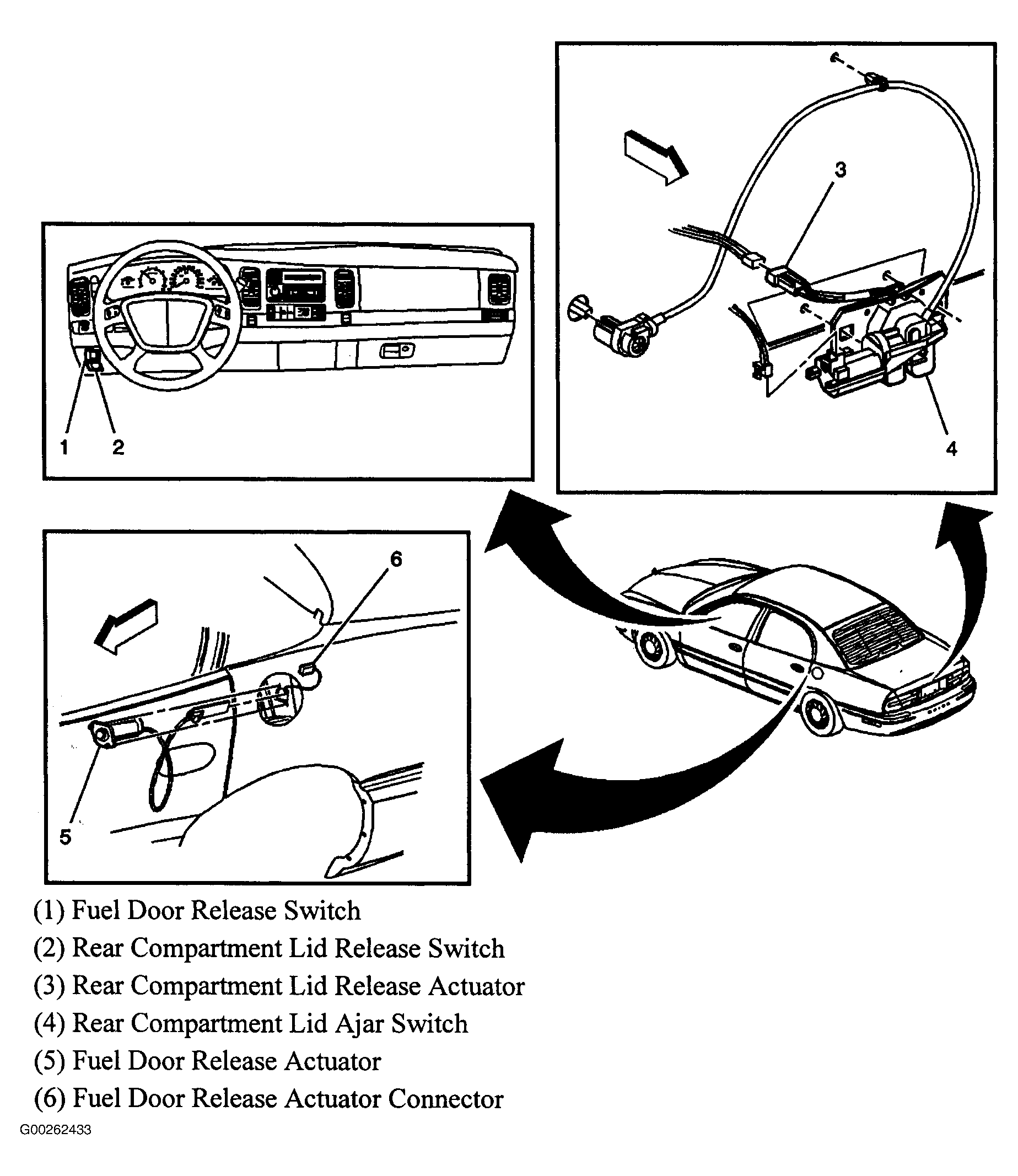

Fig 41: Rear Of Vehicle & Left Side Of Dash
Courtesy of GENERAL MOTORS CORP.

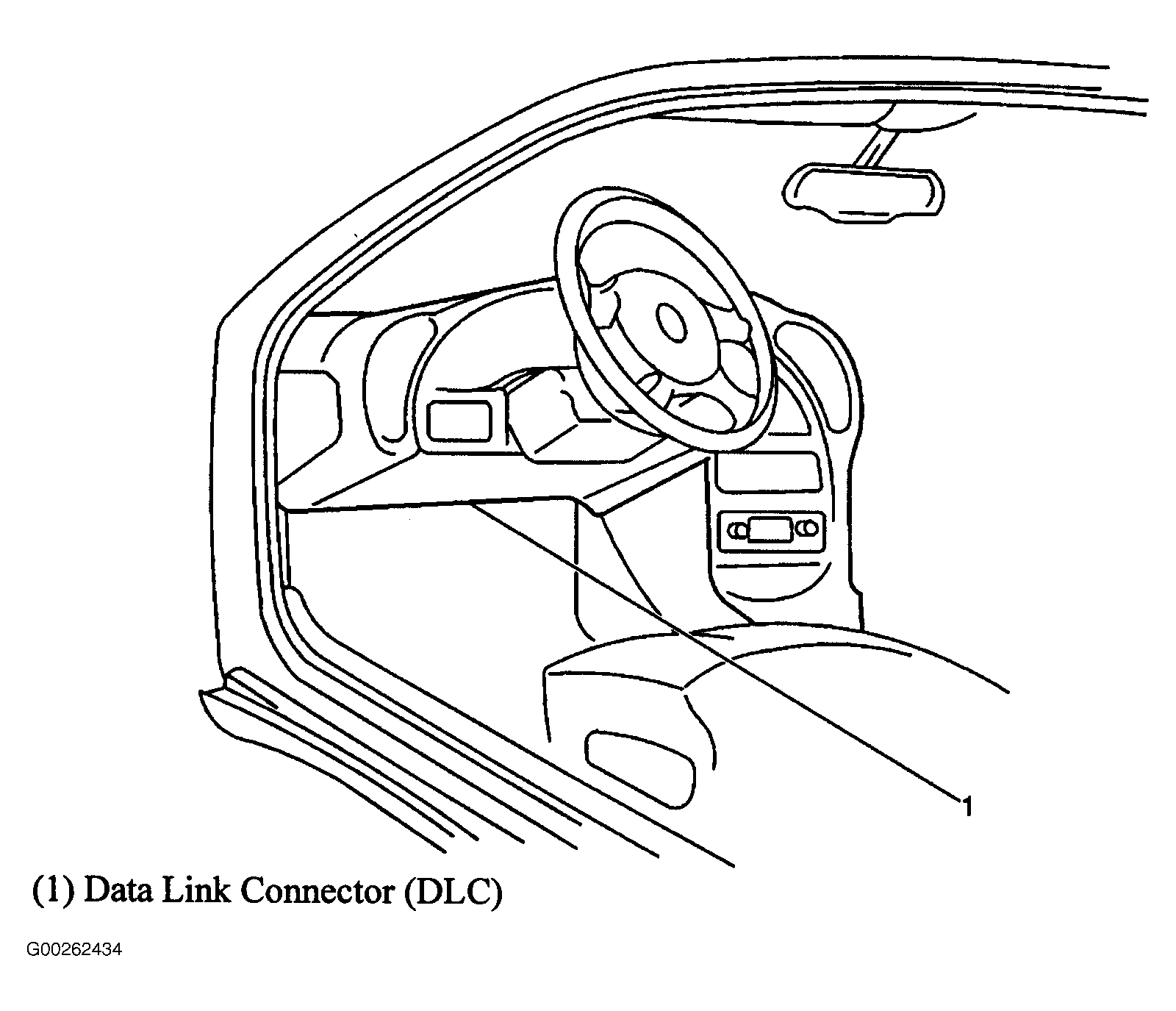

Fig 42: Data Link Connector (DLC)
Courtesy of GENERAL MOTORS CORP.
Fig 43: Under Rear Seat
Courtesy of GENERAL MOTORS CORP.
Fig 44: Right Front Door
Courtesy of GENERAL MOTORS CORP.

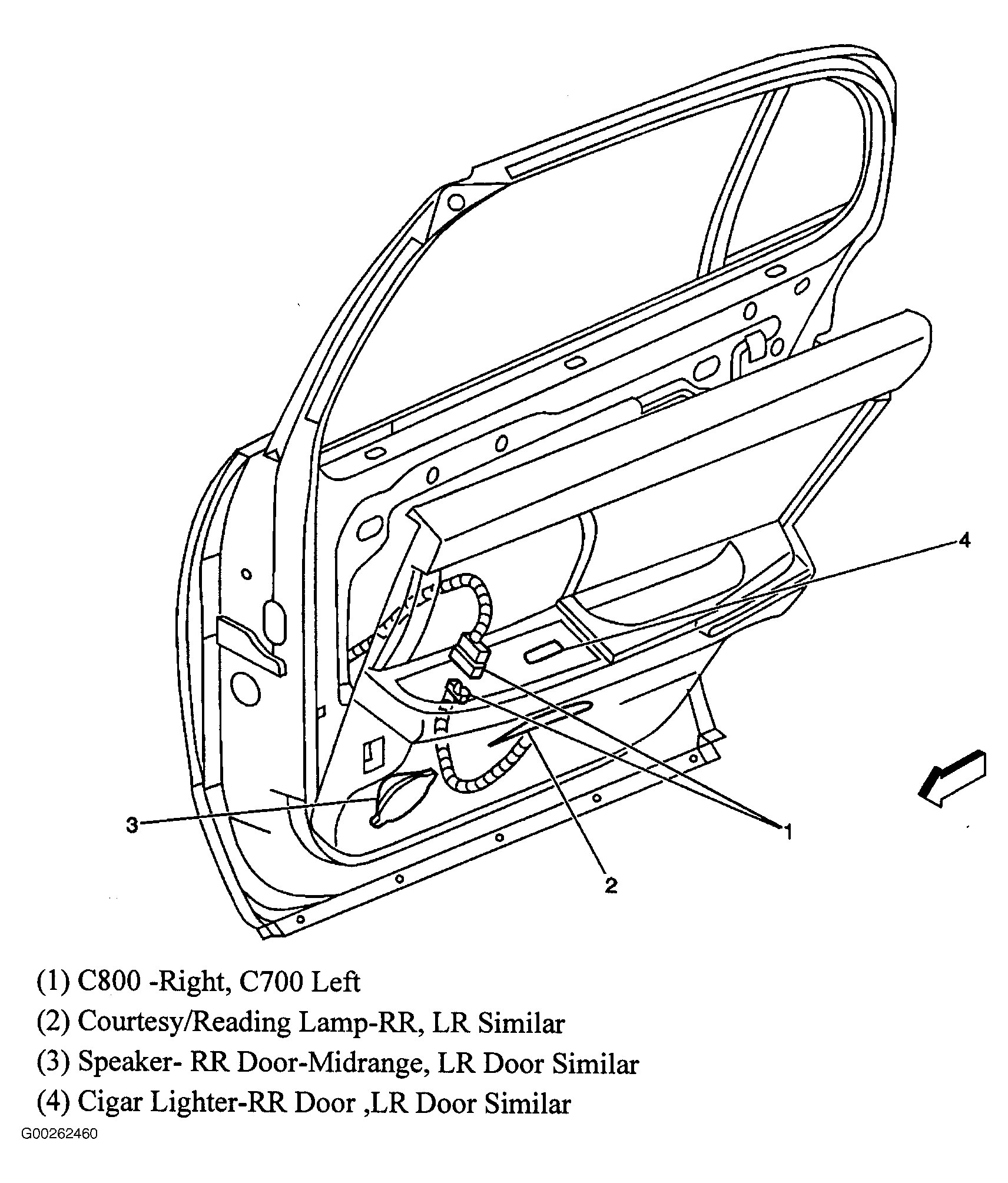

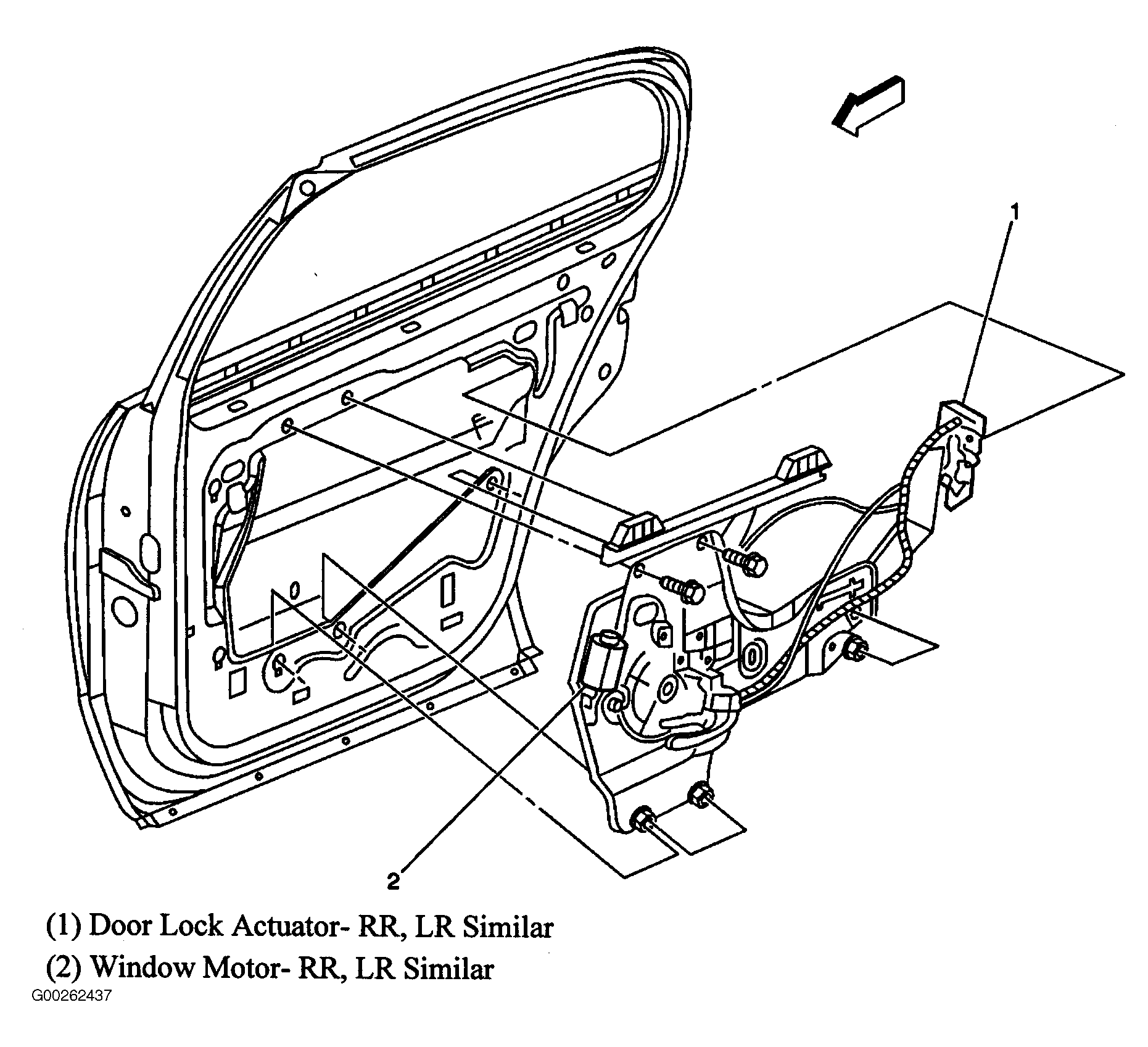

Fig 45: Right Rear Door
Courtesy of GENERAL MOTORS CORP.

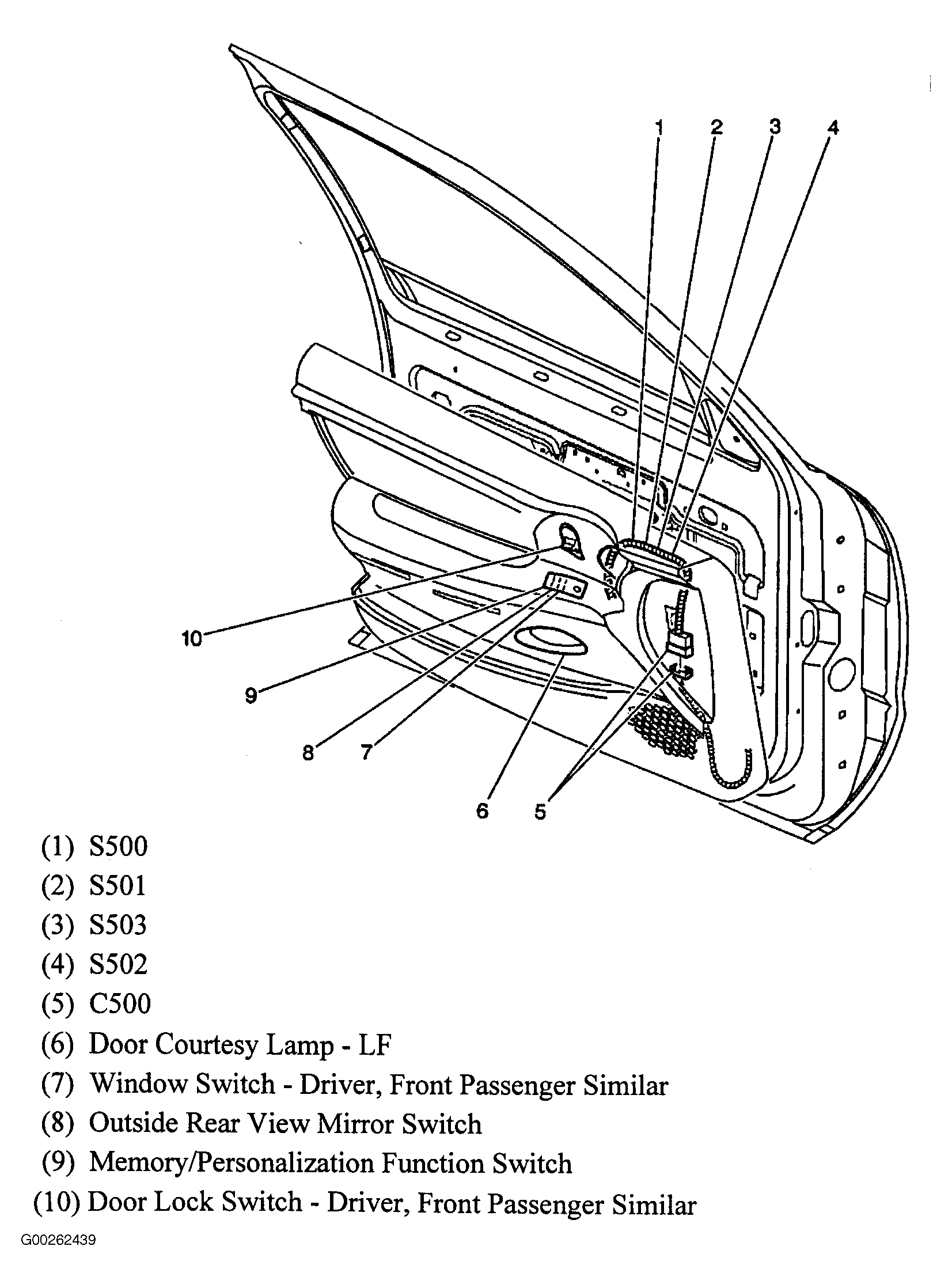

Fig 46: Left Front Door
Courtesy of GENERAL MOTORS CORP.

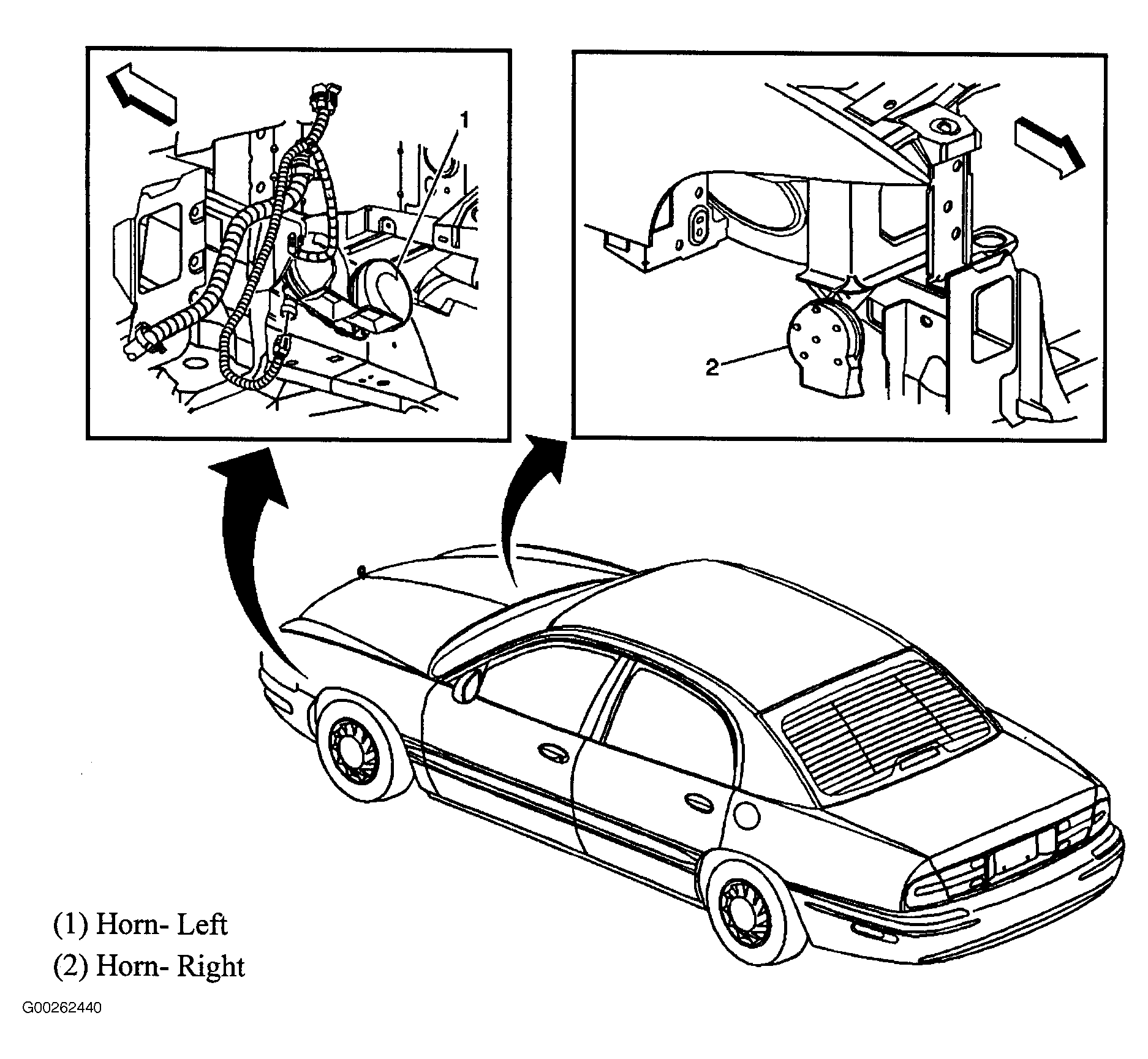

Fig 47: Horns
Courtesy of GENERAL MOTORS CORP.
Fig 48: Steering Column
Courtesy of GENERAL MOTORS CORP.
Fig 49: Behind Center Of Instrument Panel
Courtesy of GENERAL MOTORS CORP.
Fig 50: Roof Components
Courtesy of GENERAL MOTORS CORP.
Fig 51: Under Left Front Seat
Courtesy of GENERAL MOTORS CORP.
Fig 52: Driver Heated Seat Components
Courtesy of GENERAL MOTORS CORP.

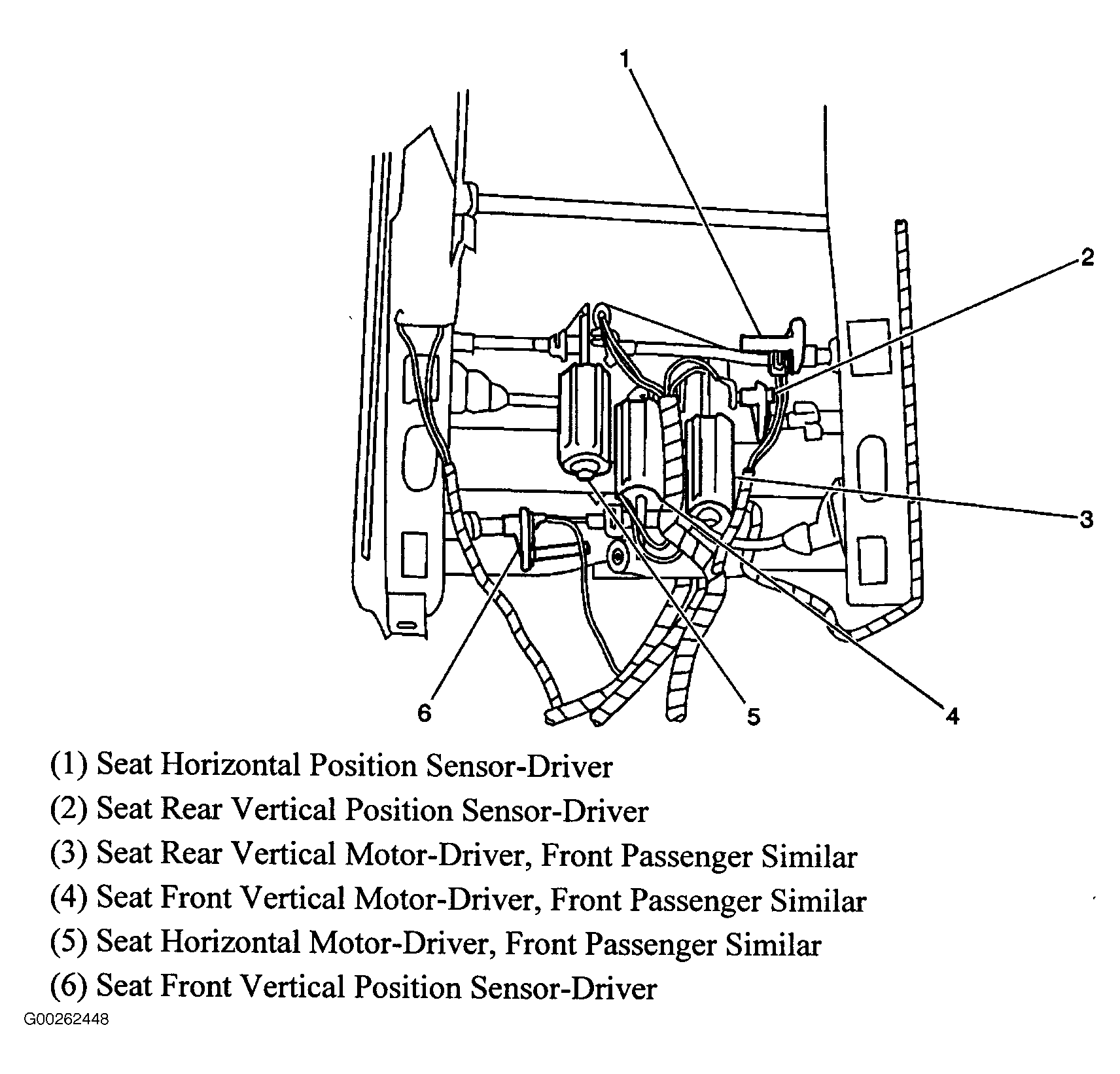

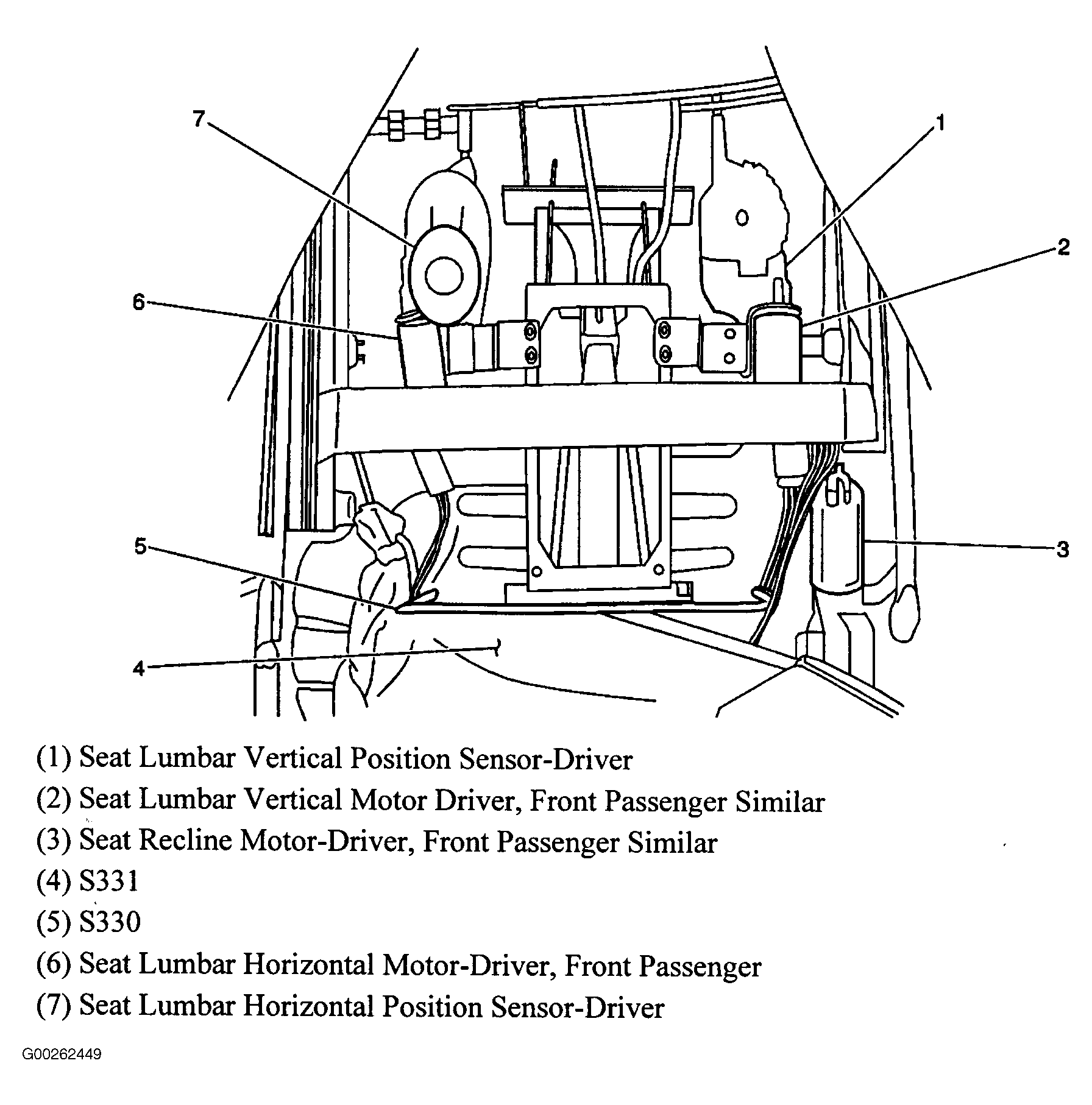

Fig 53: Driver Power Seat Components
Courtesy of GENERAL MOTORS CORP.
Fig 54: Back Of Driver Seat
Courtesy of GENERAL MOTORS CORP.

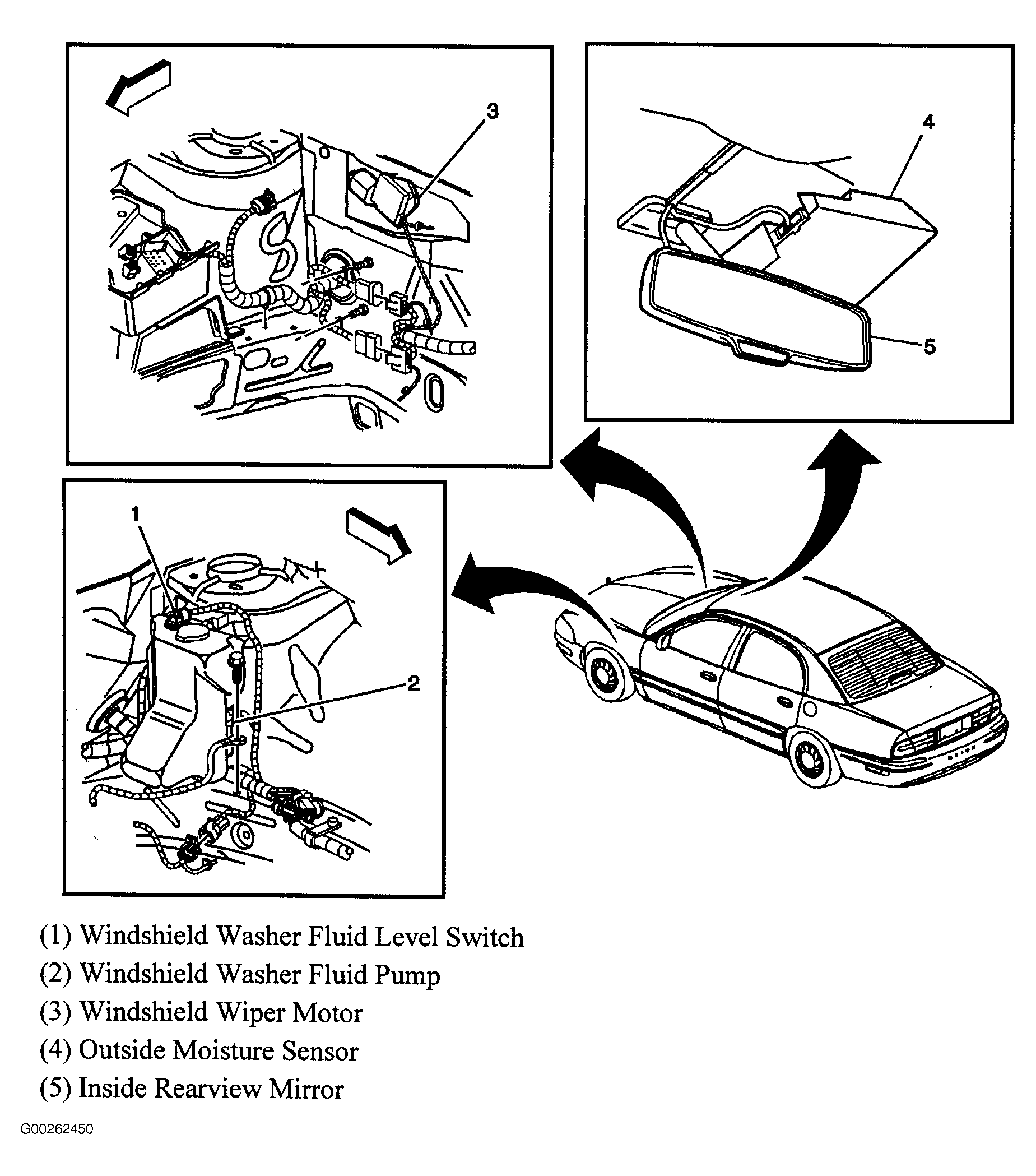

Fig 55: Wiper/Washer System Components
Courtesy of GENERAL MOTORS CORP.

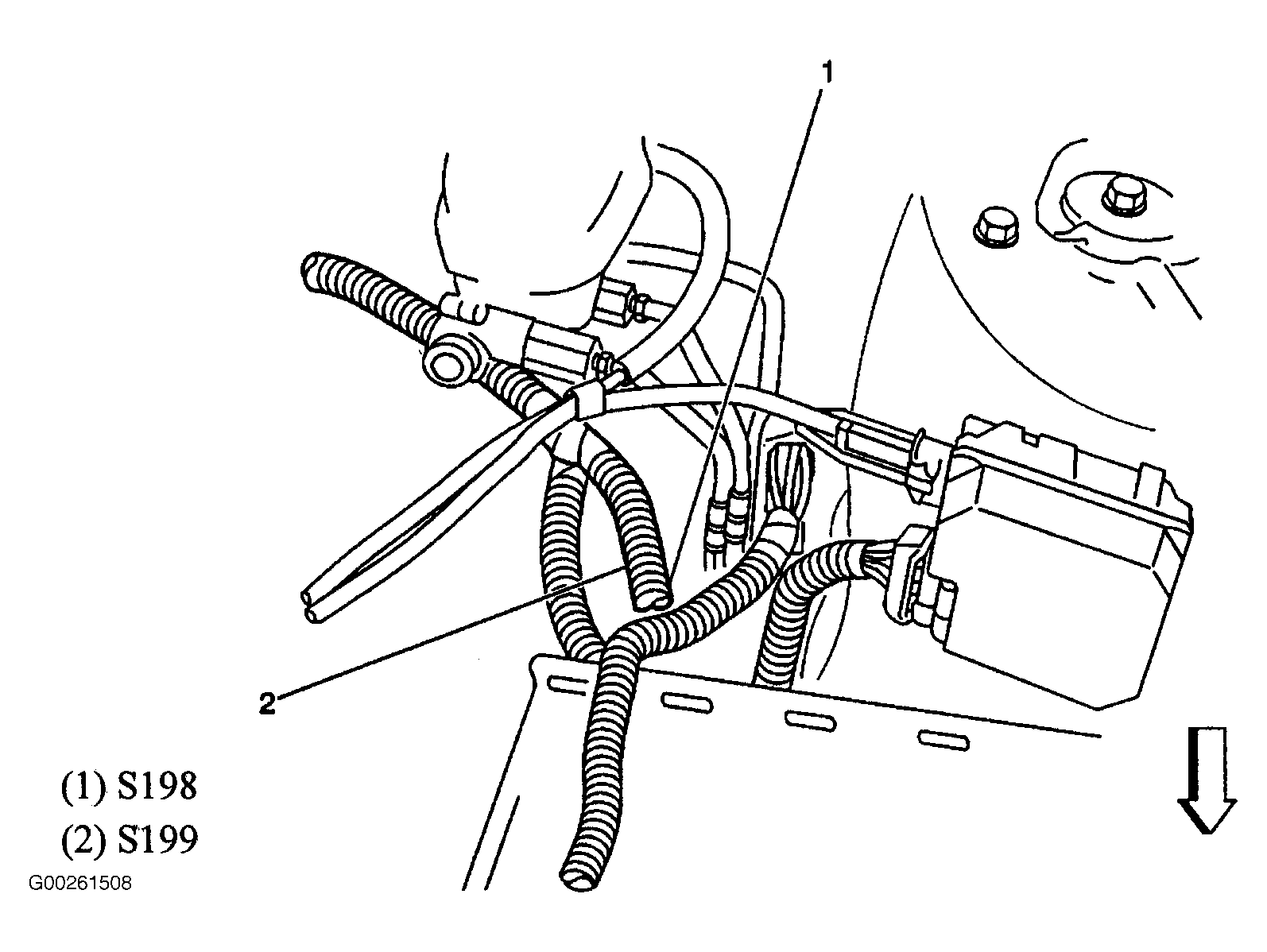

Fig 56: Right Side Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.

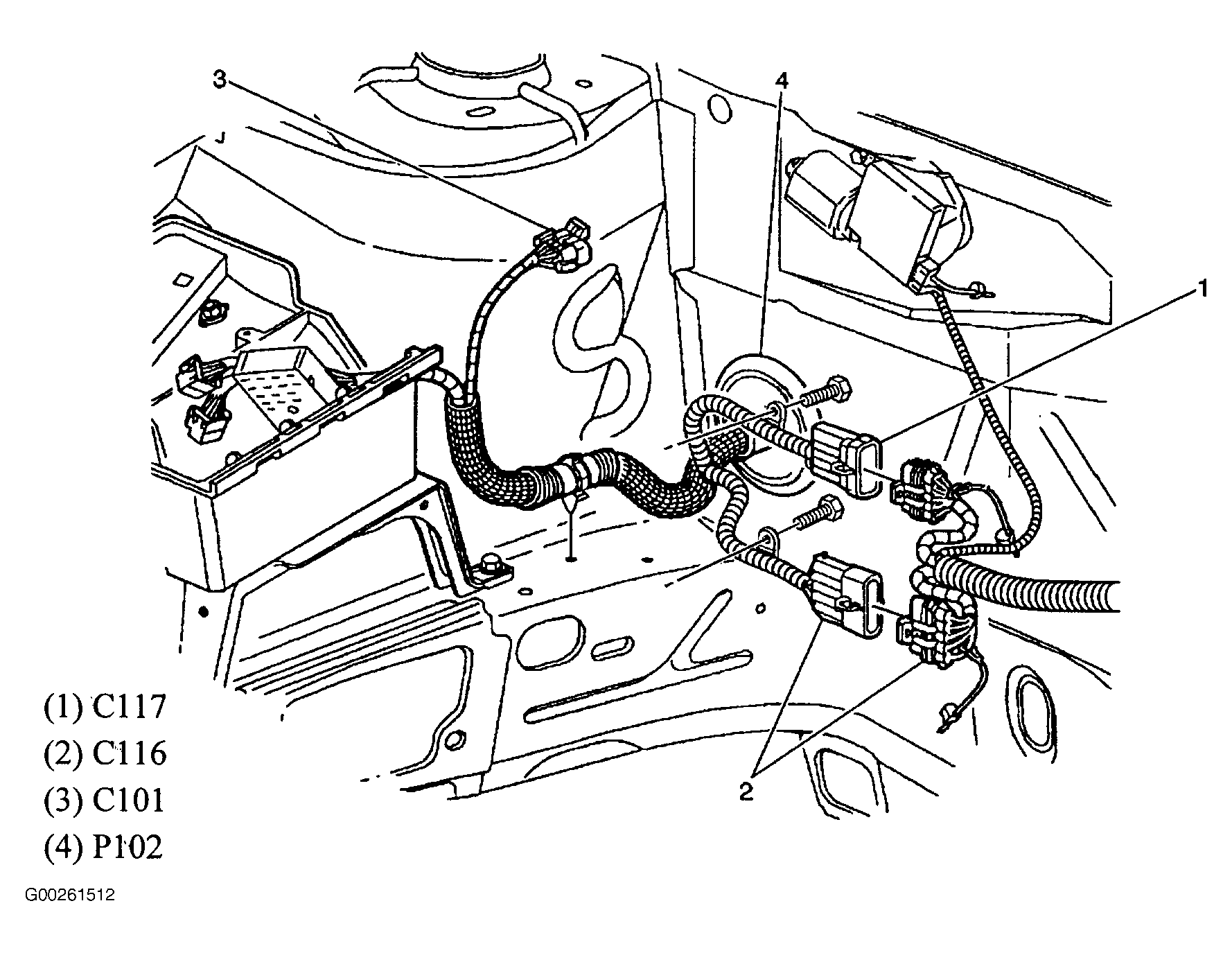

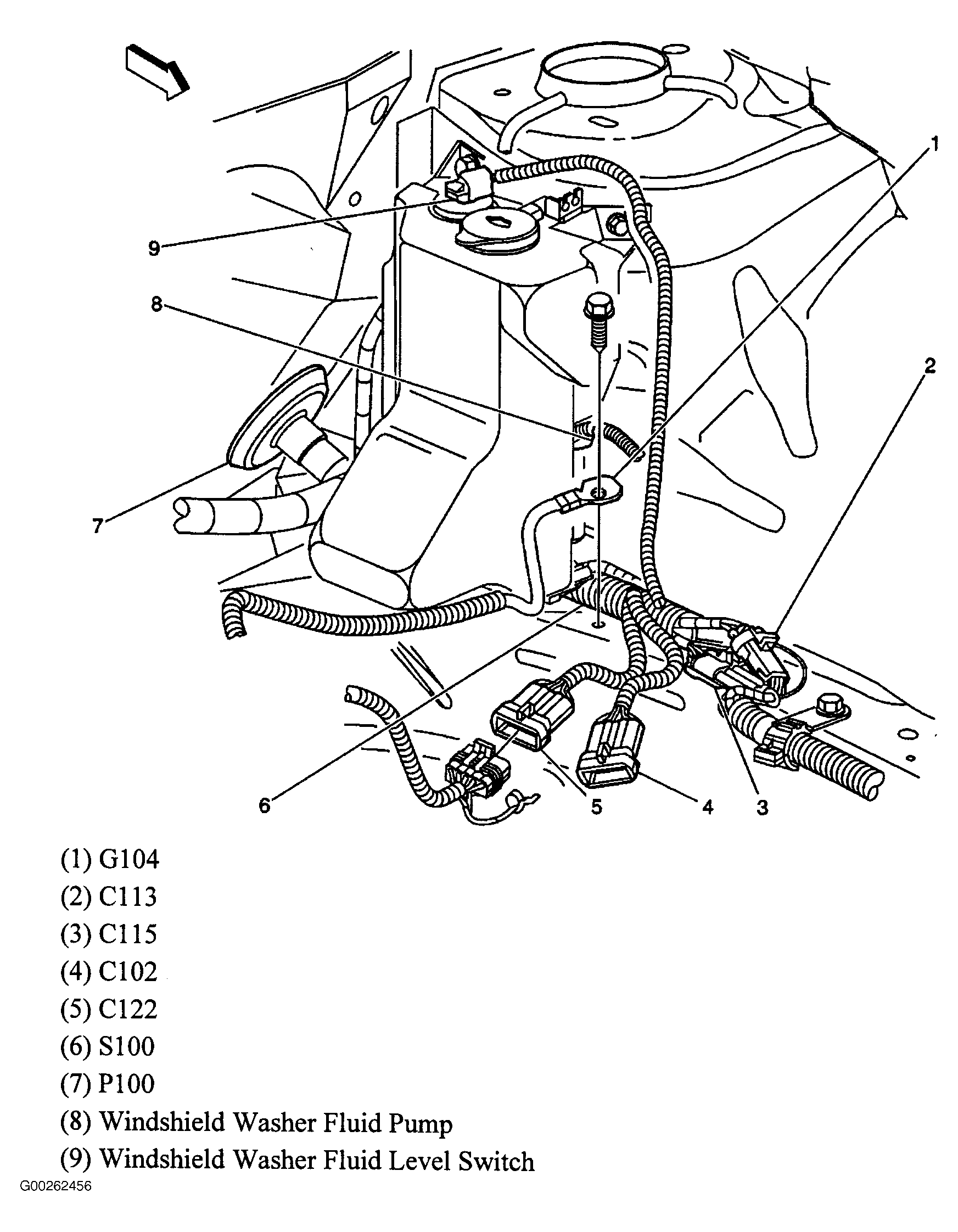

Fig 57: Left Side Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.

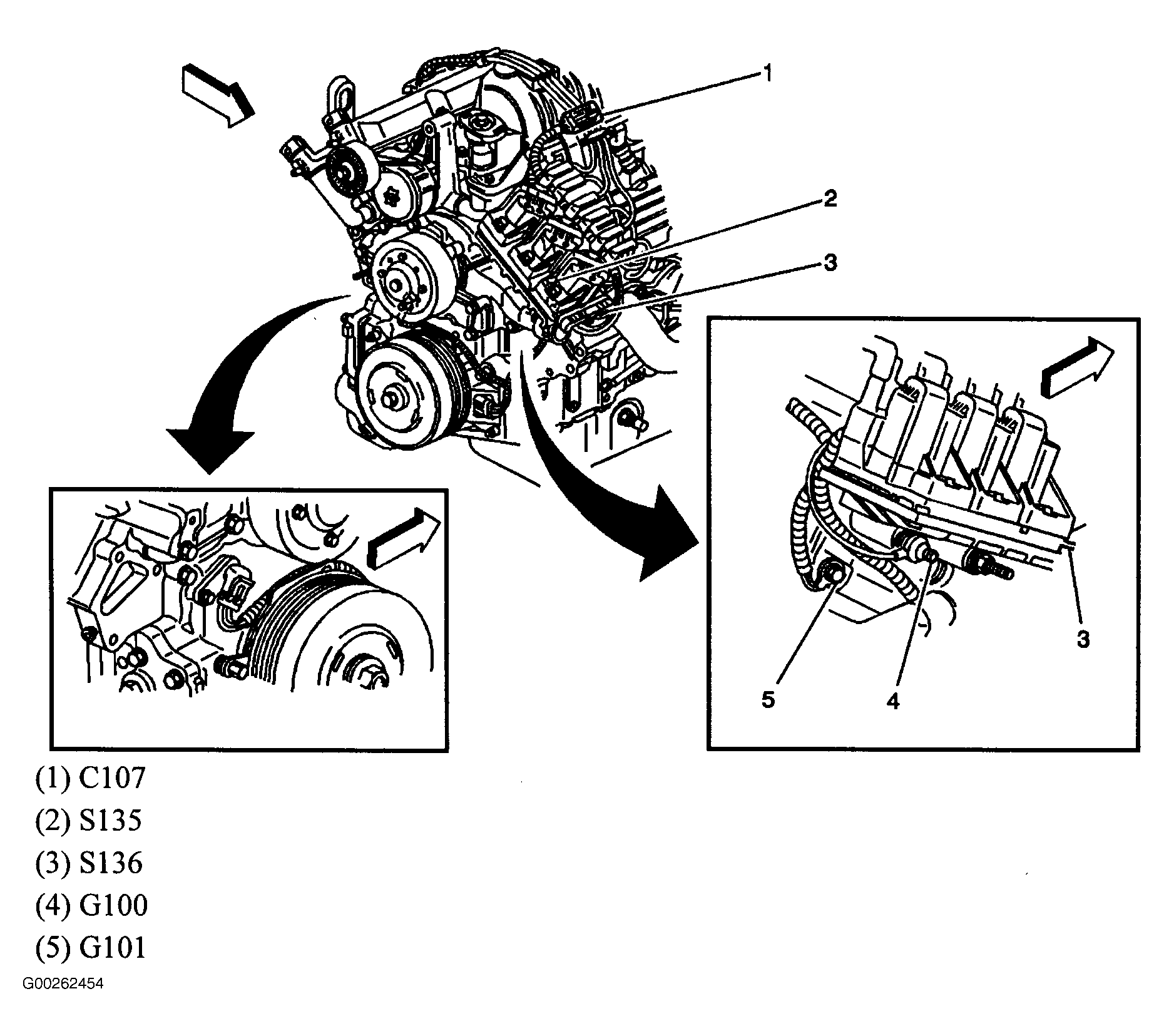

Fig 58: Left Front Of Engine
Courtesy of GENERAL MOTORS CORP.
Fig 59: Lower Left Side Of Engine
Courtesy of GENERAL MOTORS CORP.
Fig 60: Left Side Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 61: Right Kick Panel
Courtesy of GENERAL MOTORS CORP.
Fig 62: Left Kick Panel
Courtesy of GENERAL MOTORS CORP.
Fig 63: Right Rear Door
Courtesy of GENERAL MOTORS CORP.
Fig 64: Under Right Front Seat
Courtesy of GENERAL MOTORS CORP.

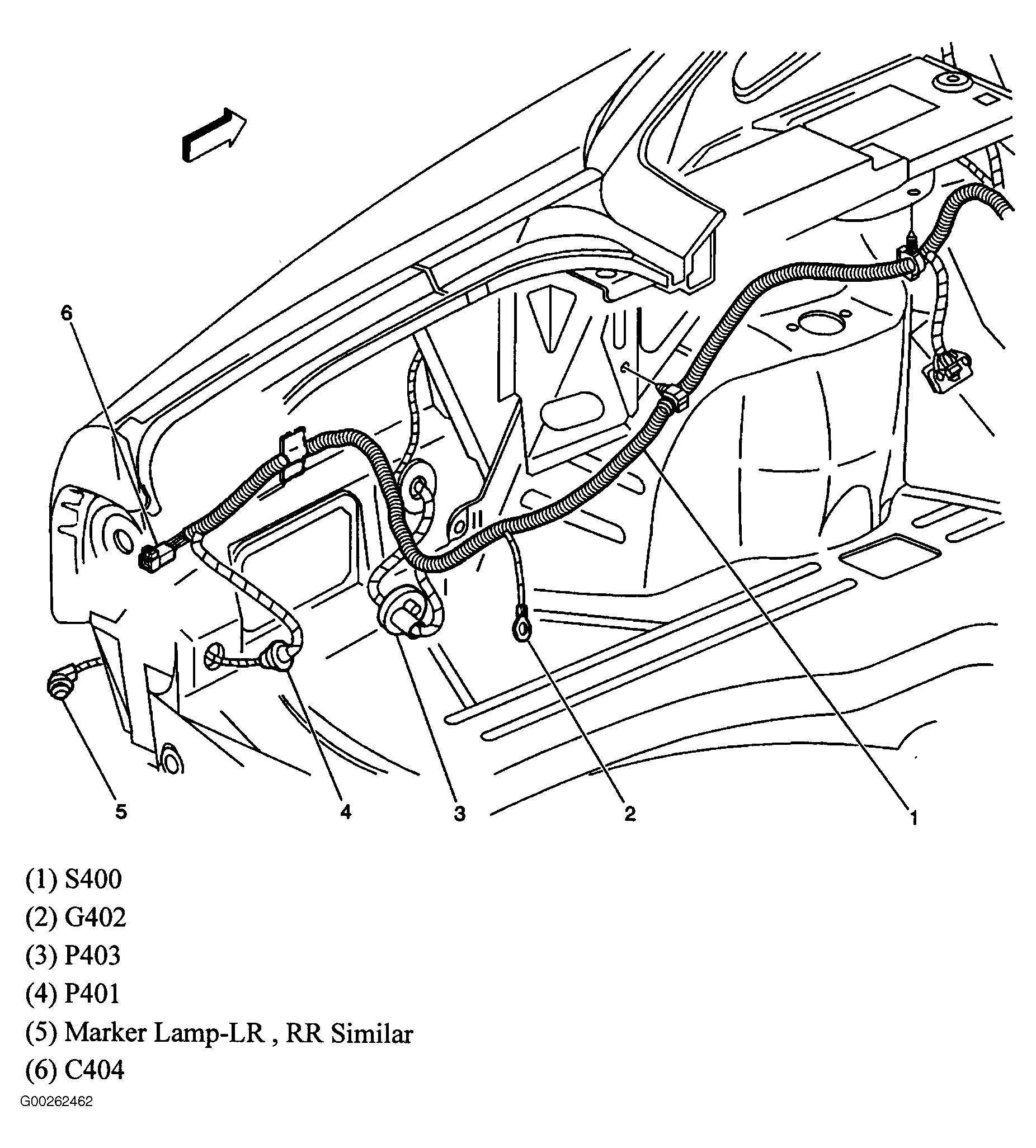

Fig 65: Left Side Of Luggage Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 66: Right Side Of Luggage Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 67: Right Front Of Vehicle
Courtesy of GENERAL MOTORS CORP.
Fig 68: Left Front Of Vehicle
Courtesy of GENERAL MOTORS CORP.
Fig 69: Left Rear Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 70: Rear Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 71: Right Rear Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.

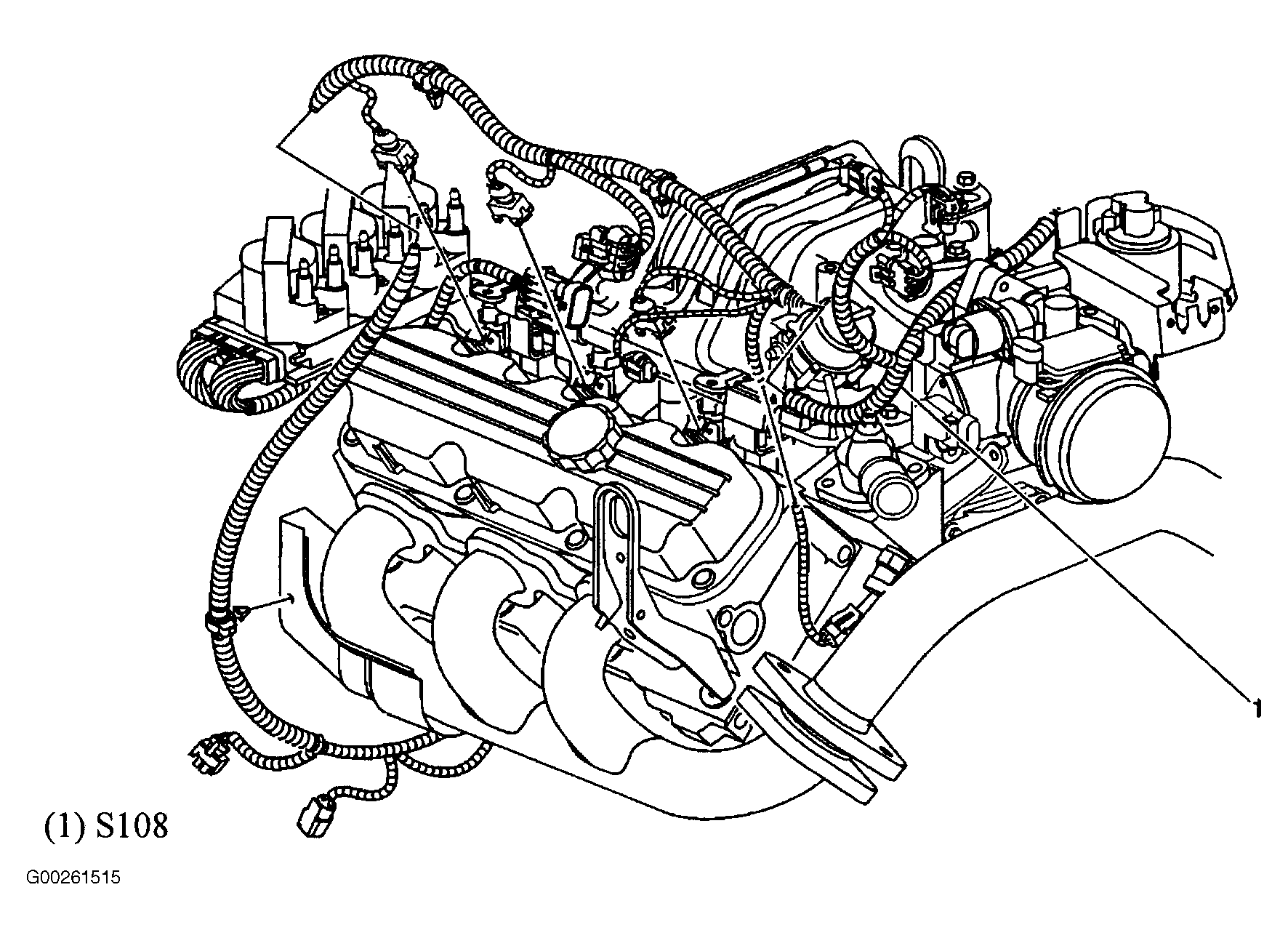

Fig 72: Top Rear Of Engine
Courtesy of GENERAL MOTORS CORP.
Fig 73: Top Right Side Of Engine
Courtesy of GENERAL MOTORS CORP.
Fig 74: Under Left Side Of Instrument Panel
Courtesy of GENERAL MOTORS CORP.
Fig 75: Left Side Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.

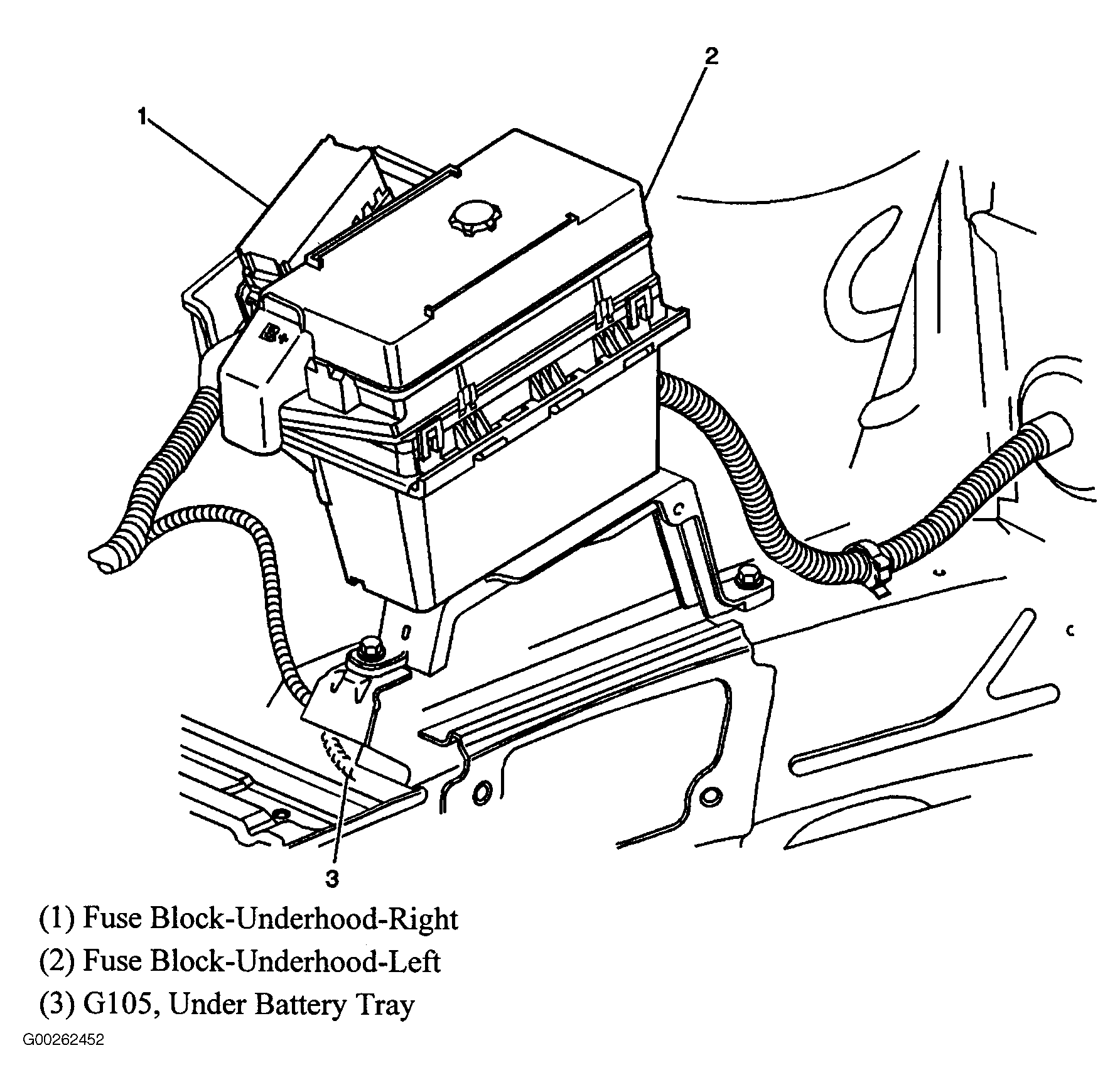

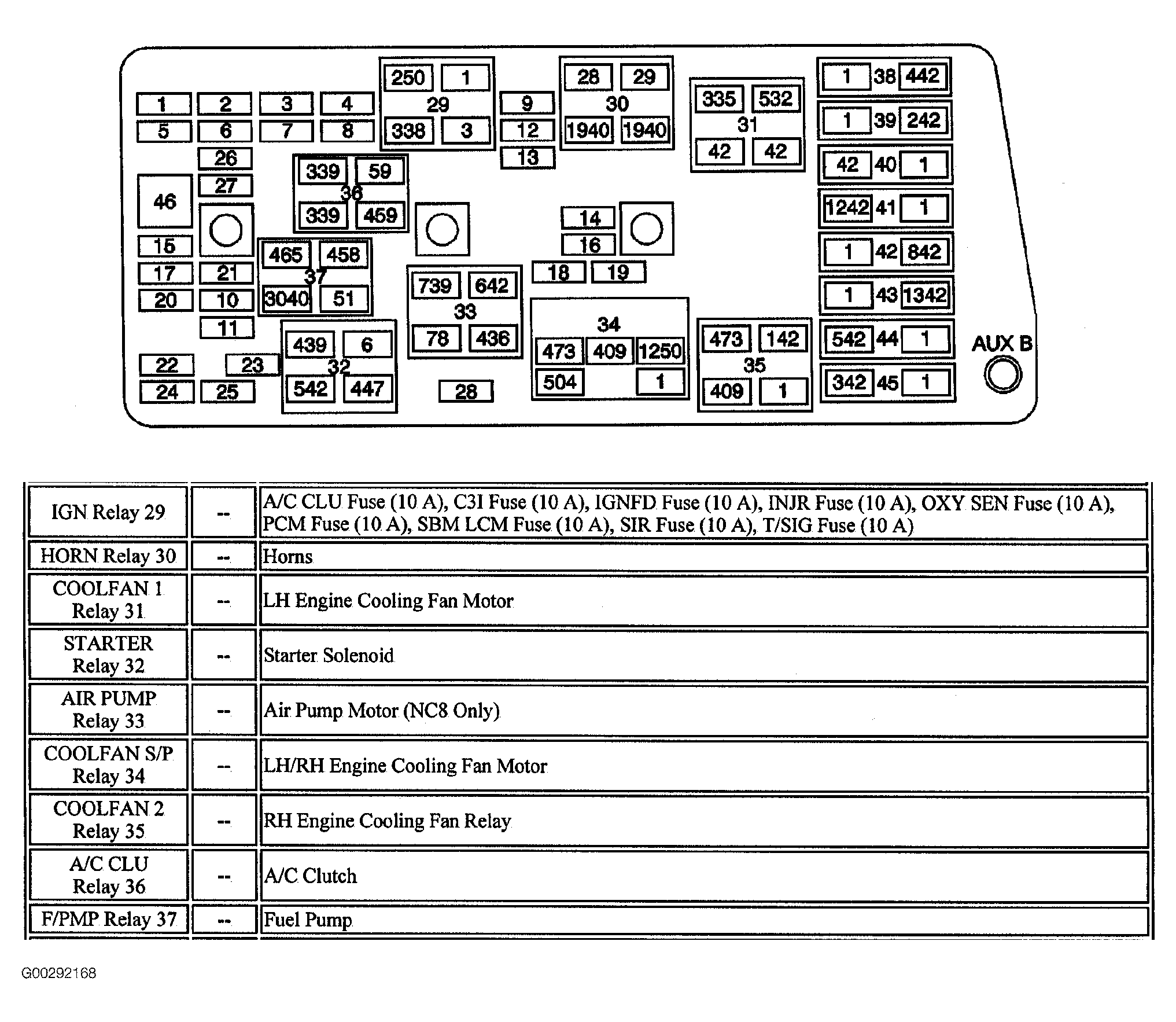

Fig 76: Underhood Fuse Block
Courtesy of GENERAL MOTORS CORP.
Fig 77: Instrument Panel Fuse Block
Courtesy of GENERAL MOTORS CORP.

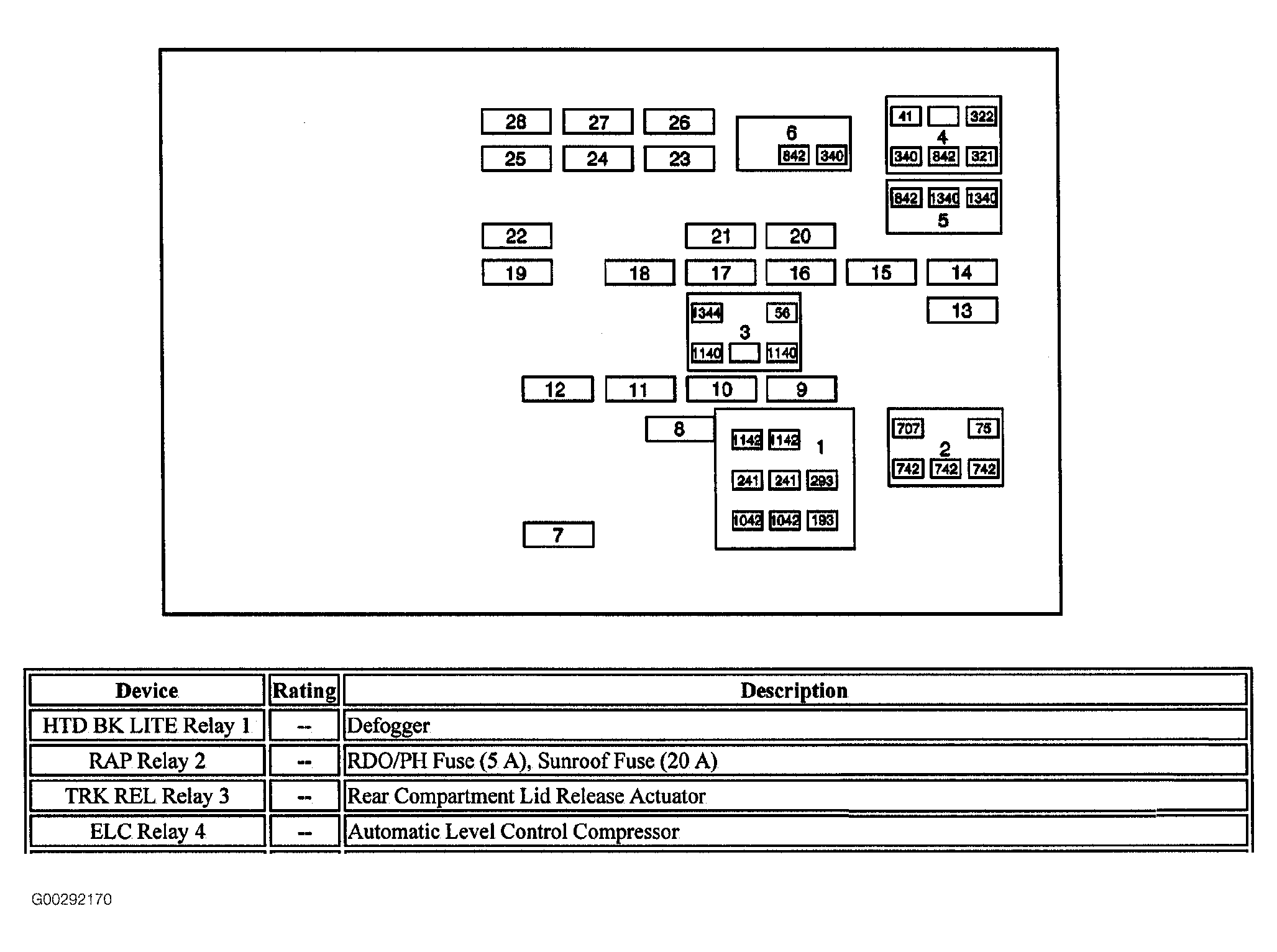

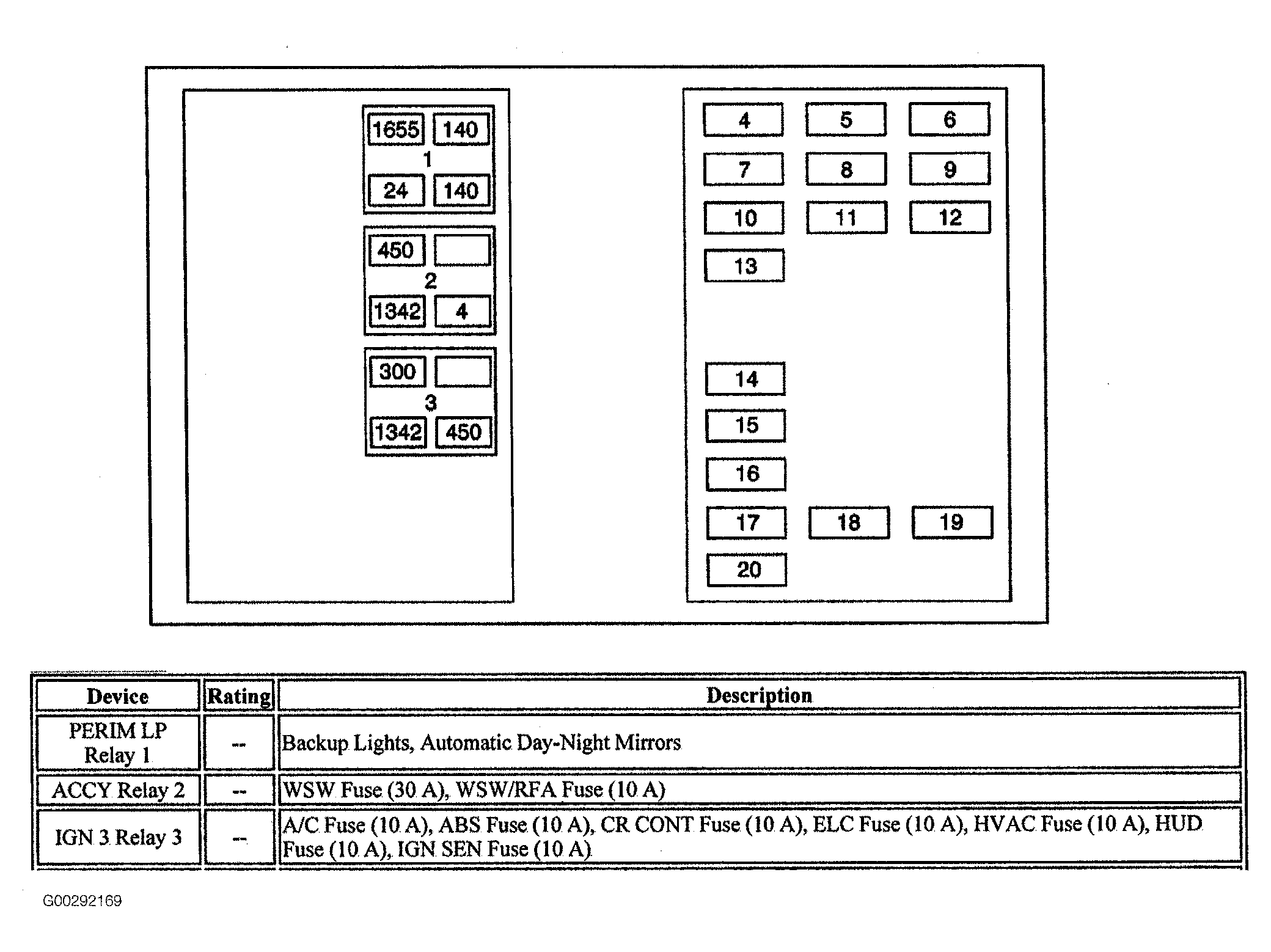

Fig 78: Rear Fuse Block
Courtesy of GENERAL MOTORS CORP.
