Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|
| Audio Amplifier | Under left side of rear package shelf. |

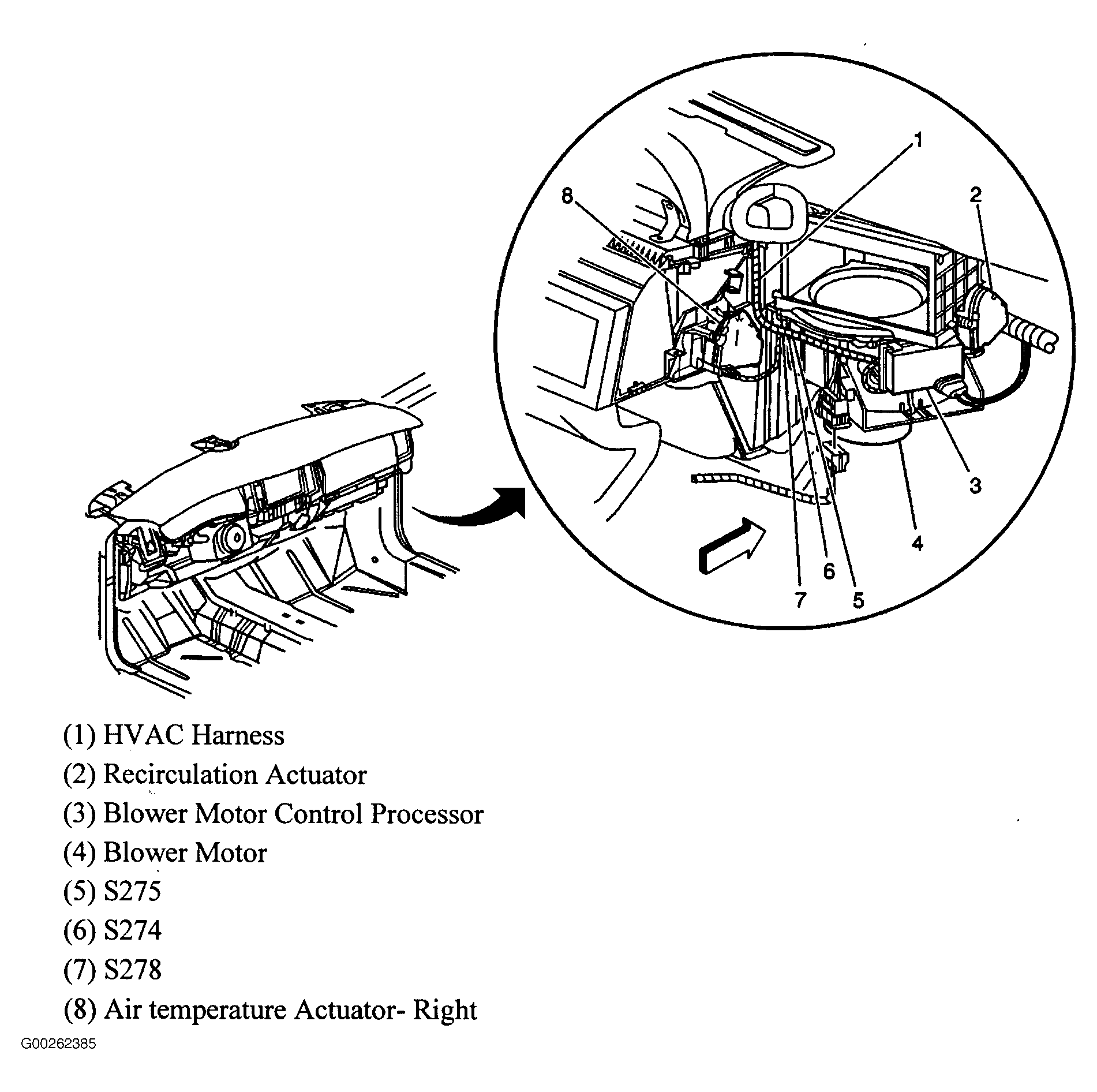

| Blower Motor Control Processor | Near blower motor. See Figure . |
| Body Control Module (BCM) | Behind glove box. See Figure . |
| Cruise Control Module | On firewall, near brake master cylinder. |
| Door Module (Driver) | Inside driver's door, above radio speaker. |

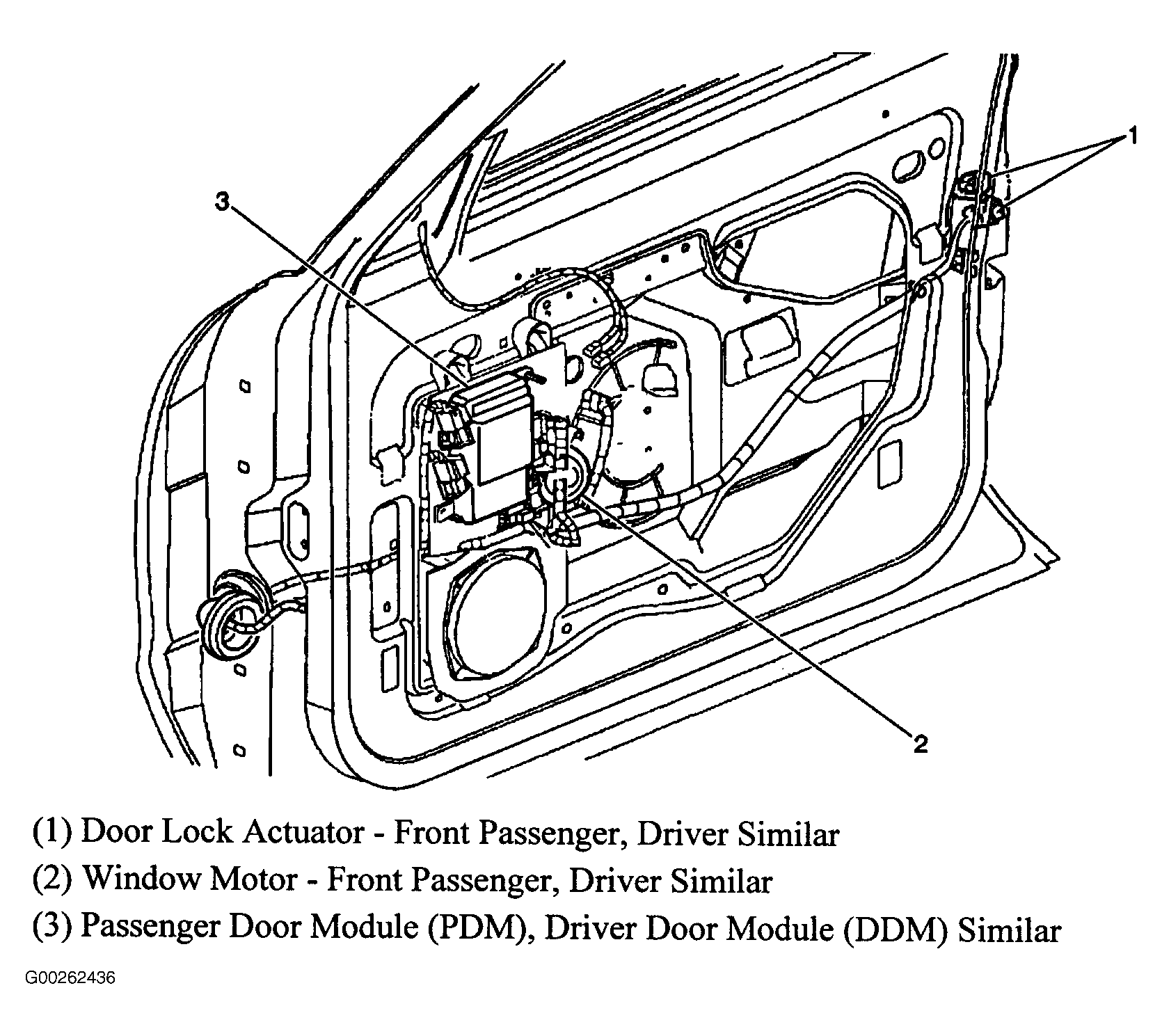

| Door Module (Passenger, Driver Similar) | In front passenger's door. See Figure . |

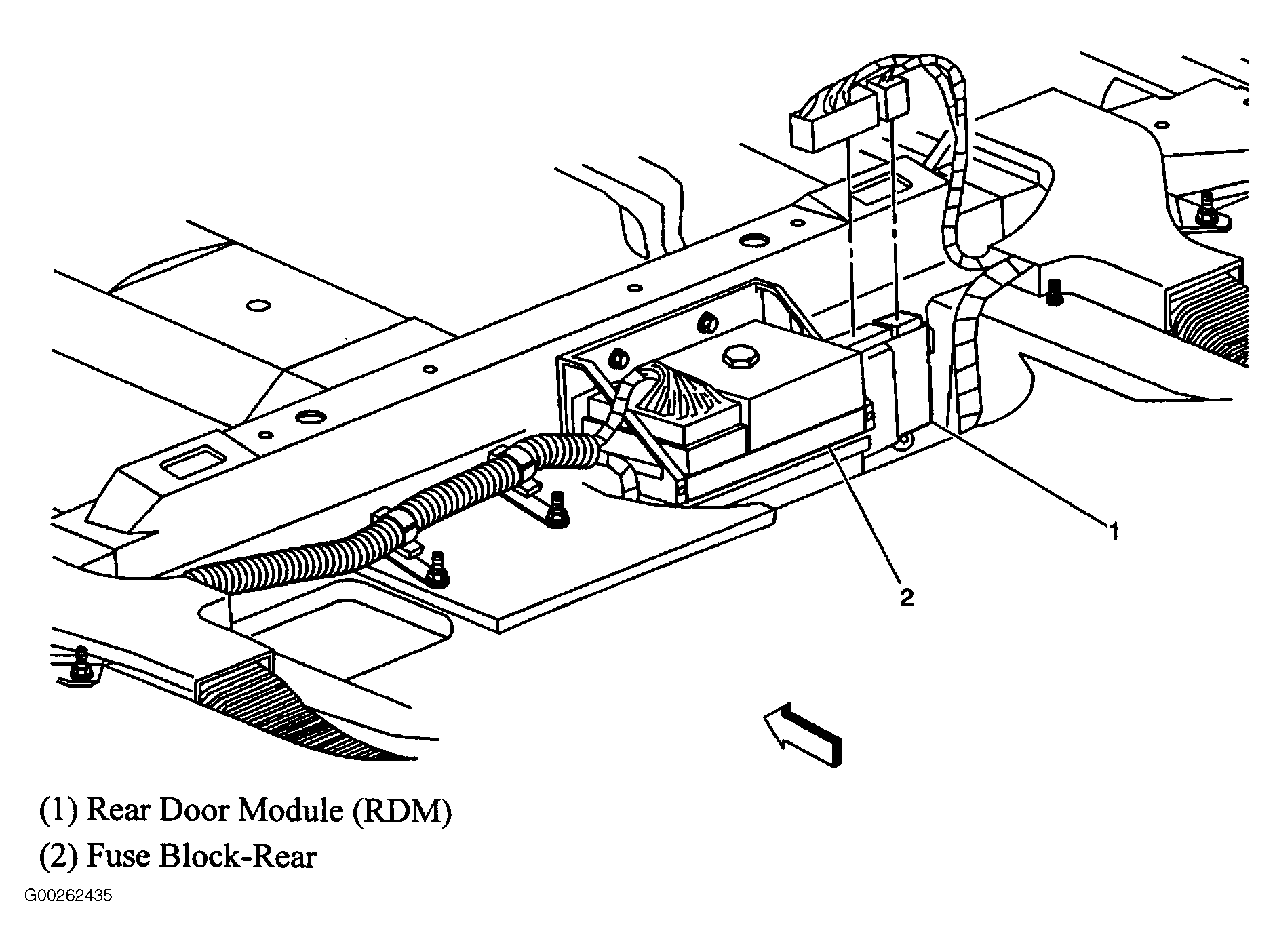

| Door Module (Rear) (RDM) | Under right side of rear seat. See Figure . |

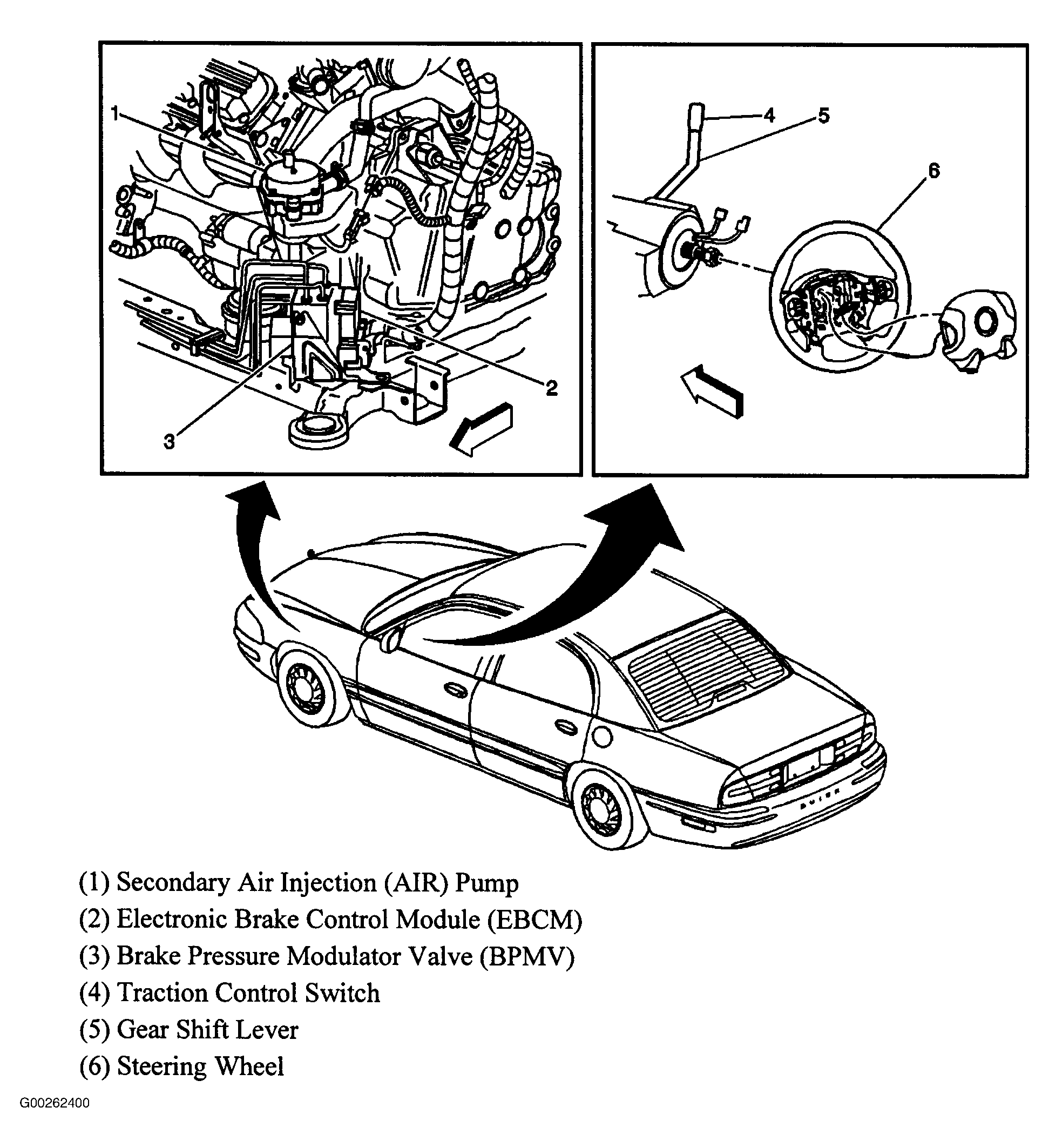

| Electronic Brake Control Module (EBCM) | Left front corner of engine compartment. See Figure . |
| Head-Up Display | Behind upper left side of dash. |

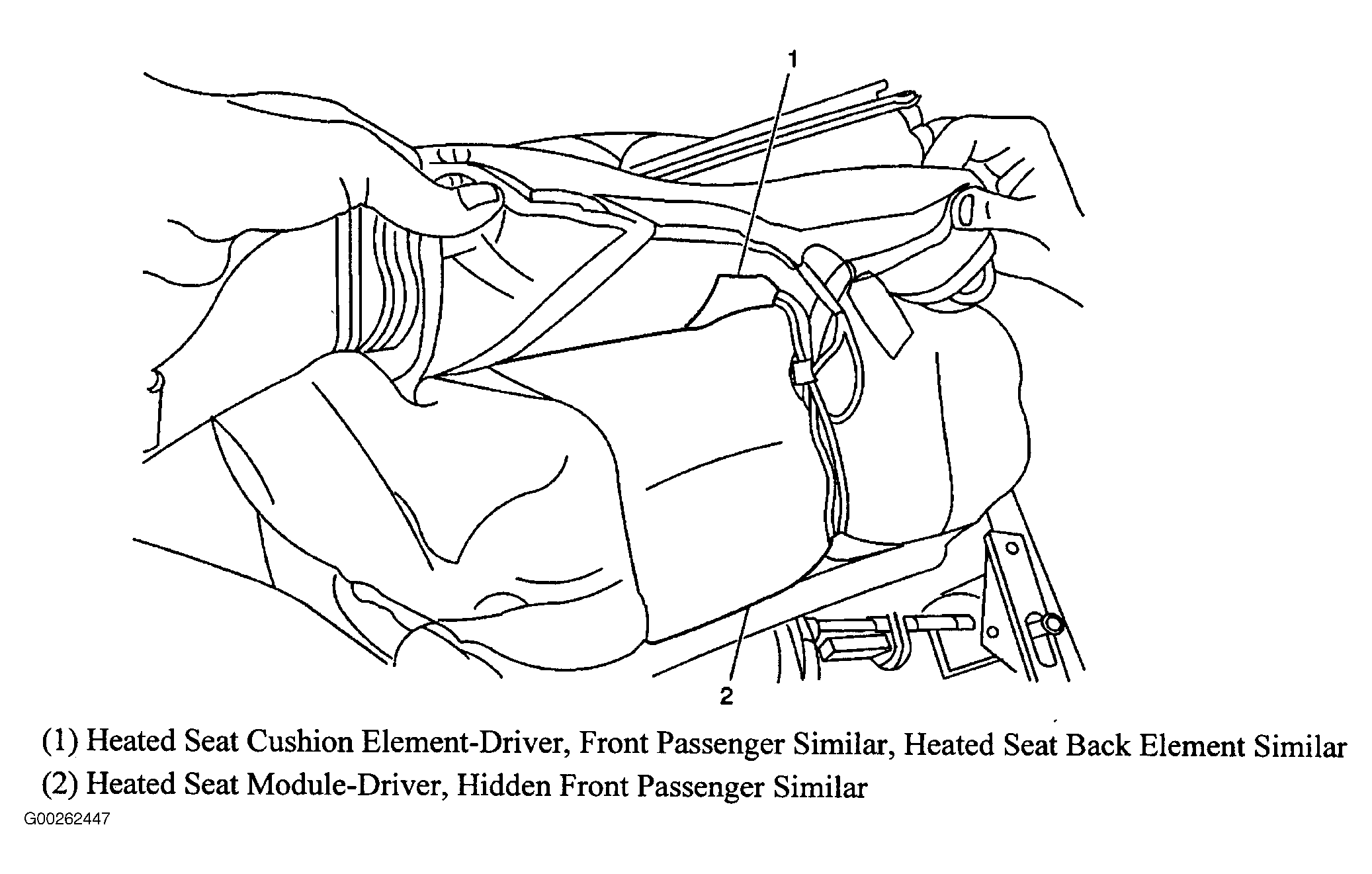

| Heated Seat Module (Driver, Hidden Front Passenger Similar) | On underside of left front seat. See Figure . |
| Heated Seat Module (Right) | On underside of right front seat. |

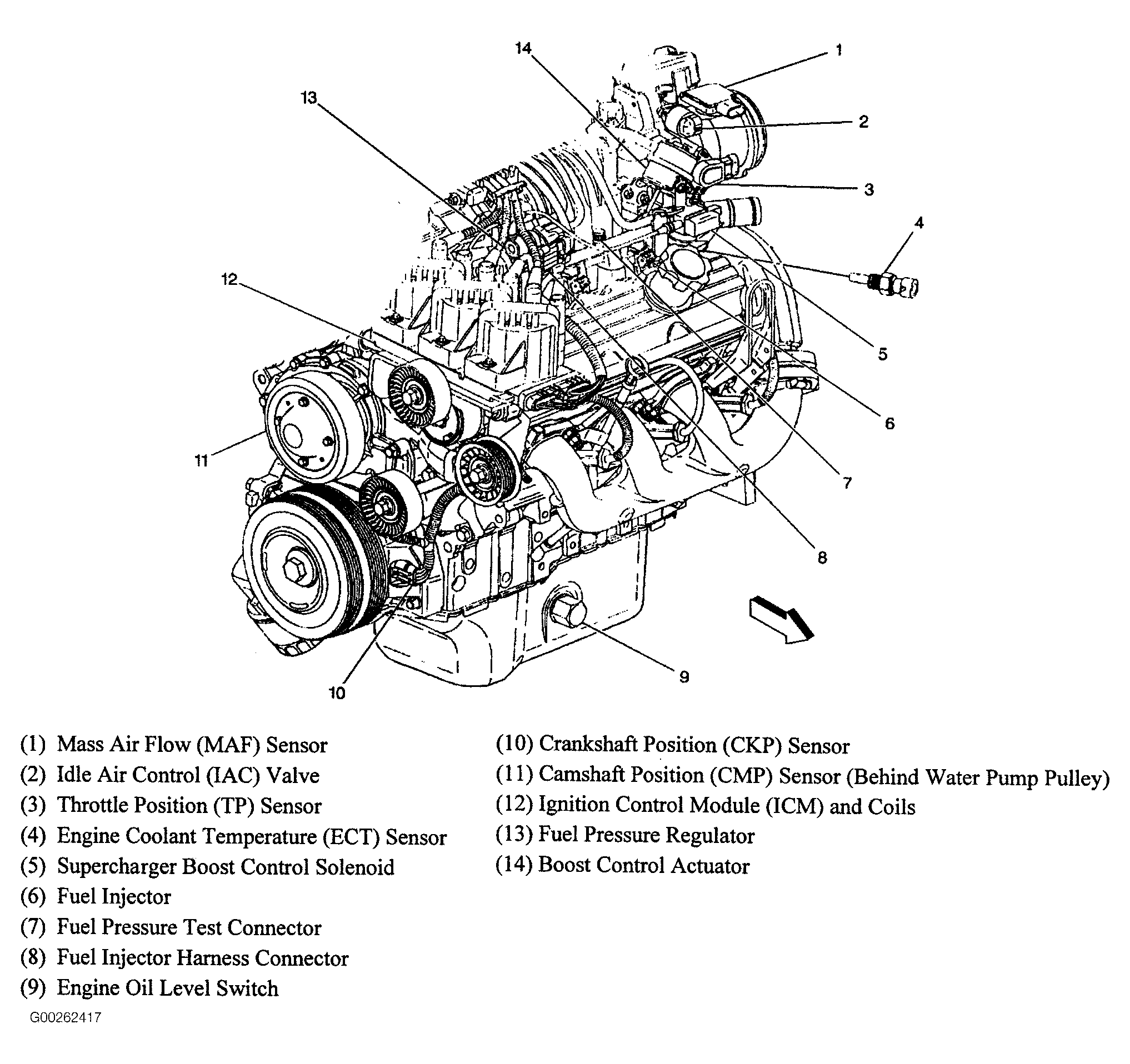

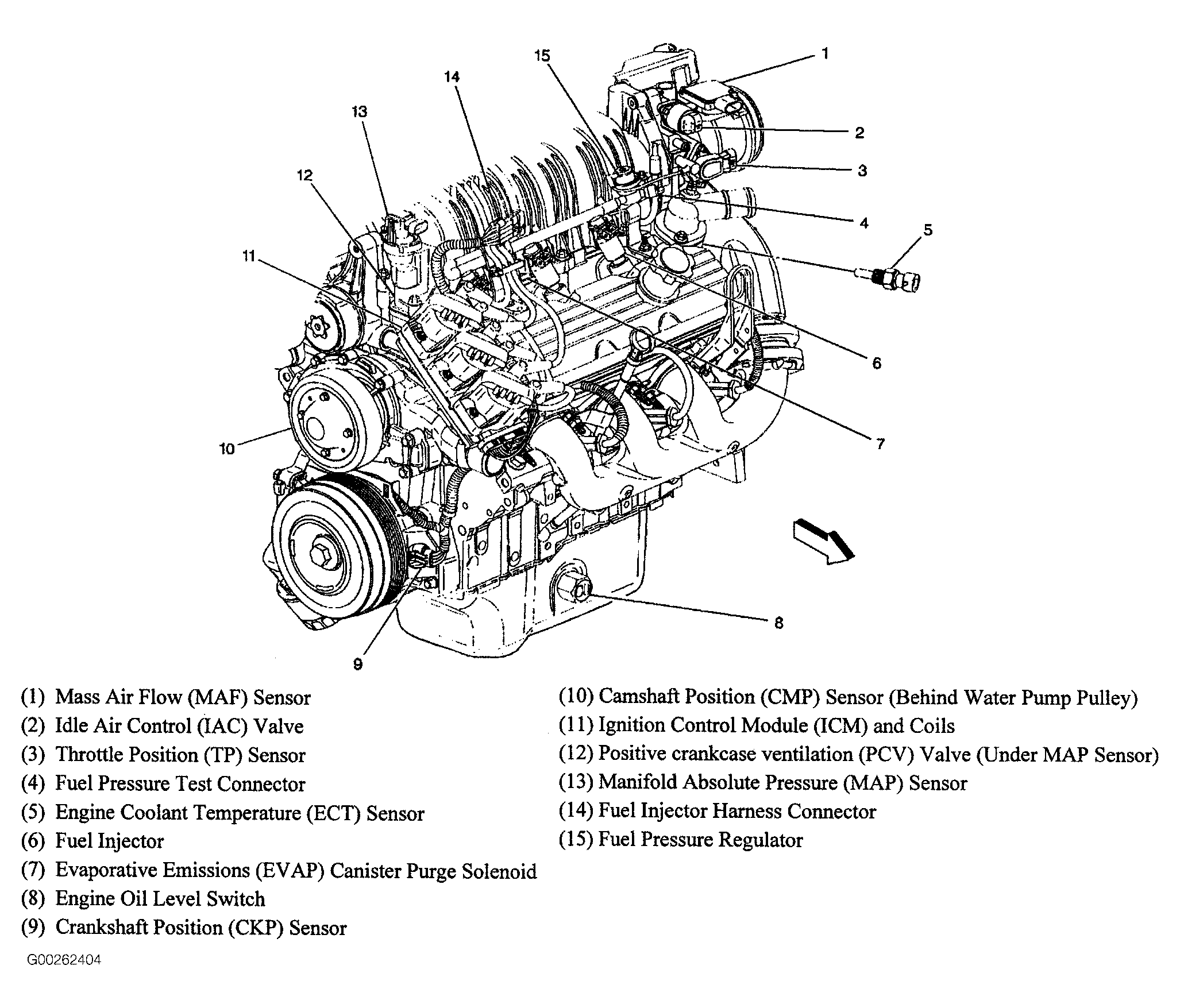

| Ignition Control Module (ICM) (3.8L VIN K) | At left front of engine, under ignition coils. See Figure . |
| Ignition Control Module (ICM) (3.8L VIN 1) | At left front of engine, under ignition coils. See Figure . |

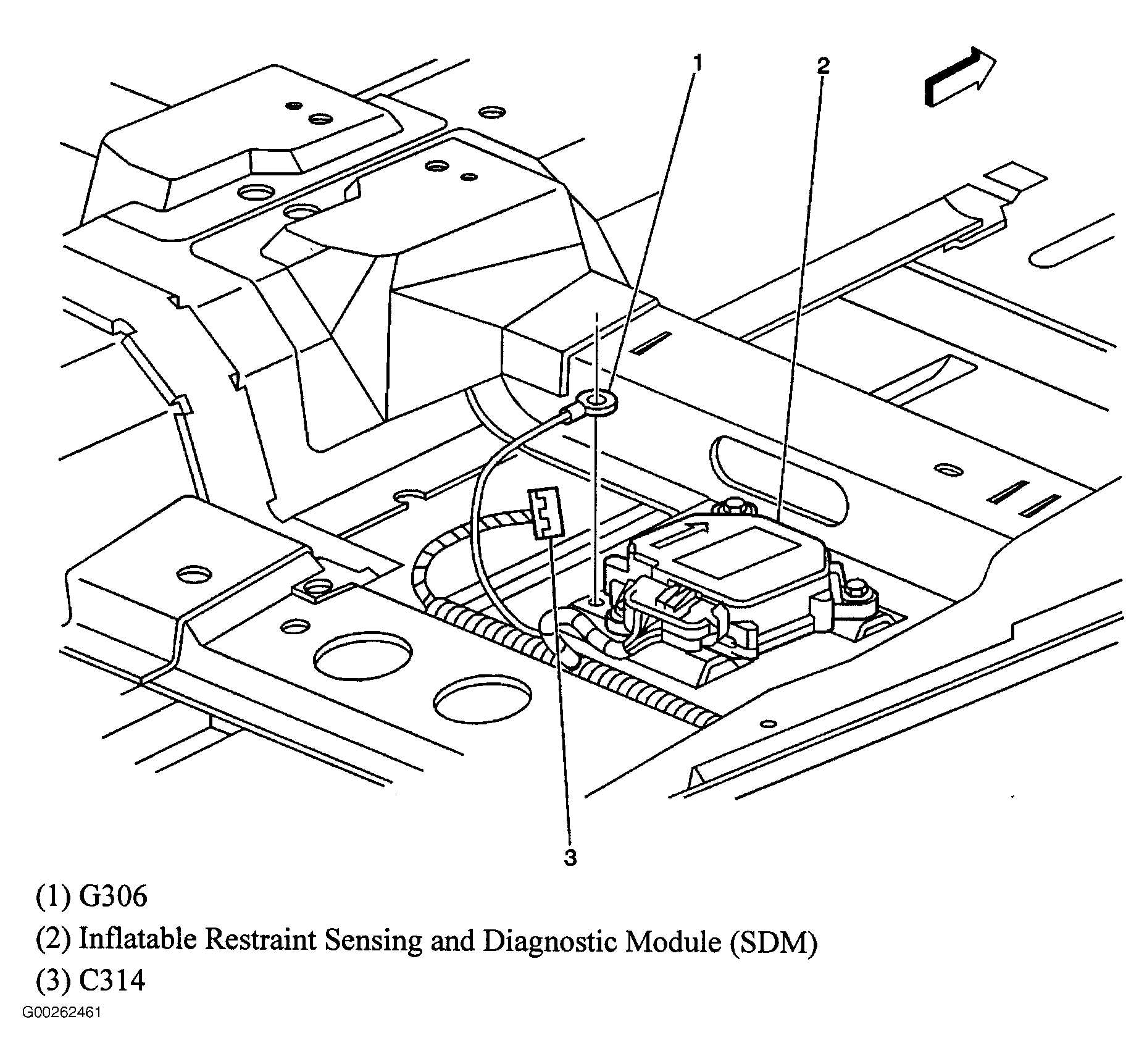

| Inflatable Restraint Sensing And Diagnostic Module (SDM) | Below right front seat, under carpet. See Figure . |

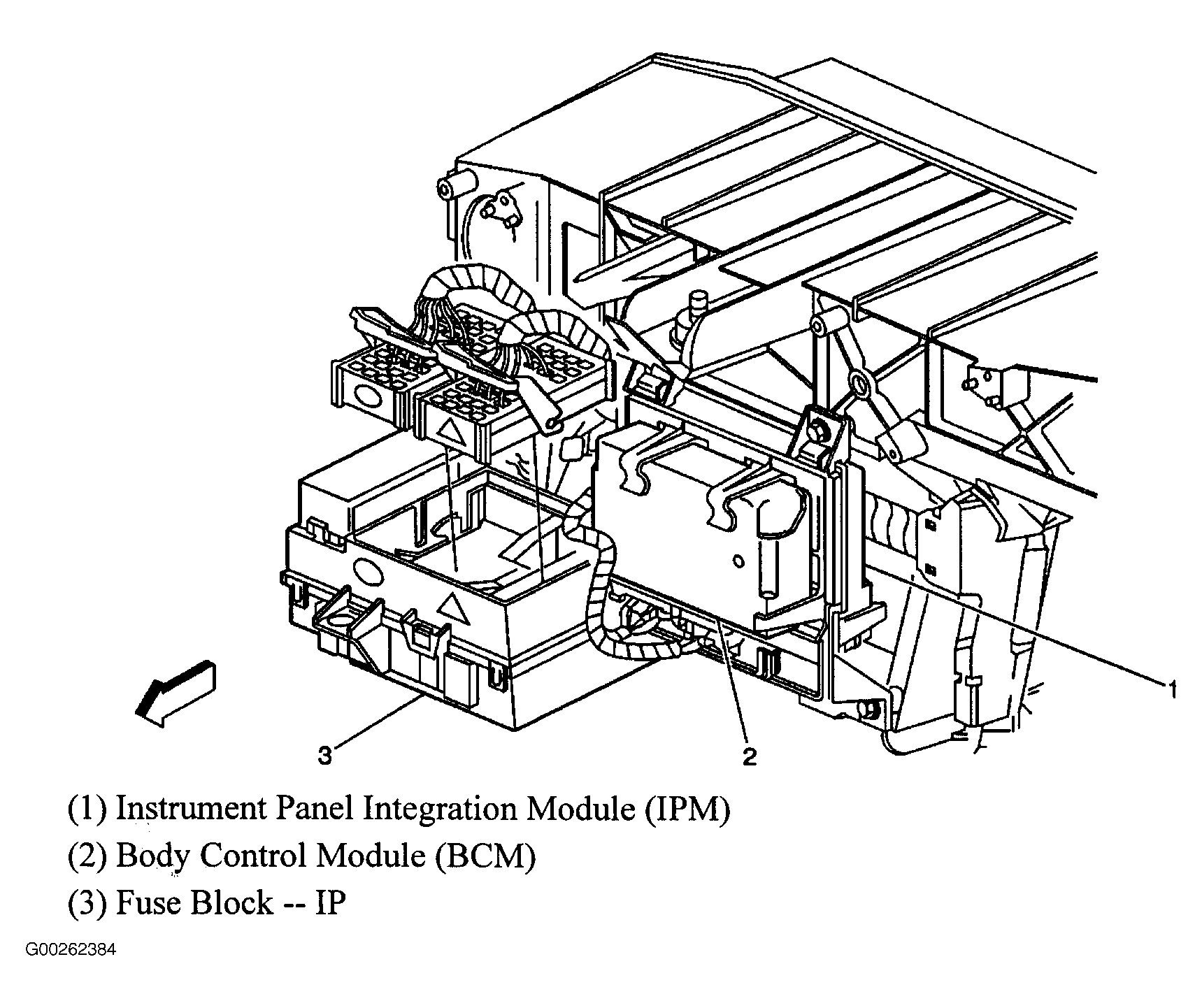

| Instrument Panel Integration Module (IPM) | Behind right side of dash, near rear of glove box. See Figure . |
| I/P Dimming Module | Behind left side of dash, right of steering column. See Figure . |

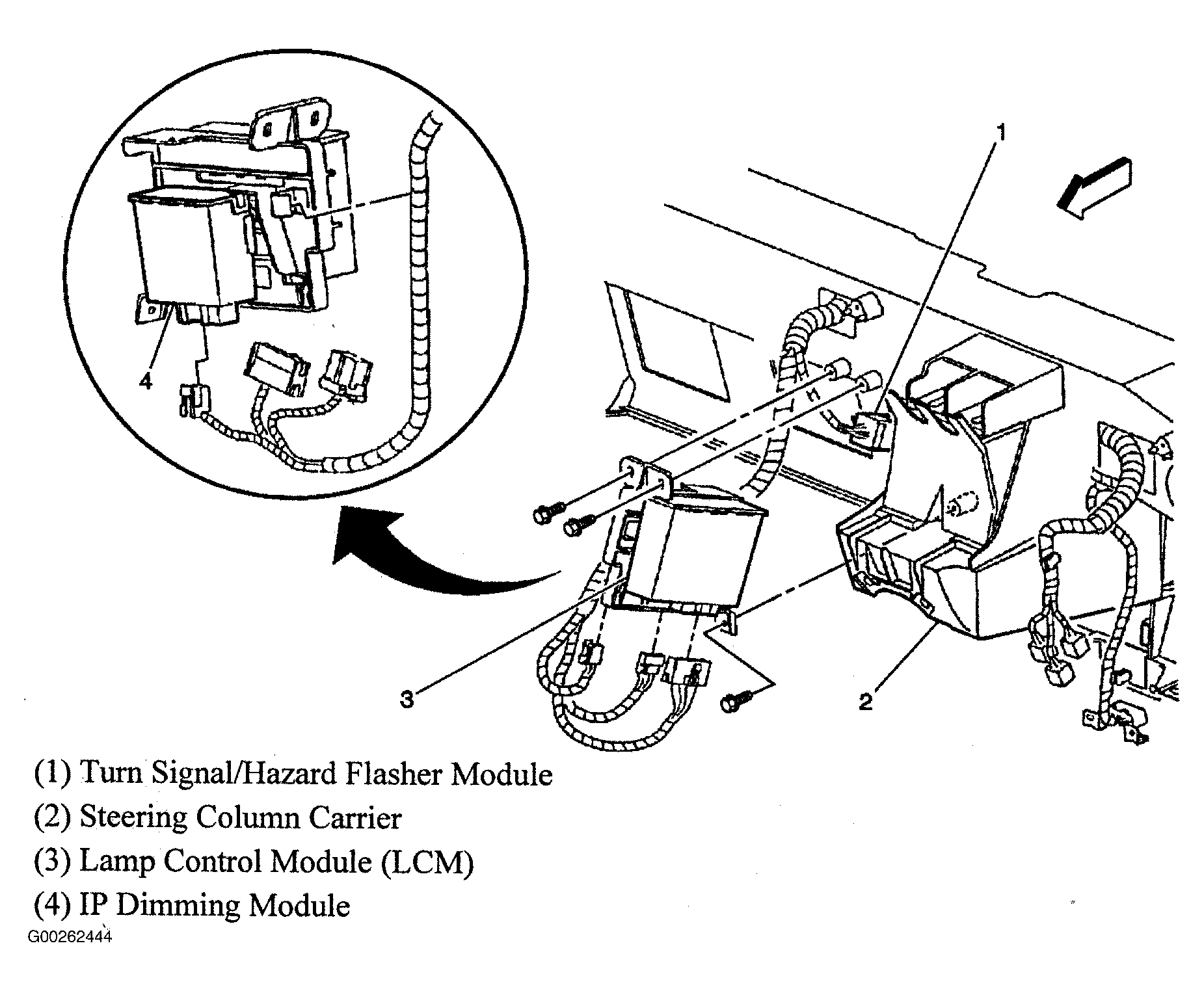

| Lamp Control Module | Behind left side of dash, right of steering column. See Figure . |

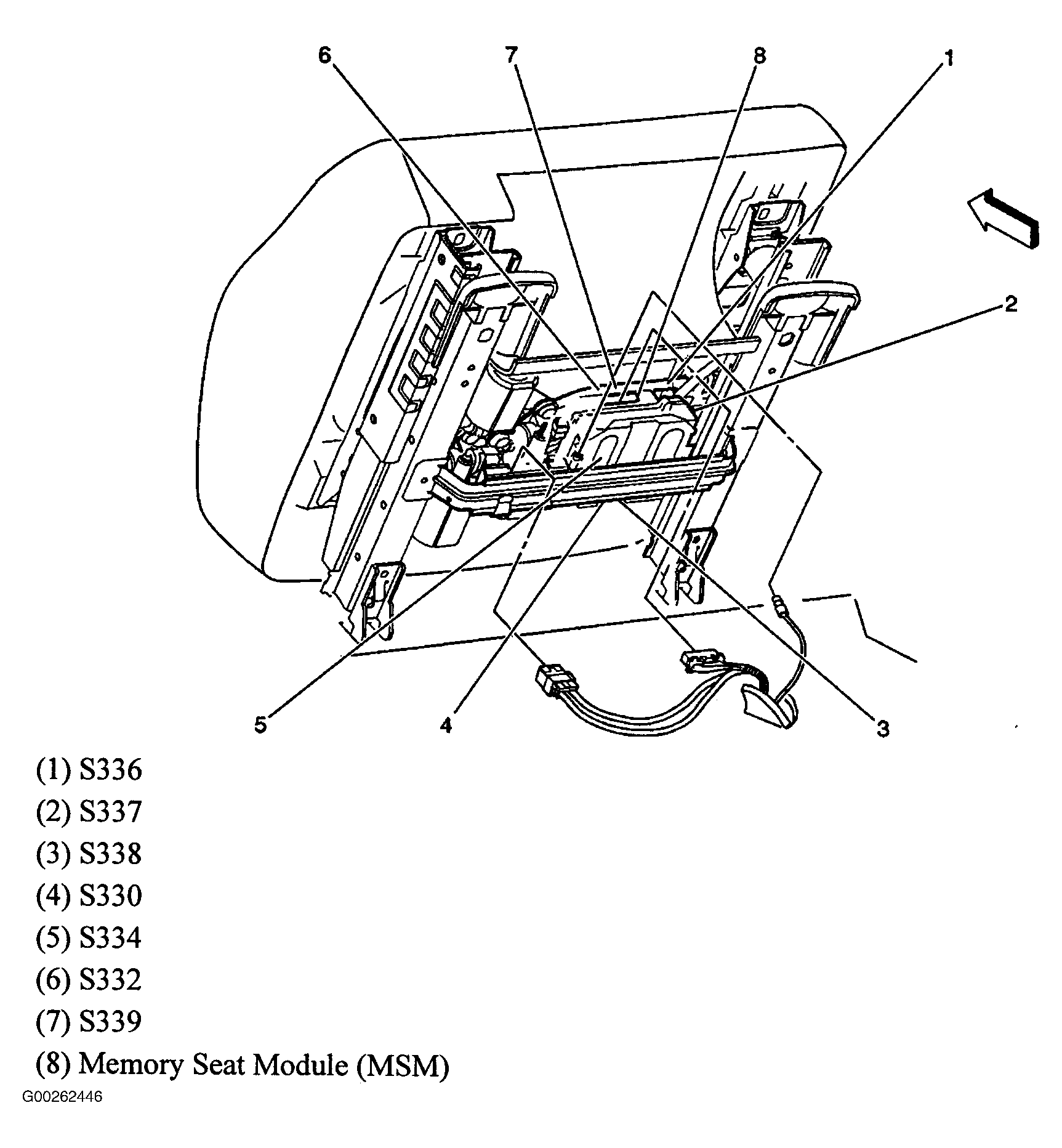

| Memory Seat Module (MSM) | On underside of left front seat, on seat adjuster frame. See Figure . |

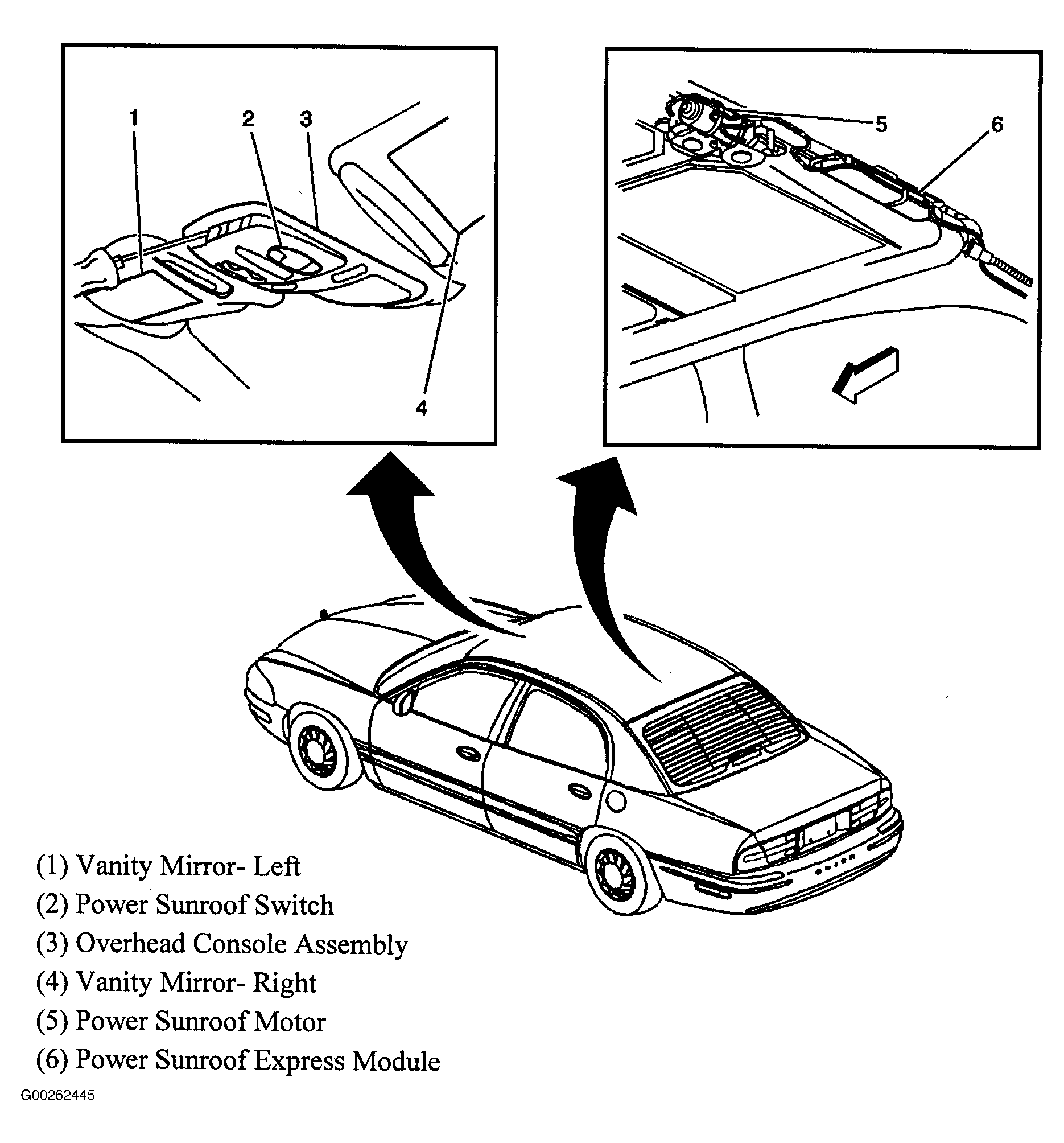

| Power Sunroof Express Module | Behind center rear of headliner. See Figure . |

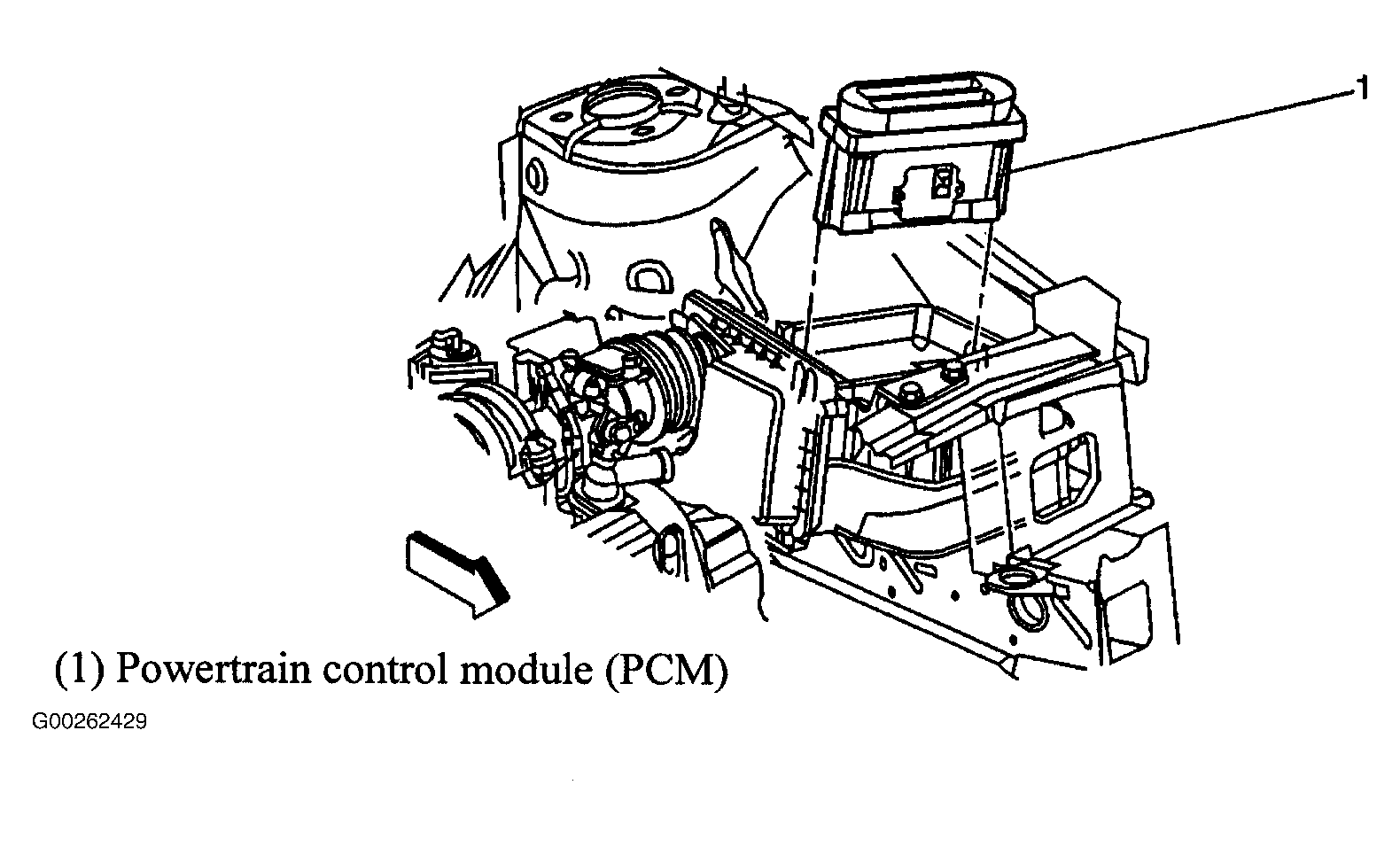

| Powertrain Control Module (PCM) | In air cleaner housing. See Figure . |
| Radio Antenna Module | Behind right rear upper sail panel. |
| Rear Object Sensor Control Module | Under right side of rear window shelf. |
| Remote Control Door Lock Receiver | Under center of rear package shelf. |

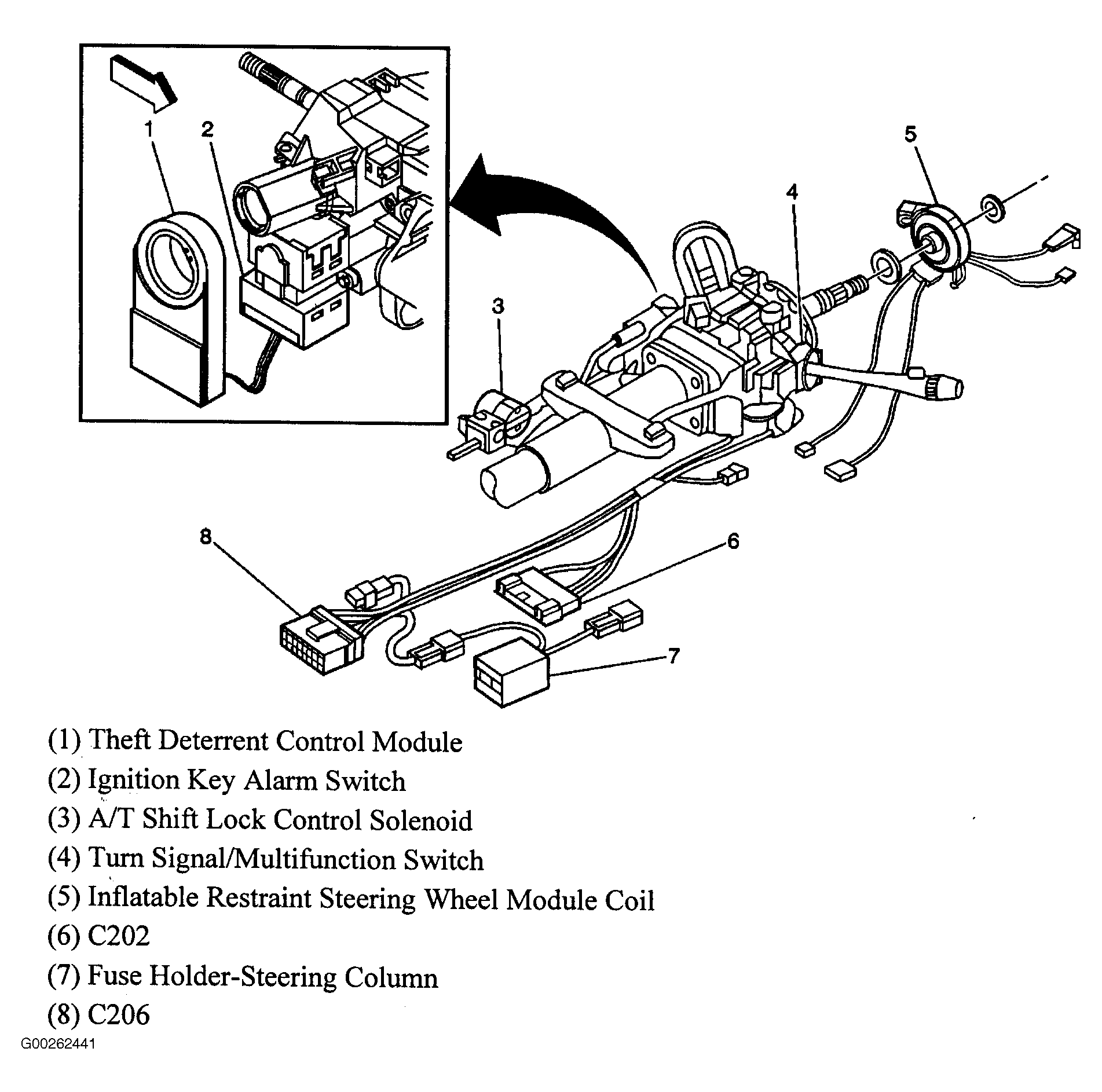

| Theft Deterrent Control Module | In steering column. See Figure . |
| Turn Signal/Hazard Flasher Module | Behind dash, right of steering column carrier. |
| Vehicle Communication Unit | On right front of trunk, attached to seat back brace. |
| Vehicle Interface Unit | On right front of trunk, attached to seat back brace. |
