Electrical Component Locator: Splices
SPLICES LOCATION
| Component | Location |
|---|---|
| S100 | In body harness, 17 cm from C115. See Figure . |
| S101 | In forward lamp harness, 54 cm from underhood fuse block. See Figure . |

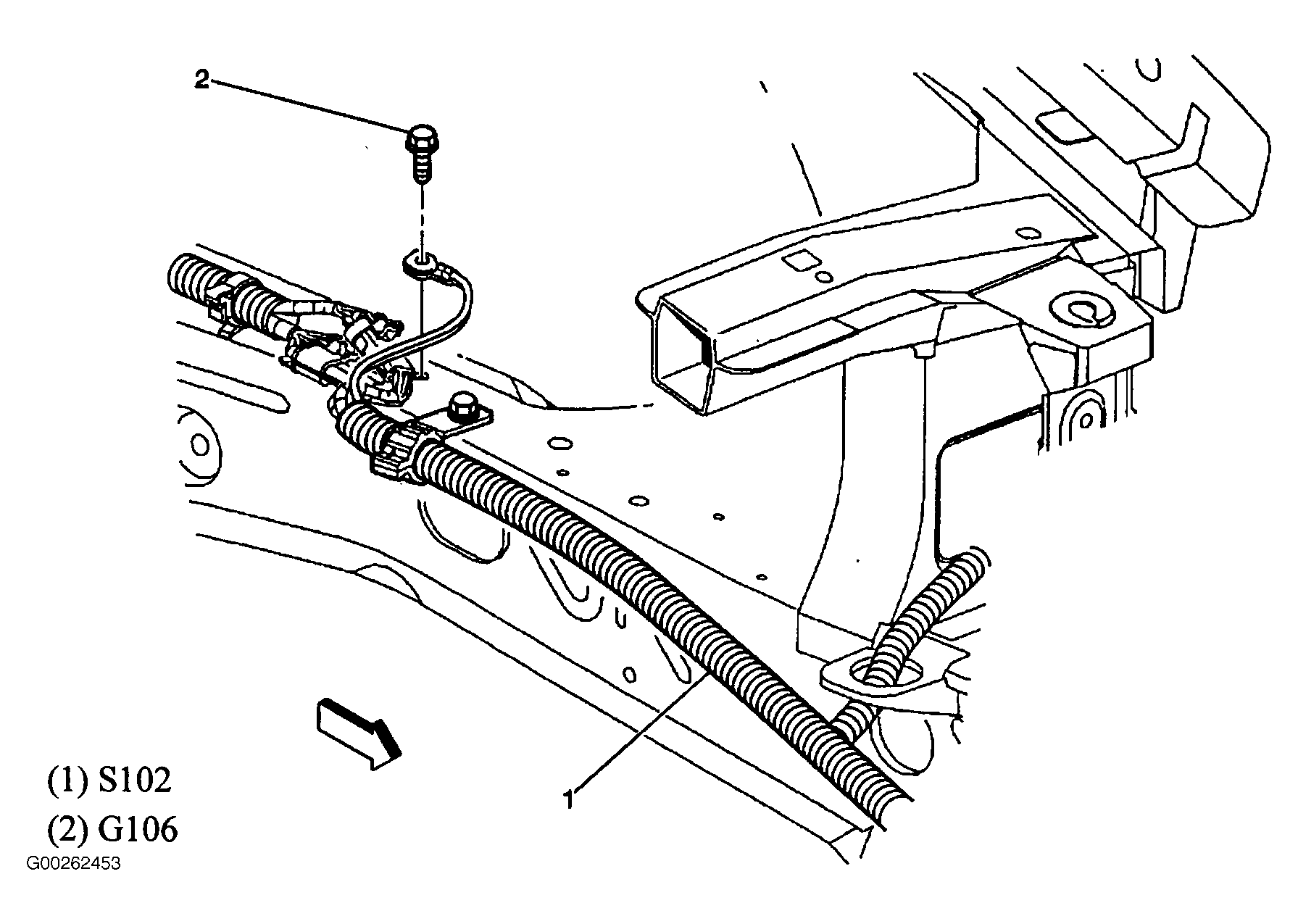

| S102 | In forward lamp harness, 33 cm from G106. See Figure . |
| S105 | In engine harness, 47.5 cm from powertrain control module. See Figure . |
| S106 | In engine harness, 18 cm from A/C compressor clutch. See Figure . |
| S107 | In engine harness, 23 cm from A/C compressor clutch. See Figure . |
| S108 | In engine harness, 6 cm from cruise control module breakout. See Figure . |
| S109 | In right headlamp harness, 15 cm from C114. |
| S110 | In left headlamp harness, 15 cm from C112. |
| S111 | In engine harness, 12.5 cm from right front wheel speed sensor harness breakout. See Figure . |
| S112 | In engine harness, 19 cm from right front wheel speed sensor harness breakout. See Figure . |
| S113 | In transaxle, 19 cm from C100. |
| S115 | In engine harness, 4 cm from powertrain control module harness breakout. See Figure . |
| S135 | In ignition harness, 21 cm from ignition control module. See Figure . |
| S136 | In ignition control module harness, 20 cm from ignition control module. See Figure . |
| S198 | In engine harness, 46.5 cm from left front wheel speed sensor breakout. See Figure . |
| S199 | In engine harness, 53 cm from left front wheel speed sensor breakout. See Figure . |
| S200 | In body harness, 7 cm from P100. See Figure . |
| S201 | In body harness, 9 cm from C203. See Figure . |
| S202 | In body harness, 30 cm from P100. See Figure . |
| S203 | In body harness, 6 cm from P500. See Figure . |
| S205 | In body harness, 38 cm from G202. See Figure . |
| S206 | In body harness, 31.5 cm from G202. See Figure . |
| S207 | In body harness, 30 cm from G201. See Figure . |
| S208 | In body harness, 35 cm from G201. See Figure . |
| S209 | In dash harness, 47 cm from data link connector. See Figure . |
| S210 | In dash harness, 18.5 cm from head-up display module. See Figure . |
| S211 | In dash harness, 48.5 cm from radio. |
| S212 | In dash harness, 51.5 cm from HVAC control. |
| S213 | In dash harness, 44 cm from HVAC control. |
| S214 | In dash harness, 13 cm before I/P control module. |
| S216 | In knee bolster, 87.5 cm from C204. |
| S217 | In knee bolster harness, 94 cm from C204. |
| S218 | In body harness, left side, 4 cm from steering column harness breakout. See Figure . |
| S219 | In body harness, left side, 7 cm from radio antenna breakout. See Figure . |
| S220 | In body harness, 46 cm from G202. |
| S221 | In body harness, 35 cm from G202. |
| S274 | In HVAC harness, 35.5 cm from mode actuator. See Figure . |
| S275 | In HVAC harness, 50.5 cm from mode actuator. See Figure . |
| S278 | In HVAC harness, 29 cm from mode actuator. See Figure . |
| S298 | In steering column harness, 20 cm from C202. |
| S299 | In steering column harness, 20 cm from C202. |
| S300 | In right side body harness, 6 cm from passenger seat harness breakout. |
| S301 | In headliner harness, 51 cm from sun roof switch. |
| S302 | In headliner harness, 60 cm from C307. |
| S303 | In headliner harness, 128.5 cm from C305. |
| S304 | In headliner harness, 47 cm from inside rearview mirror. |
| S305 | In headliner harness, 70 cm from C305. |
| S306 | In headliner harness, 58 cm from inside rearview mirror. |
| S307 | In body harness, 15 cm from sensing & diagnostic module breakout. |
| S308 | In headliner harness, 20 cm from left rear vanity light. |
| S309 | In headliner harness, 10 cm from left rear vanity light. |
| S310 | In body harness, 22 cm from C301 breakout. |
| S311 | In body harness, 32 cm from C301 breakout. |
| S315 | In rear park aid harness, 36.5 cm from C408. |
| S316 | In rear park aid harness, 56.5 cm from C408. |
| S330 | In left front seat harness, 31.5 cm from left seat switch. See Figure . |
| S331 | In right front seat harness, 31.5 cm from right front seat switch. See Figure . |
| S332 | In left front seat harness, 24.5 cm from C309. See Figure . |
| S333 | In right front seat harness, 46 cm from right seat switch. |
| S334 | In left front seat harness, 15 cm from memory seat module. See Figure . |
| S335 | In lumbar harness, 50 cm from C322. |
| S336 | In left front seat harness, 24.5 cm from C309. See Figure . |
| S337 | In lumbar harness, 50 cm from C322. See Figure . |
| S338 | In left front seat harness, 31.5 cm from left seat switch. See Figure . |
| S339 | In left front seat harness, 9.5 cm from C309. See Figure . |
| S350 | In center console harness, 30 cm from C308. |
| S351 | In center console harness, 34 cm from C308. |
| S360 | In OnStar(R) harness, 10 cm from C345. |
| S361 | In OnStar(R) harness, 12 cm from C345. |
| S400 | In body harness, 30 cm from G402. See Figure . |

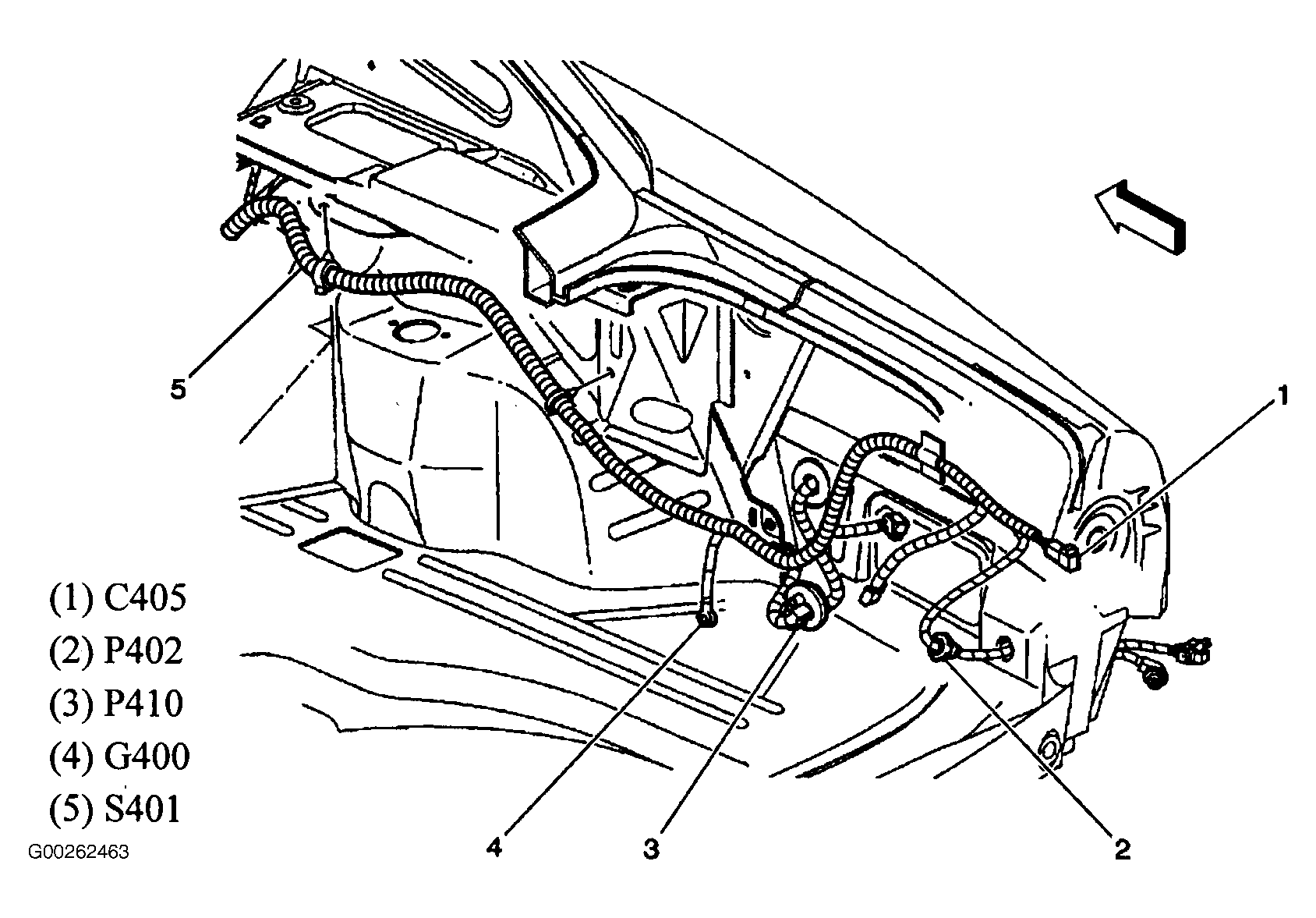

| S401 | In body harness, 80 cm from C305. See Figure . |
| S402 | In left rear corner lamp harness, 17.5 cm from C404. |
| S403 | In right rear corner lamp harness, 17.5 cm from C405. |
| S404 | In left rear corner lamp harness, 10 cm from C404. |
| S405 | In right rear corner lamp harness, 10 cm from C405. |
| S406 | In taillamp harness, 16.5 cm from C401. |
| S407 | In taillamp harness, 6.5 cm from license light breakout. |
| S408 | In taillamp harness, 12 cm from license light breakout. |
| S409 | In taillamp harness, 10 cm from C401. |
| S500 | In left front door harness, 15.5 cm from left door switch breakout. See Figure . |
| S501 | In left front door harness, 4 cm from left door switch breakout. See Figure . |
| S502 | In left front door harness, 23 cm from left door switch breakout. See Figure . |
| S503 | In left front door harness, 29.5 cm from left door switch breakout. See Figure . |
| S600 | In right front door trim harness, 61 cm from C602. |
| S601 | In right front door trim harness, 77.5 cm from C602. |
| S602 | In right front door trim harness, 71.5 cm from C602. |
