Removal Procedure

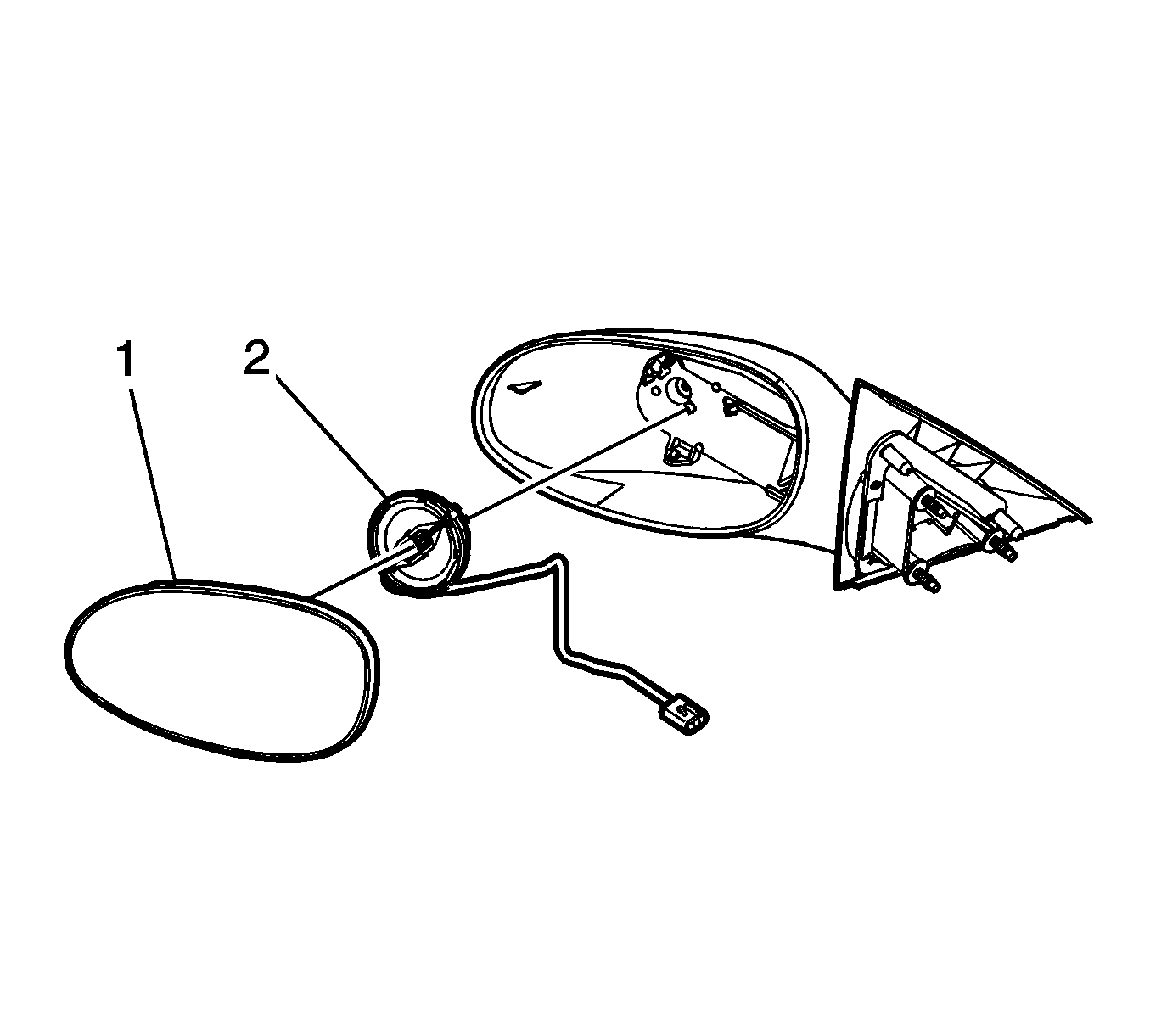

    Fig 1: Power Mirror Motor
    GM1572895Courtesy of GENERAL MOTORS CORP.
  1. Remove the mirror face (1). Refer to Mirror Face Replacement .
  2. Remove the screw from the mirror motor (2).
  3. Disconnect the electrical connector from the edge of the mirror motor.

    Note the position of the plugs on the mirror motor when removing.

  4. Remove the motor.
