Door Lock/Indicator Schematics

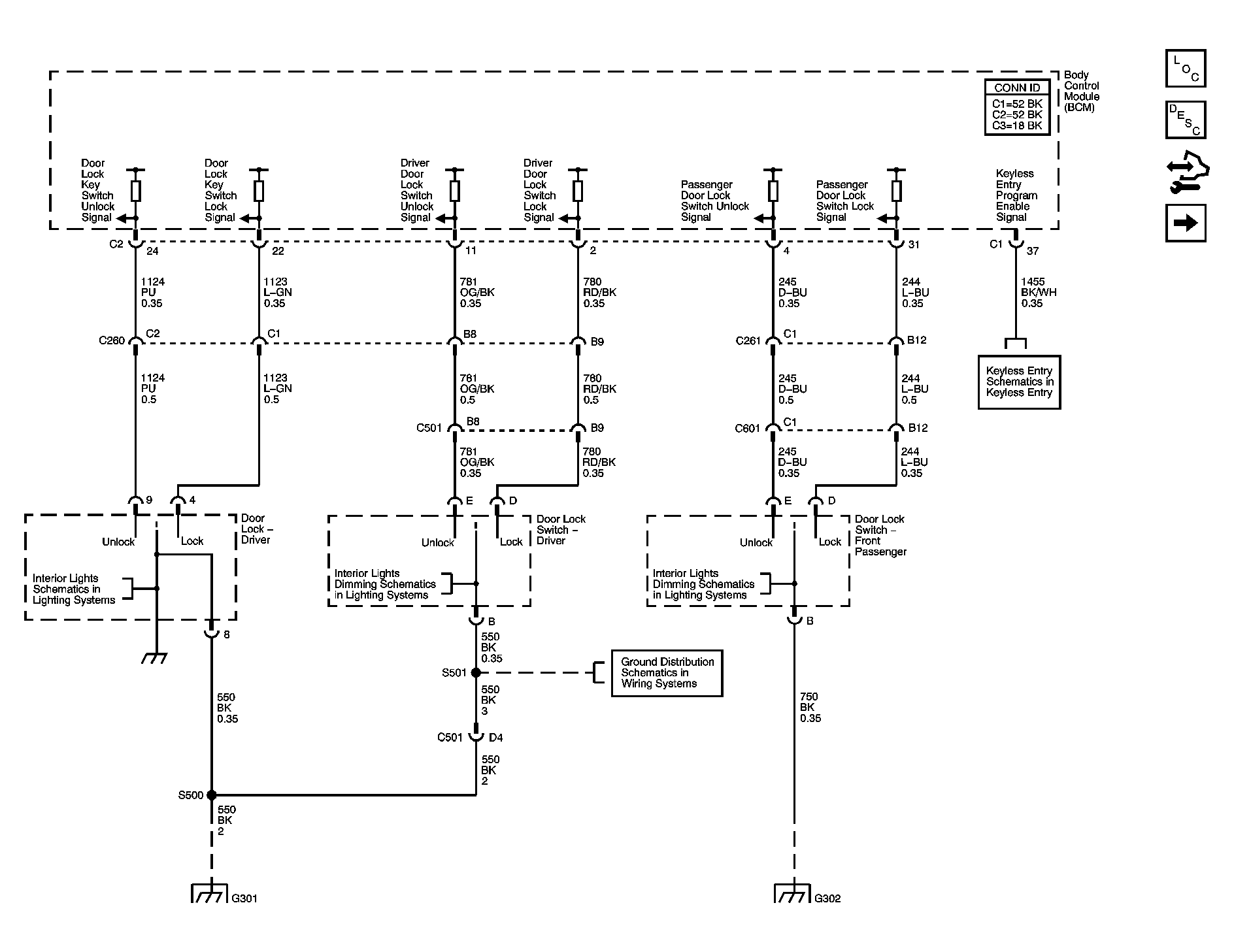

Fig 1: Switches Schematic

Courtesy of GENERAL MOTORS CORP.

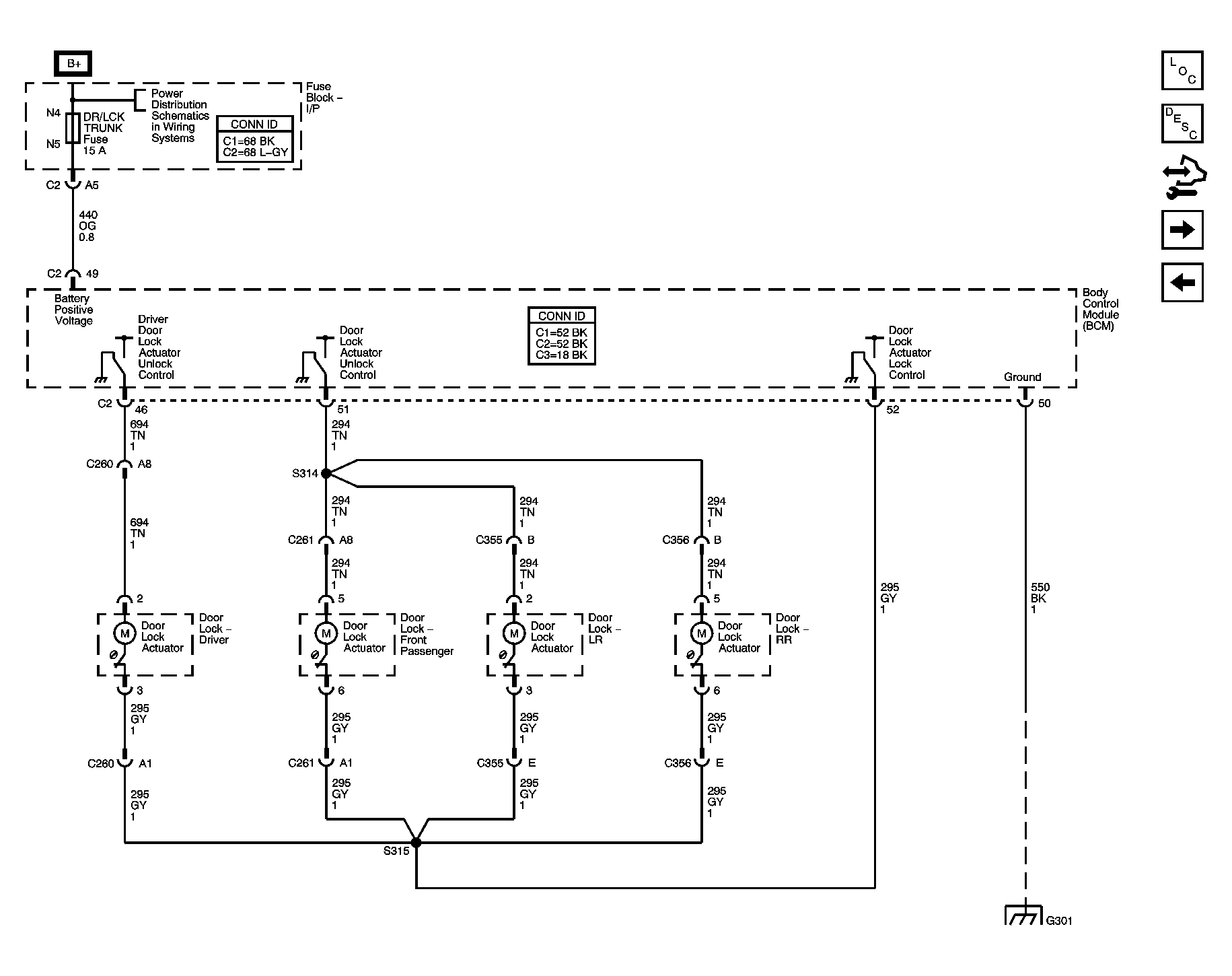

Fig 2: Actuators Schematic

Courtesy of GENERAL MOTORS CORP.

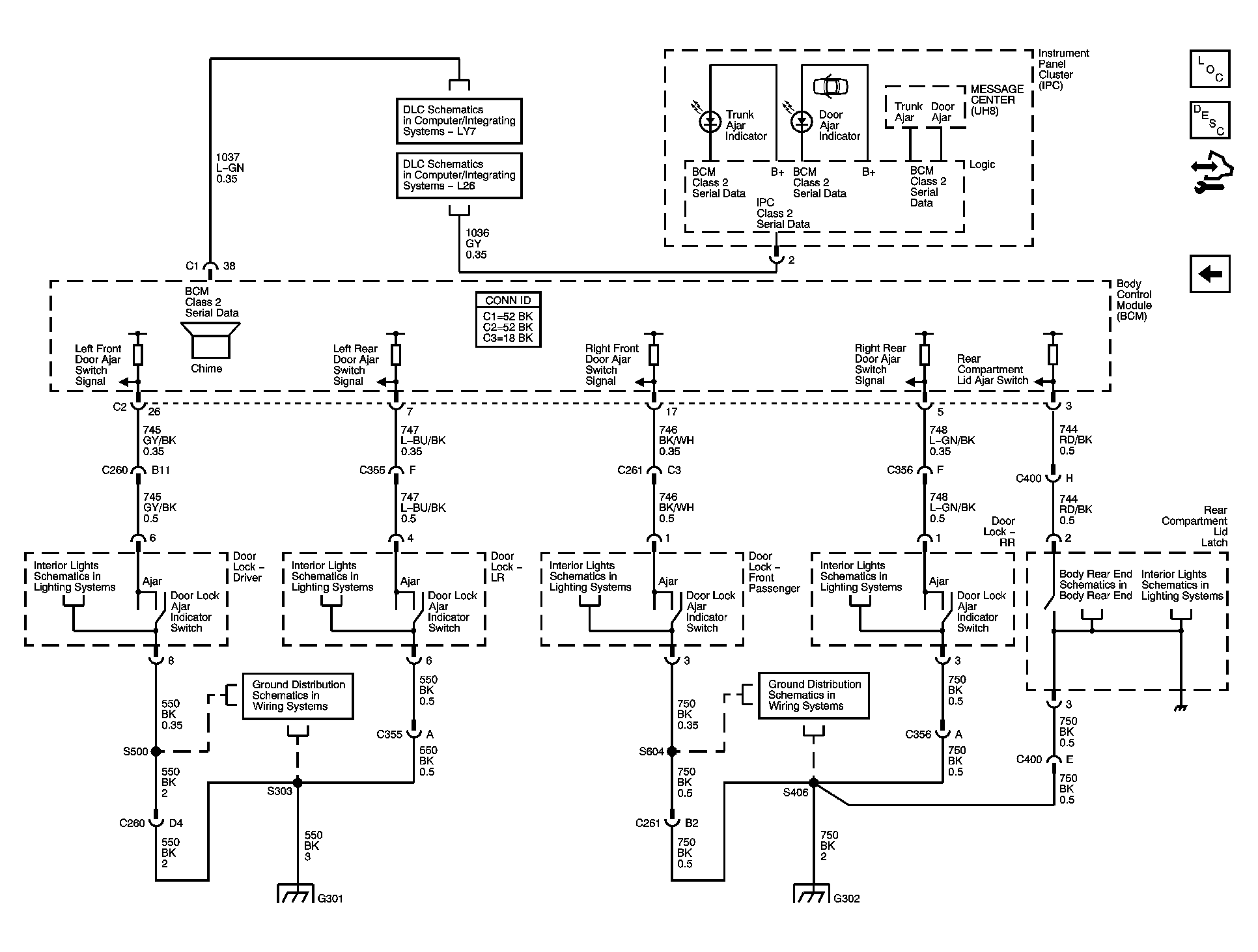

Fig 3: Ajar Indicators Schematic

Courtesy of GENERAL MOTORS CORP.
