Navigation System Component Views

WARNING: This page is about a different car, the 2005 Hummer H2. However, it is still accessible from the selected car via links, so may be relevant.

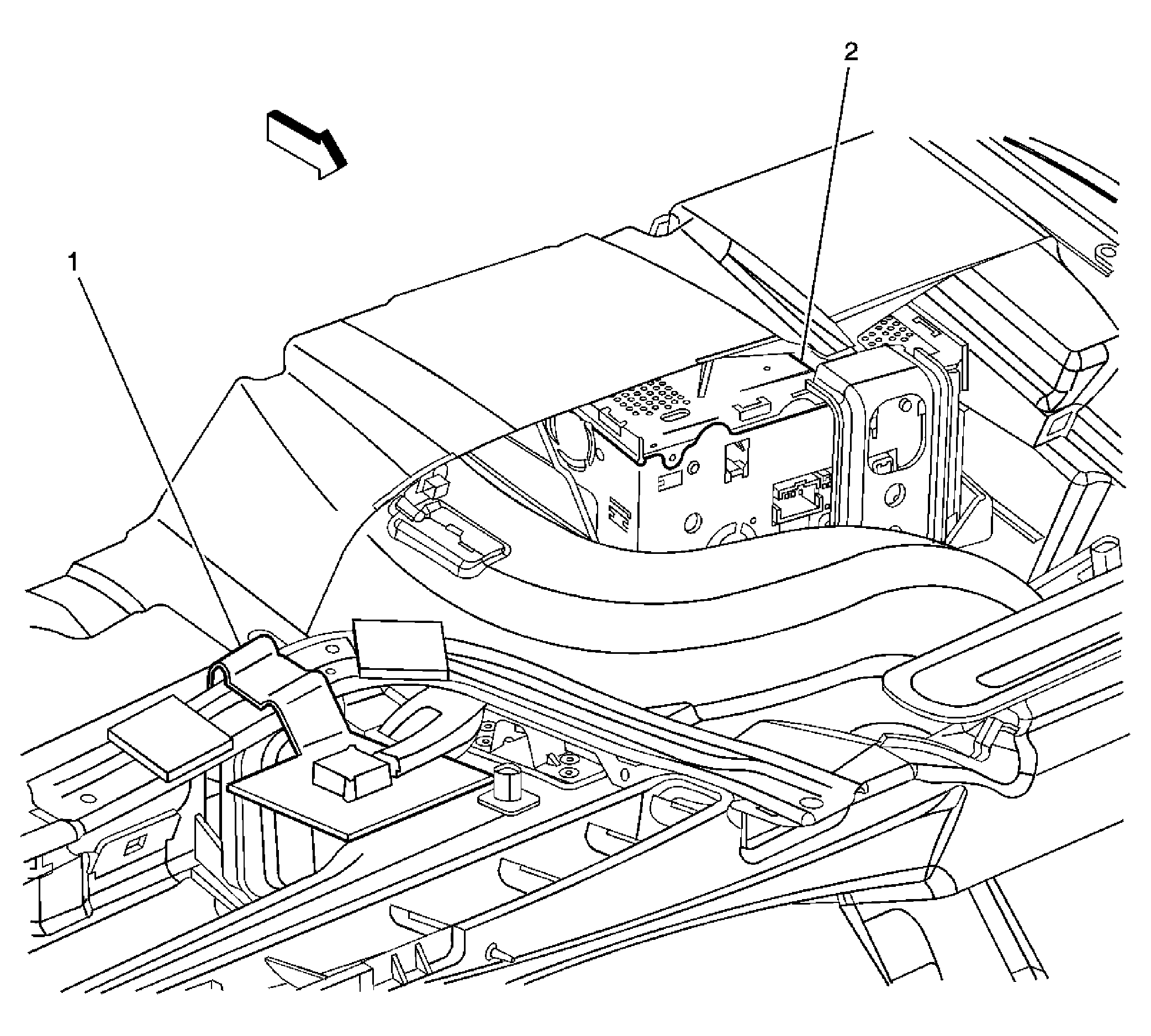

Fig 1: Navigation Antenna

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Navigation Antenna
2	Radio
