Removal Procedure

  1. Remove the front door water deflector. Refer to Water Deflector Replacement - Front Door .
  2. Disconnect the front door inside handle rods.
  3. Disconnect the front door inside handle rods from the front door inside rod block.
    4. Fig 1: View Of Front Door Inside Handle Rod - Front Door Lock
    GM315751Courtesy of GENERAL MOTORS CORP.
  4. Disconnect the front door outside handle rods.
    5. Fig 2: Outside Door Handle Rod - Front Door
    GM293875Courtesy of GENERAL MOTORS CORP.
  5. Remove the front door lock screws (1, 2, 3).
    6. Fig 3: Identifying Door Lock Components
    GM315760Courtesy of GENERAL MOTORS CORP.
  6. Remove the front door lock from inside the front door.
  7. Disconnect the front door lock electrical connectors.

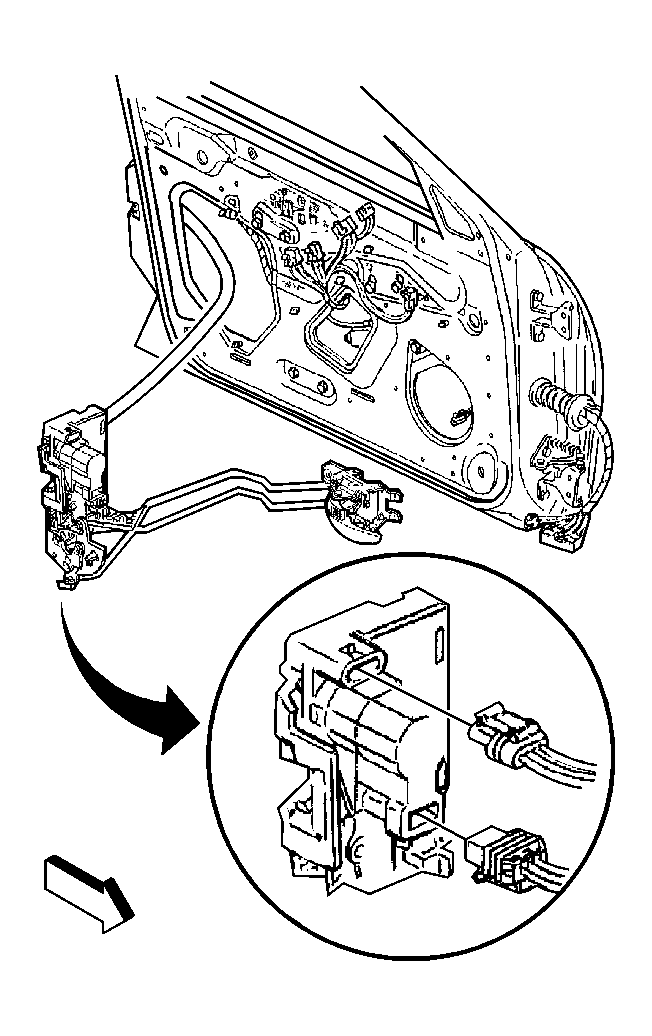

    8. Fig 4: Front Door Lock Electrical Connectors
    GM315755Courtesy of GENERAL MOTORS CORP.
  8. Remove the front door inside handle rods from the front door lock.
