Power Window Schematics

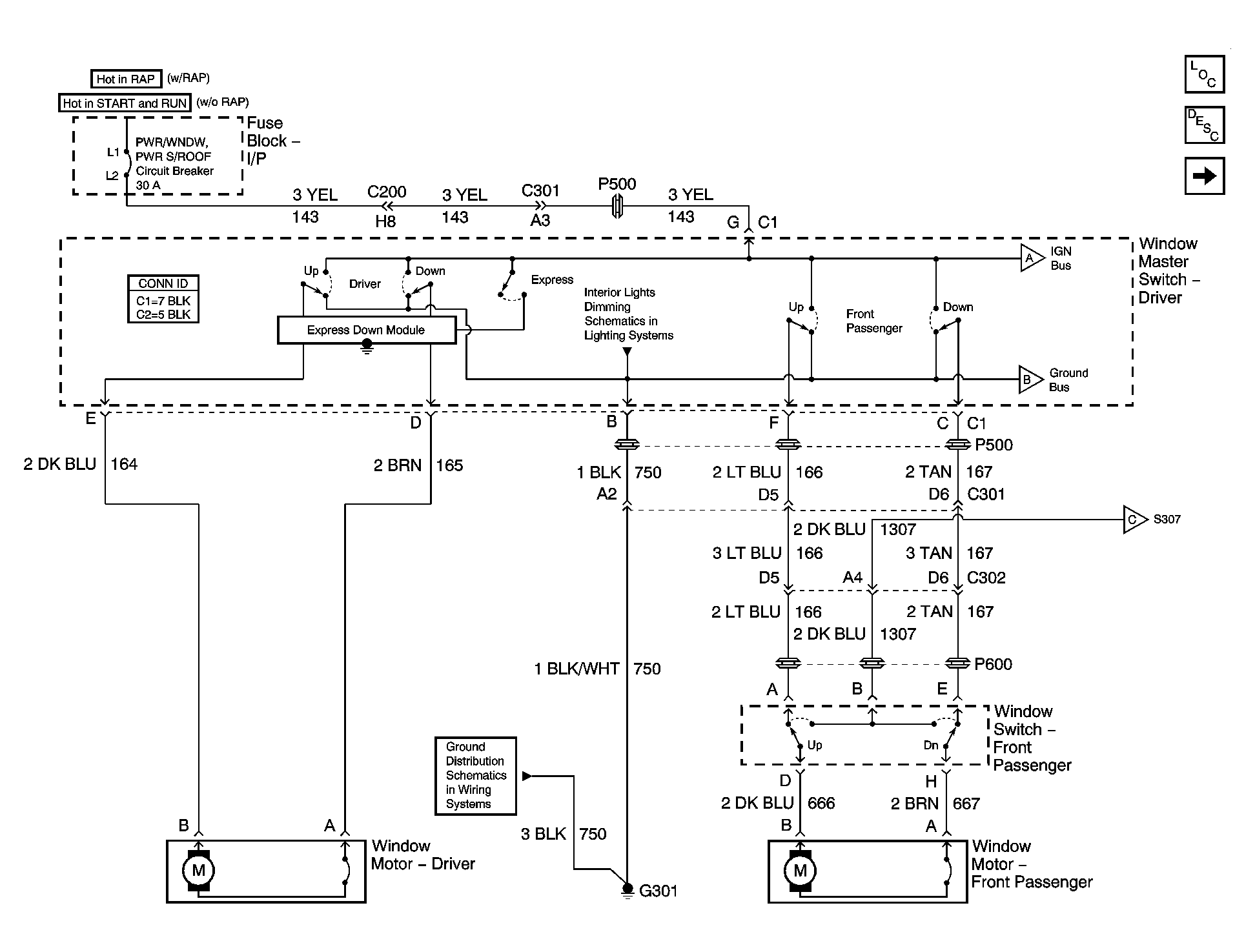

Fig 1: Power Window Schematics, Front
GM1383279Courtesy of GENERAL MOTORS CORP.
Fig 2: Power Window Schematics, Rear
GM819987Courtesy of GENERAL MOTORS CORP.
