ABS Schematics

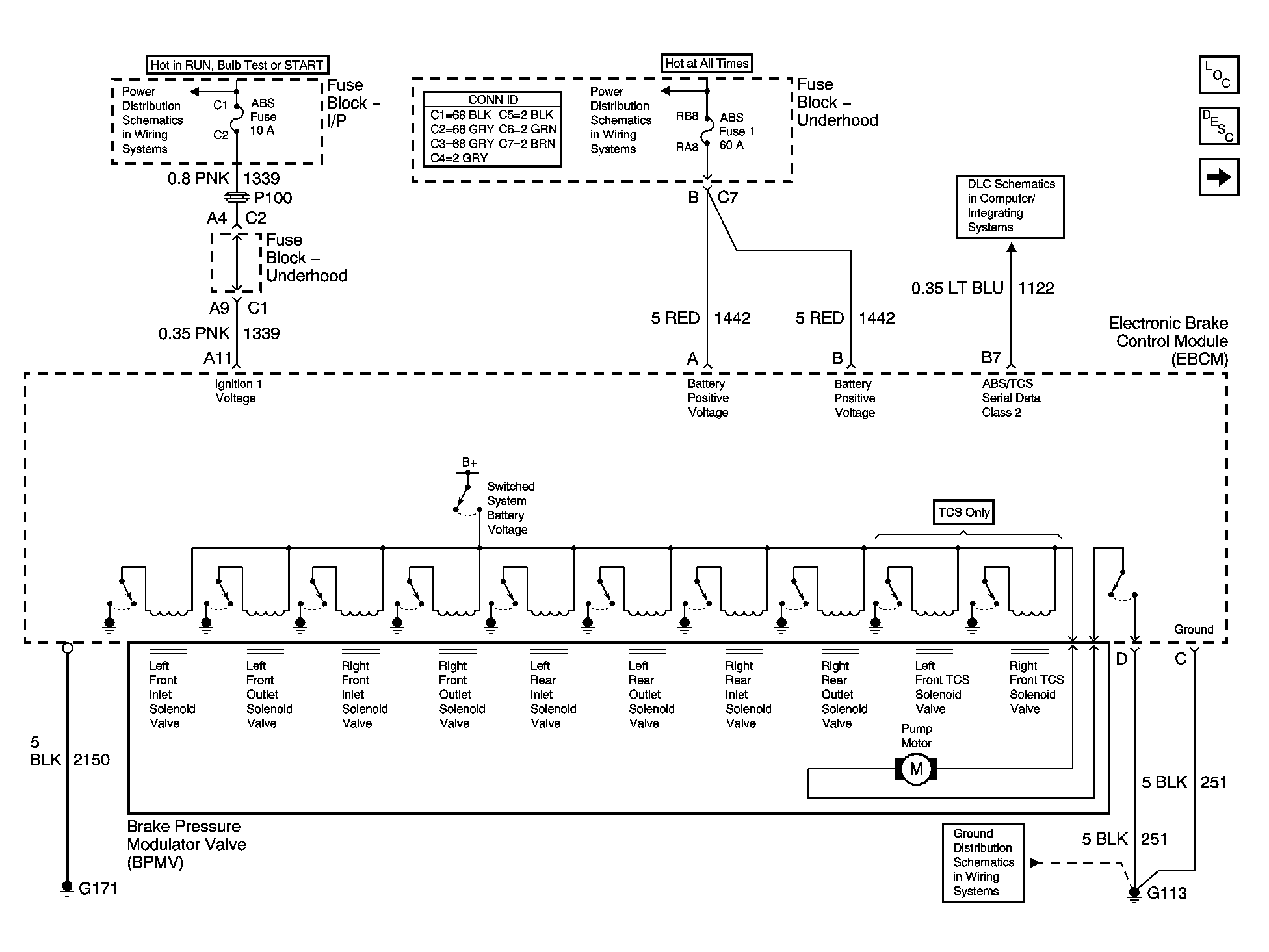

Fig 1: Power, Ground, and Serial Data Schematic

GM1469705

Courtesy of GENERAL MOTORS CORP.

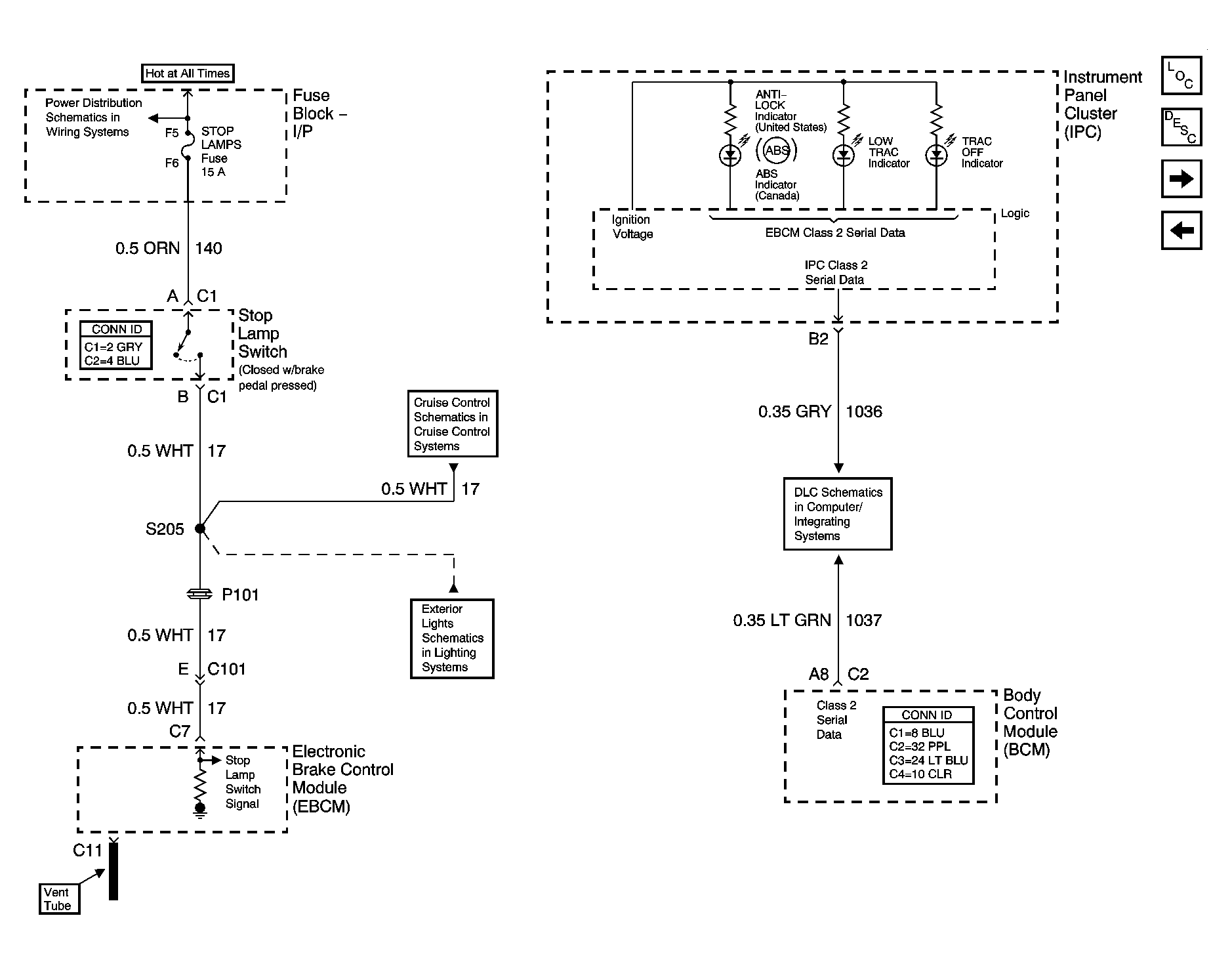

Fig 2: Indicators and Stop Lamp Schematic

GM1379854

Courtesy of GENERAL MOTORS CORP.

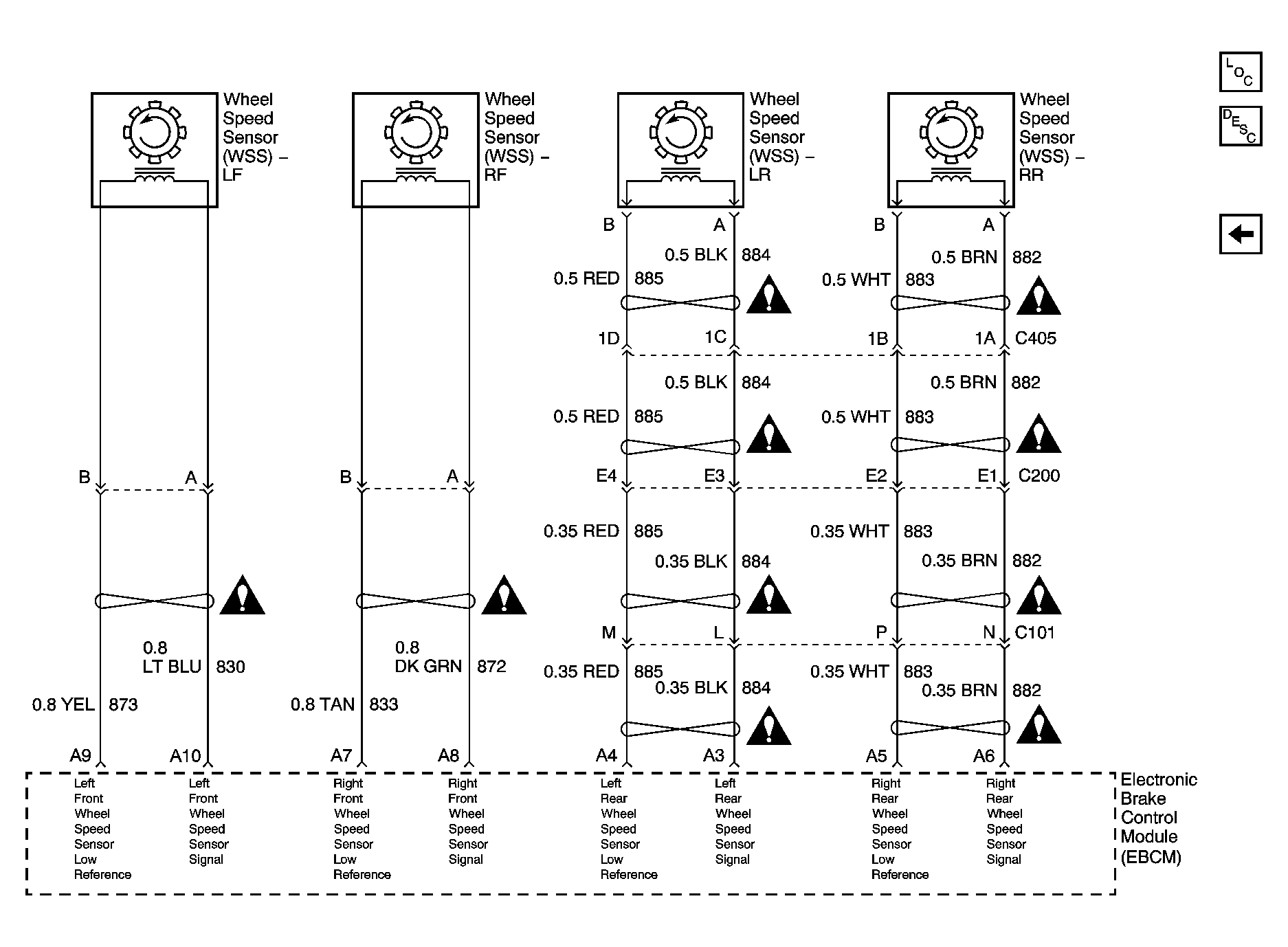

Fig 3: Wheel Speed Sensors Schematic

GM1353605

Courtesy of GENERAL MOTORS CORP.
